Foreword

Nowadays, to say that the programming language of the comparison is JavaScript and Python. These two languages ​​can be independently written, backend servers, mobile apps, computer clients, etc., omnipos. However, different programming languages ​​have different focuses. For example, JavaScript write web pages should be worn, Python handles big data letter hand. So, can you take advantage of the two, build a cross-platform client framework? This has the protagonist today:vue-pywebview-pyinstaller。

Application introduction

vue-pywebview-pyinstaller It is an application based on Vue3, PywebView and Pyinstaller framework, build MacOS and Windows platform clients. The view layer of this application uses HTML + JS + CSS, and the business layer is local Python. Considering that some biological calculation scene data is large, data is private, so the data is uploaded to the server calculation, and it is not necessarily the optimal solution, and the choice of local Python is also a good choice. However, if you need to call the remote API, this application is also supported.

Application advantage

• Develop view layers with Vue3 framework, simple and efficient
• Python programming voice development business layer, rich module
• This application has packaged package, one-click to generate client applications for MacOS and Windows platforms. Developers only need to pay attention to attempting effects and business logic itself, hand over heavy complex packaged links to this application.

Applicable scene

• There is a certain sense of demand for the user interface of the software.
• Need to use the artificial intelligence, life analysis and other modules in Python
• Consider building a local application, using this machine and store resources

For people

Familiar with Vue3 and Python programmers.

Application installation

Operating environment

• npm6.0+ (NodeJS installation tutorial)
• Python3.5-3.8 (Python installation tutorial)

Notice: Under the Windows system, because PyWebView3 relying on the PythonNet package only supports Python3.5-3.8 version, it is recommended that Win users use Python 3.8 version.

Application download

Use git (Git installation tutorialDownload the app, as shown below:

git clone https://github.com/pangao1990/vue-pywebview-pyinstaller.git

Or, directly in mygithub download.

#
cd vue-pywebview-pyinstaller

Enter the project, the list of projects is as follows:

initialization

After the download is complete, run the initialization command, the program will automatically download the required dependency software installation corresponding to the operation platform, as shown below:

# Initialization
npm run init

If there is no error message, the initialization is complete, as shown below:

There is a Node_Modules folder in the project, used to store NPM download packages; there is a Pyenv folder to store the Python virtual environment.

Application operation

Enter the following command to start the application:

npm run start

The terminal is shown as follows:

At the same time, a client program will start, as follows:

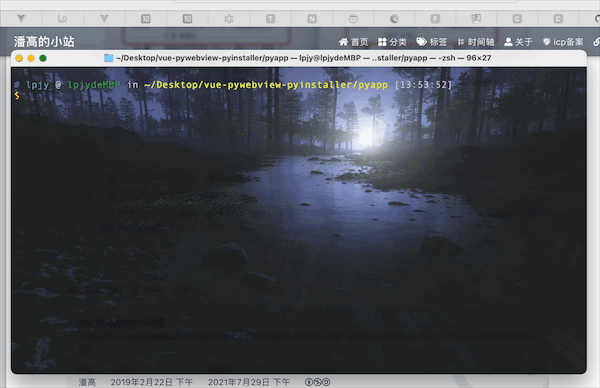

The overall effect is as follows (GIF picture load may be slow):

Advanced usage

Client engine introduction

This application is based onpywebview Build a client. The principle of the PywebView architecture construction client is to use the browser engine driver comes with the local computer to simulate the generated client. Essentially is also a web page, or a browser, but there is no difference between the sensory and the local client.

Then, based on the success or quality of the PywebView architecture, it is closely related to the local computer's browser engine.

Windows system

On the Windows system, it is generally divided into two types of client engines: normal mode and compatibility mode.

• Normal mode

In normal mode, in order to retrieve in the client engine of Edgechromium, Edgehtml, MSHTML. If the local computer EDGE browser supports these engines, the client can start normally. Otherwise, please install the correspondingEdgeWebView2Runtime The browser engine.

• Compatibility mode

If the local computer Edge browser does not support these engines, don't want to downloadEdgeWebView2Runtime Then you can use a compatibility mode. The principle of compatibility model is to useCEFPythonEmbed a WEB browser control of Chromium. That is, as long as the local computer has installed Google browser V66 and its above, the client can be started normally. Disadvantages is that the generated installation package volume will increase approximately 60m.

MacOS system

There is not so much version of the MacOS system browser engine. Due to the closure of the MacOS system, there is only one webkit engine available in the MacOS system.

However, there is another problem in the MacOS system. That is the M1 chip of Apple's independently developed. Since the Windows system is visible everywhere, I can find a lot of computer tests. I only have a M1 chip and an X86_64 chip and can't do more tests. In short, the client in which I have built in the two Apple computers cannot cross the use, and the reason is unknown.

Build a client API

Building a client's main program is main.py and maincef.py under the Pyapp folder, as shown below:

The contents of the maincef.py script are almost exactly the same, that is, a CEF mode is added to the compatibility mode of the Windows system.

Main.py mainly relying on WebView.create_Window and WebView.Start two APIs to build clients. Other some APIs, I will also introduce in the following tutorial. Or you can view directlyPywebView official website Learn more.

webview.create_window

webview.create_window(title, url='', html='', js_api=None, width=800, height=600, \
                      x=None, y=None, resizable=True, fullscreen=False, \
                      min_size=(200, 100), hidden=False, frameless=False, \
                      minimized=False, on_top=False, confirm_close=False, \
                      background_color='#FFF')

Create a new PyWebView window and return it. The window does not display before starting the GUI loop.

• title Window header
• url The URL to be loaded. If the URL does not have a protocol prefix, resolve it to the path relative to the application entry point. Alternatively, you can pass the WSGI server object to start the local web server.
• html HTML code to load. If the URL and HTML, HTML is preferred.
• js_api Expose the Python object to the DOM of the current PywebView window. The method of the JS_API object can be done by calling Window.pyWebView.api. () Execute it from JavaScript. Note that calling the JavaScript function will receive a return value containing the Python function. Only basic Python objects (such as int, str, dict ...) can return JavaScript.
• width Window width. The default is 800px.
• height Window height. The default is 600px.
• x Window X coordinate. The default is home.
• y Window y coordinate. The default is home.
• resizable Can I adjust the window size. Default is true
• fullscreen Start from full screen mode. Default is false
• min_size Specifies the minimum window size (width, height) tuple. The default is 200x100
• hidden Create a hidden window by default. Default is false
• frameless Create a frameless window. The default is false.
• minimized Start with minimization mode
• on_top Set the window to the top of the other window. The default is false.
• confirm_close Whether the window closes the confirmation dialog box. Default is false
• background_color Background color of the window displayed before the WebView is loaded. Specifies as hexadecimal colors. The default is white.
• transparent Create a transparent window. Windows is not supported. The default is false. Note that this setting will not hide or make the window chrome transparent. Hide the window Chrome SetFrameless to TRUE.

webview.start

webview.start(func=None, args=None, localization={}, gui=None, debug=False, http_server=False)

Start the GUI loop and display the previously created window. This function must be called from the main thread.

• func The function called when the GUI loop is started.
• args Function parameters. Can be a single value or a meta value.
• localization Dictionary with localized strings. Default strings and their keys define in localization.py
• gui Force specific GUI. The allowable value is Cef, Qt or GTK, depending on the platform.
• debug Enable debug mode.
• http_server Enable the built-in HTTP server. If enabled, the local file will serve the local HTTP server on a random port. For each window, a separate HTTP server will be generated. This option will be ignored for non-local URLs.

Domain communication

Call JavaScript from Python

Window.evaluate_JS (CODE, CALLBACK = NONE) Allows you to perform any JavaScript code using the last value returned by the synchronous returns. If the callback function is provided, the promise is parsed, and the callback function is called, and the result is the parameter. The JavaScript type is converted to a Python type, such as the JS object to the Python dictionary, array to the list, is not defined as None. Due to implementation, string "null" will be calculated as NONE. In addition, the value returned by EVALUATE_JS is limited to 900 characters.

Call Python from JavaScript

Calling the Python function from JavaScript can be done by two different ways.

• By exposing an instance of the Python class to the JS_API of Create_Window. All modified methods of this class will be disclosed in the JS domain in the form of pywebview.api.method_name. The method name is not started with the underscore.
• By passing the function to the expose (FUNC) of the window object, one or more functions will be disclosed in the form of pywebview.api.func_name to the JS domain. Unlike the JS API, Expose also allows the function to be disclosed at runtime. If the JS API is conflicted between the functions disclosed in this way, the latter is preferred.

Package client

PywebView suggests MacOSpy2app Pack, Windowspyinstaller Pack. But I found that Pyinstaller can also be able to pack MacOS applications, although the transplant is a bit problem.

I didn't introduce Pyinstaller's packaging method, and I will have a detailed package introduction of this framework. Here I will pack the package method in the application, just pack it by command.

#  , with console, easy to output log information
npm run pre

 #  , with console, compatibility mode, only WIN system
npm run pre:cef

 #  , with console, generate folders, only WIN system
npm run pre:folder

 #  , with console, generate folders, compatible mode, only WIN system
npm run pre:folder:cef


 # Officially packaged
npm run build

 # Officially packaged, compatible mode, only WIN system
npm run build:cef

 # Officially packaged, generate folders, only WIN system
npm run build:folder

 # Officially packaged, generate folders, compatible mode, only WIN system
npm run build:folder:cef

---
