Create cross-platform applications with Electron (first bullet)
Create a cross-platform application serialization directory with Electron:
- Create cross-platform applications with Electron (first bullet)
- Create a cross-platform application with Electron (second bullet) to open multiple windows
- Create a cross-platform application with Electron (third bullet) to open system notifications
Electron is an open source framework developed by GitHub that uses Node.js (as a backend) and Chromium (as a front end) to complete cross-platform development of desktop GUI applications. Currently, Electron has created a large number of applications including VScode and Atom. .
- if you have
html，css，js,NodejsFoundation, mastering Electron will be a very easy task- If you are a front-end engineer and have mastered Electron, you can create cross-platform desktop applications without learning C, Java, or Python.
Install electron
npm install -g electron
Create a project with electron-forge
Electron-forge is a scaffolding program (similar to create-react-app) that helps us quickly build an electron application. Once the application is created, we edit it directly.
src/index.htmlYou can quickly get started with the electron desktop program. Here are the specific steps to create and a few simple and practical little demos.

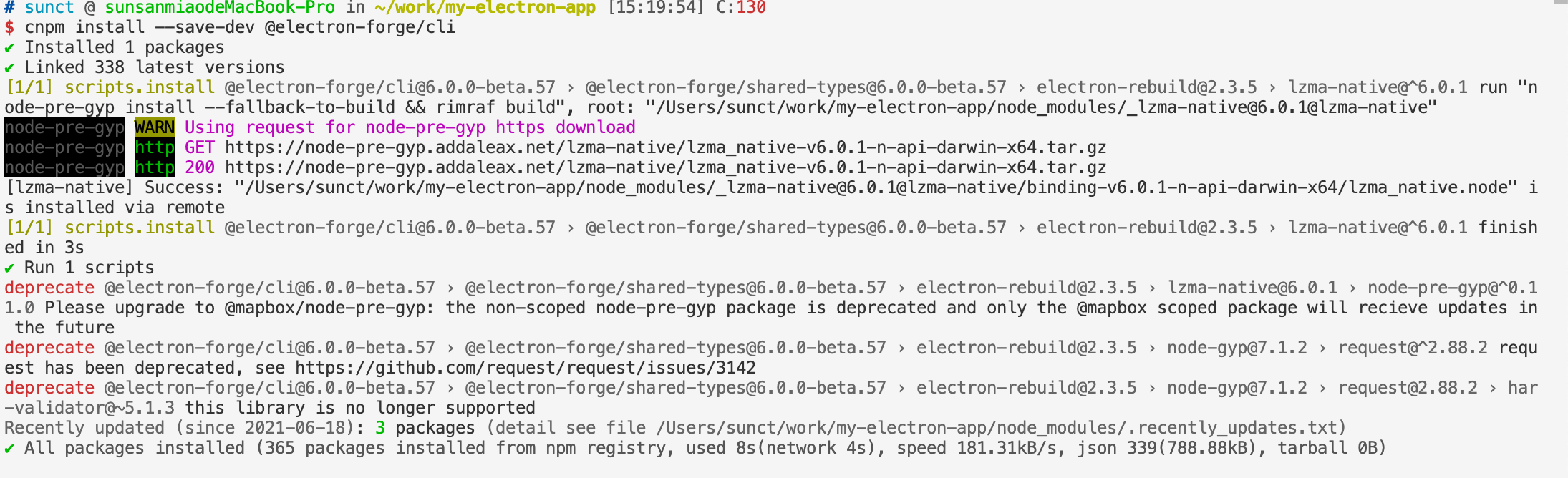

Global installation of electron-forge
npm install -g electron-forge
Create projects quickly with electron-forgezhaoolee-electron-app
electron-forge init zhaoolee-electron-app
Open project
cd zhaoolee-electron-app
npm start
Demo1: Change index.html content, layout with html css
- Index.html source code
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>Five levels of engineers</title>
</head>
<body>
<style>
.title {
font-weight: bold;
font-size: 36px;
}
ol li {
list-style: none;
color: #413F43;
font-size: 26px;
line-height: 40px;
position: relative;
}
ol li:hover {
background-color: #FCF6E5;
}
ol li:hover:after {
font-size: 20px;
border: 1px solid #AB3319;
border-radius: 5px;
content: attr(data);
position: absolute;
right: 0;
opacity: 1;
transition: all 0.2s ease-out;
}
</style>
<div class="title">Five levels of engineers</div>
<ol>
<li data="Edison, Ford, Bell, Shannon, Richard Stallman">
First level: creating an industry
</li>
<li data="Dean, Dennis Ritchie, Ken Thompson">Level 2: Ability to design and implement products that others cannot make</li>
<li data=" , ">Level 3: Ability to independently design and implement products and achieve success in the market</li>
<li data="Project Supervisor"> Level 4: Lead and lead others to complete more influential work</li>
<li data="Engineer of two years of development experience">Level 5: Ability to solve problems independently, complete engineering work</li>
</ol>
</body>
</html>
If Chinese garbled, command+shift+R refreshes the cache to solve
Demo2: Read local files
The js in the browser cannot read the local file, but the electron has the blessing of the node, and the local file can be read at will, here to read
index.htmlUnder the same directorymain.jsFor example
- Index.html source code
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>Read local file</title>
</head>
<body>
<button id="btn">Show index.js content</button>
<div id="package-json-area">
</div>
</body>
<script>
const fs = require("fs");
const path = require("path");
let btn = document.getElementById("btn");
console.log(btn);
btn.addEventListener('click', function(e) {
fs.readFile(path.join(__dirname, "index.js"), "utf-8", function(err, data) {
if (err) {
console.log(err);
} else {
console.log(data);
document.getElementById("package-json-area").innerHTML = data;
}
})
})
</script>
</html>
Demo3: Drag and drop to read local files
- Index.html source code
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>Drag and drop to read the file</title>
</head>
<style>
body {
margin: 0;
padding: 0;
}
#text-area {
height: 300px;
background-color: #FCF6E5;
position: relative;
font-size: 20px;
overflow: auto;
font-weight: bold;
}
#text-area #info {
border-radius: 20px;
height: 100px;
font-size: 40px;
color: #A84631;
text-align: center;
line-height: 100px;
position: absolute;
margin: auto;
left: 0;
right: 0;
top: 0;
bottom: 0;
}
</style>
<body>
<div id="text-area">
<div id="info">Drag and drop files here to open</div>
</div>
</body>
<script>
/* Event triggered when the target is released:
Ondragenter - fires this event when the object dragged by the mouse enters its container scope
Ondragover - fires this event when a dragged object is dragged within the scope of another object container
Ondragleave - fires this event when the object dragged by the mouse leaves its container
Ondrop - fires this event when the mouse button is released during a drag
*/
const fs = require("fs");
const path = require("path");
let textArea = document.getElementById("text-area")
textArea.ondragenter = textArea.ondragover = textArea.ondragleave = function(e) {
e.preventDefault();
}
textArea.ondrop = function(e) {
e.preventDefault();
let filePath = e.dataTransfer.files[0].path;
console.log(filePath);
fs.readFile(filePath, "utf-8", function(err, data){
textArea.innerHTML = data;
})
}
</script>
</html>
summary:
- With nodejs, the front-end programmers have gained the ability to develop the back-end of the website!
- With React-Native, front-end programmers have the ability to develop cross-platform apps!
- With Electron, we can freely read local files, and freely call a large number of toolkits under npm. Of course, we can quickly port online h5 games to desktop games. Front-end programmers can use the advanced front-end technology. A piece of desktop software cake, really incense!
- In the next article we will try to implement multiple windows:
