Interpretation:

mask rcnn interpretation

The difference between ROI Align and ROI Pooling:http://blog.leanote.com/post/[email protected]/b5f4f526490b

ROI Align code:https://github.com/katotetsuro/roi_align/blob/master/roi_align_2d.py

Bilinear interpolation:

Mask-RCNN code:https://github.com/facebookresearch/maskrcnn-benchmark



generalized_rcnn.py

This constitutes the framework of the entire network, divided into three parts backbone, rpn and roi heads

The backbone extracts the feature, rpn generates the candidate box, and the roi heads generates the final result.

class GeneralizedRCNN(nn.Module):
    """
    Main class for Generalized R-CNN. Currently supports boxes and masks.
    It consists of three main parts:
    - backbone
    - rpn
    - heads: takes the features + the proposals from the RPN and computes
        detections / masks from it.
    """

    def __init__(self, cfg):
        super(GeneralizedRCNN, self).__init__()

        self.backbone = build_backbone(cfg)
        self.rpn = build_rpn(cfg, self.backbone.out_channels)
        self.roi_heads = build_roi_heads(cfg, self.backbone.out_channels)

    def forward(self, images, targets=None):
        """
        Arguments:
            images (list[Tensor] or ImageList): images to be processed
            targets (list[BoxList]): ground-truth boxes present in the image (optional)

        Returns:
            result (list[BoxList] or dict[Tensor]): the output from the model.
                During training, it returns a dict[Tensor] which contains the losses.
                During testing, it returns list[BoxList] contains additional fields
                like `scores`, `labels` and `mask` (for Mask R-CNN models).

        """
        if self.training and targets is None:
            raise ValueError("In training mode, targets should be passed")
        images = to_image_list(images)
        features = self.backbone(images.tensors)
        proposals, proposal_losses = self.rpn(images, features, targets)
        if self.roi_heads:
            x, result, detector_losses = self.roi_heads(features, proposals, targets)
        else:
            # RPN-only models don't have roi_heads
            x = features
            result = proposals
            detector_losses = {}

        if self.training:
            losses = {}
            losses.update(detector_losses)
            losses.update(proposal_losses)
            return losses

        return result

backbone.py

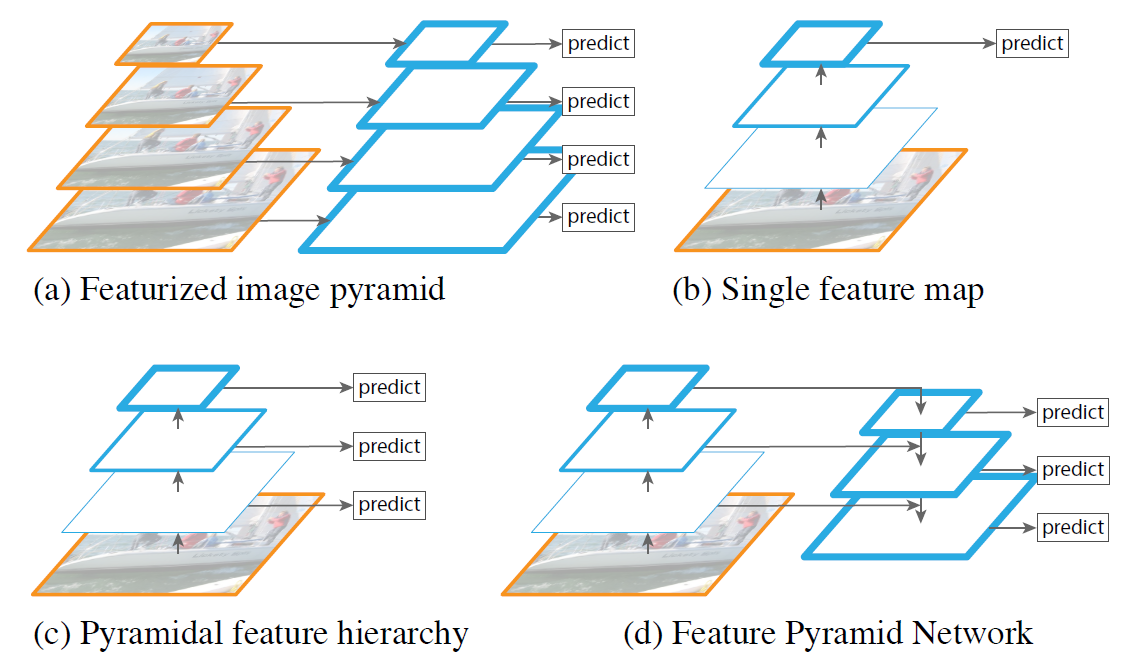

The network structure of the entire extracted feature, FPN represents feature pyramid networks



rpn.py

Here, a region proposal network is constructed to calculate the objectness object confidence of the rpn output and the coordinates of the anchor box regression candidate box.

# Copyright (c) Facebook, Inc. and its affiliates. All Rights Reserved.
import torch
import torch.nn.functional as F
from torch import nn

from maskrcnn_benchmark.modeling import registry
from maskrcnn_benchmark.modeling.box_coder import BoxCoder
from maskrcnn_benchmark.modeling.rpn.retinanet.retinanet import build_retinanet
from .loss import make_rpn_loss_evaluator
from .anchor_generator import make_anchor_generator
from .inference import make_rpn_postprocessor


class RPNHeadConvRegressor(nn.Module):
    """
    A simple RPN Head for classification and bbox regression
    """

    def __init__(self, cfg, in_channels, num_anchors):
        """
        Arguments:
            cfg              : config
            in_channels (int): number of channels of the input feature
            num_anchors (int): number of anchors to be predicted
        """
        super(RPNHeadConvRegressor, self).__init__()
        self.cls_logits = nn.Conv2d(in_channels, num_anchors, kernel_size=1, stride=1)
        self.bbox_pred = nn.Conv2d(
            in_channels, num_anchors * 4, kernel_size=1, stride=1
        )

        for l in [self.cls_logits, self.bbox_pred]:
            torch.nn.init.normal_(l.weight, std=0.01)
            torch.nn.init.constant_(l.bias, 0)

    def forward(self, x):
        assert isinstance(x, (list, tuple))
        logits = [self.cls_logits(y) for y in x]
        bbox_reg = [self.bbox_pred(y) for y in x]

        return logits, bbox_reg


class RPNHeadFeatureSingleConv(nn.Module):
    """
    Adds a simple RPN Head with one conv to extract the feature
    """

    def __init__(self, cfg, in_channels):
        """
        Arguments:
            cfg              : config
            in_channels (int): number of channels of the input feature
        """
        super(RPNHeadFeatureSingleConv, self).__init__()
        self.conv = nn.Conv2d(
            in_channels, in_channels, kernel_size=3, stride=1, padding=1
        )

        for l in [self.conv]:
            torch.nn.init.normal_(l.weight, std=0.01)
            torch.nn.init.constant_(l.bias, 0)

        self.out_channels = in_channels

    def forward(self, x):
        assert isinstance(x, (list, tuple))
        x = [F.relu(self.conv(z)) for z in x]

        return x


@registry.RPN_HEADS.register("SingleConvRPNHead")
class RPNHead(nn.Module):
    """
    Adds a simple RPN Head with classification and regression heads
    """

    def __init__(self, cfg, in_channels, num_anchors):
        """
        Arguments:
            cfg              : config
            in_channels (int): number of channels of the input feature
            num_anchors (int): number of anchors to be predicted
        """
        super(RPNHead, self).__init__()
        self.conv = nn.Conv2d(
            in_channels, in_channels, kernel_size=3, stride=1, padding=1
        )
        self.cls_logits = nn.Conv2d(in_channels, num_anchors, kernel_size=1, stride=1)
        self.bbox_pred = nn.Conv2d(
            in_channels, num_anchors * 4, kernel_size=1, stride=1
        )

        for l in [self.conv, self.cls_logits, self.bbox_pred]:
            torch.nn.init.normal_(l.weight, std=0.01)
            torch.nn.init.constant_(l.bias, 0)

    def forward(self, x):
        logits = []
        bbox_reg = []
        for feature in x:
            t = F.relu(self.conv(feature))
            logits.append(self.cls_logits(t))
            bbox_reg.append(self.bbox_pred(t))
        return logits, bbox_reg


class RPNModule(torch.nn.Module):
    """
    Module for RPN computation. Takes feature maps from the backbone and RPN
    proposals and losses. Works for both FPN and non-FPN.
    """

    def __init__(self, cfg, in_channels):
        super(RPNModule, self).__init__()

        self.cfg = cfg.clone()

        anchor_generator = make_anchor_generator(cfg)

        rpn_head = registry.RPN_HEADS[cfg.MODEL.RPN.RPN_HEAD]
        head = rpn_head(
            cfg, in_channels, anchor_generator.num_anchors_per_location()[0]
        )

        rpn_box_coder = BoxCoder(weights=(1.0, 1.0, 1.0, 1.0))

        box_selector_train = make_rpn_postprocessor(cfg, rpn_box_coder, is_train=True)
        box_selector_test = make_rpn_postprocessor(cfg, rpn_box_coder, is_train=False)

        loss_evaluator = make_rpn_loss_evaluator(cfg, rpn_box_coder)

        self.anchor_generator = anchor_generator
        self.head = head
        self.box_selector_train = box_selector_train
        self.box_selector_test = box_selector_test
        self.loss_evaluator = loss_evaluator

    def forward(self, images, features, targets=None):
        """
        Arguments:
            images (ImageList): images for which we want to compute the predictions
            features (list[Tensor]): features computed from the images that are
                used for computing the predictions. Each tensor in the list
                correspond to different feature levels
            targets (list[BoxList): ground-truth boxes present in the image (optional)

        Returns:
            boxes (list[BoxList]): the predicted boxes from the RPN, one BoxList per
                image.
            losses (dict[Tensor]): the losses for the model during training. During
                testing, it is an empty dict.
        """
        objectness, rpn_box_regression = self.head(features)
        anchors = self.anchor_generator(images, features)

        if self.training:
            return self._forward_train(anchors, objectness, rpn_box_regression, targets)
        else:
            return self._forward_test(anchors, objectness, rpn_box_regression)

    def _forward_train(self, anchors, objectness, rpn_box_regression, targets):
        if self.cfg.MODEL.RPN_ONLY:
            # When training an RPN-only model, the loss is determined by the
            # predicted objectness and rpn_box_regression values and there is
            # no need to transform the anchors into predicted boxes; this is an
            # optimization that avoids the unnecessary transformation.
            boxes = anchors
        else:
            # For end-to-end models, anchors must be transformed into boxes and
            # sampled into a training batch.
            with torch.no_grad():
                boxes = self.box_selector_train(
                    anchors, objectness, rpn_box_regression, targets
                )
        loss_objectness, loss_rpn_box_reg = self.loss_evaluator(
            anchors, objectness, rpn_box_regression, targets
        )
        losses = {
            "loss_objectness": loss_objectness,
            "loss_rpn_box_reg": loss_rpn_box_reg,
        }
        return boxes, losses

    def _forward_test(self, anchors, objectness, rpn_box_regression):
        boxes = self.box_selector_test(anchors, objectness, rpn_box_regression)
        if self.cfg.MODEL.RPN_ONLY:
            # For end-to-end models, the RPN proposals are an intermediate state
            # and don't bother to sort them in decreasing score order. For RPN-only
            # models, the proposals are the final output and we return them in
            # high-to-low confidence order.
            inds = [
                box.get_field("objectness").sort(descending=True)[1] for box in boxes
            ]
            boxes = [box[ind] for box, ind in zip(boxes, inds)]
        return boxes, {}


def build_rpn(cfg, in_channels):
    """
    This gives the gist of it. Not super important because it doesn't change as much
    """
    if cfg.MODEL.RETINANET_ON:
        return build_retinanet(cfg, in_channels)

    return RPNModule(cfg, in_channels)

roi_heads.py

Here is the final output layer, output mask or box and objectness

# Copyright (c) Facebook, Inc. and its affiliates. All Rights Reserved.
import torch

from .box_head.box_head import build_roi_box_head
from .mask_head.mask_head import build_roi_mask_head
from .keypoint_head.keypoint_head import build_roi_keypoint_head


class CombinedROIHeads(torch.nn.ModuleDict):
    """
    Combines a set of individual heads (for box prediction or masks) into a single
    head.
    """

    def __init__(self, cfg, heads):
        super(CombinedROIHeads, self).__init__(heads)
        self.cfg = cfg.clone()
        if cfg.MODEL.MASK_ON and cfg.MODEL.ROI_MASK_HEAD.SHARE_BOX_FEATURE_EXTRACTOR:
            self.mask.feature_extractor = self.box.feature_extractor
        if cfg.MODEL.KEYPOINT_ON and cfg.MODEL.ROI_KEYPOINT_HEAD.SHARE_BOX_FEATURE_EXTRACTOR:
            self.keypoint.feature_extractor = self.box.feature_extractor

    def forward(self, features, proposals, targets=None):
        losses = {}
        # TODO rename x to roi_box_features, if it doesn't increase memory consumption
        x, detections, loss_box = self.box(features, proposals, targets)
        losses.update(loss_box)
        if self.cfg.MODEL.MASK_ON:
            mask_features = features
            # optimization: during training, if we share the feature extractor between
            # the box and the mask heads, then we can reuse the features already computed
            if (
                self.training
                and self.cfg.MODEL.ROI_MASK_HEAD.SHARE_BOX_FEATURE_EXTRACTOR
            ):
                mask_features = x
            # During training, self.box() will return the unaltered proposals as "detections"
            # this makes the API consistent during training and testing
            x, detections, loss_mask = self.mask(mask_features, detections, targets)
            losses.update(loss_mask)

        if self.cfg.MODEL.KEYPOINT_ON:
            keypoint_features = features
            # optimization: during training, if we share the feature extractor between
            # the box and the mask heads, then we can reuse the features already computed
            if (
                self.training
                and self.cfg.MODEL.ROI_KEYPOINT_HEAD.SHARE_BOX_FEATURE_EXTRACTOR
            ):
                keypoint_features = x
            # During training, self.box() will return the unaltered proposals as "detections"
            # this makes the API consistent during training and testing
            x, detections, loss_keypoint = self.keypoint(keypoint_features, detections, targets)
            losses.update(loss_keypoint)
        return x, detections, losses


def build_roi_heads(cfg, in_channels):
    # individually create the heads, that will be combined together
    # afterwards
    roi_heads = []
    if cfg.MODEL.RETINANET_ON:
        return []

    if not cfg.MODEL.RPN_ONLY:
        roi_heads.append(("box", build_roi_box_head(cfg, in_channels)))
    if cfg.MODEL.MASK_ON:
        roi_heads.append(("mask", build_roi_mask_head(cfg, in_channels)))
    if cfg.MODEL.KEYPOINT_ON:
        roi_heads.append(("keypoint", build_roi_keypoint_head(cfg, in_channels)))

    # combine individual heads in a single module
    if roi_heads:
        roi_heads = CombinedROIHeads(cfg, roi_heads)

    return roi_heads

rpn/loss.py

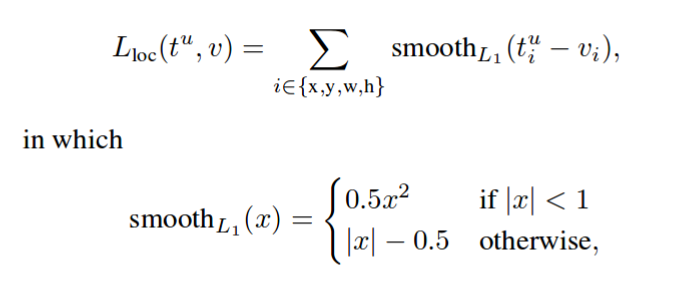

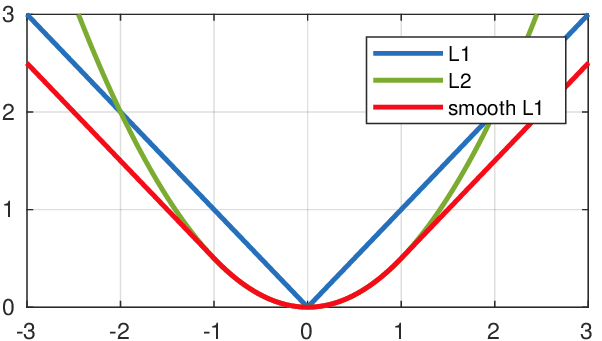

Calculating the loss of rpn here will first find the corresponding targets for each anchor, then set the anchor label of the corresponding background to 0, the object to 1, and the discarded -1 and then calculate the loss with smooth l1 and binary cross entropy.

# Copyright (c) Facebook, Inc. and its affiliates. All Rights Reserved.
"""
This file contains specific functions for computing losses on the RPN
file
"""

import torch
from torch.nn import functional as F

from .utils import concat_box_prediction_layers

from ..balanced_positive_negative_sampler import BalancedPositiveNegativeSampler
from ..utils import cat

from maskrcnn_benchmark.layers import smooth_l1_loss
from maskrcnn_benchmark.modeling.matcher import Matcher
from maskrcnn_benchmark.structures.boxlist_ops import boxlist_iou
from maskrcnn_benchmark.structures.boxlist_ops import cat_boxlist


class RPNLossComputation(object):
    """
    This class computes the RPN loss.
    """

    def __init__(self, proposal_matcher, fg_bg_sampler, box_coder,
                 generate_labels_func):
        """
        Arguments:
            proposal_matcher (Matcher)
            fg_bg_sampler (BalancedPositiveNegativeSampler)
            box_coder (BoxCoder)
        """
        # self.target_preparator = target_preparator
        self.proposal_matcher = proposal_matcher
        self.fg_bg_sampler = fg_bg_sampler
        self.box_coder = box_coder
        self.copied_fields = []
        self.generate_labels_func = generate_labels_func
        self.discard_cases = ['not_visibility', 'between_thresholds']

    def match_targets_to_anchors(self, anchor, target, copied_fields=[]):
        match_quality_matrix = boxlist_iou(target, anchor)
        matched_idxs = self.proposal_matcher(match_quality_matrix)
        # RPN doesn't need any fields from target
        # for creating the labels, so clear them all
        target = target.copy_with_fields(copied_fields)
        # get the targets corresponding GT for each anchor
        # NB: need to clamp the indices because we can have a single
        # GT in the image, and matched_idxs can be -2, which goes
        # out of bounds
        matched_targets = target[matched_idxs.clamp(min=0)]
        matched_targets.add_field("matched_idxs", matched_idxs)
        return matched_targets

    def prepare_targets(self, anchors, targets):
        labels = []
        regression_targets = []
        for anchors_per_image, targets_per_image in zip(anchors, targets):
            matched_targets = self.match_targets_to_anchors(
                anchors_per_image, targets_per_image, self.copied_fields
            )

            matched_idxs = matched_targets.get_field("matched_idxs")
            labels_per_image = self.generate_labels_func(matched_targets)
            labels_per_image = labels_per_image.to(dtype=torch.float32)

            # Background (negative examples)
            bg_indices = matched_idxs == Matcher.BELOW_LOW_THRESHOLD
            labels_per_image[bg_indices] = 0

            # discard anchors that go out of the boundaries of the image
            if "not_visibility" in self.discard_cases:
                labels_per_image[~anchors_per_image.get_field("visibility")] = -1

            # discard indices that are between thresholds
            if "between_thresholds" in self.discard_cases:
                inds_to_discard = matched_idxs == Matcher.BETWEEN_THRESHOLDS
                labels_per_image[inds_to_discard] = -1

            # compute regression targets
            regression_targets_per_image = self.box_coder.encode(
                matched_targets.bbox, anchors_per_image.bbox
            )

            labels.append(labels_per_image)
            regression_targets.append(regression_targets_per_image)

        return labels, regression_targets


    def __call__(self, anchors, objectness, box_regression, targets):
        """
        Arguments:
            anchors (list[BoxList])
            objectness (list[Tensor])
            box_regression (list[Tensor])
            targets (list[BoxList])

        Returns:
            objectness_loss (Tensor)
            box_loss (Tensor
        """
        anchors = [cat_boxlist(anchors_per_image) for anchors_per_image in anchors]
        labels, regression_targets = self.prepare_targets(anchors, targets)
        sampled_pos_inds, sampled_neg_inds = self.fg_bg_sampler(labels)
        sampled_pos_inds = torch.nonzero(torch.cat(sampled_pos_inds, dim=0)).squeeze(1)
        sampled_neg_inds = torch.nonzero(torch.cat(sampled_neg_inds, dim=0)).squeeze(1)

        sampled_inds = torch.cat([sampled_pos_inds, sampled_neg_inds], dim=0)

        objectness, box_regression = \
                concat_box_prediction_layers(objectness, box_regression)

        objectness = objectness.squeeze()

        labels = torch.cat(labels, dim=0)
        regression_targets = torch.cat(regression_targets, dim=0)

        box_loss = smooth_l1_loss(
            box_regression[sampled_pos_inds],
            regression_targets[sampled_pos_inds],
            beta=1.0 / 9,
            size_average=False,
        ) / (sampled_inds.numel())

        objectness_loss = F.binary_cross_entropy_with_logits(
            objectness[sampled_inds], labels[sampled_inds]
        )

        return objectness_loss, box_loss

# This function should be overwritten in RetinaNet
def generate_rpn_labels(matched_targets):
    matched_idxs = matched_targets.get_field("matched_idxs")
    labels_per_image = matched_idxs >= 0
    return labels_per_image


def make_rpn_loss_evaluator(cfg, box_coder):
    matcher = Matcher(
        cfg.MODEL.RPN.FG_IOU_THRESHOLD,
        cfg.MODEL.RPN.BG_IOU_THRESHOLD,
        allow_low_quality_matches=True,
    )

    fg_bg_sampler = BalancedPositiveNegativeSampler(
        cfg.MODEL.RPN.BATCH_SIZE_PER_IMAGE, cfg.MODEL.RPN.POSITIVE_FRACTION
    )

    loss_evaluator = RPNLossComputation(
        matcher,
        fg_bg_sampler,
        box_coder,
        generate_rpn_labels
    )
    return loss_evaluator
