Foreword: There are a lot of problems in the installation process. Here I will describe them one by one, and attach a solution. There are many references to Google and Baidu in the middle, so I will not list them one by one.

1. If you need to use HTTPS, you need to generate the relevant certificate, use the default HTTP to jump directly to 2, without permission, please add sudo

#Create a certificate directory
mkdir -p /data/cert
cd /data/cert/
 #Create a CA root certificate

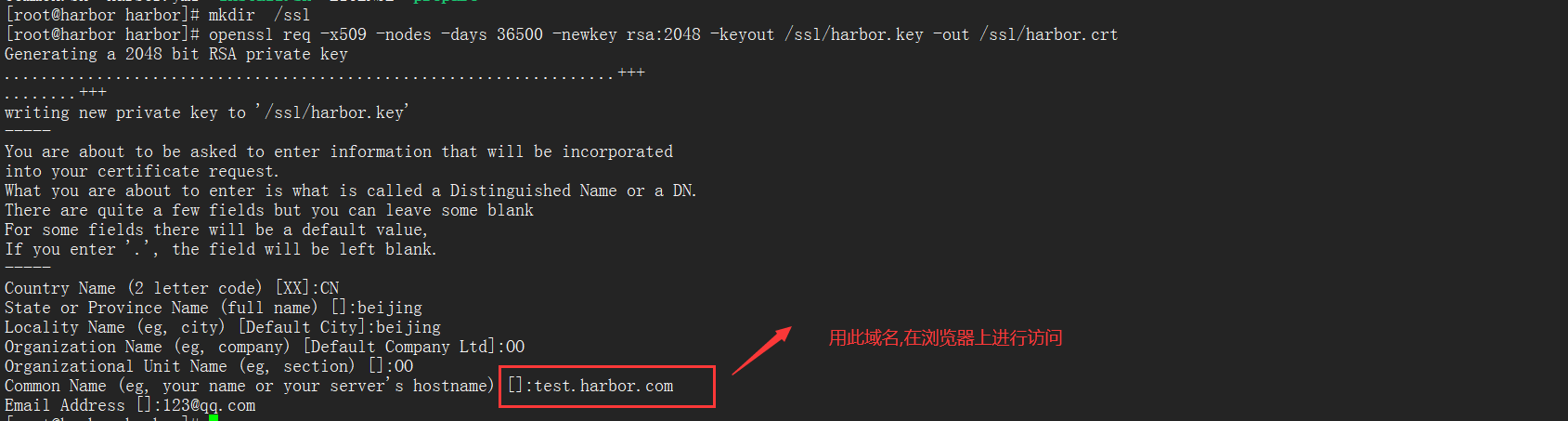

openssl req  -newkey rsa:4096 -nodes -sha256 -keyout ca.key -x509 -days 365 -out ca.crt -subj "/C=CN/L=shenzhen/O=yanconggod/CN=harbor-registry"
 #Generate a certificate signature, set the access domain name to harbor.yanconggod.cn
openssl req -newkey rsa:4096 -nodes -sha256 -keyout harbor.yanconggod.cn.key -out server.csr -subj "/C=CN/L=shenzhen/O=yanconggod/CN=harbor.yanconggod.cn"
 #Generate the certificate of the host
openssl x509 -req -days 365 -in server.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out harbor.yanconggod.cn.crt

Use online installation here

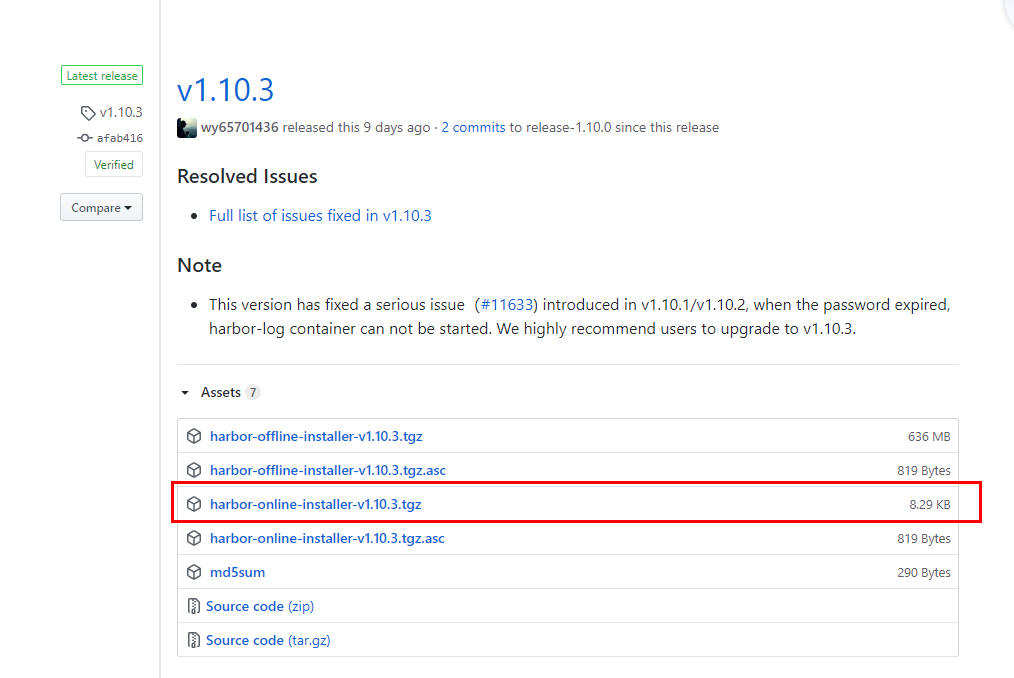

wget https://github.com/vmware/harbor/releases/download/v1.2.0/harbor-offline-installer-v1.2.0.tgz -O harbor-offline-installer-v1.2.0.
sudo tar xf harbor-offline-installer-v1.2.0.tgz -C /opt/
 Cd /opt/harbor modify the configuration
sudo vim harbor.cfg
 Hostname = xxx.xxx.xxx After installation, perform the installation (server ip address)

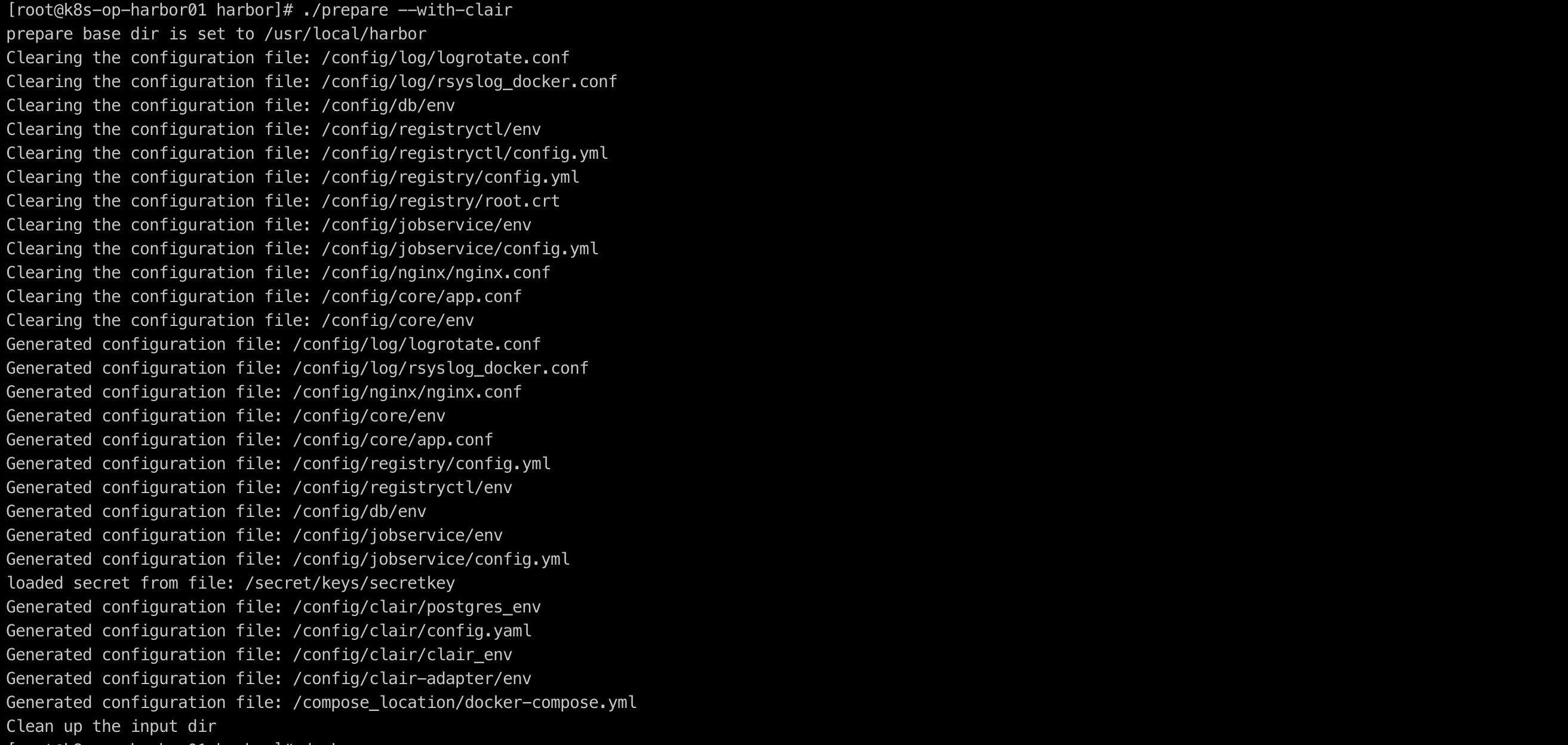

./prepare
./install.sh

Wget: download port

CD switch to port directory

Modify the harbor.cfg file, just modify the host name, and other temporary defaults

Note* : Running ./install.sh does not generate a secret file: ./ common / config / ui / private_key.pem, certificate file: ./ common / config / registry / root.crt

This means that you can't generate a key. Baidu has been useless for a long time, or Google.

cd / opt / harbour

Sudo vi preparation

Need to modify the prepare file, line 498:
empty_subj = "/C=/ST=/L=/O=/CN=/"
 change into:
empty_subj = "/C=US/ST=California/L=Palo Alto/O=VMware, Inc./OU=Harbor/CN=notarysigner"
 Then set the permissions:
chown 10000.10000 ./common/config/registry/root.crt

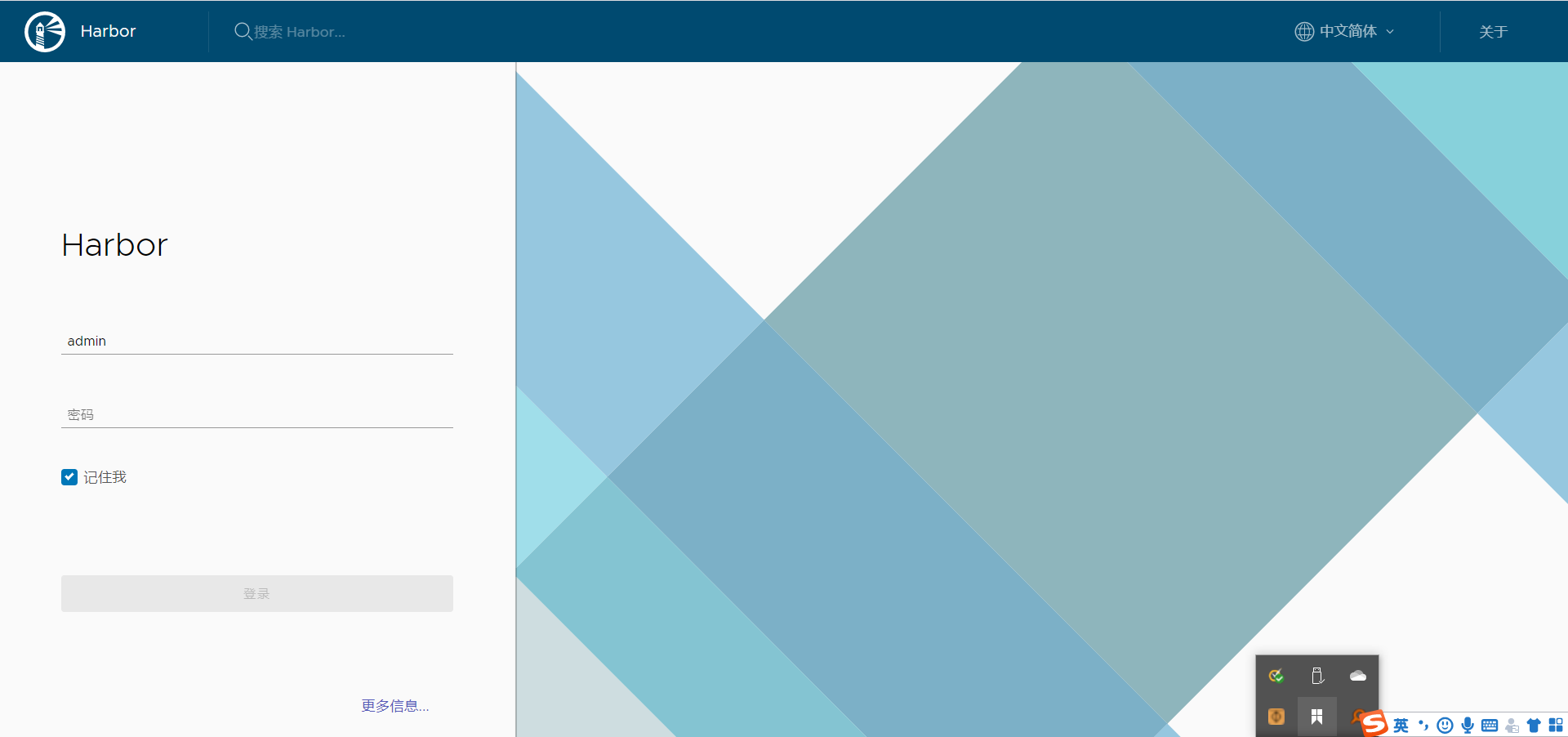

Finally sudo .install.sh is shown in Figure 2.

Successful, thank you.
