harbor v1.9.1

centos 7.6

docker 18.06.1-ce

preliminary work

Install docker

yum install docker # install docker

 systemctl start docker # Run docker service

Install docker-compose

yum install docker-compose

1. Download binary harbor

github：https://github.com/goharbor/harbor

Download offline version Harbor offline installer

wget download chant

2. Modify the configuration file harbor.yml, the configuration varies from person to person, you can use the default configuration

a, http port: the default is 80, can be changed to other, I changed to 5050

b. Specify the host name: hostname can be a custom domain name or host ip, for simplicity I use the host ip 192.168.200.101

c. Data storage path: data_volume, you can additionally specify the storage path

d. Log storage path: location in log, you can also specify the log storage path



Note: The harbor is based on the official registry of docker. The registry port is 5000 by default. Because the harbor comes with nginx, it will be forwarded to port 5000 through nginx. So only the port specified by http needs to be exposed outside the firewall, which is 5050 here

3. Since the default configuration file is modified, the prepare file needs to be executed

4. Execute install.sh installation

5. Push mirror

Because my harbor uses http to deploy by default, because docker uses https to push to the private library by default, if you want to push through http, you need to set up the docker configuration file.

vim /etc/docker/daemon.json

Plus the following

"insecure-registries":["192.168.200.101:5050"]

After setting up docker, restart docker

systemctl daemon-reload
systemctl restart docker

Then you can push the image, first tag the existing image, the tag format is: ip: port/harbor project name/image name: tag name

docker tag mysql:latest  192.168.200.101:5050/library/mysql:latest

Log in to the mirror private database and enter the harbor account password

docker login 192.168.200.101:5050

Prompt login is successful, and the account password information is stored in the /root/.docker/config.json file

Authenticating with existing credentials...
WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store

Login Succeeded

Start push mirror

docker push 192.168.200.101:5050/library/mysql:latest

Prompt push is successful, the prompt is similar to the following

The push refers to repository [192.168.200.101:5050/library/latest]
9ce0bb155166: Pushed
3f3a4ce2b719: Pushed
9b48060f404d: Pushed
5d3f68f6da8f: Pushed
7bff100f35cb: Pushed
latest: digest: sha256:bd76b84c74ad70368a2341c2402841b75950df881388e43fc2aca000c546653a size: 1369

5. If you need to modify the configuration file after installation, you can use the following methods

$ sudo docker-compose down -v
$ vim harbor.yml
$ sudo prepare
$ sudo docker-compose up -d



6. If the login password of the harbor user is modified, an error message will be reported when pushing the mirror

harbor denied requested access to the resource is denied

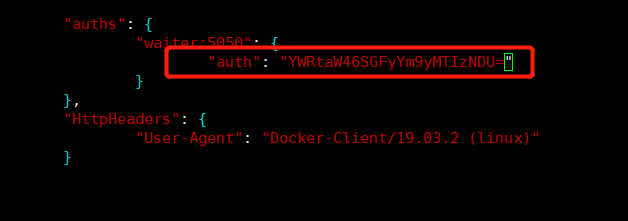

Go to /root/.docker/config.json to delete the generated verification

Then re-docker login ip: port
