First, style problem

1. When using Vue + Elementui, it is found that some components cannot export PDF, which can only use traditional HTML and CSS layout, which exported PDF clearer
2, you need to put the CSS in the template file, then replace the selected export module to the template

Second, export Table, turn the header repeat problem

Solution:

 thead {
            display: table-row-group;// Display the header per page using thead default
        }

Third, implementation

rear end

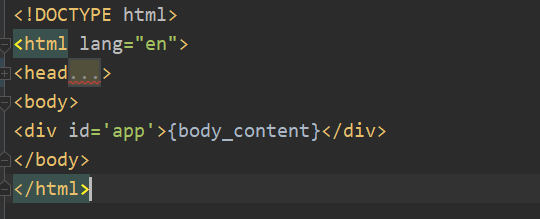

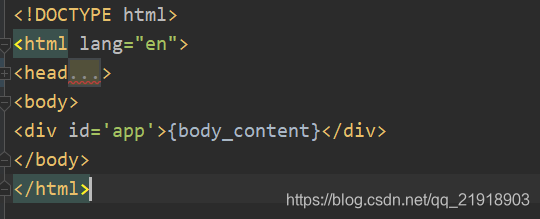

templateexport_file.txt：

EXPORT_FILE = os.path.join(PROJECT_ROOT, 'fixtures/export_file.txt')

@csrf_exempt
def export_pdf(request):
    try:
        # params = json.loads(request.body)
        # report_id = params.get('report_id', '')
        # path = params.get('path', '')
        content = request.POST.get("content")
        html_string = format_export_string(content)
        report_id = request.GET["report_id"]
        check_report = CheckReport.objects.get(id=report_id)
        file_name = check_report.task_name + "-" + check_report.created_time + ".pdf"
        options = {
            'page-size': 'A4',
            'encoding': "UTF-8",
            "javascript-delay": "5000",
            "margin-top": "0",
            "margin-bottom": "0",
            "margin-left": "0",
            "margin-right": "0",
            'quiet': "",
        }
        if settings.DEBUG:
            configuration = pdfkit.configuration(wkhtmltopdf=r'E:\wkhtmltopdf\bin\wkhtmltopdf.exe')
        else:
            configuration = pdfkit.configuration(wkhtmltopdf='/usr/bin/wkhtmltopdf')
        pdf_path = False
        pdf_file = pdfkit.from_string(html_string, pdf_path, options=options, configuration=configuration)
        # Pdf.objects.create(report_id=report_id, name=file_name, status=True, operator=request.user.username,
        #                    value=pdf_file)
        return download_file(pdf_file, file_name)
    except Exception as e:
        return JsonResponse({"result": False, "message": str(e)})


def format_export_string(content):
    export_file = open(EXPORT_FILE, encoding='utf-8')
    file_content = export_file.read()
    export_file.close()
    html_content = content.replace("&", "&").replace(">", ">") \
        .replace('"', '"') \
        .replace("'", r"'") \
        .replace("&lt;", "<") \
        .replace("&nbsp;", " ") \
        .replace("\n", '') \
        .replace("\r", "").strip()
    return str(file_content).replace('{body_content}', html_content)


def download_file(file_buffer, file_name):
    response = HttpResponse(file_buffer, content_type='APPLICATION/OCTET-STREAM')
    response['Content-Disposition'] = 'attachment; filename=' + file_name
    response['Content-Length'] = len(file_buffer)
    return response

front end

In the Vue project, the CSS style is placed in the public SCSS, do not place in the style of the Vue file.

downLoadPdf() {
      const VueEnv = process.env.NODE_ENV
      const ApiUrl = VueEnv === 'production' ? window.siteUrl : 'http://127.0.0.1:8083/'
      const eleForm = document.createElement('form')
      eleForm.id = 'eleForm'
      eleForm.method = 'post'
      eleForm.action = ApiUrl + 'check/export_detail_pdf/?report_id=' + this.reportId + '&ip=' + this.ipAddress
      eleForm.target = 'Export Report'
      const eleInput = document.createElement('input')
      eleInput.type = 'hidden'
      eleInput.name = 'content'
      eleInput.value = $('#export-pdf').html()
      eleForm.appendChild(eleInput)
      eleForm.addEventListener('onsubmit', function() {
        this.$message.success('Export Report')
      })
      document.body.appendChild(eleForm)
      eleForm.submit()
      document.body.removeChild(eleForm)
    },
