Wiki html to pdf or html to image is a software written in C++, based on QT Webkit rendering engine to generate images and pdf.

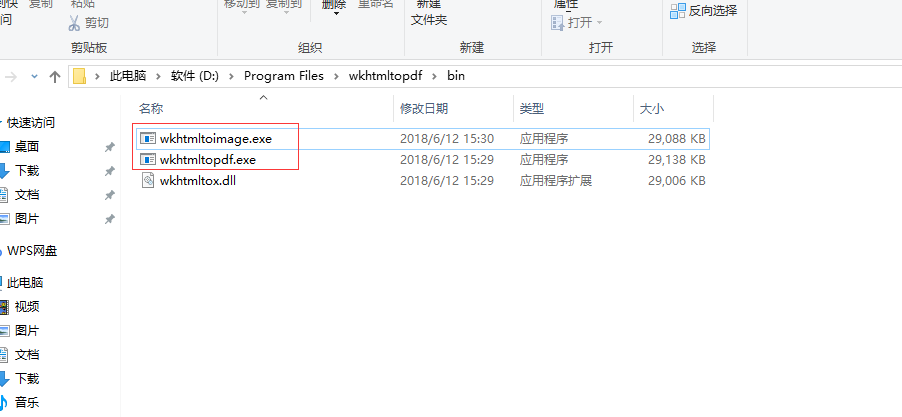

Can refer tohttps://wkhtmltopdf.orgSee more documentation and materials, use it we need to download and install the software locally.

Use java call, you can refer to the following call:

 /**

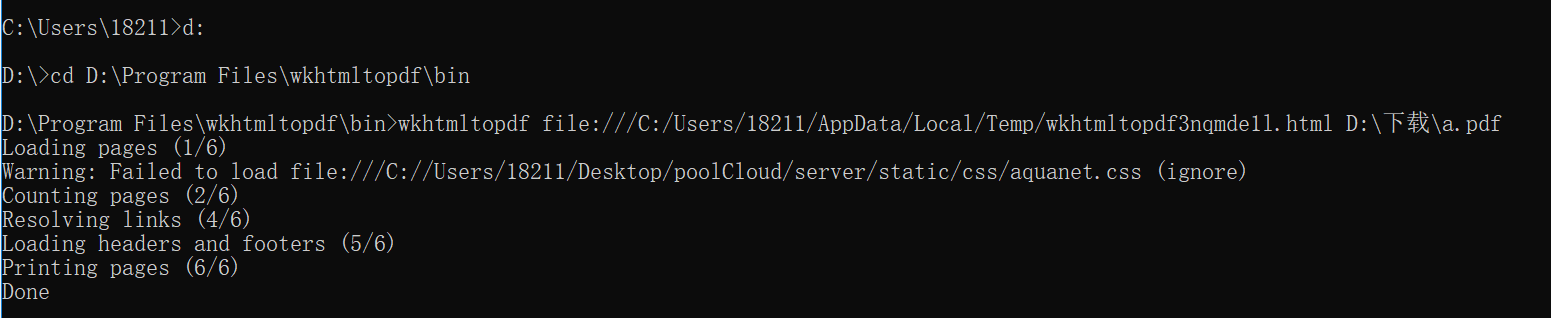

     * 1.wkhtmltoimage http://xxx/xxx/index.html C:\Users\xuchang\Desktop\imgae\test2.jpg
     *
     * 2.wkhtmltopdf http://xxx/xxx/index.html C:\Users\xuchang\Desktop\imgae\test3.pdf
     *
     * 3.C:\Program" "Files" ("x86")"\wkhtmltopdf\wkhtmltoimage.exe --width 1024 --height 768 http://www.google.com/
     * D:\example.jpg
     *
     * 4.wkhtmltopdf --page-width 50 http://xxx/xxx/index.html C:\Users\xuchang\Desktop\imgae\test7.pdf
     */
    @Test
    public void testGenerateImage() {
        ExecutorService executor = Executors.newFixedThreadPool(2);
        try {
            Process process = Runtime
                .getRuntime()
                .exec(
                    "D:/wkhtmltopdf/bin/wkhtmltoimage.exe http://xxx/xxx/index.html C:/Users/xuchang/Desktop/imgae/test4.jpg");

            Future<List<String>> inputStreamToByteArray = executor.submit(streamToByteArrayTask(process
                .getInputStream()));
            Future<List<String>> outputStreamToByteArray = executor.submit(streamToByteArrayTask(process
                .getErrorStream()));

            process.waitFor();
            if (process.exitValue() != 0) {
                System.out.println("getErrorStream:" + getFuture(outputStreamToByteArray));
                System.out.println("getInputStream:" + getFuture(inputStreamToByteArray));
            }

            System.out.println("getErrorStream:" + getFuture(outputStreamToByteArray));
            System.out.println("getInputStream:" + getFuture(inputStreamToByteArray));

        } catch (InterruptedException e) {
            e.printStackTrace();
        } catch (IOException e) {
            e.printStackTrace();
        } finally {
            executor.shutdownNow();
        }

    }

    /**
     * @param input xx
     * @return xx
     */
    private Callable<List<String>> streamToByteArrayTask(final InputStream input) {
        return new Callable<List<String>>() {

            public List<String> call() throws Exception {
                return IOUtils.readLines(input, "utf-8");
            }
        };
    }

    /**
     * @param future xx
     * @return xx
     */
    private List<String> getFuture(Future<List<String>> future) {
        try {
            return future.get(10, TimeUnit.SECONDS);
        } catch (Exception e) {
            throw new RuntimeException(e);
        }
    }
