tags: algorithm

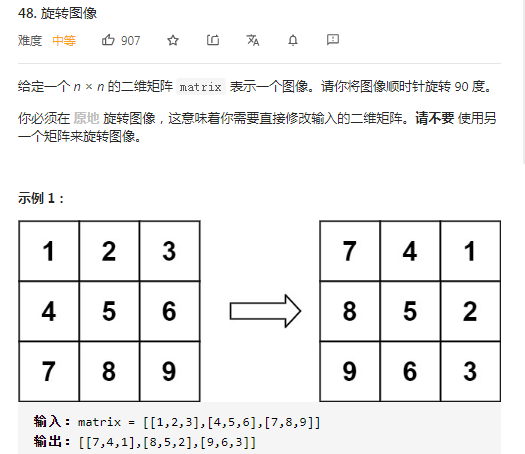

Rotating image algorithm: given an n×n two-dimensional matrix, rotate it clockwise by 90°
For example:
Enter:
[1, 2, 3]
[4, 5, 6]
[7, 8, 9]
Output:
[7, 4, 1]
[8, 5, 2]
[9, 6, 3]
enter:
[1, 2, 3, 4]
[5, 6, 7, 8]
[9, 10, 11, 12]
[13, 14, 15, 16]
output:
[13, 9, 5, 1]
[14, 10, 6, 2]
[15, 11, 7, 3]
[16, 12, 8, 4]
Thinking analysis:
1. Obviously use a two-dimensional array to solve the problem. Here we use a matrix of 1 to 9 total 9 digits as an example to traverse
2. First, in the input, the positions of 123 in the two-dimensional array are:[0][0],[0][1],[0][2]
3. Secondly in the output, the positions of 123 in the two-dimensional array are:[0][2],[1][2],[2][2]
4. When the array traverses the outer loop i=0, temp[j][3-0-i]=matrix[i][j], j takes the value 0~2, and determines 3 Number
5. When the array traverses the outer loop i=1, temp[j][3-0-i]=matrix[i][j], j takes the value 0~2, and determines 3 Number
6. When the array traverses the outer loop i=2, temp[j][3-0-i]=matrix[i][j], j takes the value 0~2, and determines 3 Number
7. The law will come out
The code sheet is as follows
public static int[][] rotate(int[][] matrix) {
int len=matrix.length;
int[][] temp = new int[len][len];
for (int i = 0; i < len; i++) {
for (int j = 0; j < len; j++) {
temp[j][len - i - 1] = matrix[i][j];
}
}
return temp;
}
start testing:
public static void main(String[] args) {
int[][] matrix0 = {
{1, 2, 3},
{4, 5, 6},
{7, 8, 9}};
int[][] matrix = {
{1, 2, 3, 4},
{5, 6, 7, 8},
{9, 10, 11, 12},
{13, 14, 15, 16}};
print(matrix);
System.out.println("-----------");
print(rotate(matrix));
}
public static void print(int[][] matrix) {
for (int i = 0; i < matrix.length; i++) {
System.out.println(Arrays.toString(matrix[i]));
}
}
Output:
[1, 2, 3, 4]
[5, 6, 7, 8]
[9, 10, 11, 12]
[13, 14, 15, 16]
-----------
[13, 9, 5, 1]
[14, 10, 6, 2]
[15, 11, 7, 3]
[16, 12, 8, 4]
