The three -dimensional reconstruction of Dianyun mainly includes:

delaunay

- MC

- Poisson

- Stich

- Level set

The grid is mainly used in computer graphics, including triangle and four -corner grids.
Most of the grid processing in computer graphics is based on the triangular grid. Triangular grids are widely used in graphics and three -dimensional modeling. You can see that the rabbits, balls and other models in the figure below are based on the triangular grid -based grid

Triangle indicates that the grid is also called triangular section. It has the following advantages:

Triangular grid stability is strong.

The triangle grid is relatively simple (main reason). In fact, the triangle grid is one of the simplest grid types. It can be very convenient and quickly generated. The most common in non -structured grids. And compared to the average polygon grid, many operations are easier to the triangle grid.


At present, point clouds are generally divided into two categories:

• Insert method. As the name suggests, that is, the curved surfaces of the reconstruction are obtained through the original data point

• Approaching the law. The linear curved surface or other curved surface is used to approach the original data point.

Dianyun greedy triangle

#include <iostream>

#include <pcl/io/pcd_io.h>
#include <pcl/visualization/pcl_visualizer.h>

#include<vtkRenderWindow.h>
#include<vtkSmartPointer.h>

#include <vtkSmartPointer.h>
#include <vtkPolyDataReader.h>
#include <vtkPolyData.h>
#include <vtkSurfaceReconstructionFilter.h>
#include <vtkContourFilter.h>
#include <vtkVertexGlyphFilter.h>
#include <vtkPolyDataMapper.h>
#include <vtkActor.h>
#include <vtkRenderer.h>
#include <vtkCamera.h>
#include <vtkRenderWindow.h>
#include <vtkRenderWindowInteractor.h>
#include <vtkProperty.h>
#include <vtkPolyDataNormals.h>
#include <vtkSphereSource.h>
#include <vtkPolyDataMapper.h>


#include <vtkRenderWindow.h>
#include <vtkGenericOpenGLRenderWindow.h>
#include <vtkNamedColors.h>
#include <vtkProperty.h>
#include <vtkSmartPointer.h>

#include <vtkRenderWindow.h>
#include <vtkPlanes.h>

#include <vtkProperty.h>

#include <vtkSmartPointer.h>
#include <vtkColorTransferFunction.h>
#include <vtkPiecewiseFunction.h>
#include <vtkRenderer.h>
#include <vtkRenderWindow.h>
#include <vtkTransform.h>
#include <vtkTransformPolyDataFilter.h>
#include <vtkCubeSource.h>

#include <vtkAlgorithmOutput.h>
#include <vtkCleanPolyData.h>
#include <vtkTriangleFilter.h>


#include <vtkStripper.h>
#include <vtkSTLWriter.h>

#include <vtkNew.h>
using namespace std;

//#define FILE_PATH "xiaomianpian.XYZN"
//#define FILE_PATH "2DpointDatas.txt"

#include <vtkStripper.h>
#include <vtkSTLWriter.h>
#include <pcl/point_types.h>
#include <pcl/io/pcd_io.h>
#include <pcl/kdtree/kdtree_flann.h>
#include <pcl/features/normal_3d.h>
#include <pcl/surface/gp3.h>
#include<pcl/io/vtk_lib_io.h>
#include <vtkNew.h>
#include <pcl/io/vtk_io.h>
using namespace std;

#define FILE_PATH "sxiaomianpian.XYZN"

/

 -------------- Read TXT files --------------------------------------------------------------------------------------------------------------------------
void CreateCloudFromTxt(const std::string& file_path, pcl::PointCloud<pcl::PointXYZ>::Ptr cloud, pcl::PointCloud<pcl::Normal>::Ptr normals)
{
	 std :: ifstream file (file_path.c_str ()); // c_Str (): generate a const char*pointer, point to an array termination of empty characters.
	std::string line;
	pcl::PointXYZ point;
	pcl::Normal nPoint;

	int index = 0;
	while (getline(file, line)) {
		std::stringstream ss(line);
		ss >> point.x;
		ss >> point.y;
		ss >> point.z;

		ss >> nPoint.normal_x;
		ss >> nPoint.normal_y;
		ss >> nPoint.normal_z;

		cloud->push_back(point);
		normals->push_back(nPoint);
		//printf("%f,%f,%f\n", point.x, point.y, point.z);

	}
	file.close();
	printf("size %ld\n", cloud->size());
}

int main(int argc, char** argv)
{
	pcl::PointCloud<pcl::PointXYZ>::Ptr cloud(new pcl::PointCloud<pcl::PointXYZ>);
	//pcl::PointCloud<pcl::PointXYZ>::Ptr cloud(new pcl::PointCloud<pcl::PointXYZ>);
	//pcl::io::loadPCDFile(FILE_PATH, *cloud);
	  PCL :: POINTCLOUD <PCl :: NORMAL> :: Ptr Normals (New PCl :: POINTCLOUD <PCl :: NORMAL>); //
	CreateCloudFromTxt(FILE_PATH, cloud, normals);
	//CreateCloudFromTxt(FILE_PATH, cloud);
//	printf("size %d\n", cloud->size());
	//pcl::visualization::PCLVisualizer   viewer("viewer");
	//viewer.addPointCloud(cloud);
	//viewer.spin();

	 // Normal estimation*
	 // PCL :: NORMALESTIMATION <PCL :: POINTXYZ, PCL :: NORMAL> N; //
	 // pCl :: POINTCLOD <PCl :: NORMAL> :: Ptr Normals (New PCl :: PointCloud <pcl :: NORMAL>); //
	 // PCL :: Search :: kdtree <pcl :: PointXyz> :: Ptr Tree (new pCl :: Search :: kdtree <pCl :: POINTXYZ>)); // Define the KD tree pointer pointer
	 // Tree-> SetinputCloud (Cloud); /// Use Cloud to build a Tree object
	//n.setInputCloud(cloud);
	//n.setSearchMethod(tree);
	//n.setKSearch(20);
	 //n.compute (*Normals); It is estimated that the legal line is stored in it
	//* normals should not contain the point normals + surface curvatures
	printf("normals=========\n");
	// Concatenate the XYZ and normal fields*
	pcl::PointCloud<pcl::PointNormal>::Ptr cloud_with_normals(new pcl::PointCloud<pcl::PointNormal>);
	 PCL :: ConcateNatefields ( *Cloud, *NORMALS, *Cloud_with_normals); // Connect the field
	//* cloud_with_normals = cloud + normals
	printf("111normals=========\n");
	 // Define the search tree object
	pcl::search::KdTree<pcl::PointNormal>::Ptr tree2(new pcl::search::KdTree<pcl::PointNormal>);
	 Tree2-> SetinputCloud (Cloud_with_normals); // Point Cloud Construction Search Tree
	printf("22 normals=========\n");
	// Initialize objects
	 PCL :: GreedyProjectRiangulation <pCl :: Pointnormal> GP3; // Define the triangular object
	 PCL :: PolygonMesh Triangles; // Storage the final triangular network model



	  Add vertex information
	//std::vector<int> parts = gp3.getPartIDs();
	//std::vector<int> states = gp3.getPointStates();

	std::cout << "Triangling..." << std::endl;
	 GP3.Setsearchradius (10); // Set the maximum distance between the connection points (that is, the maximum border length of the triangle) to 0.025
	std::cout << "1" << std::endl;
	 GP3.Setmu (1); // Set the longest distance of the neighboring point of the neighboring point by the sample point, in order to adapt to the change of the density of the cloud
	std::cout << "2" << std::endl;
	 gp3.setmaximumnearestneighbors (100); // Set the number of neighboring domains that can be searched for sample points
	std::cout << "3" << std::endl;
	 GP3.SetmaximumSurfaceangle (m_pi/12); // 45,180/4, set the maximum angle of the direction of a certain method to deviate from the direction of the sample point, 45 degrees
	std::cout << "4" << std::endl;
	 GP3.Setminimumangle (m_pi/18); // 10,180/18, set the triangle inner angle at the smallest angle at 10 degrees
	std::cout << "5" << std::endl;
	 GP3.Setmaximumangle (2 * m_pi/12); // 120,2 * 180/3, set the maximum angle of the triangular inner angle after setting the triangle
	std::cout << "6" << std::endl;
	 gp3.setnormalConsisteency (TRUE); // Set this parameter to ensure that the method line is consistent
	std::cout << "7" << std::endl;

	gp3.setInputCloud(cloud_with_normals);
	std::cout << "8" << std::endl;
	 gp3.setsearchmedhod (tree2); // Set the search method TREE2
	std::cout << "Triangling..." << std::endl;
	 GP3.ReconStruct (Triangles); //
	std::cout << "Finshed..." << std::endl;
	pcl::io::saveVTKFile("wenwu_result.vtk", triangles);
	//std::cout << "Done..." << std::endl;
	std::cout << "Saved..." << std::endl;

	pcl::io::savePolygonFile("wenwu_result.stl", triangles);
	 // std :: vector <int> parts = gp3.getpartids (); // Add fixed information
	//std::vector<int> states = gp3.getPointStates();

	Boost :: Shared_ptr <pCl :: Visualization :: PClvisualizer> Viewer (New PCl :: Visualization :: PClvisualizer ("visualization")); // 3D visualized window
	viewer->setBackgroundColor(0, 0, 0);
	viewer->addPolygonMesh(triangles, "my");
	viewer->addCoordinateSystem(50.0);
	viewer->initCameraParameters();

	while (!viewer->wasStopped()) {
		viewer->spinOnce(100);
		boost::this_thread::sleep(boost::posix_time::microseconds(100000));
	}
	std::cout << "Done..." << std::endl;

	//pcl::io::saveVTKFile("mianpian.vtk", triangles);

	//pcl::io::loadPolygonFile(const std::string &file_name, pcl::PolygonMesh& mesh);
	printf("saveVTKFile=========\n");
	system("pause");
	return 0;
}

Delaunay

void saveSTL(vtkPolyData* StlPolyData)
{
	vtkNew<vtkSTLWriter> stlWriter;
	stlWriter->SetFileName("./db-out.stl");
	stlWriter->SetInputData((vtkDataObject *)StlPolyData );
	stlWriter->Update();
	stlWriter->Write();
}
int main()
{

	// VtksmartpoIinter <vtkcellarray> vertices = vtksmartpointer <vtkcellarray> :: NEW (); // _ Storing the apex of the cells for rendering (show the point cloud)
	vtkSmartPointer<vtkPolyData> polyData = vtkSmartPointer<vtkPolyData>::New();
	//vtkSmartPointer<vtkPolyDataMapper> pointMapper = vtkSmartPointer<vtkPolyDataMapper>::New();
	//vtkSmartPointer<vtkActor> pointActor = vtkSmartPointer<vtkActor>::New();
	//vtkSmartPointer<vtkRenderer> ren1 = vtkSmartPointer< vtkRenderer>::New();
	//vtkSmartPointer<vtkRenderWindow> renWin = vtkSmartPointer<vtkRenderWindow>::New();
	//vtkSmartPointer<vtkRenderWindowInteractor> iren = vtkSmartPointer<vtkRenderWindowInteractor>::New();
	//vtkSmartPointer<vtkInteractorStyleTrackballCamera> istyle = vtkSmartPointer<vtkInteractorStyleTrackballCamera>::New();

	vtkSmartPointer<vtkPoints> m_Points = vtkSmartPointer<vtkPoints>::New();

	 // _ Read the point cloud data information

	ifstream infile(FILE_PATH, ios::in);
	double x, y, z;
	char line[128];
	int i = 0;
	while (infile.getline(line, sizeof(line)))
	{
		stringstream ss(line);
		ss >> x;
		ss >> y;
		ss >> z;

		 m_points-> INSERTPOINT (i, X, Y, Z); // _ Add point information
		 /// vertices-> InsertnextCell (1); // _ Add the cell vertex information ---- For rendering point set
		//vertices->InsertCellPoint(i);
		i++;
	}
	infile.close();

	 // _ Create the data source to be displayed

	 Polydata-> Setpoints (m_points); // _ Set point set

	// Triangulate the grid points
	vtkSmartPointer<vtkDelaunay2D> delaunay =
		vtkSmartPointer<vtkDelaunay2D>::New();
	delaunay->SetInputData(polyData);
	delaunay->SetAlpha(10);
	//delaunay->SetTolerance(0.1);
	delaunay->Update();

	saveSTL(delaunay->GetOutput());
	// Visualize
	vtkSmartPointer<vtkNamedColors> colors =
		vtkSmartPointer<vtkNamedColors>::New();

	vtkSmartPointer<vtkPolyDataMapper> meshMapper =
		vtkSmartPointer<vtkPolyDataMapper>::New();
	meshMapper->SetInputConnection(delaunay->GetOutputPort());

	vtkSmartPointer<vtkActor> meshActor =
		vtkSmartPointer<vtkActor>::New();
	meshActor->SetMapper(meshMapper);
	//meshActor->GetProperty()->SetColor(colors->GetColor3d("Banana").GetData());
	meshActor->GetProperty()->EdgeVisibilityOn();

	vtkSmartPointer<vtkVertexGlyphFilter> glyphFilter =
		vtkSmartPointer<vtkVertexGlyphFilter>::New();
	glyphFilter->SetInputData(polyData);

	vtkSmartPointer<vtkPolyDataMapper> pointMapper =
		vtkSmartPointer<vtkPolyDataMapper>::New();
	pointMapper->SetInputConnection(glyphFilter->GetOutputPort());

	vtkSmartPointer<vtkActor> pointActor =
		vtkSmartPointer<vtkActor>::New();
	//pointActor->GetProperty()->SetColor(colors->GetColor3d("Tomato").GetData());
	pointActor->GetProperty()->SetPointSize(5);
	pointActor->SetMapper(pointMapper);

	vtkSmartPointer<vtkRenderer> renderer =
		vtkSmartPointer<vtkRenderer>::New();
	vtkSmartPointer<vtkRenderWindow> renderWindow =
		vtkSmartPointer<vtkRenderWindow>::New();
	renderWindow->AddRenderer(renderer);
	vtkSmartPointer<vtkRenderWindowInteractor> renderWindowInteractor =
		vtkSmartPointer<vtkRenderWindowInteractor>::New();
	renderWindowInteractor->SetRenderWindow(renderWindow);

	renderer->AddActor(meshActor);
	renderer->AddActor(pointActor);
	//renderer->SetBackground(colors->GetColor3d("Mint").GetData());

	renderWindow->Render();
	renderWindowInteractor->Start();
}

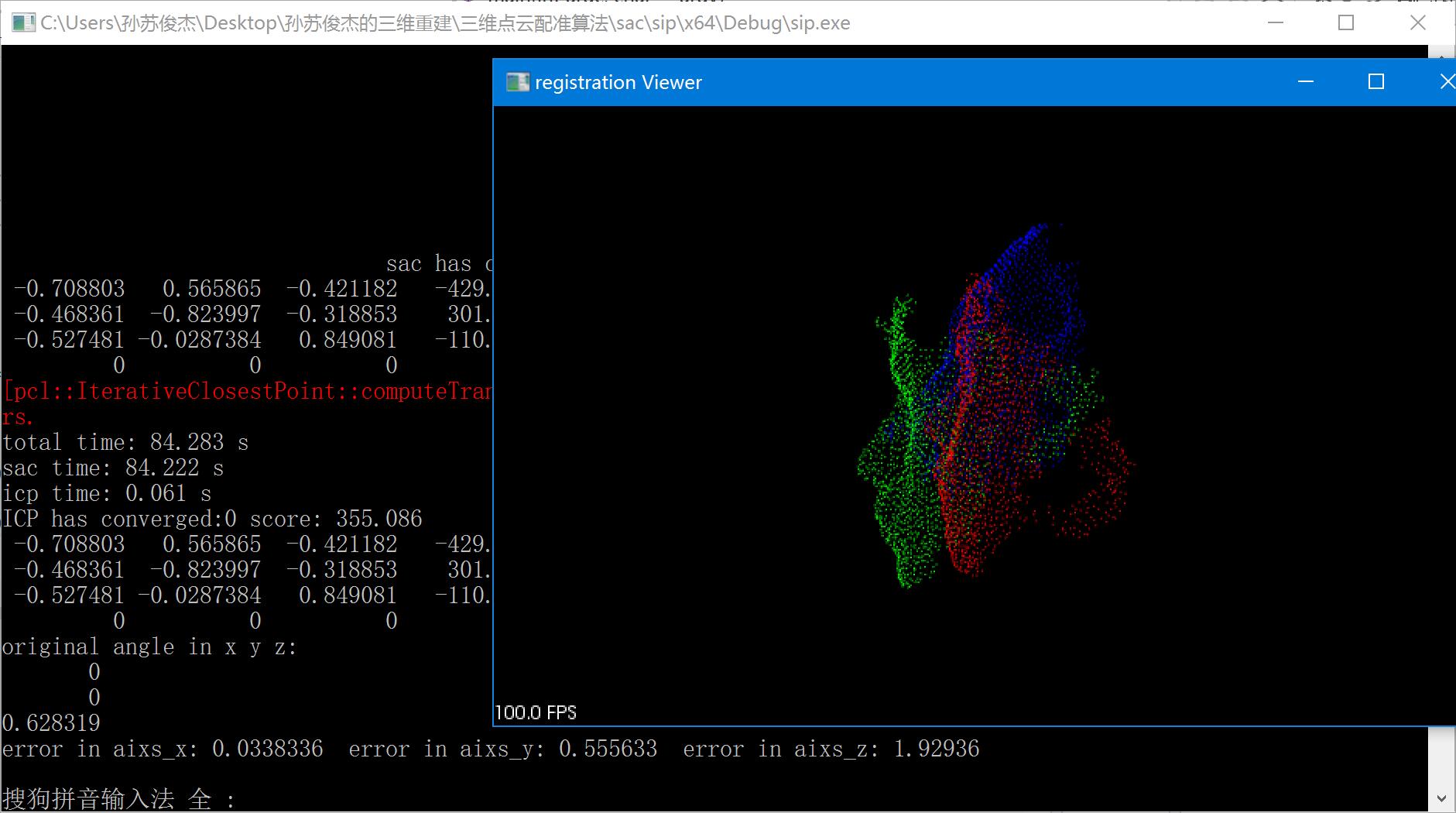

Show point cloud, non -triangularization

 pcl::PointCloud<pcl::PointXYZ>  cloud;
	 VTKSMARTPOINTER <vtkpoints> Points = VTKSMARTPOINTER <vtkpoints> :: New (); // Point data
	vtkSmartPointer<vtkCellArray> vertices = vtkSmartPointer<vtkCellArray>::New();

	int count = cloud.points.size();
	std::cout << "old point s count : " << count << "  " << std::endl;
	for (int i = 0; i < count; i++)
	{
		 // Define the intermediate variables of the storage vertex index, similar to the int, long type
		vtkIdType pointId[1];
		 // Add the coordinates of each point to VTKPOINTS, insertnextpoint () to return the index number of the addition point
		pointId[0] = points->InsertNextPoint(cloud.points[i].x, cloud.points[i].y, cloud.points[i].z);
		 // Create a vertex for each coordinate point, the vertic
		vertices->InsertNextCell(1, pointId);
	}

	 // Specify the geometric structure of the data (specified by Points) and the topology structure (specified by Vertices)
	polyData->SetPoints(points);
	polyData->SetVerts(vertices);
