Matlab / Simulink: Joint Simulation in Simulink Call PSO in SIMULINK

PSO module call in matlab / simulink via s-function

Many combined simulations need to call PSOs and to implement PSO calls in user-defined functions in user custom functions in Simuli / NK.

Call the M files of PSO using the S-Function Template

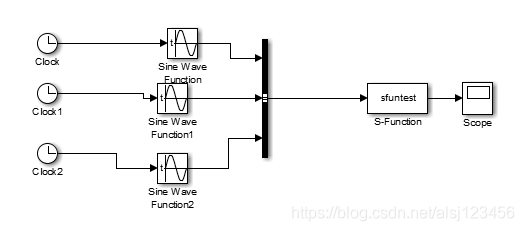

In SINULINK, through three sine wave analog inputs, use the oscilloscope to see the output, as shown

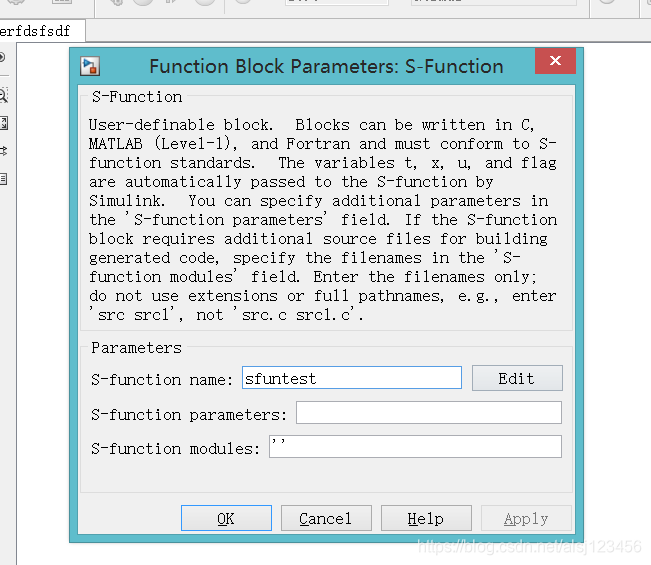

Where S-function is defined as follows:

The SFUNTEST inside can be modified according to the SFUNTEPL files in MATLAB, and can be changed to the PSO main function in the corresponding position.

For other needs to reference the Slmulink combined simulation can be performed according to the above steps.

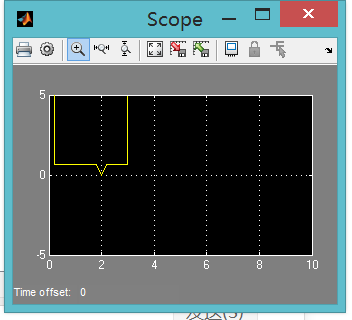

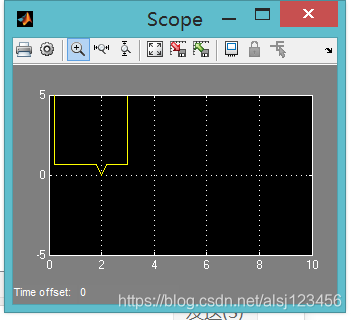

Final oscilloscope outputs the result of PSO

pso

Need to write s-function can contact QQ1015502154
