Use of simout function combined with simulink in MATLAB

The simout function is able to assign the variable of the m file to the variable in simulink, so that if you want to change the parameters, you can only use the m file to change, you don't need to calculate the variable and then write the data in simulink, examples are as follows

A simple sinusoidal amplitude gain simulation, the gain is p, and the m file is

a=1;
b=2;
p=a*2+b*2;
simout=sim('k');
The file name of simulink is k, and the parameters of a and b can be directly used to directly adjust the size of gain p in simulink.

The results are as follows;

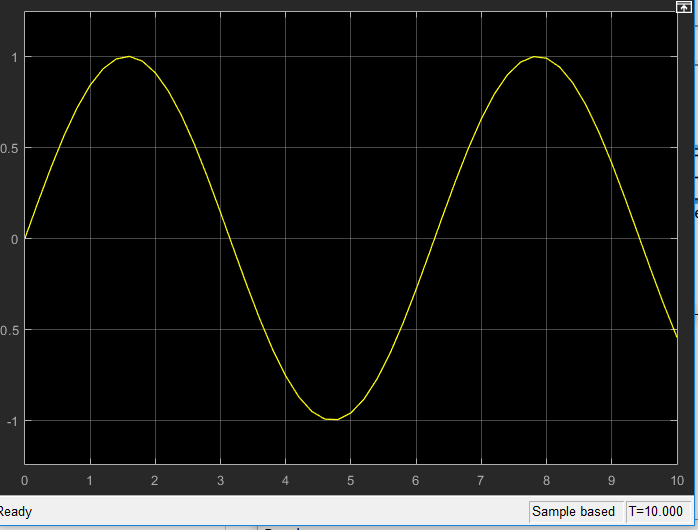

Sine source signal

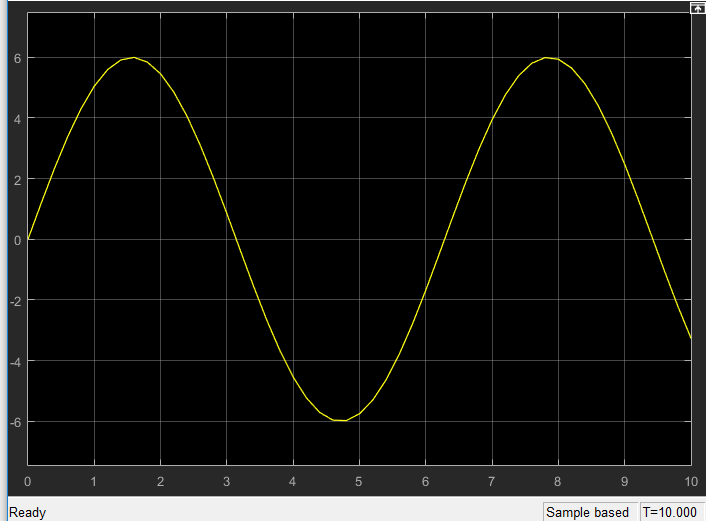

After adding the gain p to the signal, the above code calculates p to be 6, and accordingly, the sinusoidal amplitude becomes 6 times.
