PyQt5 (2) build QtDesigner and .ui file conversion environment
tags: python
Note: This post is a summary post of problems when you use PyQt5. If you have any errors, please correct them and exchange and learn together. My system is win10.
table of Contents
One, build QtDesigner environment
2. Add QTDesigner to the extension tool
Second, build a .ui file conversion environment
1. Convert .ui file to .py file external tool
One, build QtDesigner environment
1. Find QtDesigner

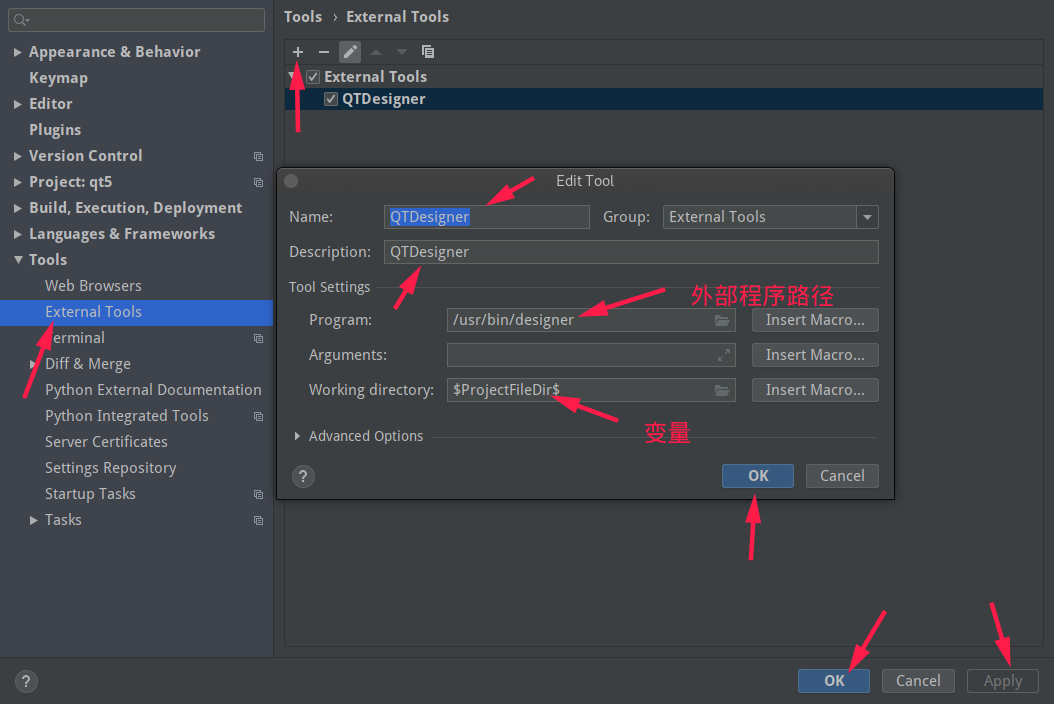

2. Add QTDesigner to the extension tool
(1) Open Settings
(2) Open the extension tool adding window
(3) Enter the project directory
After selecting the bottom OK, be sure to point, otherwise it will not take effect
(4) Right-click the project file to start QTDesigner directly
Second, build a .ui file conversion environment
1. Convert .ui file to .py file external tool
Call the pyuic that comes with python to convert. The .ui file generated in QtDesigner can be converted into an executable .py file
(1) Add tools
Use the same method as adding the QTDesigner tool to add the tool
Program: The path of the Python.exe file
Arguments：-m PyQt5.uic.pyuic $FileName$ -o $FileNameWithoutExtension$.py
Working directory：$FileDir$
(2) Try to apply
Select the .ui file that needs to be converted, and then find PyUIC
Generate a .py file with the same name.
