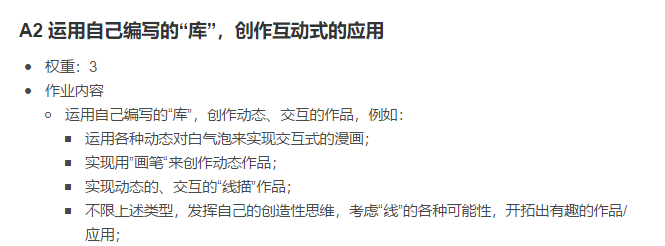

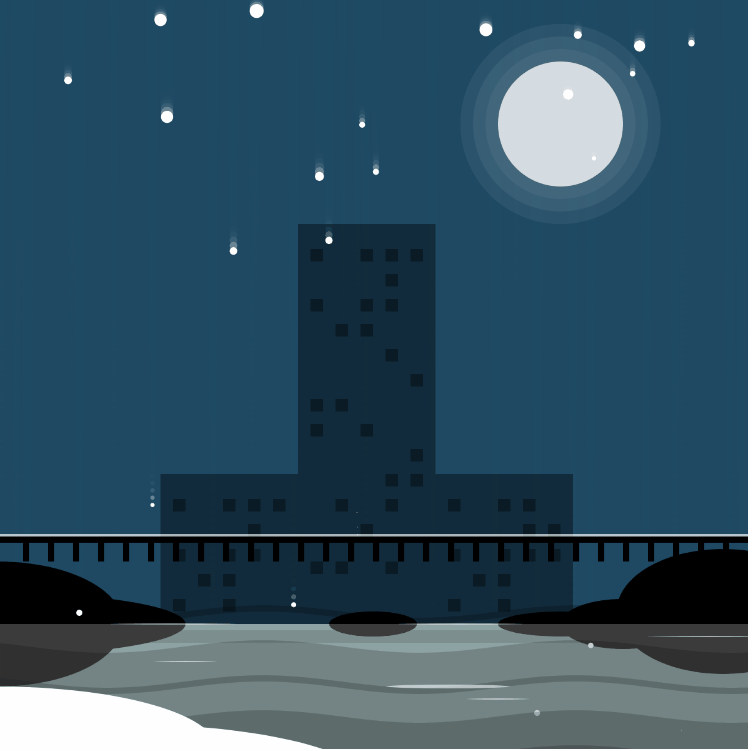

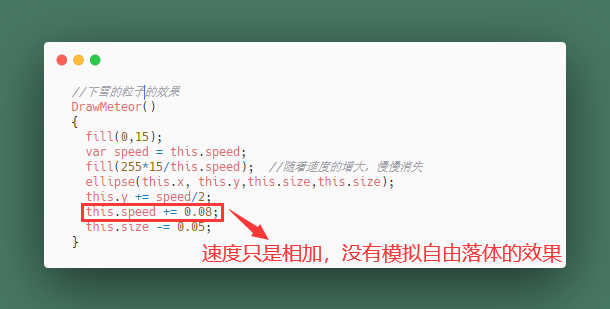

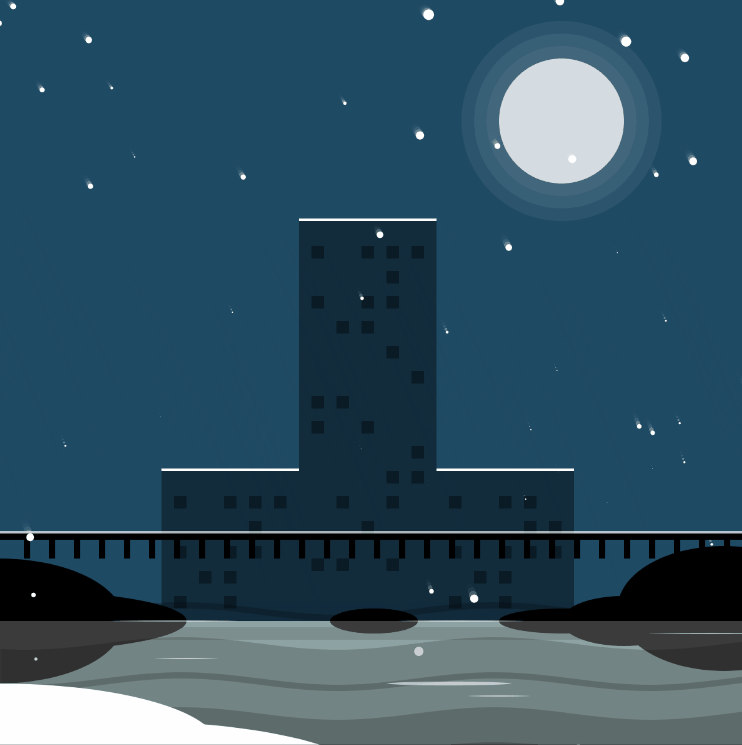

When doing A2 homework, I painted a south library snow scene, which snowy particles, I am a speed +0.8 every time DRAW, there is no simulation of free fall, therefore combined with "Code Nature" Two chapter, so in A5 experiment, I want to join the earth gravity, air and fluid resistance.

// Jiangnan Winter
//var box;
var circleX = 0;
var car = 0;
var snowParticles = [];  // Snow particle set
var WarterSets = []; // Water graphic collection
function setup()
{
  createCanvas(600, 600);
  noStroke();
  circleX = 0;
  WarterSets = GenerateWater();
}

function draw()
{
  background(30, 73, 100, 170);


//SUN
DrawShiner(450, 100,"MOON");  // Call the halo circle in A1_0115_CIRCLE


//BUILDINGS
fill(0, 80);
//rect(0, 290, 100, 200);
// Library's main building
rect(240, 180, 110, 350);//120,200,100,300
windowsOfBuilding1(240, 180);
rect(350, 380, 110, 150);
windowsOfBuildingRight(350, 380);
rect(130, 380, 110, 150);
windowsOfBuildingleft(130, 380);
fill(255);
rect(240, 178, 110, 2);
rect(350, 378, 110, 2);
rect(130, 378, 110, 2);

//rect(410, 350, 200, 300);
//rect(520, 300, 100, 50);

//FILL GROUND
//fill(255);
fill(200, 250, 250);
rect(0, 500, 600, 200);


//GROUND
fill(0);
ellipse(0, 500, 200, 100);
ellipse(0, 500, 300, 50);
ellipse(300, 500, 70, 20);
ellipse(500, 500, 100, 40);
ellipse(450, 500, 100, 20);
ellipse(300, 500, 70, 20);
ellipse(580, 490, 170, 100);


//BRIDGE
fill(255, 150);
rect(0, 428, 600, 2);
fill(0);
//quad(width/2+500, height/2+150, width/2+576, height/2+170, width/2-586, height/2+170, width/2-560, height/2+150);
rect(0, 430, 600, 5);
rect(20, 430, 5, 20);
rect(40, 430, 5, 20);
rect(60, 430, 5, 20);
rect(80, 430, 5, 20);
rect(100, 430, 5, 20);
rect(120, 430, 5, 20);
rect(140, 430, 5, 20);
rect(160, 430, 5, 20);
rect(180, 430, 5, 20);
rect(200, 430, 5, 20);
rect(220, 430, 5, 20);
rect(240, 430, 5, 20);
rect(260, 430, 5, 20);
rect(280, 430, 5, 20);
rect(300, 430, 5, 20);
rect(320, 430, 5, 20);
rect(340, 430, 5, 20);
rect(360, 430, 5, 20);
rect(380, 430, 5, 20);
rect(400, 430, 5, 20);
rect(420, 430, 5, 20);
rect(440, 430, 5, 20);
rect(460, 430, 5, 20);
rect(480, 430, 5, 20);
rect(500, 430, 5, 20);
rect(520, 430, 5, 20);
rect(540, 430, 5, 20);
rect(560, 430, 5, 20);
rect(580, 430, 5, 20);

//BRIDGE SHADOW
fill(0, 50);
rect(0, 505, 600, 10);

//REFLECTION
fill(100, 150);
rect(0, 500, 600, 200);

//SNOW
fill(255, 150);
if(random()>0.8)
{
  snowParticles.push(new SnowAddForce(random(-300,600),-1,1,random(5,12)));
}

for(let i = 0;i<snowParticles.length;i++)
{
  snowParticles[i].DrawSnow();
}



  // Water ripple
  for(let i = 0;i<WarterSets.length;i++)
  {
    WarterSets[i].calWave();
    WarterSets[i].drawWave();
  }


  fill(255);
ellipse(100, 630, 400, 100);
ellipse(0, 600, 350, 100);
fill(255, 150);
ellipse(370, 500, 100, 1);
ellipse(570, 510, 100, 1);
ellipse(140, 500, 100, 1);
ellipse(360, 550, 100, 3);
ellipse(400, 560, 50, 1);
ellipse(150, 530, 50, 1);

}


function windowsOfBuilding1(x,y)
{
  push();
  translate(x,y);
  //WINDOWS BUILDING 2
  //120,200,100,300
  rect(10, 20, 10, 10);
  rect(50, 20, 10, 10);
  rect(70, 20, 10, 10);
  rect(90, 20, 10, 10);

  rect(70, 40, 10, 10);
  rect(70, 60, 10, 10);
  rect(50, 60, 10, 10);
  rect(10, 60, 10, 10);
  rect(50, 80, 10, 10);
  rect(30, 80, 10, 10);
  rect(70, 100, 10, 10);
  rect(90, 120, 10, 10);
  rect(30, 140, 10, 10);
  rect(10, 140, 10, 10);
  rect(10, 160, 10, 10);
  rect(50, 160, 10, 10);
  rect(90, 180, 10, 10);
  rect(90, 200, 10, 10);
  rect(70, 220, 10, 10);
  rect(30, 220, 10, 10);
  rect(70, 200, 10, 10);
  rect(50, 240, 10, 10);
  rect(10, 270, 10, 10);
  rect(30, 270, 10, 10);
  rect(70, 270, 10, 10);
  pop();
}


function windowsOfBuildingleft(x,y)
{
  push();
  translate(x,y);
  //WINDOWS BUILDING 2
  //120,200,100,300
  rect(10, 20, 10, 10);
  rect(50, 20, 10, 10);
  rect(70, 20, 10, 10);
  rect(90, 20, 10, 10);
  rect(70, 40, 10, 10);
  rect(70, 60, 10, 10);
  rect(50, 60, 10, 10);
  rect(10, 60, 10, 10);
  rect(50, 80, 10, 10);
  rect(30, 80, 10, 10);
  rect(10, 100, 10, 10);
  rect(50, 100, 10, 10);
  pop();
}


function windowsOfBuildingRight(x,y)
{
  push();
  translate(x,y);
  //WINDOWS BUILDING 2
  //120,200,100,300
  rect(10, 20, 10, 10);
  rect(50, 20, 10, 10);
  rect(70, 20, 10, 10);
  rect(90, 40, 10, 10);
  rect(70, 40, 10, 10);
  rect(70, 60, 10, 10);
  rect(50, 60, 10, 10);
  rect(10, 60, 10, 10);
  rect(90, 60, 10, 10);
  rect(50, 80, 10, 10);
  rect(30, 80, 10, 10);
  rect(10, 100, 10, 10);
  rect(50, 100, 10, 10);
  pop();
}

2.2 gravity

2.2.1 gravity square

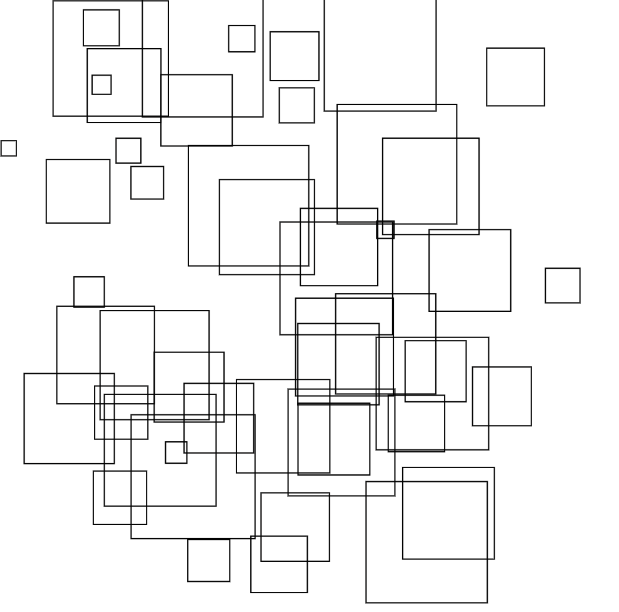

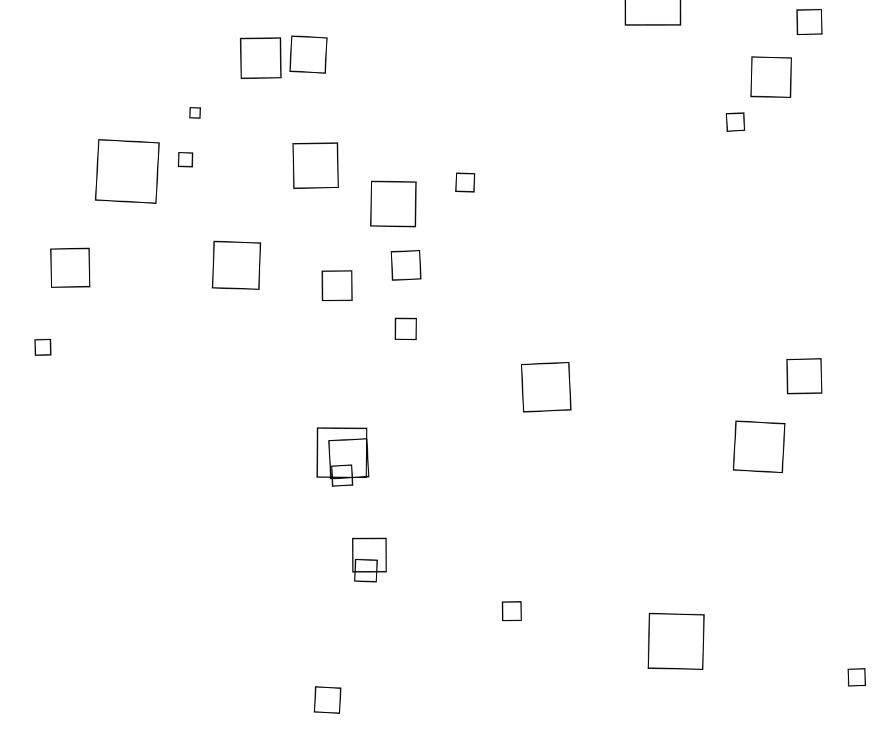

When I paint in A1, I paint a group of collision squares, bounce back after touching the wall, when the size is random, it can produce a better effect.

2.2.1.1 Effect of gravity square

2.2.1.2 Principle of gravity square

The principle here is to learn "codebook" book 2.9, where he sets a Move class, I convert DRAW in Update to the square written in my A1 job, call the code as follows.

let AttractRects = [];
var n = 30;

function setup()
{
  createCanvas(700, 600);
  background(0);

  AttractRects = new Array(n);
  for (var i = 0; i < n; i++)
  {
    //var p = createVector(random(0, width), random(0, height));
    AttractRects[i] = new mouseAttractRect(random(0, width), random(0, height));
  }
}

function draw() {
  background(255);
  for (var i = 0; i < n; i++) {
    AttractRects[i].addForce(AttractRects[i].attractTo(mouseX, mouseY));
    AttractRects[i].run();
  }
}

2.2.2 Butterfly

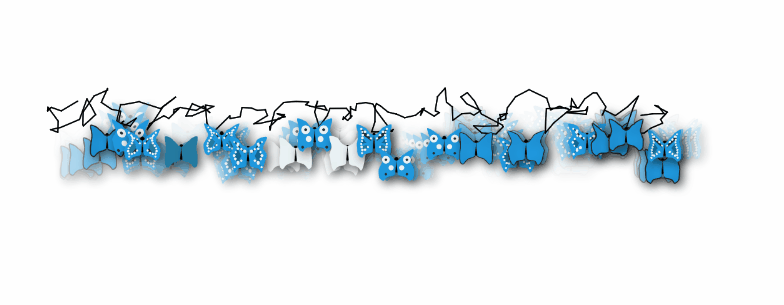

Butterfly in A1

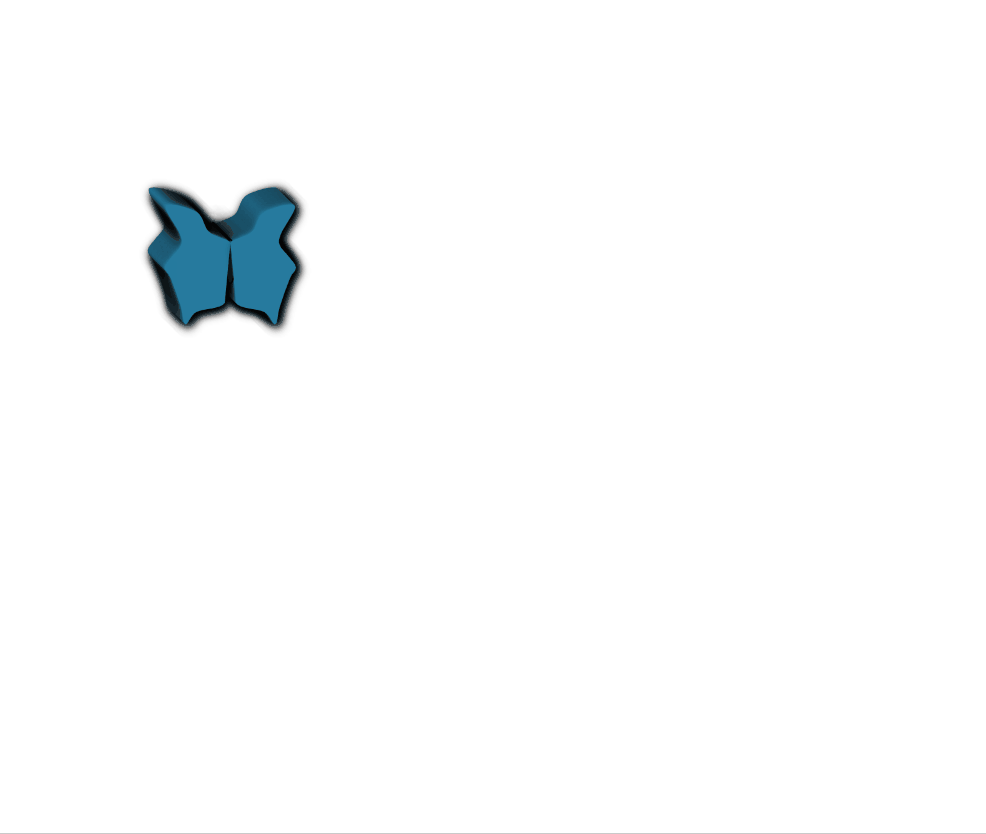

The gravitation is very suitable for objects in nature, flies on the previous effect, I found that I painted like a butterfly like the creatures of nature, so I want to improve the butterfly system, apply the gravitational effect to the butterfly system, and finally the results are as follows.

The calling method is as follows:

var AttractRects;
var n = 30;

function setup()
{
  createCanvas(900, 900);
  background(0);

  AttractRects = new Array(n);
  for (var i = 0; i < n; i++)
  {
    //var p = createVector(random(0, width), random(0, height));
    AttractRects = new mouseAttractButterfly(100,100);
  }
}

function draw() {
  background(255);
  for (var i = 0; i < n; i++)
  {
    AttractRects.addForce(AttractRects.attractTo(mouseX, mouseY));
    AttractRects.run();
  }
}

3 repulsive

3.1 repulsion round matrix

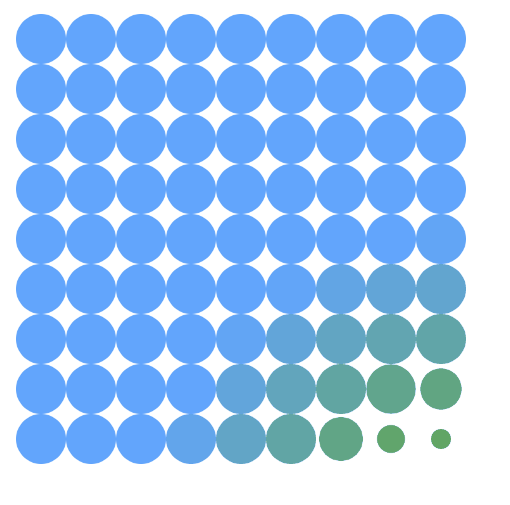

In the Circle interface in A1, I have done a matrix circle, and the circle is arranged in a matrix, and the size of the circle is related to the distance from the circle, the effect is as follows.

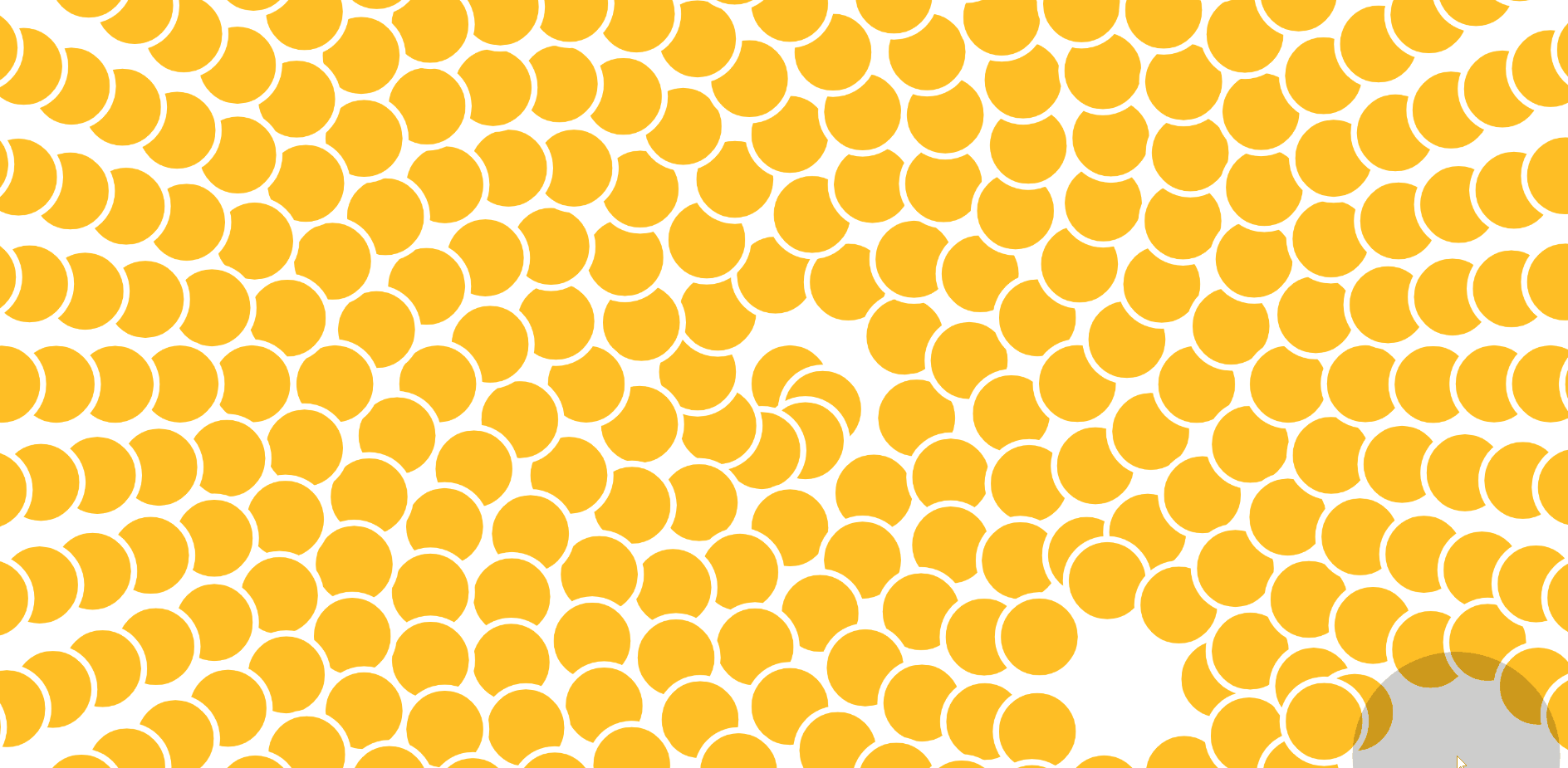

This looks a bit like rejection effect, but it is not true exclusive effect. I want to use "codebook" 2.10 in chapter to modify the circular matrix, let it simulate it.

var count = 800;
var spacing = 40;
var repulsionRadius = 100;
var particles = [];

function setup() {
  createCanvas(windowWidth, windowHeight);
  //colorMode(HSB, 255);

  for (let i = 0; i < count; i++)
  {
    let angle = i * 37.5;
    let r = spacing * sqrt(i);
    let x = r * cos(radians(angle)) + width / 2;
    let y = r * sin(radians(angle)) + height / 2;
    let distToCenter = dist(x, y, width / 2, height / 2);
    let s = 255 - distToCenter * 1.25;
    let b = 150 + distToCenter * 1;

    particles.push(new RepulsiveParticle(
      width, -300,
      x, y,
      0.5,
      s, b));
  }
}

function draw() {
  background(255);

  for (let i = 0; i < particles.length; i++) {
    particles[i].move();
    particles[i].display();
  }

  stroke(0, 50);
  strokeWeight(repulsionRadius * 2);
  point(mouseX, mouseY);
}
