Python Tkinter GUI is not stuck in running, multi -threading solution to the interface card death problem

Foreword

The TKINTER module (TK interface) is the interface of the Python standard TK GUI toolkit .TK and TKINTER can be used under most UNIX platforms, and can also be applied to Windows and Macintosh systems. The follow -up version of TK8.0 can achieve local windows style and run well in most platforms. Python can quickly create GUI applications using TKINTER. Since TKINTER is built -in Python installation package, as long as Python is installed, Python is installed. It can be imported tkinter library, and Idle is also written in Tkinter. For a simple graphical interface TKINTER, it can still be freely cope. ——In the Python GUI Programming (TKINTER) | Cainiao Tutorial

1. Problem description

When the Python GUI program is running, if you click the button to run a more time -consuming operation, the interface will be stuck to indicate that the response is not responding, causing other components to operate.

2. Solving ideas

The reference thread is used to execute the function of the button button binding events. The reality does not run stuck to solve the interface stuck.

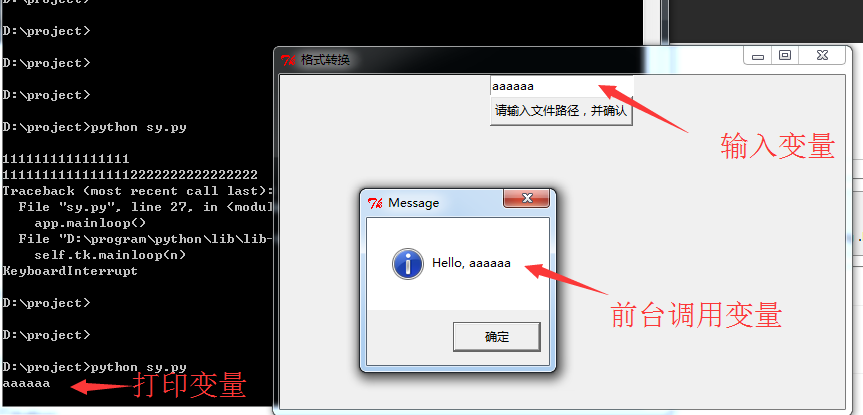

3. Operation effect

Fourth, code example

1. Perform the thread method of the Button button to bind the event function

import threading
def thread_it(func, *args):
    """Packing the function into the thread"""
    self.myThread = threading.Thread(target=func, args=args)
    self.myThread .setDaemon(True)    # The main thread exits, just let the sub -thread follow the exit,Regardless of whether it is running.
    self.myThread .start()

2. Full code

import sys
import time
import tkinter as tk
from tkinter.messagebox import askyesno
from tkinter.scrolledtext import ScrolledText
import threading


class TestGui(object):
    def __init__(self, init_window_name):
        self.init_window_name = init_window_name
        self.init_window_name.title("Packing the Button method into the thread, the real run is not stuck test")    # Set the window title
        self.init_window_name.geometry('700x350')    # Set the window size
        """Click to close the window pop -up window in the upper right corner"""
        self.init_window_name.protocol('WM_DELETE_WINDOW', lambda: self.thread_it(self.clos_window))
        """Create a component container"""
        self.log_frame = tk.Frame(self.init_window_name)    # Create a container for storage logo
        self.log_frame.grid(padx=20, pady=0, row=1, column=0, sticky=tk.W)
        self.runs_button_frame = tk.Frame(self.init_window_name)    # Create a container for storage logo
        self.runs_button_frame.grid(padx=20, pady=0, row=2, column=0, sticky=tk.W)
        """Log box"""
        self.run_log = ScrolledText(self.log_frame, font=('Kaiti ", 13), width=69, height=17)
        self.run_log.grid(padx=20, pady=5, row=0, column=0)
        """Operation button"""
        self.start_run1 = tk.Button(self.runs_button_frame, text='Start print 1', font=('Xing Kai', 15, 'bold'), fg="white", bg="#1E90FF", width=25, command=lambda: self.thread_it(self.print1))
        self.start_run1.grid(padx=20, pady=0, row=0, column=1)
        self.start_run2 = tk.Button(self.runs_button_frame, text='Start print 2', font=('Xing Kai', 15, 'bold'), fg="white", bg="#1E90FF", width=25, command=lambda: self.thread_it(self.print2))
        self.start_run2.grid(padx=35, pady=0, row=0, column=2)

    def thread_it(self, func, *args):
        """Packing the function into the thread"""
        self.myThread = threading.Thread(target=func, args=args)
        self.myThread .setDaemon(True)    # The main thread exits, just let the sub -thread follow the exit,Regardless of whether it is running.
        self.myThread .start()

    def print1(self):
        for i in range(100):
            tip_content = f'No. 1} times print -I am Xiaozhou 1'
            self.run_log_print(message=tip_content)
            time.sleep(0.1)    # #
        self.run_log_print(message='I am Xiaozhou 1 -Printing complete')

    def print2(self):
        for i in range(100, 200):
            tip_content = f'No. {i} times print -I am Xiaozhou 2'
            self.run_log_print(message=tip_content)
            time.sleep(0.05)    # #
        self.run_log_print(message='I am Xiaozhou 2 -Printing complete')

    def run_log_print(self, message):
        self.run_log.config(state=tk.NORMAL)
        self.run_log.insert(tk.END, "\n" + message + "\n")
        self.run_log.see(tk.END)
        self.run_log.update()
        self.run_log.config(state=tk.DISABLED)

    def clos_window(self):
        ans = askyesno(title='Xiaozhou Assistant v1.1 warning', message='Are you sure the exit program? \ n is exiting, otherwise continue! ')
        if ans:
            self.init_window_name.destroy()
            sys.exit()
        else:
            return None


if __name__ == '__main__':
    """Packing the Button method into the thread, the reality is not stuck."""
    """Examine a parent window"""
    init_window = tk.Tk()
    """TK interface top"""
    init_window.attributes("-topmost", 1)
    """Create GUI class objects"""
    test_gui = TestGui(init_window)
    """Initialize GUI component"""
    init_window.mainloop()

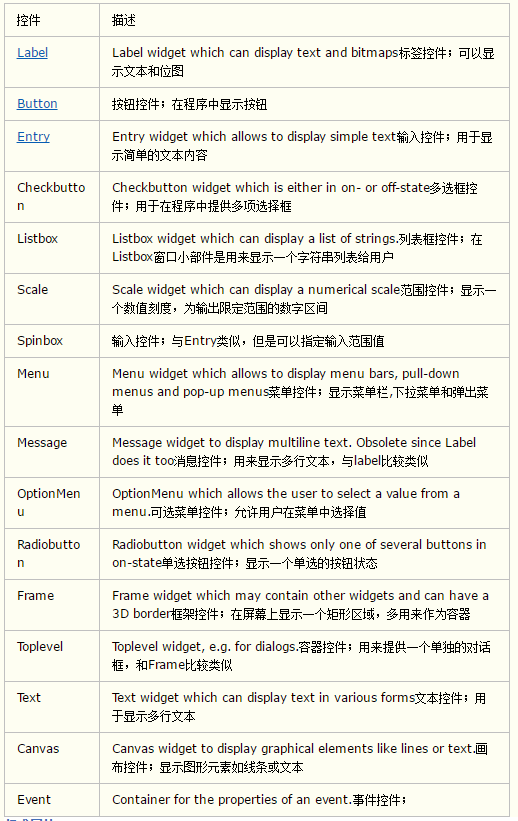

5. Specific use of components

Note: The key parts in the code are written. This blog just introduces how to solve the problem of the tk interface running stuck;
For the specific use of components, please refer to another blog of my: update
