IBM X3650 M5 SYS BRD ERR Yellow Light Maintenance
tags: notes
IBM X3650 M5 SYS BRD ERR Yellow Light Maintenance Masterboard
- It is also more than the X3650 M4 and M5 servers in the Pearl River Delta region, and often receives customers' repairs. I have written about M5 before, because after-sales maintenance quoted users sure to pain, so I will write M5, press the start button, not start, After waiting for a few seconds, the server exclamation is warned, the maintenance process: After the main board has a set voltage, the cause of the fault is a group for short circuit, directly change the power supply chip OK, "There is a communication of this fault together Weixin is CFX02100313.
- Insert a picture description here
-
Open the cover, take off the CPU fan cover, you can see the wrong yellow light () BLGBLB array card)
-
The demolition of the mother is relatively simple, no tool, unplug all connecting lines. There are two green buttons on the motherboard, and you can take it out.
2.
-

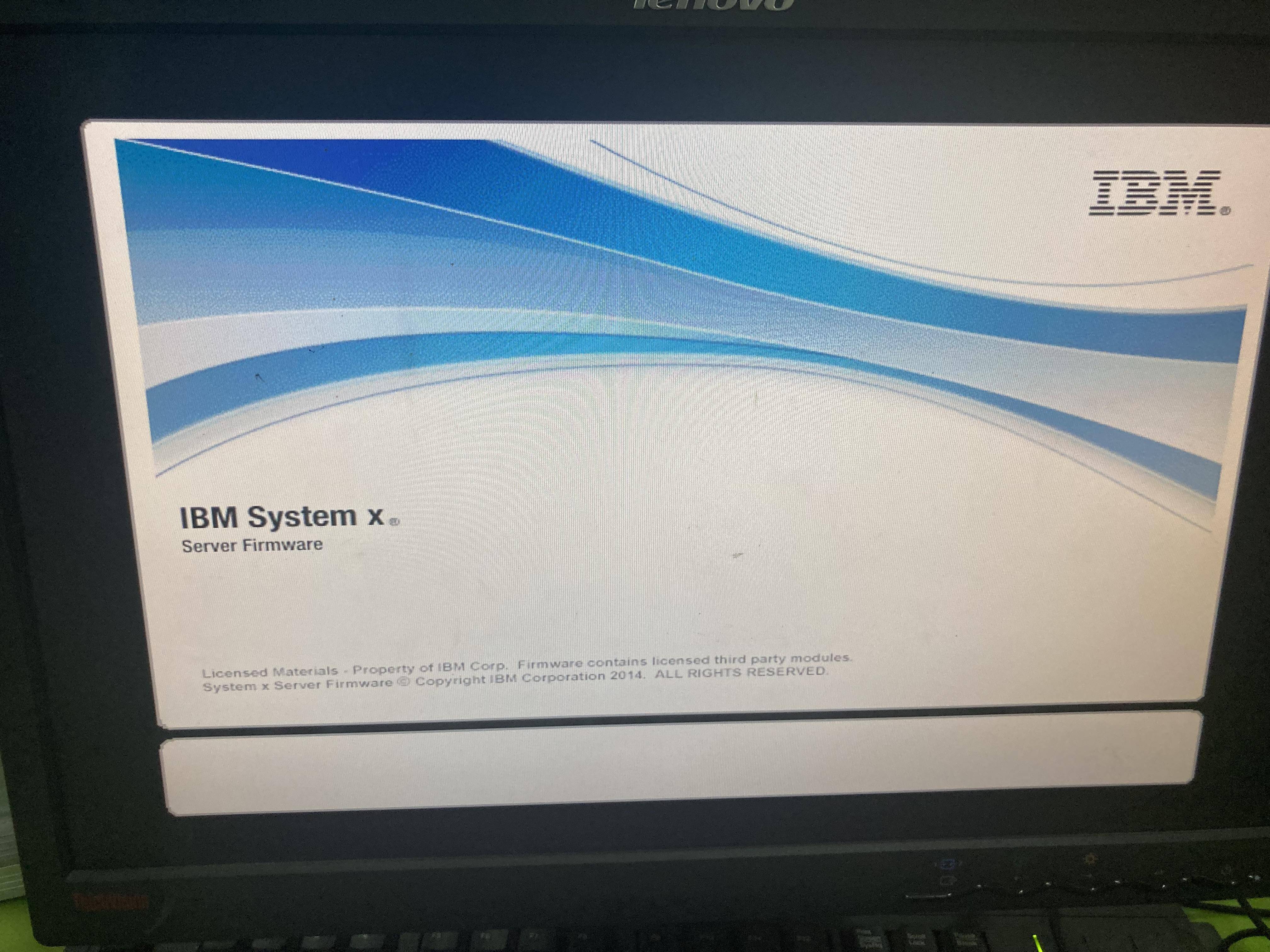

Side test edge and other customers come to take, ERP users are urgent .........
