The installation of docker only talks about CentOS installation reference for other systemslink

The connection for centos to install docker is here

Next, build the harbor warehouse

1. Install docker-compose

On Linux, we can download its binary package from Github to use, the latest version address:https://github.com/docker/compose/releases。

Novice Tutorial

Method 1: (version 1.24 is an example, other versions can be modified directly)Recommended method three

# sudo curl -L "https://github.com/docker/compose/releases/download/1.24.1/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose # chmod +x /usr/local/bin/docker-compose

View version information

# docker-compose --version

But this method will often fail to install due to network reasons

Method Two:

One command execution

yum install -y epel-release && yum install -y python-pip && pip install docker-compose && pip install --upgrade pip

1. Install python-pip

yum -y install epel-release yum -y install python-pip

2. Install docker-compose

pip install docker-compose

If prompted during installation

Could not find a version that satisfies the requirement requests<3,>=2.20.0 (from docker-compose) (from versions: ) No matching distribution found for requests<3,>=2.20.0 (from docker-compose) You are using pip version 8.1.2, however version 20.2 is available. You should consider upgrading via the 'pip install --upgrade pip' command.

Just execute the command to update the pip version

pip install --upgrade pip install after update pip install docker-compose

After the installation is complete, execute the command to query the version

docker-compose version docker-compose -version

If prompted that the permissions are not enough

chmod +x /usr/local/bin/docker-compose

If prompted

Cannot open self /usr/local/bin/docker-compose or archive /usr/local/bin/docker-compose.pkg

Just click here, there is a solution

Method three:

You can download the docker-compose compressed file directly, and then unzip it and upload it.Click here for details

Stable version 1.24.1

The newer stable version is 1.26.2

Check if the kernel version is low, you need to upgrade

uname -r

If it is 3.10, you need to upgrade

yum update
yum install -y ncurses-devel qt-devel make gcc bc bison flex openssl-devel grub2 hmaccalc zlib-devel binutils-devel elfutils-libelf-devel

Download the linux kernel from the Internet, upload it to the server, and unzip it to the /usr/src/linux folder You can also click here directlylinux kernel linux-5.4.56.tar.xz

tar -xvf linux-5.4.56.tar.xz -C /usr/src/linux
cd /usr/src/linux/linux-5.4.56/
cp /boot/config-$(uname -r) ./.config

Then execute custom kernel configuration to generate .config

make mrproper

You can also directly use the kernel configuration of the original system

sh -c 'y "" | make oldconfig' #centos 7

After make mrproper, you can customize the kernel features. If you are not familiar with the kernel, you can directly use the tab key to select save to save, and then exit.

nproc view the number of cpu cores
 #One
make -j 4 && make modules_install -j 4 && make install -j 4
 #Compile
make -j4
 #Install the kernel module fast
make modules_install
 #Install the kernel
make install
 #Compile and continue execution:
grub2-set-default "CentOS Linux (5.4.56) 7 (Cores)"
grub2-editenv list
grub2-mkconfig -o /boot/grub2/grub.cfg
 #Restart
reboot

Select the newly installed kernel when entering the system

View the kernel

uname -a
uname -r

Install Harbor

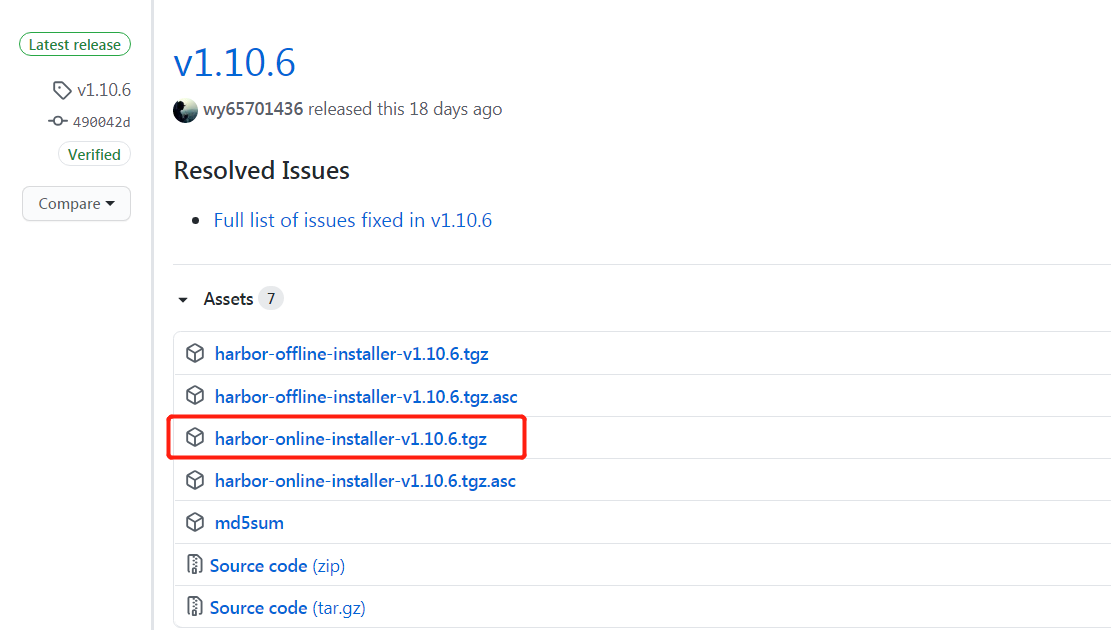

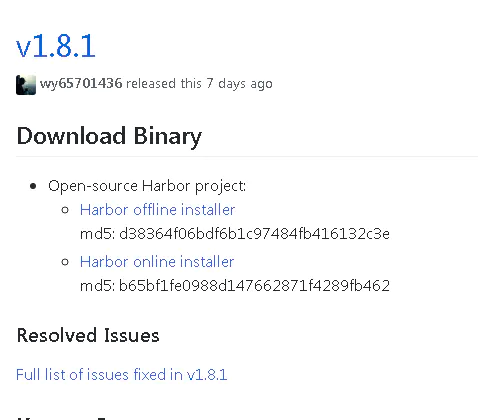

Download Harbor’s compressed package online. Here is a newer oneClick to download harbor-offline-installer-v2.0.2.tgz

Upload the compressed package to Linux /usr/local, and unzip

mkdir /usr/local is generally available, no need to create
 Then upload and unzip
tar -xzf harbor-offline-installer-v2.0.2.tgz
 Delete the compressed package to make room
rm -rf harbor-offline-installer-v2.0.2.tgz

Modify the configuration of Harbor, if not, copy harbor.yml.tmpl

vi harbor.yml
 Modify hostname and port
 hostname: 192.168.137.58 #This is my local ip, remember to change it to your own

port: 80
 If there is no certificate, comment out the https configuration
https:
  # https port for harbor, default is 443
  port: 443
  # The path of cert and key files for nginx
     certificate: /usr/local/harbor/harbor/cert/192.168.137.58.crt #IP are changed to your own
     private_key: /usr/local/harbor/harbor/cert/192.168.137.58.key #Change the IP to your own
     external_url: https://192.168.137.58 #This should also be changed
data_volume: /data/harbor

Next is the most pitted place. Because the harbor uses https by default, it needs to be equipped with a certificate. It is best to have the server's own. The following is the one that is randomly configured locally.

harbor open https

Create ca certificate

mkdir -p /usr/local/harbor/harbor/cert cd /usr/local/harbor/harbor/cert

Generate CA key

openssl genrsa -out ca.key 4096

Generate crt of CARemember to change IP

openssl req -x509 -new -nodes -sha512 -days 3650 \ -subj "/C=CN/ST=Chengdou/L=Chengdou/O=chinatelecom/OU=ecloudcaas/CN=192.168.137.58" \ -key ca.key \ -out ca.crt

Generate the key of your own domain nameRemember to change IP

openssl genrsa -out 192.168.137.58.key 4096

Generate csr of your own domain nameRemember to change IP

openssl req -sha512 -new \ -subj "/C=CN/ST=Chengdou/L=Chengdou/O=chinatelecom/OU=ecloudcaas/CN=192.168.137.58" \ -key 192.168.137.58.key \ -out 192.168.137.58.csr

Generate an external configuration file required by the openssl commandRemember to change IP

Mainly subjectAltName, here IP.1=yourip can also write DNS.1=yourdomainname

cat > v3.ext <<-EOF
authorityKeyIdentifier=keyid,issuer
basicConstraints=CA:FALSE
keyUsage = digitalSignature, nonRepudiation, keyEncipherment, dataEncipherment
extendedKeyUsage = serverAuth
subjectAltName = @alt_names
[alt_names]
IP=192.168.137.58
EOF
#Replace the DNS entry to reflect your domain. IP does not need to be configured with DNS
[alt_names]
DNS.1=harbor.od.com
DNS.2=harbor.od.com
DNS.3=harbor.od.com
EOF

Generate crt through ext and csrRemember to change IP

openssl x509 -req -sha512 -days 3650 \
    -extfile v3.ext \
    -CA ca.crt -CAkey ca.key -CAcreateserial \
    -in 192.168.137.58.csr \
    -out 192.168.137.58.crt

Convert the crt of the server to the cert used by the clientRemember to change IP

openssl x509 -inform PEM -in 192.168.137.58.crt -out 192.168.137.58.cert

Copy the cert, key and ca.crt with the domain name to the /etc/docker/certs.d/IP/ directory of the host where the docker client is locatedRemember to change IP

mkdir -p /etc/docker/cert.d/192.168.137.58
cp /usr/local/harbor/harbor/cert/192.168.137.58.cert /etc/docker/cert.d/192.168.137.58/
cp /usr/local/harbor/harbor/cert/192.168.137.58.key /etc/docker/cert.d/192.168.137.58/
cp /usr/local/harbor/harbor/cert/ca.crt /etc/docker/cert.d/192.168.137.58/

Install Harbor, remember to go to the directory you unzipped

./prepare
./install.sh

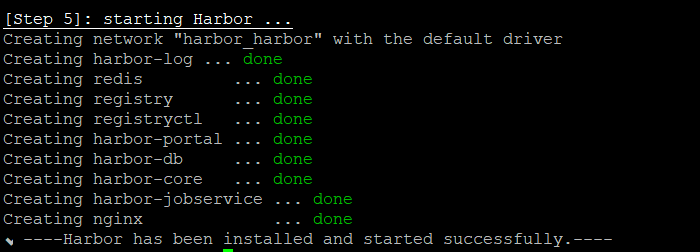

When you seeHarbor has been installed and started successfullyAt that time, I would like to congratulate you on your successful installation.

I won’t talk about it when I visit Harbor and I need to change to my own place.

http://192.168.137.58:80

Default account password: admin/Harbor12345

Start and stop Harbor

docker-compose up -d start
 docker-compose stop stop
 docker-compose down stop // It will reset the network connection. If you can’t access it after stopping, you can use this
 docker-compose restart restart

Push mirror verification

First need to add the warehouse to the docker configuration

$ vim /etc/docker/daemon.json
{
  "registry-mirrors": ["https://v0b39vg3.mirror.aliyuncs.com"],
  "insecure-registries": ["192.168.137.58:80"]
}

$ systemctl restart docker

log in

docker login -u admin -p Harbor123 192.168.137.58:443

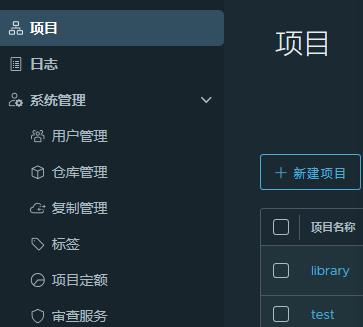

Go to the web page to create a project: test;

Push

Download the official centos mirror

docker pull centos:centos7.8.2003 You can choose a smaller one. I have it ready-made, so I used this

Modify TAG

docker tag centos:centos7.8.2003 192.168.137.58/test/centos:7.8.2003

Push to the warehouse

docker push 192.168.137.58/test/centos:7.8.2003



Mirror pull

Suppose it is a docker client that has not logged in to this harbor

Create /etc/docker/daemon.json file

{
  "registry-mirrors": ["https:mirror.ccs.tencentyun.com","https://kuamavit.mirror.aliyuncs.com", "https://registry.docker-cn.com", "https://docker.mirrors.ustc.edu.cn"],
  "insecure-registries" : ["https://192.168.137.58"],
  "max-concurrent-downloads": 10,
  "log-driver": "json-file",
  "log-level": "warn",
  "log-opts": {
    "max-size": "10m",
    "max-file": "3"
    }
}

Restart Docker to take effect

systemctl daemon-reload
systemctl restart docker

Pull the image in harbor

docker login 192.168.137.58
docker pull 192.168.137.58/test/centos:7.8.2003

My local test is no problem. This is the end. Thank you for reading it patiently. If there are problems later, remember to see if the IP has been changed.
