Native JS game: Realize a minesweeper game from 0

tags: JavaScript design patterns and development practices javascript css es6 html front end

I have been idle for the past two days and wrote a few Web games to pass the time. Among them, the author feels that the knowledge points involved in the realization of the minesweeper game are more comprehensive, so I will share with you here.

First put the effect picture:

First we have to build up the basic shelf:

<!DOCTYPE html>
<html>
<head>
	<meta charset="UTF-8">
	<title>Native js implements minesweeping games</title>
	<style>
		*{margin:0;padding:0;}
		.container{width:600px;height:600px;border:1px solid #ccc;margin:0 auto;}
		.container .block{width:60px;height:60px;background:#abcdef;float:left;border:1px solid #f00;box-sizing:border-box;}
		.container .block:active{background:#eee;}
		.container .lei{}
		/* Thunder display */
		.container .show{background:url('tim.jpg') no-repeat center center/ 100% 100%;cursor:pointer;}
		/* If there is thunder around, display a number */
		.container .number{background:#fff;text-align:center;line-height:60px;}
		/* Red flag display */
		.container .biaoji{background:url('qz.jpg') no-repeat center center/ 100% 100%;cursor:pointer;}
		.ts0{position:fixed;width:100%;height:100vh;top:0;left:0;z-index:888;background:rgba(255,255,255,0);display:none;}
		.ts{position:fixed;width:200px;height:60px;background:rgb(255,255,255);top:0;right:0;left:0;bottom:0;margin:auto;z-index:999;display:none;}
		.ts p{text-align:center;line-height:60px;}
	</style>
</head>
<body>
	<h4>mxc-Yun Fengqing</h4>
	<div class="container">

	</div>
	<div class="ts0"></div>
	<div class="ts">
		<p>game over!</p>
	</div>
</body>
<script>
</script>
</html>

There is nothing to say about this-in fact, it is very simple: a subtitle (<h4>), a "game area" (class="container"), a prompt box at the end (class="ts"), and the overlay that sets off the prompt box (class="ts0"）。

But you will find that the so-called "game area" is just an "empty shelf" with a div?
Here, the author uses JS to dynamically render div elements (one small square), because of the need of the "story" later, we need to set each small square [exclusive id] (id name ):

	let container=document.querySelector('.container');

	for(let i=0;i<10;i++){
		for(let j=0;j<10;j++){
			let divObj=document.createElement('div');
			divObj.classList.add('block');
			divObj.id='a'+i+'_'+j;   //Set exclusive id (id name)
			container.appendChild(divObj);
		}
	}

We quickly completed this code. Is this really good? Now it is only 10X10, what if it is 100X100? Execute in a large data volume loopappendChildNot a wise decision!
mentioned a solution in the author's article on JS performance optimization:createDocumentFragment() ：

	let container=document.querySelector('.container');
	let fragment=document.createDocumentFragment();

	for(let i=0;i<10;i++){
		for(let j=0;j<10;j++){
			let divObj=document.createElement('div');
			divObj.classList.add('block');
			divObj.id='a'+i+'_'+j;   //Set exclusive id (id name)
			fragment.appendChild(divObj);
		}
	}
	container.appendChild(fragment);

In fact, many styles of operations on elements in native can ultimately be attributed to operations on classname from a performance perspective.

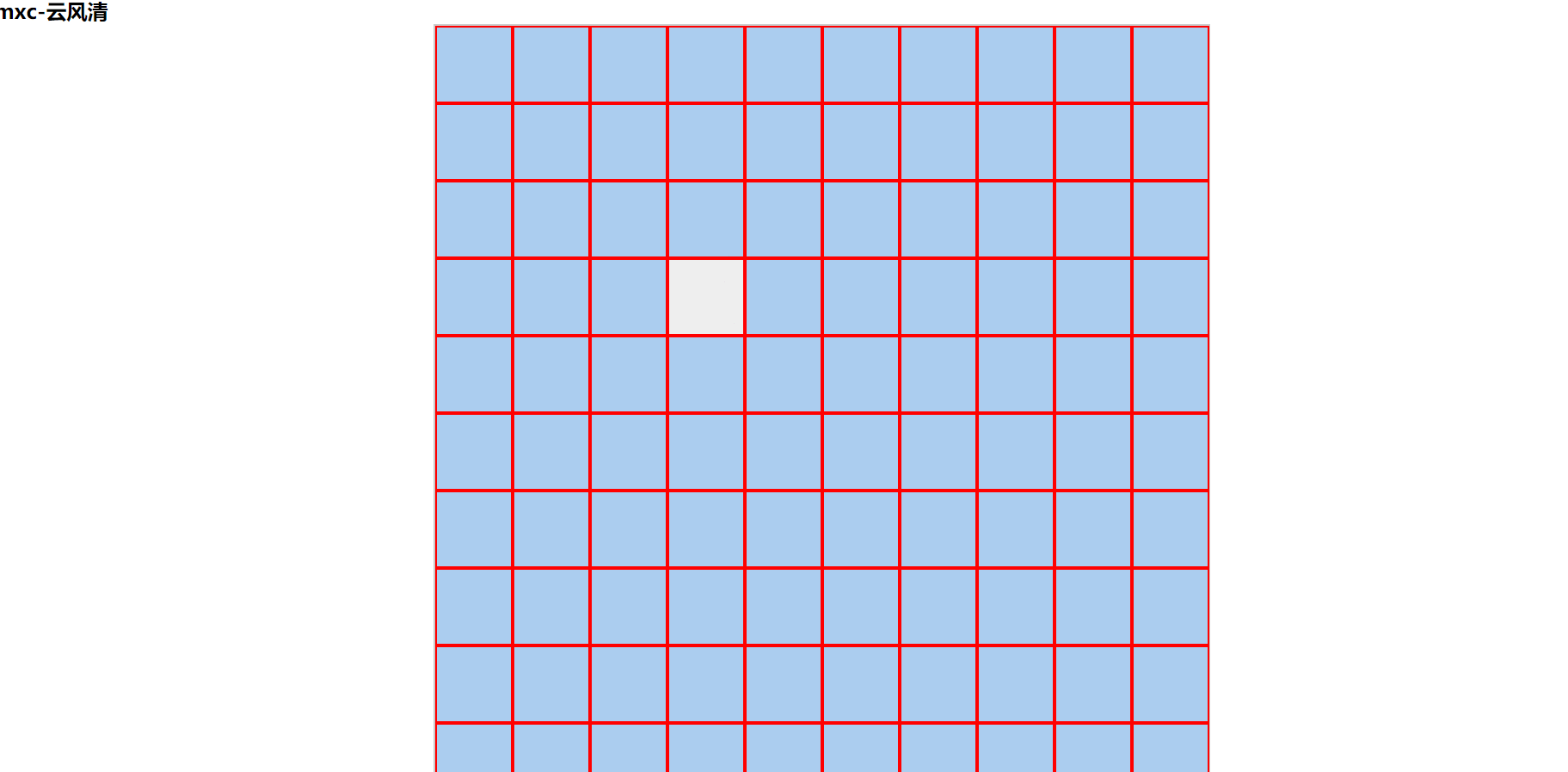

Now, we have the following style on the screen:

It's time for the next step.
But before that, we need to find two pictures:

(We don’t have to pay attention to their size-just change it in css)

After finishing the above preparations, the dinner begins:

Ray’s distribution: random, and
The author said above:Many style operations on elements in the native can be attributed to the operation of classname in terms of performance., So we can think of: add a [special class] (.lei) for each small square that needs to become a "thunder":
The author uses a loop to achieve:

	let count=13;
	let block=document.querySelectorAll('.block');
	do{
		let random=Math.floor(Math.random()*block.length);

		block[random].classList.add('lei');
	}while(document.querySelectorAll('.lei').length<=count);

Look! This reflects the benefits of the do-while loop.

Then handle mouse events: this will be the last step.

The author found that many front-end students around me are onclick, oninput, onmouse when doing event processing... Smaller files are better to say, a little bit for high-performance web pages or the game is set to 10000X10000, the browser will be " Can't bear it"-because the loading of the function at the beginning is too large!
Function optimization: Why can't we follow the [lazy loading mode] and load the function when it is triggered?

//block is the variable previously obtained-the obtained ".block" refers to each small block in ".container"
	block.forEach(function(item){
		item.onclick=function(){   //Left mouse button event
			leftClick(item);
		}
		item.oncontextmenu=function(e){   //The right mouse button event
			//Prevent the browser's default right mouse button event
			e.preventDefault();
			rightClick(item);
		}
	})

xxx.oncontextmenu right mouse button event pay attention to: the usual things like prohibiting the right mouse button, prohibiting copy and paste (one of them), f12 pop-up console are all related to this

Then there are two functions:
The corresponding function of the left mouse button is nothing-to determine whether the click is a thunder (there is a .lei class), if not, loop to determine how many of the 8 small squares around the click are A mine and show it:

	function leftClick(obj){
		if(obj.classList.contains('biaoji')){
			return "";
		}
		if(obj.classList.contains('lei')){
			let lei=document.querySelectorAll('.lei');
			lei.forEach(function(item){
				item.classList.add('show');
			})
			//Prompt box and mask display at the end
			document.querySelector('.ts0').style.display='block';
			document.querySelector('.ts').style.display='block';
			setTimeout(function(){let yes=prompt("Refresh to refresh to enter the next level?");if(yes === "Yes"){window.location.reload()}},1700);
		}else{
			obj.classList.add('number');
			let ids=obj.id;
			//The function of the following three lines is to split the [exclusive id] (id name) to determine the location coordinates
			let arr=ids.split('_');
			let x=Number(arr[0].substr(1));
			let y=Number(arr[1]);
			let num=0;
			for(let i=x-1;i<=x+1;i++){
				for(let j=y-1;j<=y+1;j++){
					let objs=document.querySelector('#a'+i+'_'+j);
					//You can also use "es6 template string" here: let objs=document.querySelector(`#a${i}_${j}`);
					if(objs && objs.classList.contains('lei')){
						num++;
					}
				}
			}
			if(num){
				obj.innerHTML=num;
			}
			if(num===0){
				for(let i=x-1;i<=x+1;i++){
					for(let j=y-1;j<=y+1;j++){
						let objs=document.querySelector('#a'+i+'_'+j);
						if(objs && !objs.classList.contains('number')){
							leftClick(objs);
						}
					}
				}
			}
		}
	}

It’s the right mouse button: it’s a red flag

This involves a problem: the red flag is different from the mine sweep, you can cancel it. This problem is not big, but it is also a performance problem.
I checked the data and found a function:toggle() —— Operate a function with a single click, and execute another function with an even click (you can also put a class name in it, that is, add the class name for a single click and cancel the class name for an even click):

	function rightClick(obj){
		if(!obj.classList.contains('number')){
			obj.classList.toggle('biaoji');
		}
		let biaoji=document.querySelectorAll('.biaoji.lei');
		let biaoji2=document.querySelectorAll('.biaoji');
		if(biaoji.length===count && count===biaoji2.length){
			document.querySelector('.ts0').style.display='block';
			document.querySelector('.ts').style.display='block';
		}
	}

Finally, the author uploaded the code of this article to Baidu Netdisk, if you need it, please download it yourself:
link:
Extraction code: v0m8
