1 Introduction

1.1 Basic introduction

TouchGFX is an advanced free graphics software framework optimized for STM32 microcontrollers. Using STM32's graphics functions and architecture, TouchGFX accelerates the revolution of human-computer interaction interfaces by creating stunning user graphical interfaces similar to smartphones .
    The TouchGFX framework includes TouchGFX Designer (TouchGFXDesigner, an easy-to-use, drag-and-drop based graphics building tool for PC) and TouchGFX engine (a powerful and optimized graphics core). TouchGFX combines a WYSIWYG simulator and automatic code generation function to make GUI development easy. It covers all steps from the early design sketches to the exclusive final product, and completes the prototype product through rapid iteration.
    TouchGFX Designer can also be used as an independent software tool for easy and fast graphical evaluation and proof of concept. The TouchGFX framework includes TouchGFX Designer, which is distributed in the STM32Cube MCU software package. It is fully compatible with STM32CubeMX initialization and code generation tools, and can seamlessly develop graphics applications and main applications in a unified project engineering environment.

1.2 Main features

• Structure: Easily create multiple screen content and related transitional content
• Controls: A variety of customizable widgets, such as sliding containers and circular progress, can easily create GUI
• skin:
  a. A set of ready-made graphic appearances, without the need for graphic designers to carry out consistent prototyping
  b. Custom graphics can be used
• Interaction: Dynamic interaction for creating user-friendly applications
• Custom container:
  a. Create custom reusable application controls
  b. Easy platform development with a unified appearance
• Word processing:
  a. Specify and manage fonts and typesetting in one place
  b. Translation service
  c. Support multiple letters and scripts, such as Latin, Cyrillic, Arabic, Chinese and Japanese
• Code generation:
  a. TouchGFXDesigner generates and maintains high-performance C++ code
  b. The code generated by the tool is completely separated from the user code
  c. All types of code extensions can be used for unique animation and system interconnection
  d. Support multiple integrated development environments, such as IAR, ARM Keil and GCC-based IDE

1.3 Preparation

    System version: Windows 10 Professional 64-bit
    Software version: V4.14.0

2 Software download

2.1 Official website download

download link: Official website download address
    Download method:

1. Open the official website download address, clickGet the software；

2. Select the corresponding version to download. (Requires login account)


2.2 Cloud Disk Download

download link:(Extraction code: 5eby)
     Download method: download directly. (The cloud disk contains STM32Cube series software)

3 Software installation

installation steps:

1. turn on TouchGFX-4.13.0.msi File; (File directory: \Utilities\PC_Software\TouchGFXDesigner)

2. Click onNext；

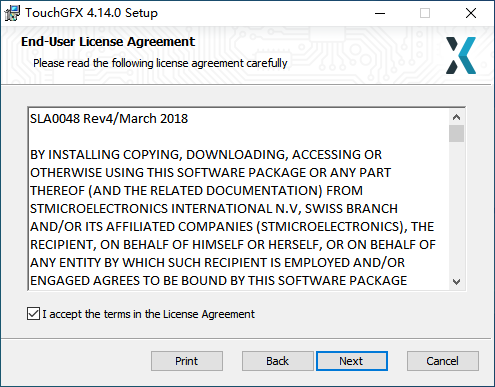

3. CheckI accpt, ClickNext；

4. Select the installation path, clickNext；

5. If the path includes spaces, the installer will report an error;

6. Choose a suitable installation path without spaces, clickNext；

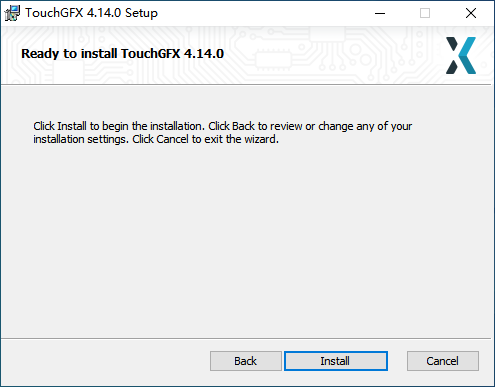

7. Click onInstall；

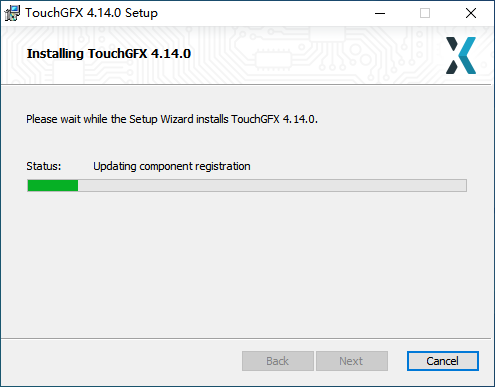

8. The installation program automatically checks and installs, and moves the required files;



9. Installation is complete, clickFinish；

10. turn on TouchGFXDesigner software;

11. The software interface is as follows.


4 end

    Other versions of software download and installation tutorials can refer to this tutorial.
