In the microservices architecture, the registry is an essential component

The registration center we built earlier is only suitable for local development. In the production environment, a cluster must be set up to ensure high availability.

Eureka's cluster setup is simple, and each Eureka needs to specify another N Eureka address in the configuration.

Below we explain with 2 nodes

We have master and slaveone 2 machines, what we need to do is:

• Master registered to slaveone
• The slaveone can be registered to the master.

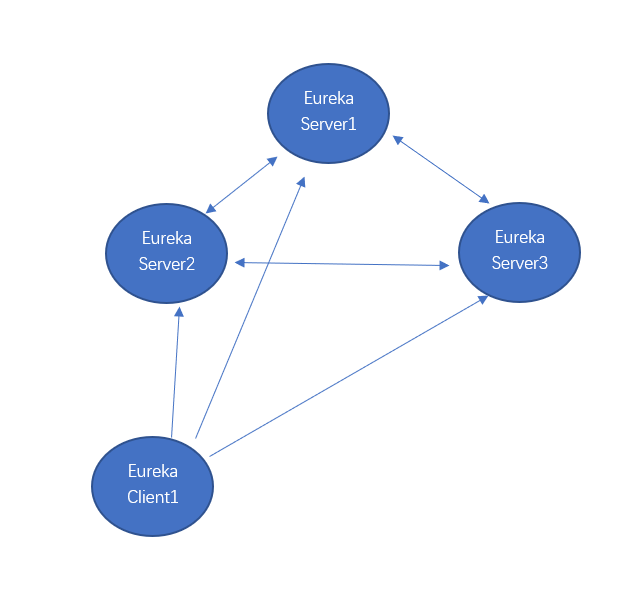

If it is 3 machines, then so on:

• Master registered to slaveone, slavetwo
• Slaveone registered to master, slavetwo
• Slavetwo registered to master, slaveone

First we need to add 2 property files to start different instances through different environments.

Add application-master.properties

server.port=8761
 # pointing to your slave node Eureka
 eureka.client.serviceUrl.defaultZone=http://username:password@slaveone:8762/eureka/

Add application-slaveone.properties

server.port=8762
#Eureka pointing to your primary node
 eureka.client.serviceUrl.defaultZone=http://username:password@master:8761/eureka/

Master and slaveone are hostname, can be added in the hosts file, directly write IP

Add the following content to application.properties

spring.application.name=fangjia-eureka

eureka.instance.hostname=localhost
 # Since the app is a registration center, it is set to false, which means that you do not register yourself with the registration center.
eureka.client.register-with-eureka=false
 # Since the role of the registry is to maintain a service instance, he does not need to retrieve the service, so it is also set to false.
eureka.client.fetch-registry=false
 # Close self protection
eureka.server.enableSelfPreservation=false

security.basic.enabled=true
 Security.user.name=username
 Security.user.password=Password

 # Specify a different environment
spring.profiles.active=master

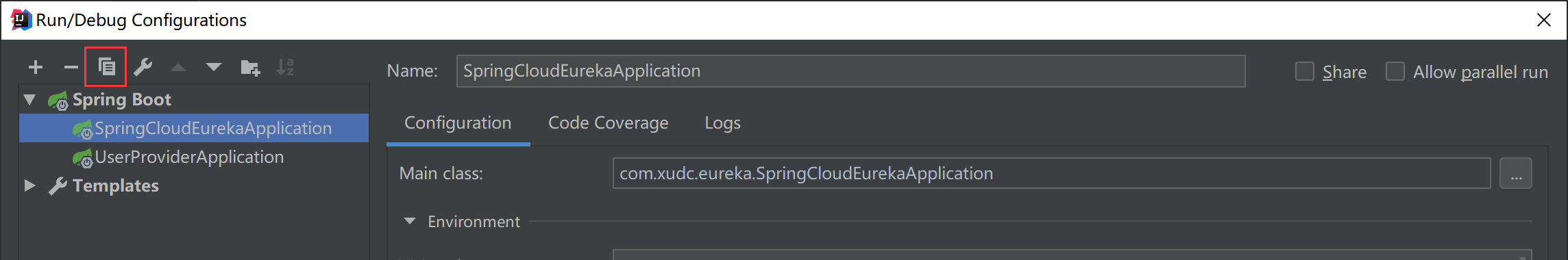

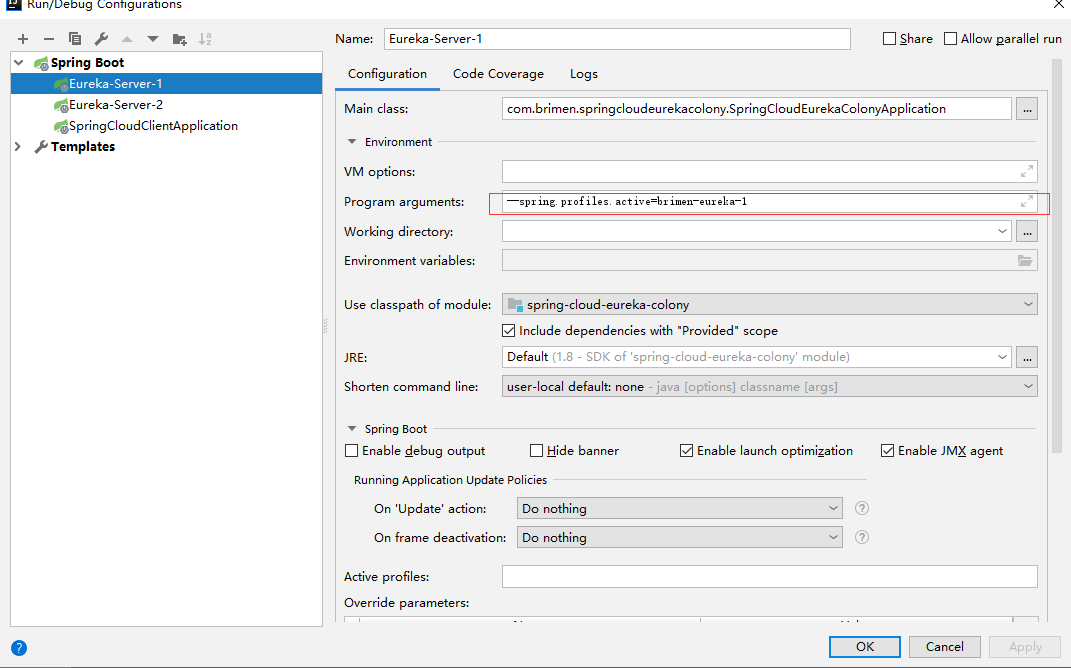

Start on the A machine by default to start with the master, then add --spring.profiles.active=slaveone on the B machine to start

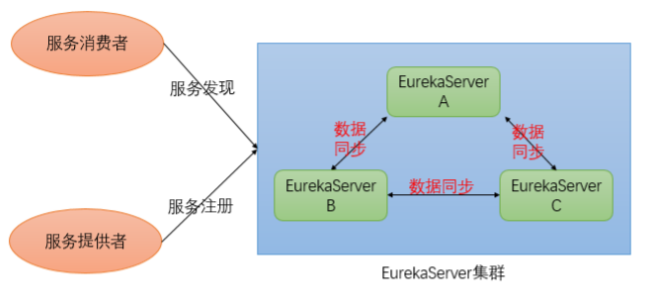

In this way, the master is registered in the slaveone, the slaveone is registered in the master, and the configuration information on the two sides is synchronized. No matter who hangs, the application can continue to use the surviving registry.

Specific code can refer to my github:

https://github.com/yinjihuan/spring-cloud
