1. Common tools

Browser comes with, such as Google Chrome's developer tools.
Fiddler: Mainly to capture HTTP and HTTPS packets.

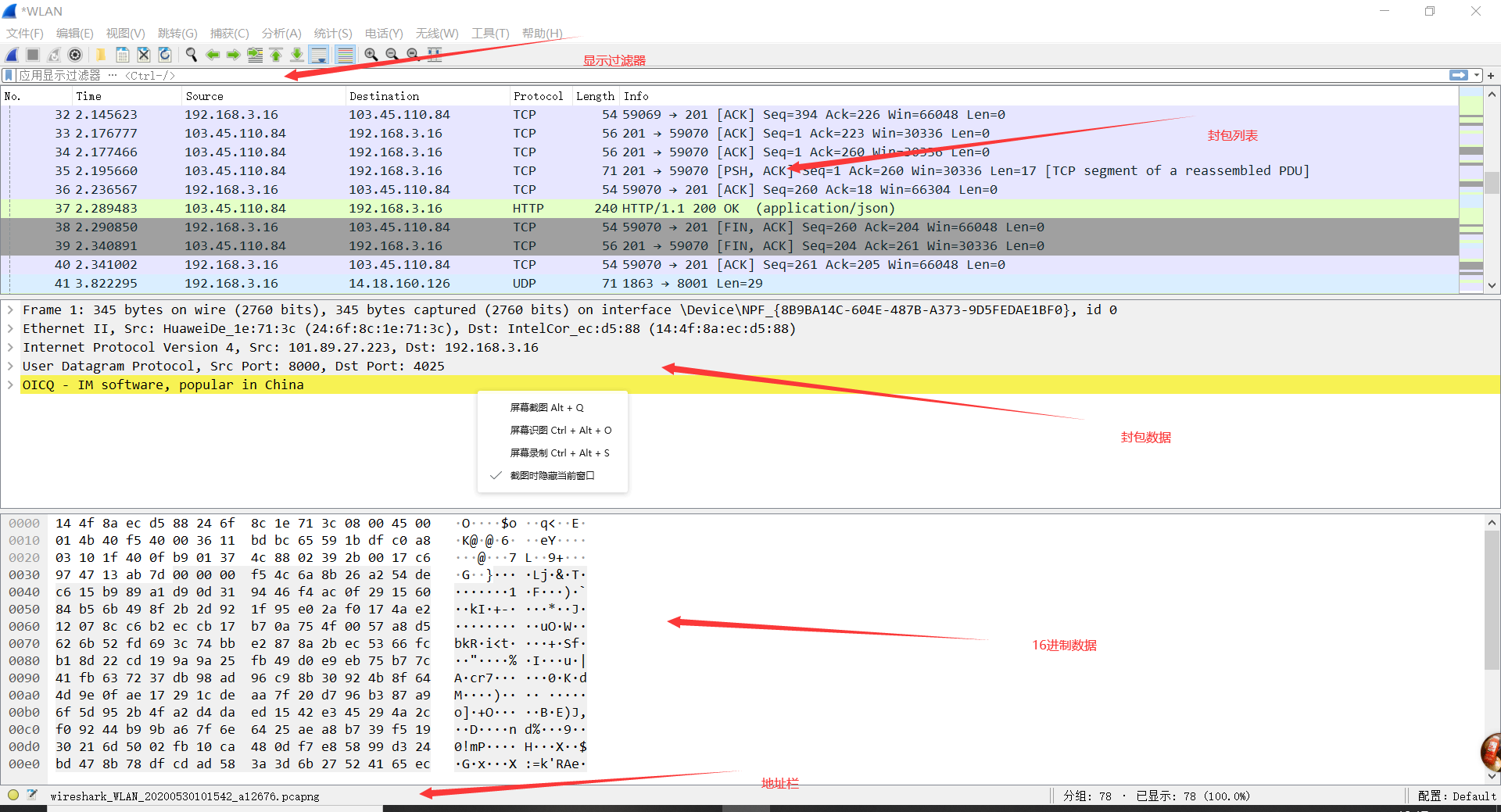

Wireshark: Network protocol analysis tool, built-in support for hundreds of protocols. Security considerations are that you can only view the packet, but not modify the content of the packet or send the packet. (Open source C)


2. Principle

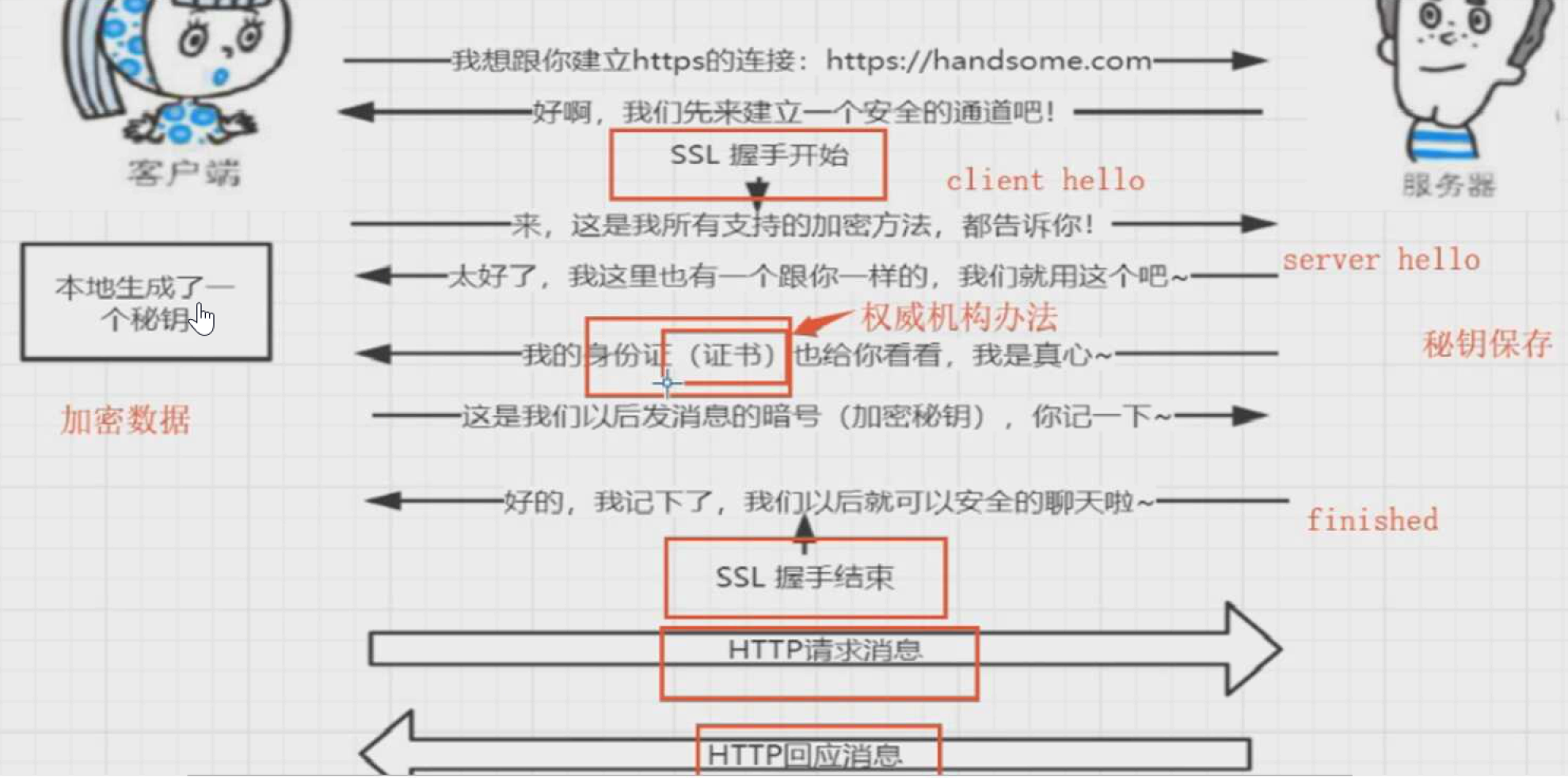

Fiddler：As a proxy, let all http/https requests and responses flow through Fiddler. It needs to be pre-configured.

Remark: When Fiddler starts, the browser's proxy will be automatically set to 127.0.0.1:8888, and the settings will be canceled when closed.

It also supports the use mode of reverse proxy, refer to:Use Fiddler as a Reverse Proxy | Fiddler Classic (telerik.com)

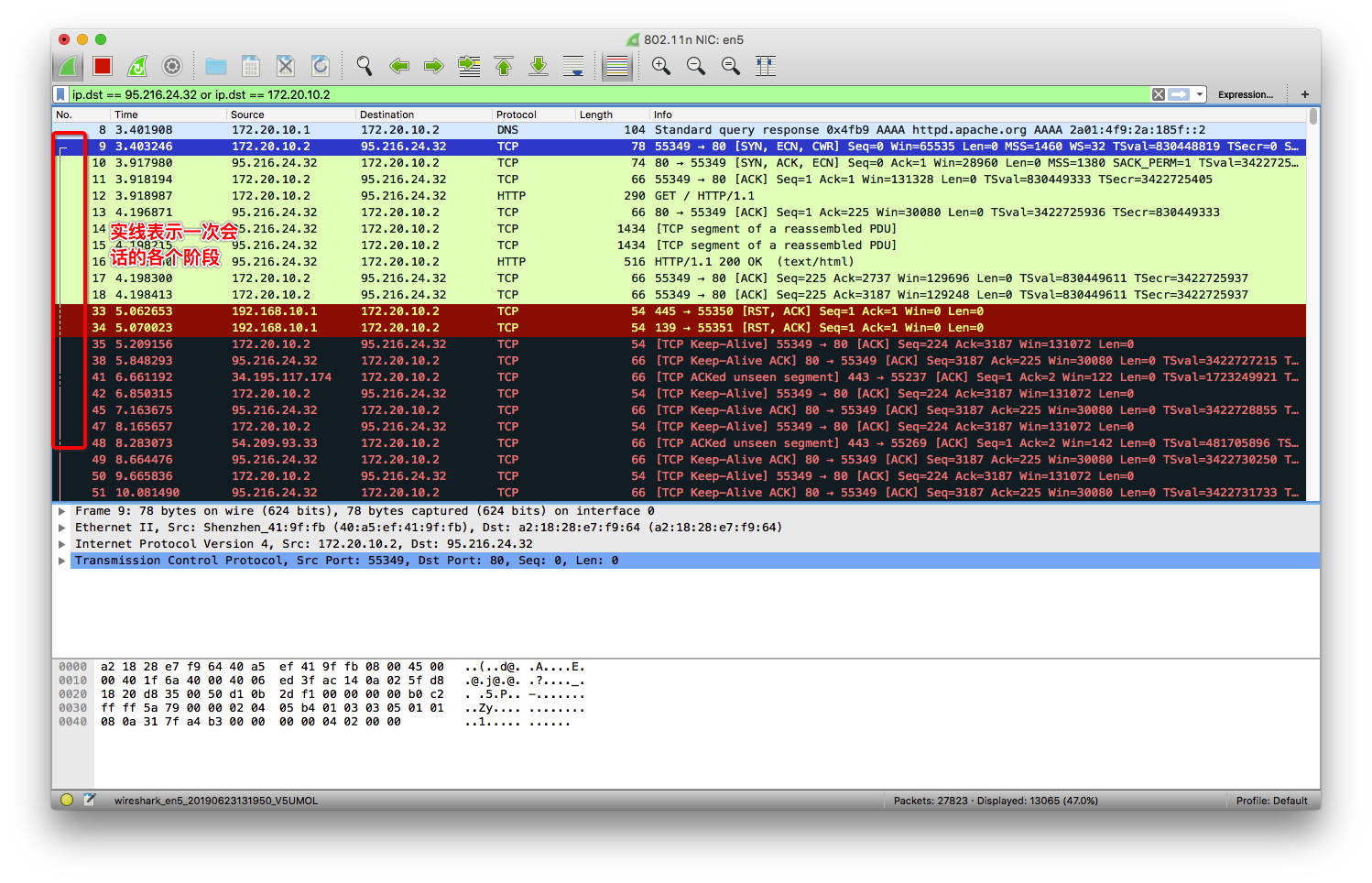

Wireshark：Capture the network packet of a network card on the machine. Use WinPcap/npcap as the interface to obtain network card data packets.

Therefore, Wireshark mainly implements the parsing of various application layer protocols and the rich interface functions it provides.

3. Basic library
Windows Platform
WinPcap (discontinued in 2013)
Npcap: It is an improvement to WinPcap, with better packet capture performance and better stability.Reference: npcap vs. winpcap
Unix/Linux Platform
      Libpcap

It is a set of function libraries that provide applications with the ability to access the underlying network. support:
Packet capture: Capture the original data packets flowing through the network card
Packet Send: Send the original packet to the network
Rule filtering: Provides rule filtering function, which can filter data packets according to rules specified by users
Traffic collection and statistics

.net core Open Source Project(C#) ：

    SharpPcap: Network packet capture class library – Cross-platform

    Packet.Net: Analysis/Construct the library of network packets,protocolsupport:ethernet, ipv4/ipv6, tcp, udp …

4. Knowledge - OSI seven-layer model

Open System Interconnect Reference Model, Open System Interconnect Reference Model

• Conceptual model proposed by the International Organization for Standardization in the early 1980s
• Network products from different manufacturers follow OSI standards. As long as they are physically connected, they can communicate with each other.

(The picture above is the borrowed picture on the left, the source cannot be found - -;)

A simple understanding is:

Remark:

1. A brief understanding of several layers

Physical layer - Encode the data into a bitstream identified with 0 and 1, and then transmit it (via fiber optic, copper cable, etc.)

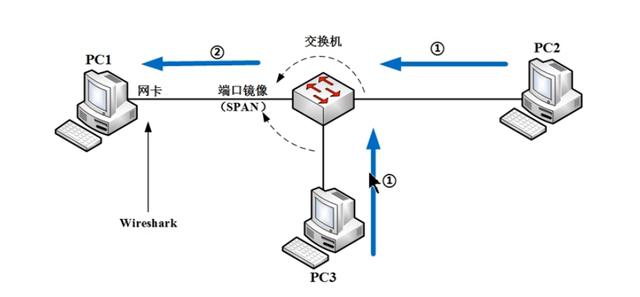

Local Area Network – Use the network card MAC address to identify the accessed devices and rely on broadcasting methods to address them. Mixed mode
Cross-network – IP addressing, router – forward packets based on IP address, forwarding from one network to another.
Transport Layer – Defines the protocol port number for transmitting data, as well as flow control and error verification. Segmentation: Forced segmentation of data according to the maximum size that the network can process.

2. The responsibility of the transport layer protocol (such as: tcp) is to transmit data; while the application layer protocol (such as: http, tns) is a format customized according to the needs of the application to meet the needs of logical processing and data processing.
