Matlab first-order low-pass filter
tags: matlab
LPF
First-order low-pass filter
also analyze the air pressure gauge log of the bomber for better comparison
- Create a new variable and store the height in itBaroAlt.mat
- writeGet height value function
- writeLPF function
function output = LPF(x)
persistent lastx Init
if isempty(Init)
lastx = x;
Init = 1;
end
alpha = 0.9;
output = alpha*lastx + (1 - alpha)*x;
lastx = output;
- Write a call scriptRunLPF.m
clear all
Nsamples = 6800;
Xsaved = zeros(Nsamples, 1);
Xmsaved = zeros(Nsamples, 1);
for k=1:Nsamples
xm = GetAlt();
x = LPF(xm);
Xsaved(k) = x;
Xmsaved(k) = xm;
end
dt = 0.02;
t = 0:dt:Nsamples*dt-dt;
figure
hold on
plot(t, Xmsaved, 'r.');
plot(t, Xsaved, 'b');
legend('Measured', 'LPF')
- The experimental results are as follows:
Intelligent Recommendation
Understanding the transfer function of a first-order low-pass filter
The content of the principle of automatic control is very deep and needs to be learned gradually Algorithm implementation of first-order RC filter (low-pass and high-pass) Understanding the transfer f...
First-order low-pass digital filter and its application
table of Contents First-order low-pass analog filter Basic method derivation formula Phase method derivation First-order low-pass digital filter Filter formula derivation Filter example data preparati...
Digital first-order low-pass filter detailed analysis
Article Source: The cause of the incident is as shown in Figure 1. My friend accidentally talked about the first-order low-pass filter, to introduce the principle of the first-order low-pass filter in...
Digital first-order low pass filter Simulink Simulation
Digital first-order low pass filter Simulink Simulation principle Procedure formula Filter coefficient calculation method simulation Construction according to formula Use Simulink self-contained model...
Mathematical Model and Algorithm for First-order RC Low Pass Filter Realization
Mathematical Model and Algorithm for First-order RC Low Pass Filter Realization 1. Successful domain mathematical model of a first-order RC low pass filter 1.1 Derivation of mathematical model 1.2 fre...
More Recommendation
The simple application of first -order low -pass filter in STM32
First of all, look at the simplest first -order low -pass filter circuit model: It is not difficult to launch its transmission function: TF is related to the frequency of the filter, but the ac...
Stereo analysis of digital first-order low-pass filter
first-order inertia link The combination of an independent energy storage element and an energy dissipation element can constitute an inertial link. The figure below is a common circuit, a first-order...
Matlab model-low pass filter
Low pass filter Check the performance of the filter to eliminate high frequency noise to smooth the signal. The model you will use includes a simulated, noisy signal and a filter that selects low freq...
Matlab design low pass filter
Teach you how to use FDATOOL in matlab to design filters Transfer from: Input: sinusoidal signal polluted by white noise, fs=100khz, signal frequency is 10khz, noise signal is 20khz, now we need to fi...

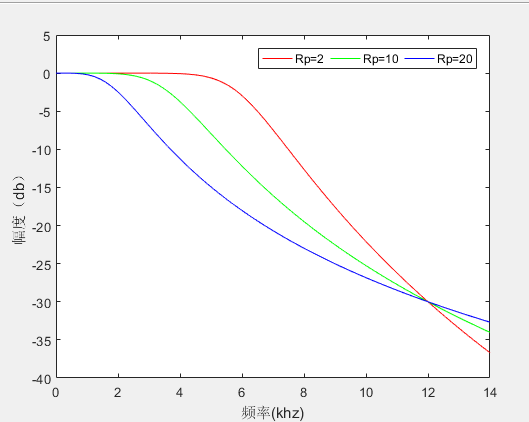

matlab Butterworth low pass filter
