Measure the distance between two points in a Gerber file in Altium Designer
tags: Altium designer Gerb
1. Select Analysis -> Measure -> select the appropriate measurement method, such as point-to-point measurement
2. Select the start point and end point with the mouse
3. Check the distance between two points in the CAMtastic window. The CAMtastic window can be opened from the main menu in the lower right corner of Altium Designer. The measurement unit can be selected in the interface, as shown in the second red box.
Intelligent Recommendation
Altium Designer exports Gerber files

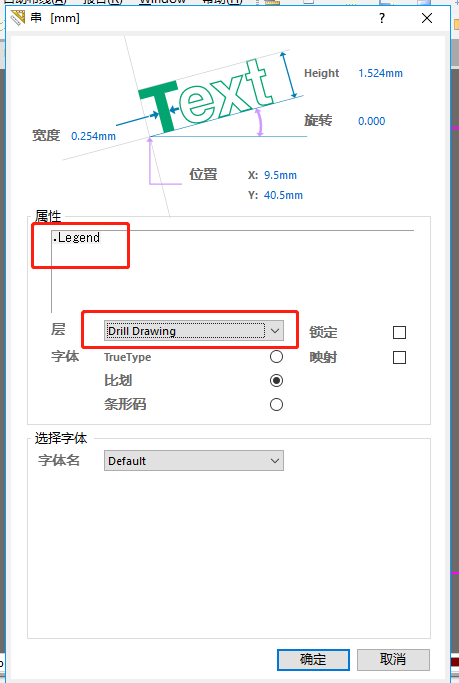

1. Open the AD software 2. Place the string of the hole chart list and click on the main menuPlace-string, And then press the TAB key to select ".Lengend" in the TEXT column; select "Dr...
