1, PC connection TELLO EDU sends command and acceptance response

Power up TELLO EDU, at which time the status indicator of the plane is displayed-> Yellow flash

Yellow flash indicates remote control signal interruption

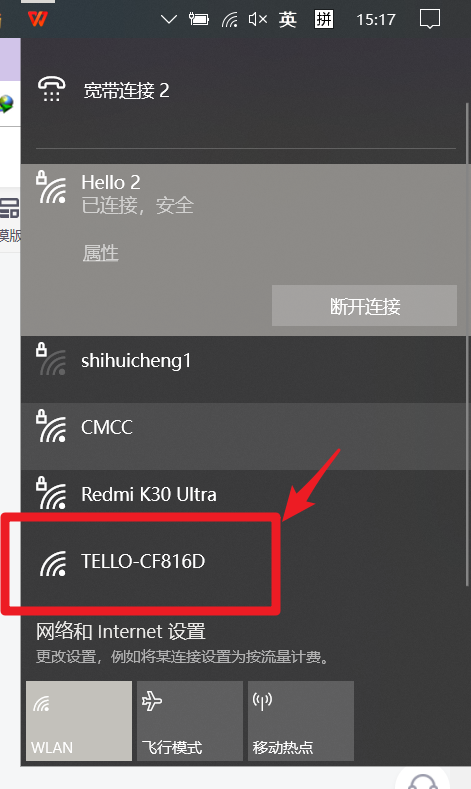

At this point, connect the PC on the TELLO EDU, as follows:

When the PC is connected to WiFi, the state of the aircraft is still yellow flash.

# Tello3.py
#
# Tello Python3 Control Demo
#
#
#
# http://www.ryzerobotics.com/
#
# 24/6/2021

import threading
import socket
import sys
import time

 # Send commands and acceptance responses
#Tello IP：192.168.10.1      udp port：8889

 #   's host and port
host = ''
 Port = 9000 #PC accepts responses from IP 0.0.0.0 via UDP port 9000
 # Port = 8890 PC Listen to the message from IP 0.0.0.0 via UDP port 8890
locaddr = (host,port)


# Create a UDP socket
sock = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)

tello_address = ('192.168.10.1', 8889)

sock.bind(locaddr)

def recv():
    count = 0
    while True:
        try:
            data, server = sock.recvfrom(1518)
            print("recv >>>>> ",data.decode(encoding="utf-8"),"#server:",server)
        except Exception:
            print ('\nExit . . .\n')
            break


print ('\r\n\r\nTello Python3 Demo.\r\n')
print ('Tello: command takeoff land flip forward back left right \r\n       up down cw ccw speed speed?\r\n')
print ('end -- quit demo.\r\n')


#recvThread create
recvThread = threading.Thread(target=recv)
recvThread.start()

while True:

    try:
        msg = input("");
        #msg = "command"
        #print("msg:",msg)

        if not msg:
            break

        if 'end' in msg:
            print ('...')
            sock.close()
            break

        # Send data
        msg = msg.encode(encoding="utf-8")
        #print("msg.encode:",msg)
        sent = sock.sendto(msg, tello_address)
        #print("sent:",sent)
    except KeyboardInterrupt:
        print ('\n . . .\n')
        sock.close()
        break

At this point, you can operate the TELLO, and the input command will appear as follows, where OK appears, that is, the connection is normal.

Enter other instructions to complete the flight control of TELLO, such as:

For specific instructions, please refer to "TELLO_SDK_2.0_.nd instructions .pdf"

2, PC connection TELLO EDU accepting state

At this point, in the TELLO3.py file, the port will be changed to 8890, and the status information of TELLO will be automatically received after running the program.

The meaning of each parameter is seen "TELLO_SDK_2.0_ User Instructions.pdf"
