IP packet capture library use Libpcap LAN

Experimental requirements

Source and destination physical address of the print data packet;
Print source IP and destination IP address;
Printing upper layer protocol type;
If the upper layer protocol is TCP or UDP protocol, the source port information for printing purposes;
If the upper layer protocol is TCP or UDP protocol, the data in hexadecimal and ASCII two simultaneously printed out, instead of unprintable character '.';
00000 47 45 54 20 2f 20 48 54 54 50 2f 31 2e 31 0d 0a GET / HTTP/1.1…

lab environment

Red Hat 9

Code

Control single sentence output format

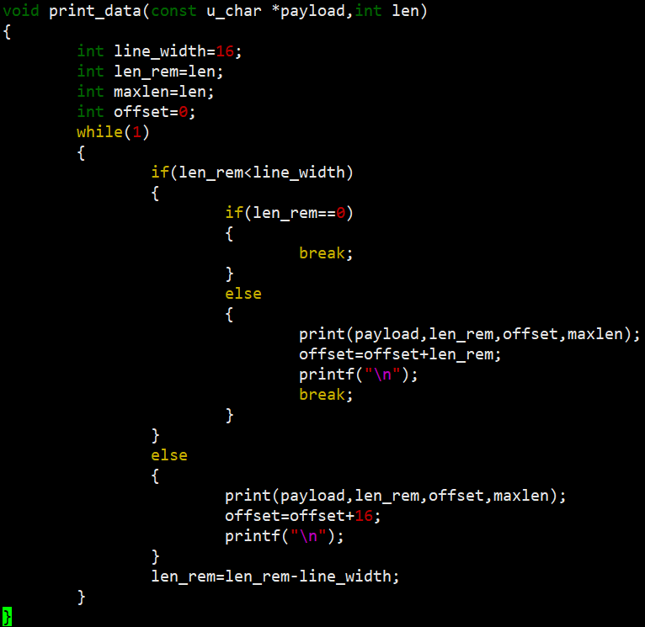

Control packet data output format

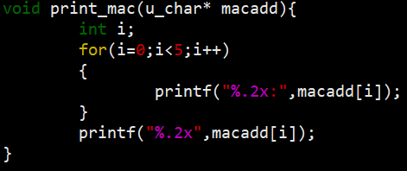

MAC address printing function

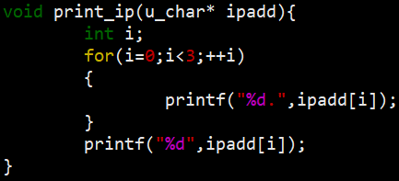

is the IP address of the print function

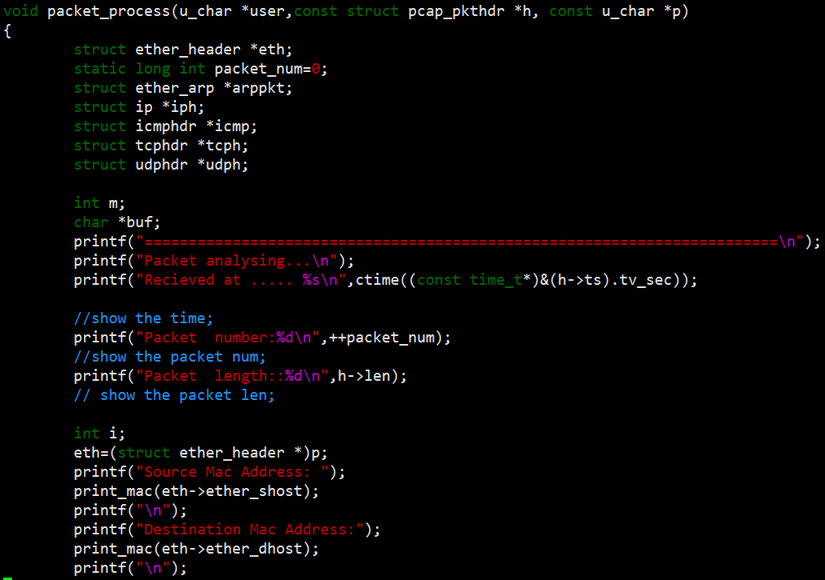

of the captured data packet processing

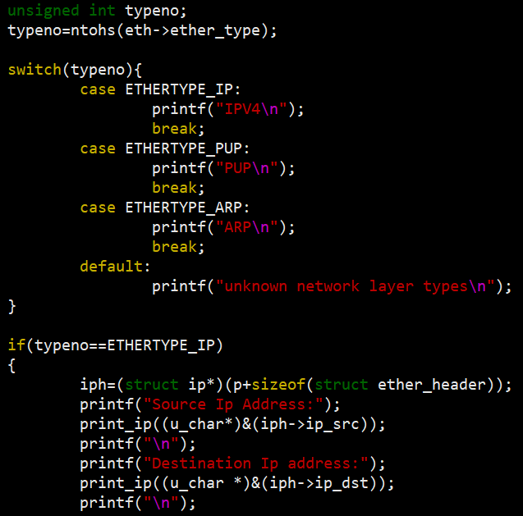

Analyzing network layer protocol

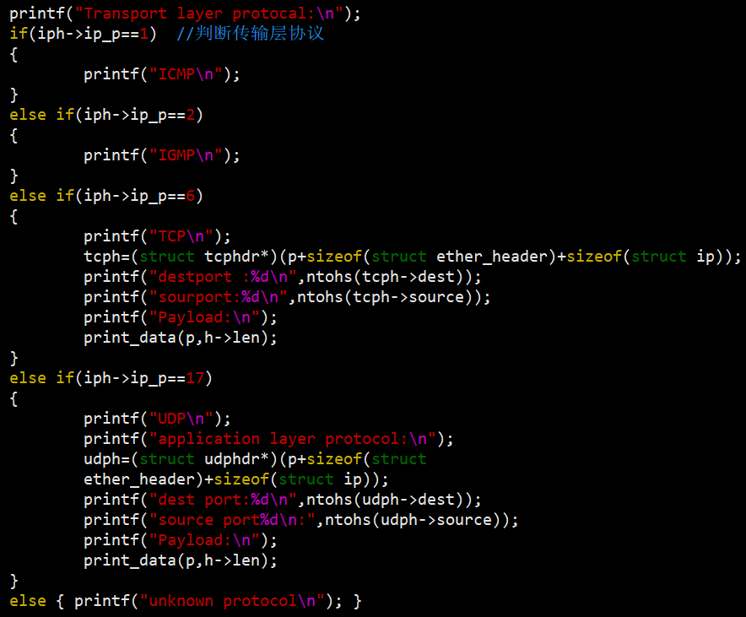

To determine the transport layer protocol

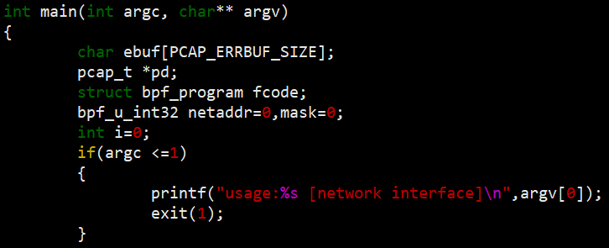

The number of parameters controlling operation of the main function of the input, in addition to input executable file name, card need to enter a run-time parameter

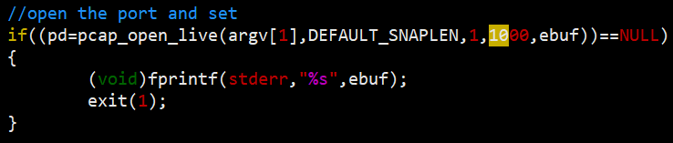

pcap_open_live acquires the packet for capturing network packets capture descriptor parameters were specified opening device name [Network], [the maximum number of bytes of data captured], [if the network interface in promiscuous mode], [designated timeout], [send the wrong message when an error function]

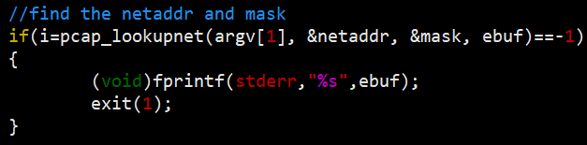

pcap_lookupnet for the specified number of network devices and network mask parameters are specified for the open device name [Network], [] bpf_u_int32 pointer, pointer bpf_u_int32 [], [] stored error message when an error occurs

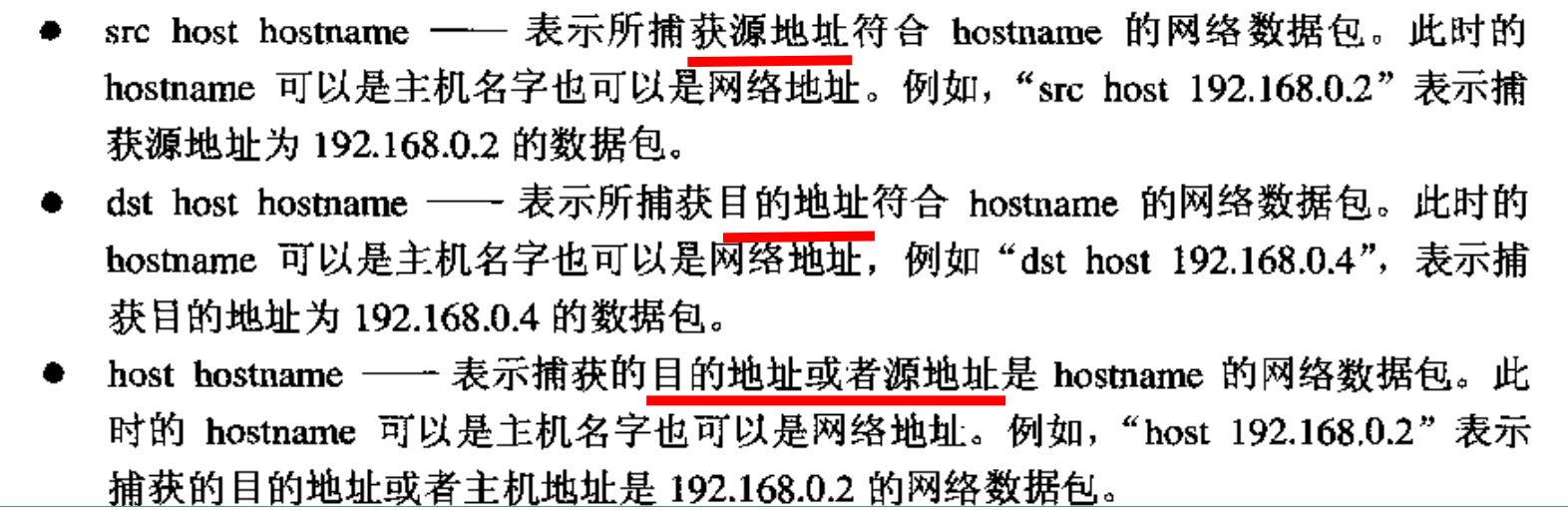

pcap_compile string compiler string parameter specified program into the filter, the filter condition is specified here as the source IP virtual machine IP: 192.168.xxx.xxx, pcap_setfilter specify a filter program

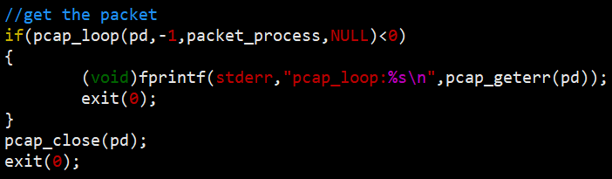

pcap_loop parameters are winpcap handle [], [the specified number of packets captured if the capture infinite loop -1], [callback], [] used by the user for parameter
After installing libpcap, compile written procedures gcc -o lpcaptest lpcaptest.c -lpcap

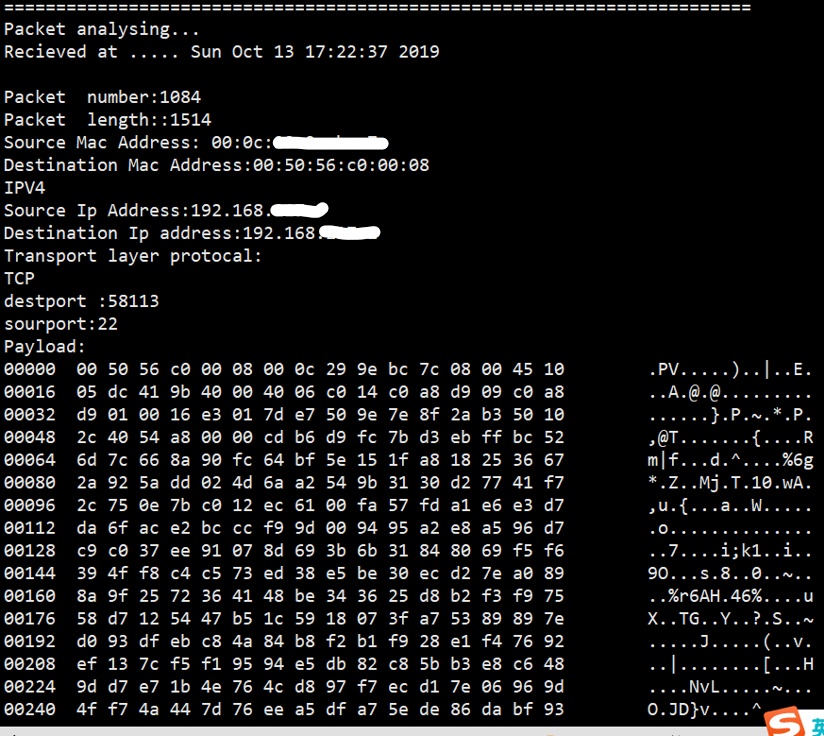

Run command input ./lpcaptest eth0, as part of the results, by observing, source fetch the IP packets are 192.168.xxx.xxx, dest IP are 192.168.xxx. x
