Arduino notes-Arduino UNO and WeMos D1 serial communication (data interaction)

The schematic is like this:

Device A represents Arduino UNO and device B represents WeMos D1.

The actual connection diagram is as follows:

The screenshot of the program is as follows:

This is the serial port print on Arduino. The S in front means Arduino sends character S. When character B is received, it will print receive wemods data

Here is the source code:

Arduino uno source code:

void setup() {

  Serial.begin(9600);
  pinMode(LED_BUILTIN, OUTPUT);
}


void loop() {
  digitalWrite(LED_BUILTIN, HIGH);
  delay(1000);
  digitalWrite(LED_BUILTIN, LOW);
  delay(1000);

  Serial.write("S");
  while(Serial.available() > 0){

     char wemosChar = Serial.read();
     if(wemosChar == 'B'){

       Serial.println("receive wemods data");
     }
  }

  delay(1000);
}

WeMos D1 source code:

void setup() {

  Serial.begin(9600);
  pinMode(LED_BUILTIN, OUTPUT);
}


void loop() {

  digitalWrite(LED_BUILTIN, LOW);
  delay(1000);
  digitalWrite(LED_BUILTIN, HIGH);
  delay(1000);

  while(Serial.available() > 0){

     char getChar = Serial.read();
     if(getChar == 'S'){

        Serial.write("B");
     }
  }

  delay(1000);
}

Intelligent Recommendation

Arduino Uno and ESP8266 Node MCU communicate serial communication. The sensor data collected by UNO is sent to the MCU

Because there is only one analog interface of the nodemcu, there is no pin to connect when using multiple sensors. This problem has troubled me for a few days. I used to see that others said that I ca...

Notes on communication between Arduino UNO and ESP8266

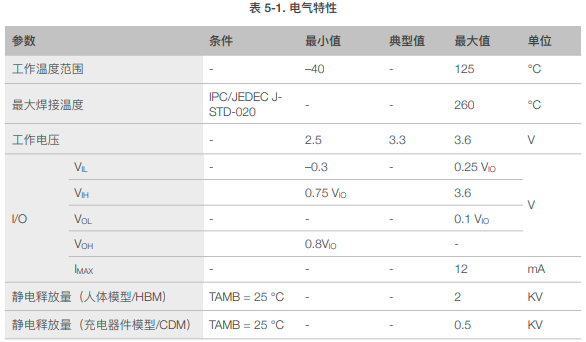

Notes on communication between Arduino UNO and ESP8266 First let's look at theESP8266EX technical specification》 ESP8266 Electrical Characteristics Diagram We can see that the typical operating voltag...

Arduino Uno + Arduino D1 Realization Alibaba Network Control + IIC Bus Communication Light

Arduino Uno + Arduino D1 Realization Alibaba Network Control + IIC Bus Communication Light Wiring diagram Code Host code (Arduino D1): From Machine Code 1 (Arduino Uno): The slave code 2 (UNO only mod...

arduino wemos D1 SPI communicates with HT7038

The code can be executed first ...

Install Wemos-D1 R2 driver in arduino IDE

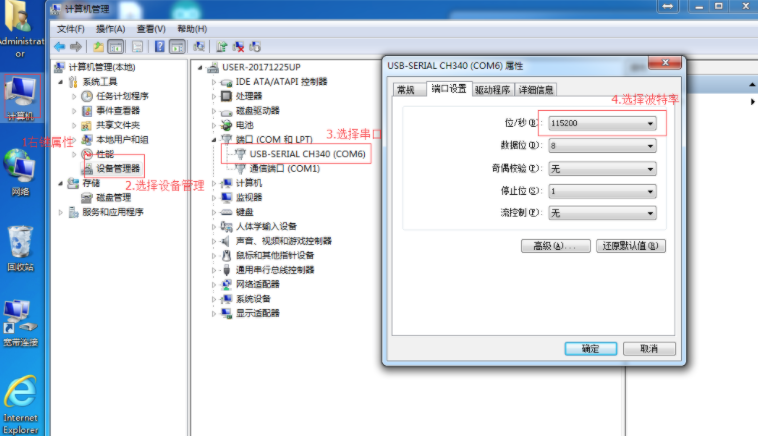

1. Set the baud rate The steps are shown in the figure below, if the device is not recognized, please update the driver 2. Add Wemos-D1R2 library Select File-"Preferences-"Accessory Developm...
