what's this

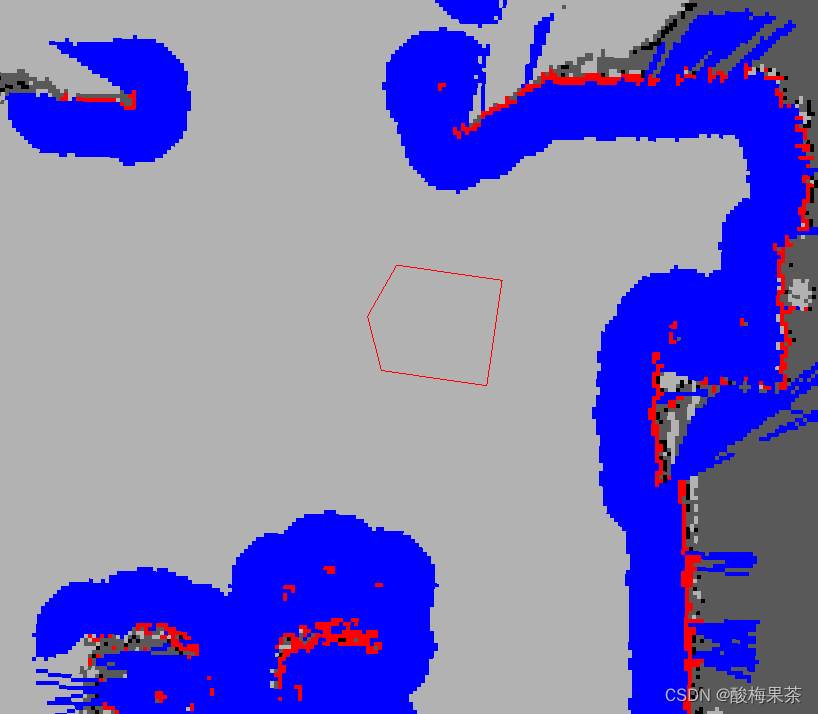

To put it simply, we have to be a robot that can build an indoor map. After we have given a target point, we can make a path plan based on the map and then navigate autonomously, that is, we will run to that point.

Why do I have to do this thing?

Because the design is to do this, simply write a blog to defraud points

Framework introduction

First of all, we know that robots are called robots not because they look like humans, but because they can imitate certain behaviors of human beings. Like the robots made this time, it can imitate the movement of people, such as we humans from one Move the point to another point, we will try to calculate an optimal route, we will find a short route, we will avoid obstacles, we will try our best to plan within the scope we are familiar with, if, to a new place We will tentatively explore new paths. Rather than rampaging.

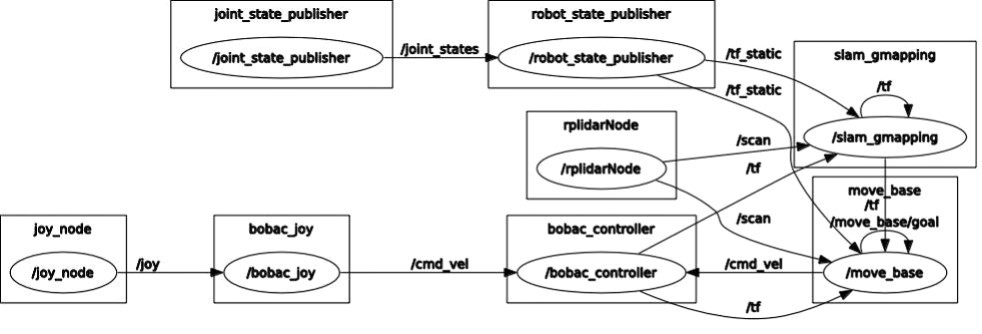

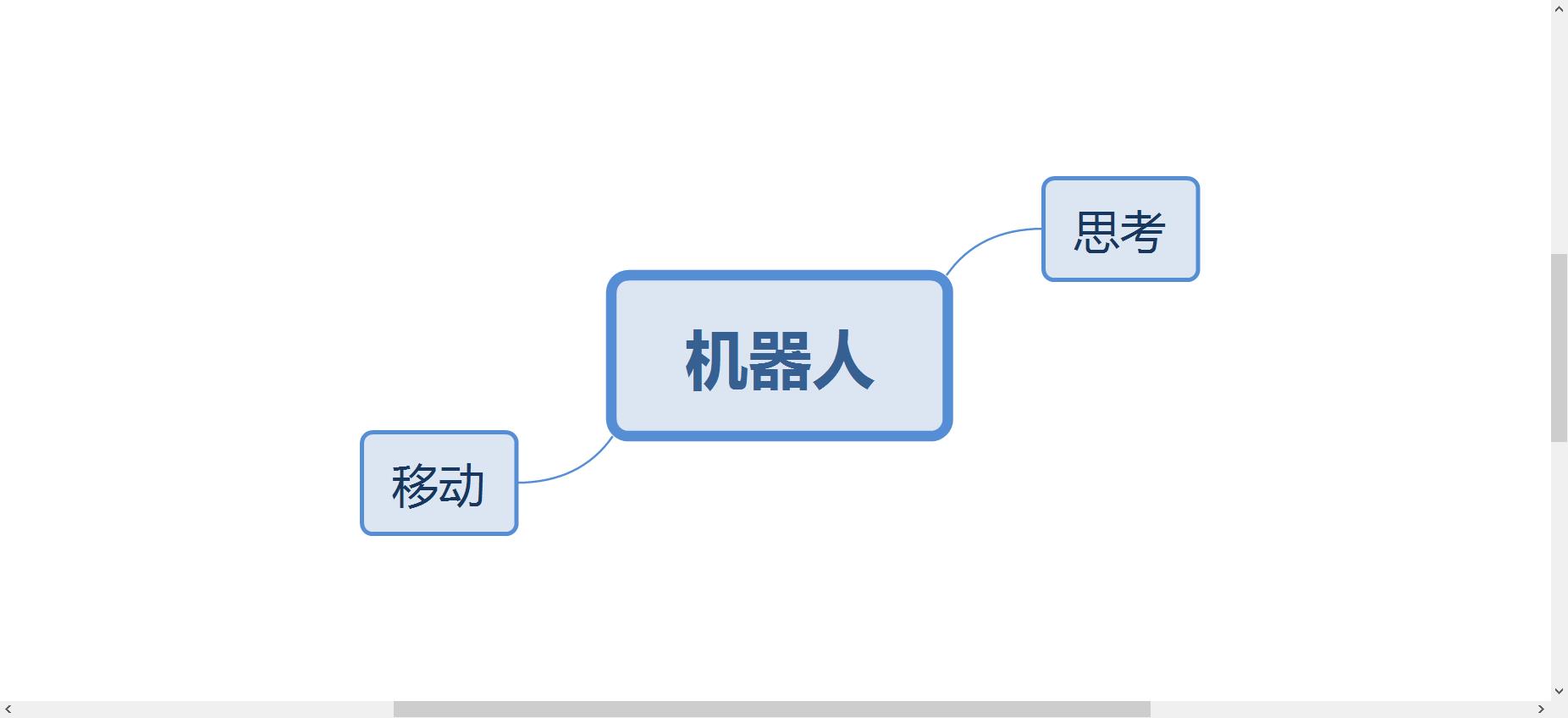

From the above figure we can see that the robot is mainly divided into two parts: thinking + moving

Thinking

The thinking of the robot is that the robot makes decisions, how to plan the path, how to calculate the optimal solution, and the white is the brain of the robot. Generally, we will select a computer with strong computing power to handle this part of the work. In most cases, this simple robot is enough to use the Raspberry Pi, simple and affordable, most of the entry-level robots on the market are also using the Raspberry Pi, but this time I use miniPC, why not use the Raspberry Pi Because, because of the money and willfulness (teacher has money), but the steps in the development of the Raspberry Pi is basically the same, I tried, I will not lie to you.

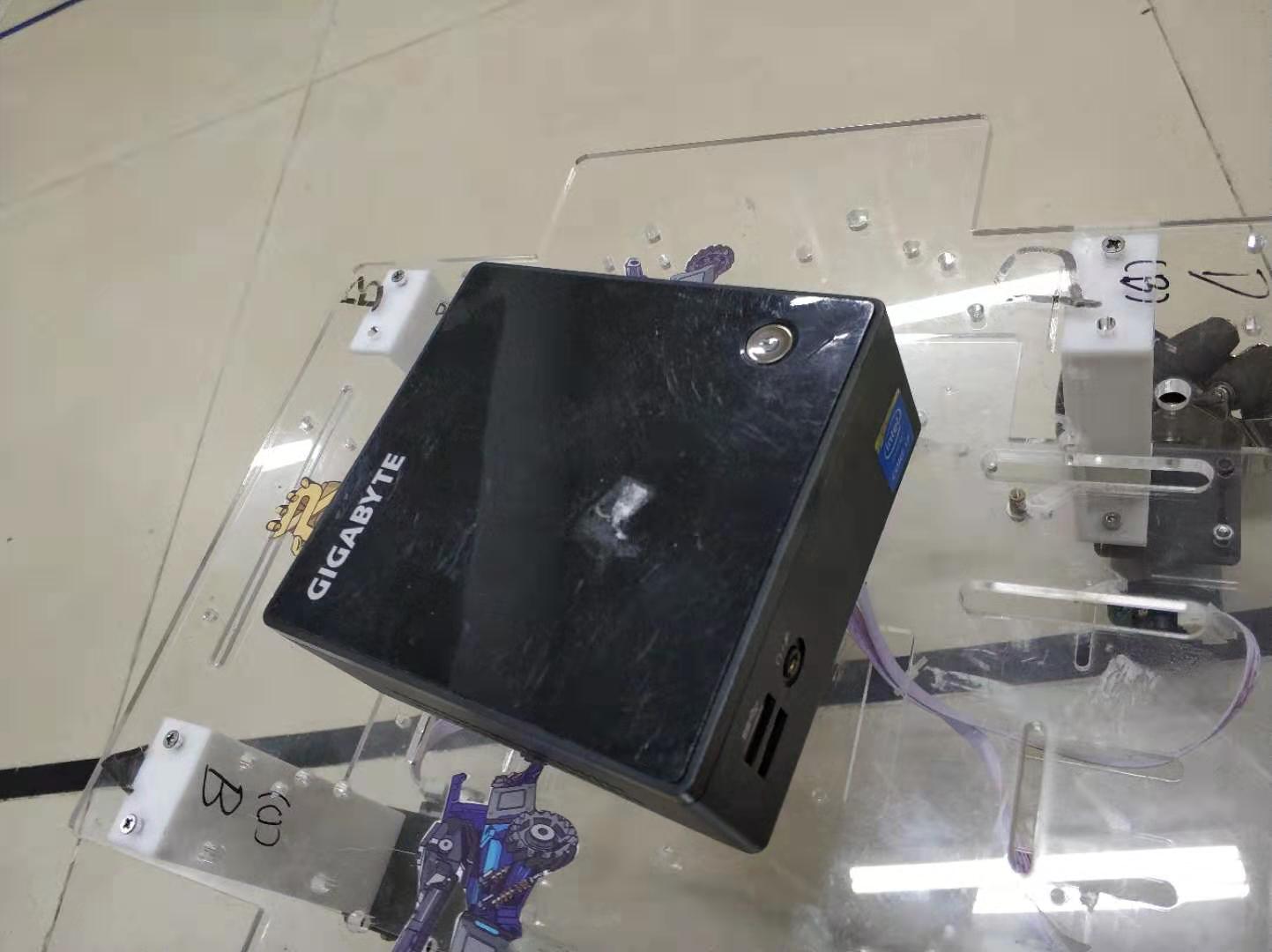

The picture above is the PC I used this time, a Gigabyte miniPC.

mobile

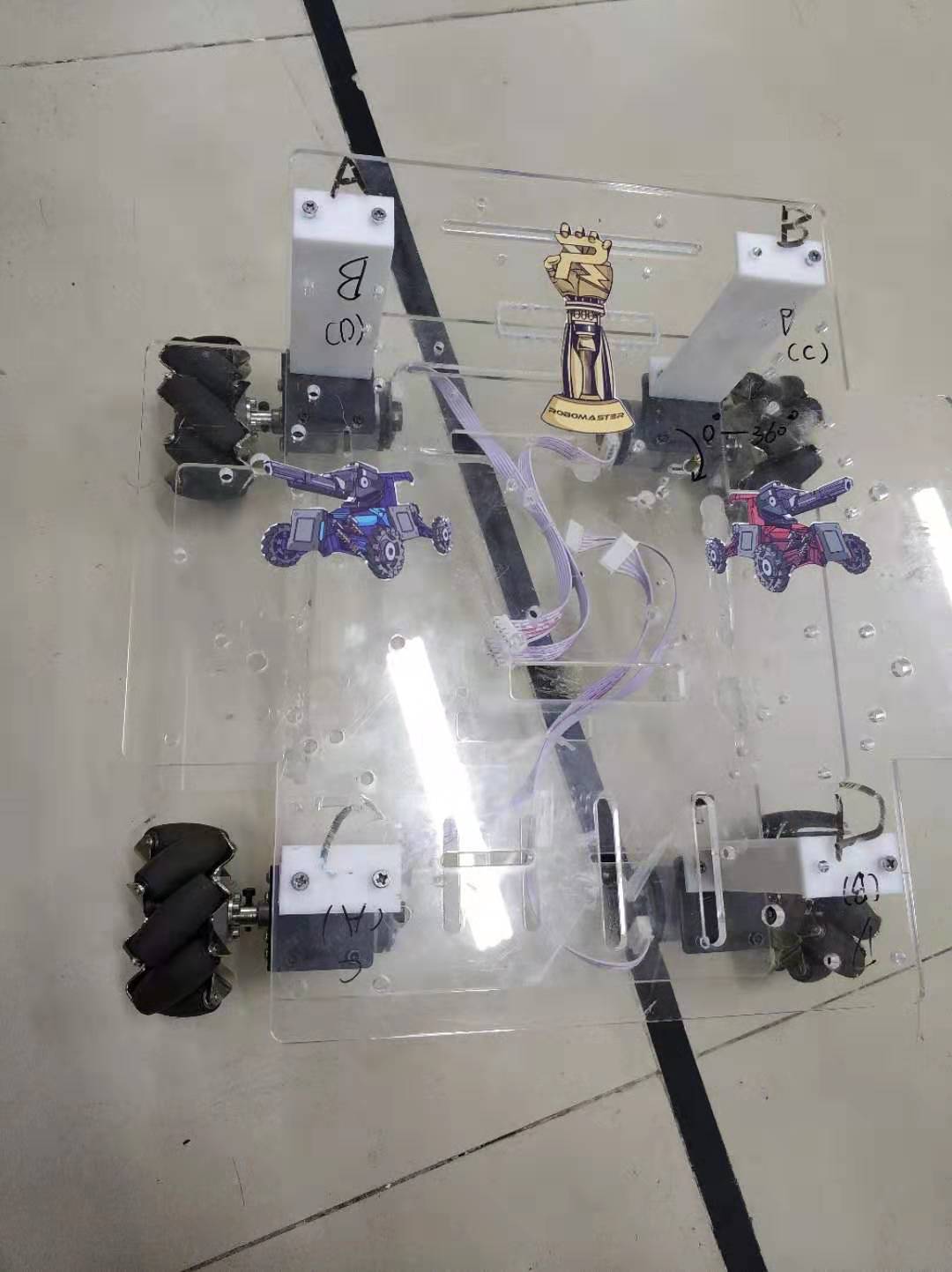

The movement of the robot is very well understood. Because the chassis control has very high real-time requirements, but the calculation amount is not particularly large, so the microcontroller is generally used as the control center of the chassis. I used the STM32F407ZGT6 as the master for the chassis driver board. The board is for the lab teacher to help me draw, and I haven't done it yet. I will send it out when I am done. The chassis uses a four-wheeled Mecanum wheel chassis, which may be very strange to many people. Let me take a picture first.

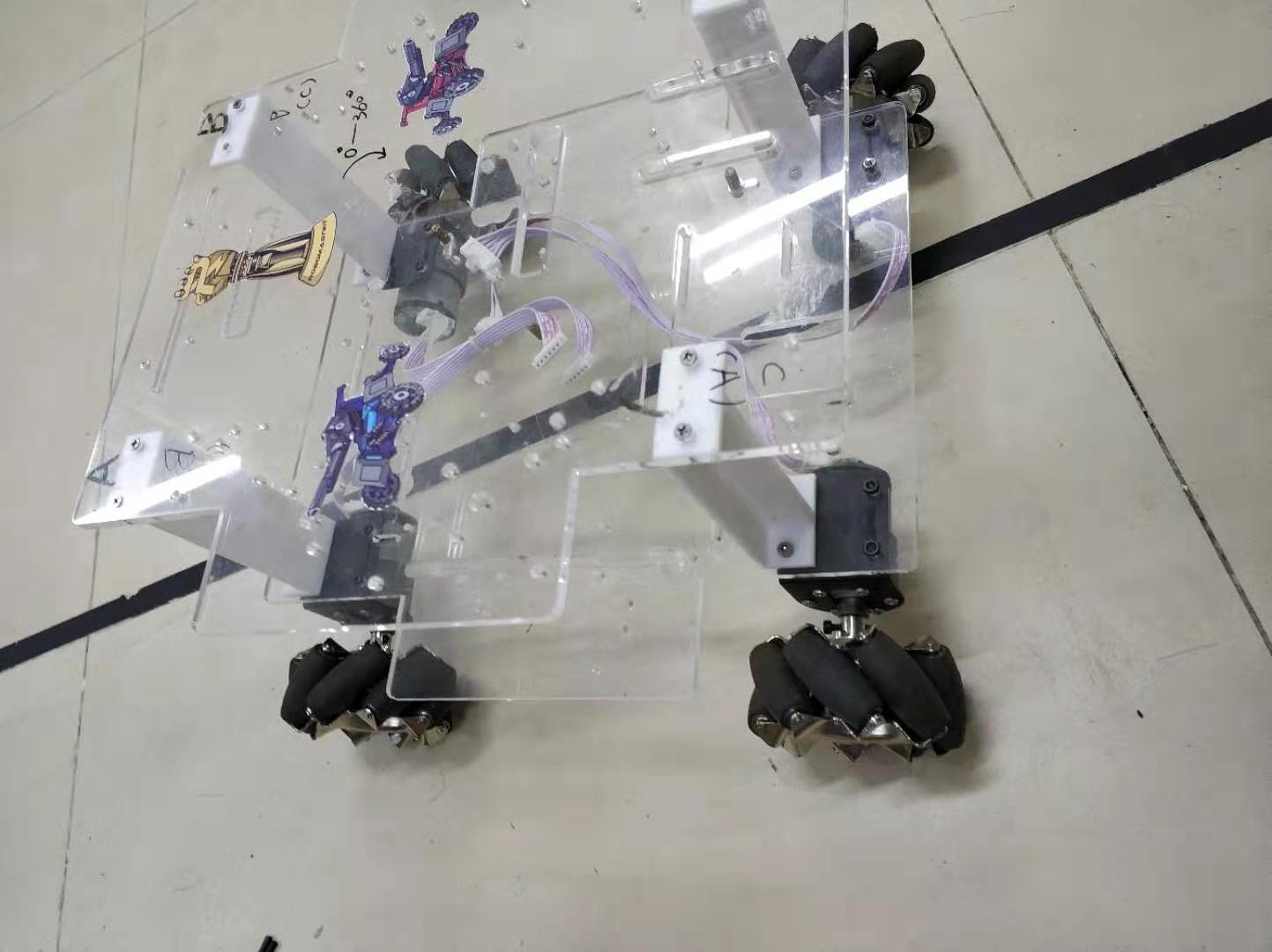

It is obvious that this kind of wheel is very special. If the chassis adopts this kind of wheel, it can be translated. It looks more beautiful. Of course, this kind of wheel is more expensive. You can also change it to ordinary. The wheel, only the host computer needs to modify the parameters slightly.

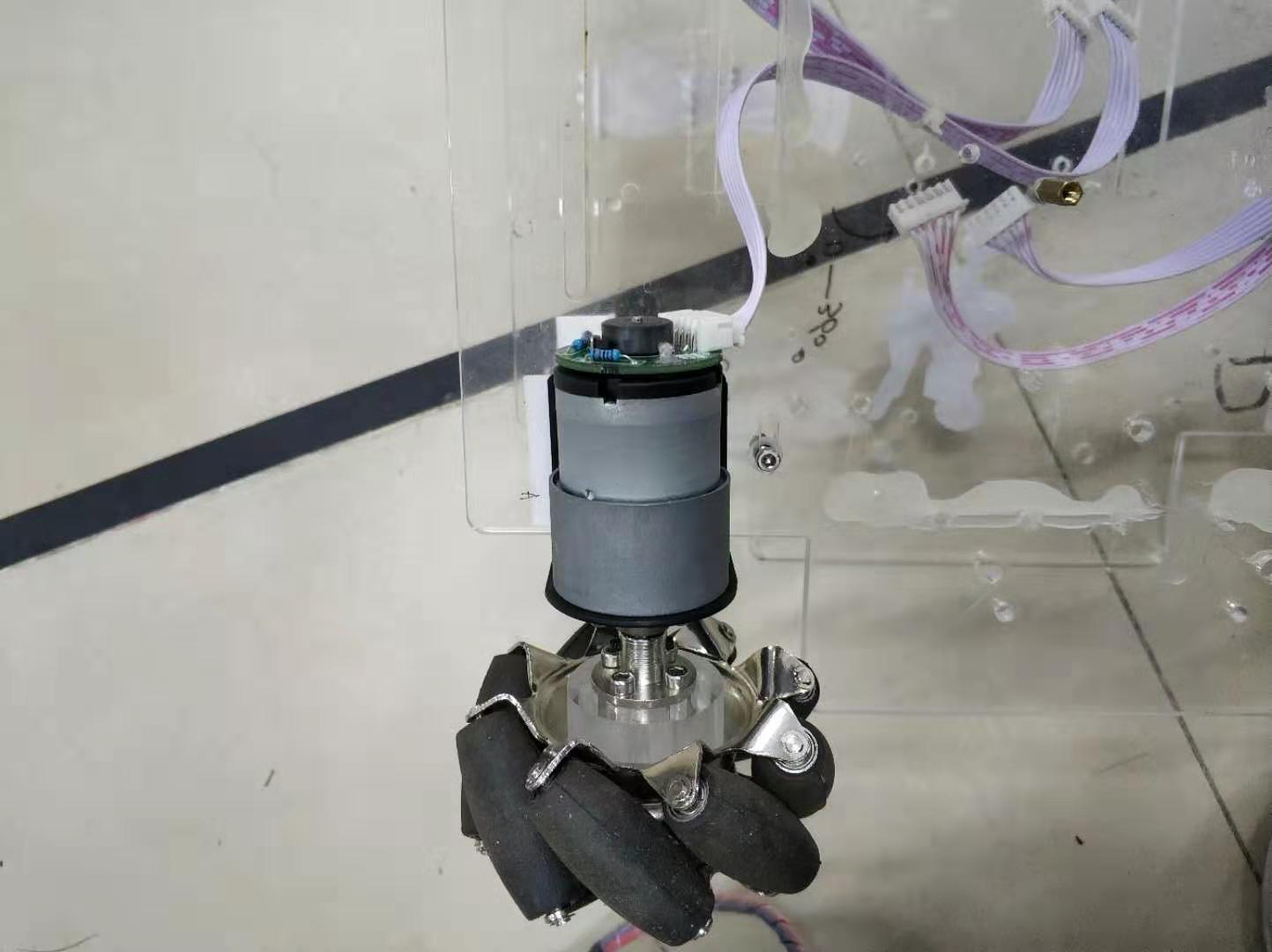

If I use a motor, I use a very common DC brush motor.

This motor comes with an encoder, which is cheap and easy to control.

List a list

Radar: A2 * 1 of Siwei Technology
Host computer: Gigabyte's miniPC * 1
Chassis structure: Acrylic structure * 1
Motor: DC brush motor * 4
Wheel: Mecanum Wheel * 4
Motor drive module: tb6612 * 2
Imu module: mpu9250 * 1
Power: robomaster 24V power supply from the lab * 1
Buck module: 24V to 19V * 1; 24V to 12V * 1; 12V to 5V * 1;
Chassis driver board components: (STM32 chip, etc.)

At last

Since the chassis driver board is not ready yet, so write so much first, explain the structure of the robot, and as the development progresses, I will slowly improve the entire construction process.
