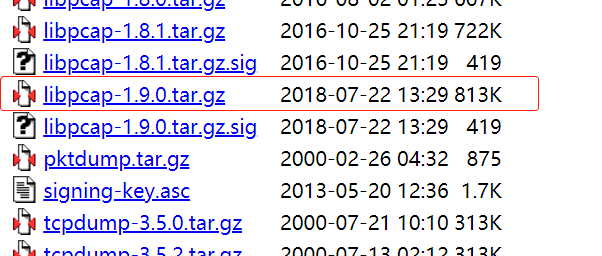

cd ****
tar zxvf ****
./configure
make
make install

test: test.c
    gcc -Wall -o test test.c -lpcap
clean:
    rm -rf *.o test

char * pcap_lookupdev(char * errbuf)
//The above function returns the string pointer of the first suitable network interface. If there is an error, errbuf stores the error message string. errbuf should be at least PCAP_ERRBUF_SIZE bytes long.

int pcap_lookupnet(const char * device, bpf_u_int32 * netp, bpf_u_int32 * maskp, char * errbuf)
//You can obtain the IP address, subnet mask, and other information of the specified device.
//Netp: outgoing parameter, specifying the IP address of the network interface
//Maskp: outgoing parameter, specifying the subnet mask of the network interface
//Pcap_lookupnet() failed to return -1

//Net, mask conversion method, inet_ntoa can convert him into 10 mechanism strings Header file arpa/inet.h
addr.s_addr=netp;
net=inet_ntoa(addr);

addr.s_addr=maskp;
mask=inet_ntoa(addr);

void pcap_close(pcap_t * p)
//This function is used to close the network interface object of pcap_t obtained by pcap_open_live() and release related resources.

pcap_t * pcap_open_live(const char * device, int snaplen, int promisc, int to_ms, char * errbuf)
/ / The above function will return the pcap_t type pointer of the specified interface, all subsequent operations must use this pointer.
 // The first parameter is the network interface string obtained in the first step, which can be hard coded directly.
 // The second parameter is how many bytes to grab from the beginning for each packet. We can set this value to grab only the header of each packet, regardless of the specific content. A typical Ethernet frame length is 1518 bytes, but other protocols may have a longer packet size, but a packet length of any protocol must be less than 65535 bytes.
 // The third parameter specifies whether Promiscuous Mode is turned on, 0 means non-promiscuous mode, and any other value means mixed mode. If you want to turn on promiscuous mode, then the NIC must also open promiscuous mode, you can use the following command to open eth0 promiscuous mode:ifconfig eth0 promisc
// The fourth parameter specifies the number of milliseconds to wait. After this value is exceeded, the functions that get the packet in step 3 will return immediately. 0 means waiting until a packet arrives.
 // The fifth parameter is an array of error messages.

u_char * pcap_next(pcap_t * p, struct pcap_pkthdr * h)
/ / If the return value is NULL, it means that the package is not caught
 / / The first parameter is the pointer to the pcap_t type returned in step 2
 //The second parameter is a pointer to the pcap_pkthdr type that holds the first packet received.

struct pcap_pkthdr
{
  struct timeval ts;    /* time stamp */
  bpf_u_int32 caplen;   /* length of portion present */
  bpf_u_int32 len;      /* length this packet (off wire) */
};

int pcap_loop(pcap_t * p, int cnt, pcap_handler callback, u_char * user)
/ / The first parameter is the pointer to the pcap_t type returned in step 2
 // The second parameter is the number of packets that need to be fetched. Once cnt packets are caught, pcap_loop returns immediately. A negative cnt indicates that pcap_loop will loop through the packet forever until an error occurs.
 // The third argument is a callback function pointer, which must be of the form:

void callback(u_char * userarg, const struct pcap_pkthdr * pkthdr, const u_char * packet)
/ / The first parameter is the last parameter of pcap_loop, pcap_loop will call the callback callback function when a sufficient number of packets are received, and pass the user parameter of pcap_loop() to it.
 //The second parameter is a pointer to the pcap_pkthdr type of the received packet.
 / / The third parameter is the received packet data

int pcap_dispatch(pcap_t * p, int cnt, pcap_handler callback, u_char * user)
//This function is very similar to pcap_loop() except that it will return after more than_ms milliseconds (to_ms is the 4th parameter of pcap_open_live())

#include <stdio.h>
#include <pcap.h>
#include <time.h>

void capture_packet1(pcap_t* device)
{
    struct pcap_pkthdr packet;
    char errbuf[1024];
    //capture the packet
    const u_char* pkt=pcap_next(device,&packet);
    if(!pkt){
        printf("couldn't capture packet: %s\n",errbuf);
        return;
    }

    //output the pacaket length byte and time
    printf("Packet length: %d\n", packet.len);
    printf("Number of bytes: %d\n", packet.caplen);
    printf("Recieved time: %s\n", ctime((const time_t*)&packet.ts.tv_sec));
}

void getPacket(u_char * arg, const struct pcap_pkthdr * pkthdr, const u_char * packet)
{
    int * id = (int *)arg;

    printf("id: %d\n", ++(*id));
    printf("Packet length: %d\n", pkthdr->len);
    printf("Number of bytes: %d\n", pkthdr->caplen);
    printf("Recieved time: %s\n", ctime((const time_t *)&pkthdr->ts.tv_sec));
    //print packet
    int i;
    for(i=0; i<pkthdr->len; ++i)  {
        printf(" %02x", packet[i]);
        if( (i + 1) % 16 == 0 )
            printf("\n");
    }
    printf("\n\n");
}

void capture_packet2(pcap_t* device)
{
    struct pcap_pkthdr packet;
    int id = 0;
    //capture the packet
    pcap_loop(device,-1,getPacket,(u_char*)&id);
}

int main()
{
    char *dev, errbuf[1024];
    char select='a';
    printf("select(dispaly the packet in detail)/n:( Y/N ?))");
    scanf("%c",&select);
    while(select!='Y'&&select!='y'&&select!='n'&&select!='N'){
        printf("input the error!\nplease input the Y/N/y/n:");
        scanf("%c",&select);
    }

    //look for the net device
    dev=pcap_lookupdev(errbuf);
    if(dev==NULL){
        printf("couldn't find default device: %s\n",errbuf);
        return 1;
    }
    else{
        printf("fidn success: device :%s\n",dev);
    }

    //open the finded device(must set :ifconfig eth0 promisc)
    pcap_t* device=pcap_open_live(dev,65535,1,0,errbuf);
    if(!device){
        printf("couldn't open the net device: %s\n",errbuf);
        return 1;
    }
    if(select=='Y')
        capture_packet2(device);
    else
        while(1)/ / Because the pcap_next () function only returns the pointer of the next packet
            capture_packet1(device);
    return 0;
}

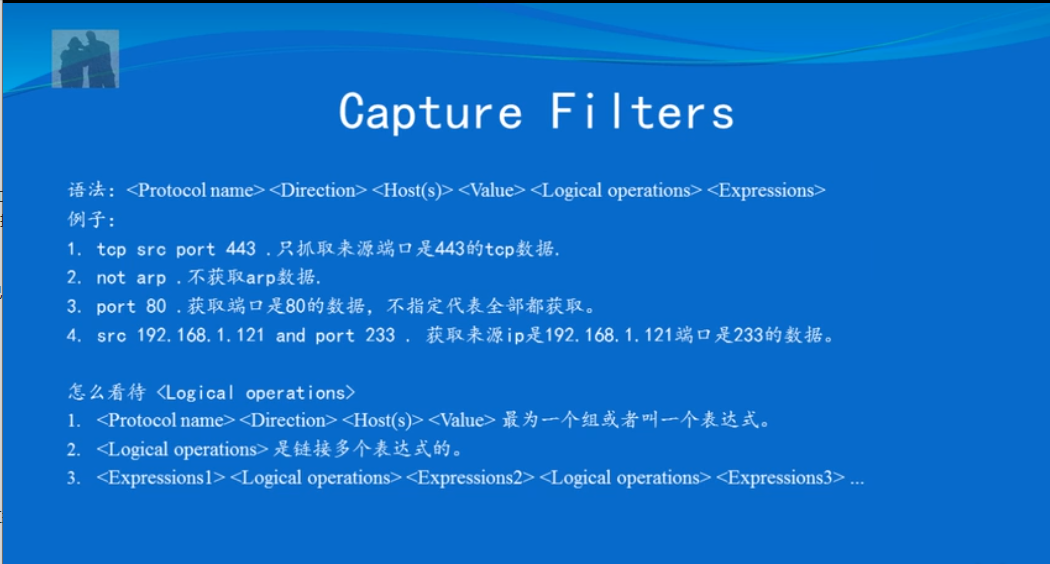

src host 127.0.0.1
//Choose to accept only packets with an IP address

dst port 8000
//Select a packet that only accepts TCP/UDP destination port 80.

not tcp
//Do not accept TCP packets

tcp[13]==0x02 and (dst port ** or dst port **)
//Only accept packets with the SYN flag position (the 13th byte starting from the TCP header) and the destination port number is 22 or 23

icmp[icmptype]==icmp-echoreply or icmp[icmptype]==icmp-echo
//Only accept icmp ping request and ping response packets

ehter dst 00:00:00:00:00:00
//Only accept packets with an Ethernet MAC address of 00:00:00:00:00:00

ip[8]==5
//Only accept packets of ttl=5 of ip (the eighth byte of ip is ttl)

int pcap_compile(pcap_t * p, struct bpf_program * fp, char * str, int optimize, bpf_u_int32 netmask)
//Fp: This is an outgoing parameter, which stores the compiled bpf
//Str: filter expression
//Optimize: Whether to optimize the filter expression
//Metmask: simply set to 0

int pcap_setfilter(pcap_t * p,  struct bpf_program * fp)
//The parameter fp is the second parameter of pcap_compile(), which stores the compiled bpf.

　  //design filter
    struct bpf_program filter;
    pcap_compile(device, &filter, "dst port 80", 1, 0);  / / Only accept 80 port TCP / UDP packets
    pcap_setfilter(device, &filter);

#include <stdio.h>
#include <pcap.h>
#include <time.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <errno.h>
#include <string.h>

//Link layer packet format
typedef struct {
    u_char DestMac[6];
    u_char SrcMac[6];
    u_char Etype[2];
}ETHHEADER;
//IP layer packet format
typedef struct {
    int header_len:4;
    int version:4;
    u_char tos:8;
    int total_len:16;
    int ident:16;
    int flags:16;
    u_char ttl:8;
    u_char proto:8;
    int checksum:16;
    u_char sourceIP[4];
    u_char destIP[4];
}IPHEADER;
//Protocol mapping table
char *Proto[]={
    "Reserved","ICMP","IGMP","GGP","IP","ST","TCP"
};
//Callback
void pcap_handle(u_char* user,const struct pcap_pkthdr* header,const u_char* pkt_data)
{
    ETHHEADER *eth_header=(ETHHEADER*)pkt_data;
    printf("---------------Begin Analysis-----------------\n");
    printf("----------------------------------------------\n");
    printf("Packet length: %d \n",header->len);
    //Parsing the packet IP header
    if(header->len>=14){
        IPHEADER *ip_header=(IPHEADER*)(pkt_data+14);
        //Resolution protocol type
        char strType[100];
        if(ip_header->proto>7)
            strcpy(strType,"IP/UNKNWN");
        else
            strcpy(strType,Proto[ip_header->proto]);

        printf("Source MAC : %02X-%02X-%02X-%02X-%02X-%02X==>",eth_header->SrcMac[0],eth_header->SrcMac[1],eth_header->SrcMac[2],eth_header->SrcMac[3],eth_header->SrcMac[4],eth_header->SrcMac[5]);
        printf("Dest   MAC : %02X-%02X-%02X-%02X-%02X-%02X\n",eth_header->DestMac[0],eth_header->DestMac[1],eth_header->DestMac[2],eth_header->DestMac[3],eth_header->DestMac[4],eth_header->DestMac[5]);

        printf("Source IP : %d.%d.%d.%d==>",ip_header->sourceIP[0],ip_header->sourceIP[1],ip_header->sourceIP[2],ip_header->sourceIP[3]);
        printf("Dest   IP : %d.%d.%d.%d\n",ip_header->destIP[0],ip_header->destIP[1],ip_header->destIP[2],ip_header->destIP[3]);

        printf("Protocol : %s\n",strType);

        //Display data frame content
        int i;
        for(i=0; i<(int)header->len; ++i)  {
            printf(" %02x", pkt_data[i]);
            if( (i + 1) % 16 == 0 )
                printf("\n");
        }
        printf("\n\n");
    }
}

int main(int argc, char **argv)
{
    char *device="eth0";
    char errbuf[1024];
    pcap_t *phandle;

    bpf_u_int32 ipaddress,ipmask;
    struct bpf_program fcode;
    int datalink;

    if((device=pcap_lookupdev(errbuf))==NULL){
        perror(errbuf);
        return 1;
    }
    else
        printf("device: %s\n",device);

    phandle=pcap_open_live(device,200,0,500,errbuf);
    if(phandle==NULL){
        perror(errbuf);
        return 1;
    }

    if(pcap_lookupnet(device,&ipaddress,&ipmask,errbuf)==-1){
        perror(errbuf);
        return 1;
    }
    else{
        char ip[INET_ADDRSTRLEN],mask[INET_ADDRSTRLEN];
        if(inet_ntop(AF_INET,&ipaddress,ip,sizeof(ip))==NULL)
            perror("inet_ntop error");
        else if(inet_ntop(AF_INET,&ipmask,mask,sizeof(mask))==NULL)
            perror("inet_ntop error");
        printf("IP address: %s, Network Mask: %s\n",ip,mask);
    }

    int flag=1;
    while(flag){
        //input the design filter
        printf("Input packet Filter: ");
        char filterString[1024];
        scanf("%s",filterString);

        if(pcap_compile(phandle,&fcode,filterString,0,ipmask)==-1)
            fprintf(stderr,"pcap_compile: %s,please input again....\n",pcap_geterr(phandle));
        else
            flag=0;
    }

    if(pcap_setfilter(phandle,&fcode)==-1){
        fprintf(stderr,"pcap_setfilter: %s\n",pcap_geterr(phandle));
        return 1;
    }

    if((datalink=pcap_datalink(phandle))==-1){
        fprintf(stderr,"pcap_datalink: %s\n",pcap_geterr(phandle));
        return 1;
    }

    printf("datalink= %d\n",datalink);

    pcap_loop(phandle,-1,pcap_handle,NULL);

    return 0;
}
