15. NgRx

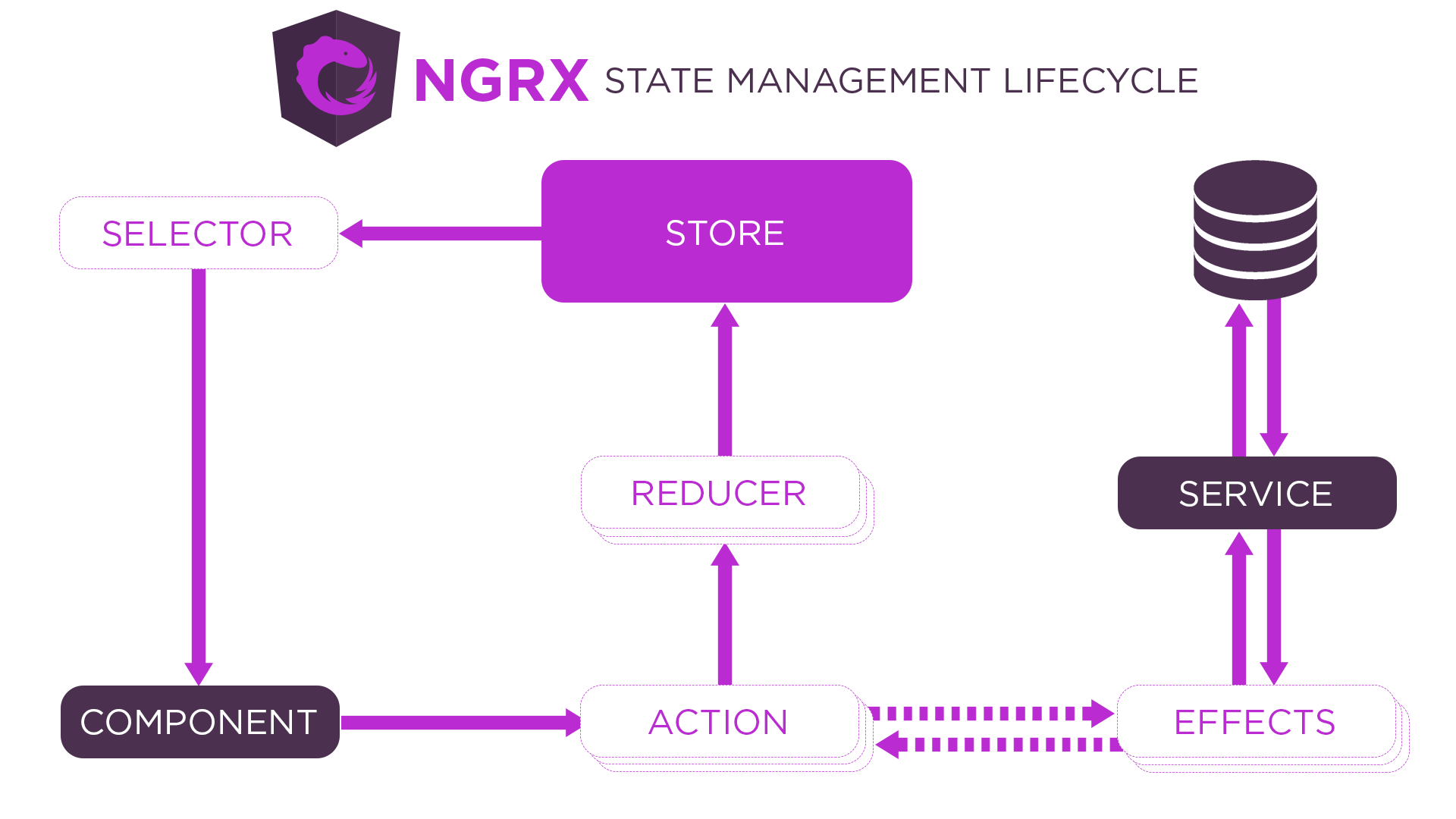

15.1 Overview

NGRX is a REDUX architecture solution that implements global state management in Angular applications.

1. @ NGRX / STORE: Global Status Management Module
2. @ NGRX / EFFECTS: Processing side effects
3. @ ngrx / store-devtools: browser debugging tool, need to relyRedux Devtools Extension
4. @ NGRX / Schematics: Command Board Tool, Generate NGRX Files
5. @ NGRX / Entity: Improve the efficiency of operating data in the reducer
6. @ NGRX / Router-Store: Synchronize the routing status to the global Store

15.2 Start

1. Download NGRX

   npm install @ngrx/store @ngrx/effects @ngrx/entity @ngrx/router-store @ngrx/store-devtools @ngrx/schematics

2. Configuring NGRX CLI

   ng config cli.defaultCollection @ngrx/schematics

   // angular.json
   "cli": {
     "defaultCollection": "@ngrx/schematics"
   }


3. Create a Store

   ng g store State --root --module app.module.ts --statePath store --stateInterface AppState

4. Create an action

   ng g action store/actions/counter --skipTests

   import { createAction } from "@ngrx/store"

   export const increment = createAction("increment")
   export const decrement = createAction("decrement")


5. Create a Reducer

   ng g reducer store/reducers/counter --skipTests --reducers=../index.ts

   import { createReducer, on } from "@ngrx/store"
   import { decrement, increment } from "../actions/counter.actions"

   export const counterFeatureKey = "counter"

   export interface State {
     count: number
   }

   export const initialState: State = {
     count: 0
   }

   export const reducer = createReducer(
     initialState,
     on(increment, state => ({ count: state.count + 1 })),
     on(decrement, state => ({ count: state.count - 1 }))
   )


6. Create Selector

   ng g selector store/selectors/counter --skipTests

   import { createFeatureSelector, createSelector } from "@ngrx/store"
   import { counterFeatureKey, State } from "../reducers/counter.reducer"
   import { AppState } from ".."

   export const selectCounter = createFeatureSelector<AppState, State>(counterFeatureKey)
   export const selectCount = createSelector(selectCounter, state => state.count)


7. Component class triggers an action, get status

   import { select, Store } from "@ngrx/store"
   import { Observable } from "rxjs"
   import { AppState } from "./store"
   import { decrement, increment } from "./store/actions/counter.actions"
   import { selectCount } from "./store/selectors/counter.selectors"

   export class AppComponent {
     count: Observable<number>
     constructor(private store: Store<AppState>) {
       this.count = this.store.pipe(select(selectCount))
     }
     increment() {
       this.store.dispatch(increment())
     }
     decrement() {
       this.store.dispatch(decrement())
     }
   }


8. Component template display status

   <button (click)="increment()">+</button>
   <span>{{ count | async }}</span>
   <button (click)="decrement()">-</button>


15.3 Action Payload

1. Transfer parameters when using Dispatch to trigger an action in the component, the parameters will eventually be placed in the Action object.

   this.store.dispatch(increment({ count: 5 }))


2. When you create an Action Creator function, get the parameter and specify the parameter type.

   import { createAction, props } from "@ngrx/store"
   export const increment = createAction("increment", props<{ count: number }>())


   export declare function props<P extends object>(): Props<P>;


3. Acquire parameters through the Action object in the Reducer.

   export const reducer = createReducer(
     initialState,
     on(increment, (state, action) => ({ count: state.count + action.count }))
   )


15.4 MetaReducer

METAREDUCER is the hook between Action-> Reducer, allowing developers to preprocessing Action (call before the normal Reducer function call).

function debug(reducer: ActionReducer<any>): ActionReducer<any> {
  return function (state, action) {
    return reducer(state, action)
  }
}

export const metaReducers: MetaReducer<AppState>[] = !environment.production
  ? [debug]
  : []

15.5 Effect

Demand: Add a button in the page, and then delay the value to increase the value after the button.

1. Add a button for an increase in asynchronous value in the component template, buttons are clickedincrement_async method

   <button (click)="increment_async()">async</button>


2. Added in the component classincrement_async Method, and trigger an action of performing asynchronous operations in the method

   increment_async() {
     this.store.dispatch(increment_async())
   }


3. Add an Action of an asynchronous operation in the action file

   export const increment_async = createAction("increment_async")


4. Create Effect, receive Action and perform side effects, continue to trigger an action

   ng g effect store/effects/counter --root --module app.module.ts --skipTests

   The Effect function is provided by the @ NGRX / EFFECTS module, so it is necessary to import the relevant module dependence in the root module.

   import { Injectable } from "@angular/core"
   import { Actions, createEffect, ofType } from "@ngrx/effects"
   import { increment, increment_async } from "../actions/counter.actions"
   import { mergeMap, map } from "rxjs/operators"
   import { timer } from "rxjs"

   // createEffect
   // Used to create Effect, Effect is used to perform side effects.
   // Pass the backup function when the method is called, and the OBSERVABLE object is returned in the callback function. The action object to be triggered after the side effect is executed.
   // The return value of the callback function is continued within the CreateEffect method, and the final return value is stored in the properties of the Effect class.
   // NGRX After instantification of the Effect class, you will subscribe to the Effect class properties. When the side effect is executed, it will get the action object to trigger and trigger this action.

   // Actions
   // When the component triggers an action, the Effect needs to receive the Action through the ActionS service, so the instance object of the Actions service class is injected into the Effect class by the constructor constructor parameter in the Effector constructor.
   // ActionS service class instance object is Observable object, when there is an action triggered, the Action object itself is sent as a data stream.

   // ofType
   // Filter the target Action object.
   // Parameter is the action creator function of the target action
   // If the target Action object is not filtered, this time will not continue to send data streams.
   // If you filter out the target Action object, the Action object will continue to be issued as a data stream.

   @Injectable()
   export class CounterEffects {
     constructor(private actions: Actions) {
       // this.loadCount.subscribe(console.log)
     }
     loadCount = createEffect(() => {
       return this.actions.pipe(
         ofType(increment_async),
         mergeMap(() => timer(1000).pipe(map(() => increment({ count: 10 }))))
       )
     })
   }


15.6 Entity

15.6.1 Overview

Entity is translated into an entity, and the entity is a data in the collection.

The entity adapter object is provided in NGRX, which provides a method of entities in various operational sets below the entity adapter object, and the purpose is to increase the efficiency of the developer's operating entity.

15.6.2 core

1. EntityState: Entity Type Interface

   /*
   	{
   		ids: [1, 2],
   		entities: {
   			1: { id: 1, title: "Hello Angular" },
   			2: { id: 2, title: "Hello NgRx" }
   		}
   	}
   */
   export interface State extends EntityState<Todo> {}


2. CreateEntityAdapter: Create an entity adapter object

3. EntityAdapter: Entity Adapter Object Type Interface

   export const adapter: EntityAdapter<Todo> = createEntityAdapter<Todo>()
   / / Get the initial state can pass the object parameters can also pass
   // {ids: [], entities: {}}
   export const initialState: State = adapter.getInitialState()


15.6.3 Example Method

https://ngrx.io/guide/entity/adapter#adapter-collection-methods

15.6.4 selector

// selecttotal Number of data
// selectall Get all data in an array form
// Selectities Get entity collection is present in a dictionary
// selectids Get the ID collection, rendered in array
const { selectIds, selectEntities, selectAll, selectTotal } = adapter.getSelectors();

export const selectTodo = createFeatureSelector<AppState, State>(todoFeatureKey)
export const selectTodos = createSelector(selectTodo, selectAll)

15.7 Router Store

15.7.1 Synchronous Routing Status

1. Introduction module

   import { StoreRouterConnectingModule } from "@ngrx/router-store"

   @NgModule({
     imports: [
       StoreRouterConnectingModule.forRoot()
     ]
   })
   export class AppModule {}


2. Integrate routing status to the Store

   import * as fromRouter from "@ngrx/router-store"

   export interface AppState {
     router: fromRouter.RouterReducerState
   }
   export const reducers: ActionReducerMap<AppState> = {
     router: fromRouter.routerReducer
   }


15.7.2 Creating a Selector for getting a route status

// router.selectors.ts
import { createFeatureSelector } from "@ngrx/store"
import { AppState } from ".."
import { RouterReducerState, getSelectors } from "@ngrx/router-store"

const selectRouter = createFeatureSelector<AppState, RouterReducerState>(
  "router"
)

export const {
  // Get information related to the current routing (routing parameters, routing configuration, etc.)
  selectCurrentRoute,
  / / Get the contents of the ## in the address bar
  selectFragment,
  / / Get routing query parameters
  selectQueryParams,
  / / Get the specific query parameter SelectQueryParam ('Name')
  selectQueryParam,
  // Get dynamic routing parameters
  selectRouteParams,
 	// Get a specific dynamic routing parameter SelectEParam ('Name')
  selectRouteParam,
  / / Get routing custom data
  selectRouteData,
  / / Get the actual access address of the route
  selectUrl
} = getSelectors(selectRouter)

// home.component.ts
import { select, Store } from "@ngrx/store"
import { AppState } from "src/app/store"
import { selectQueryParams } from "src/app/store/selectors/router.selectors"

export class AboutComponent {
  constructor(private store: Store<AppState>) {
    this.store.pipe(select(selectQueryParams)).subscribe(console.log)
  }
}
