Verilog-based classic digital circuit design (17) sequence detector
tags: Classic digital circuit design based on Verilog verilog fsm

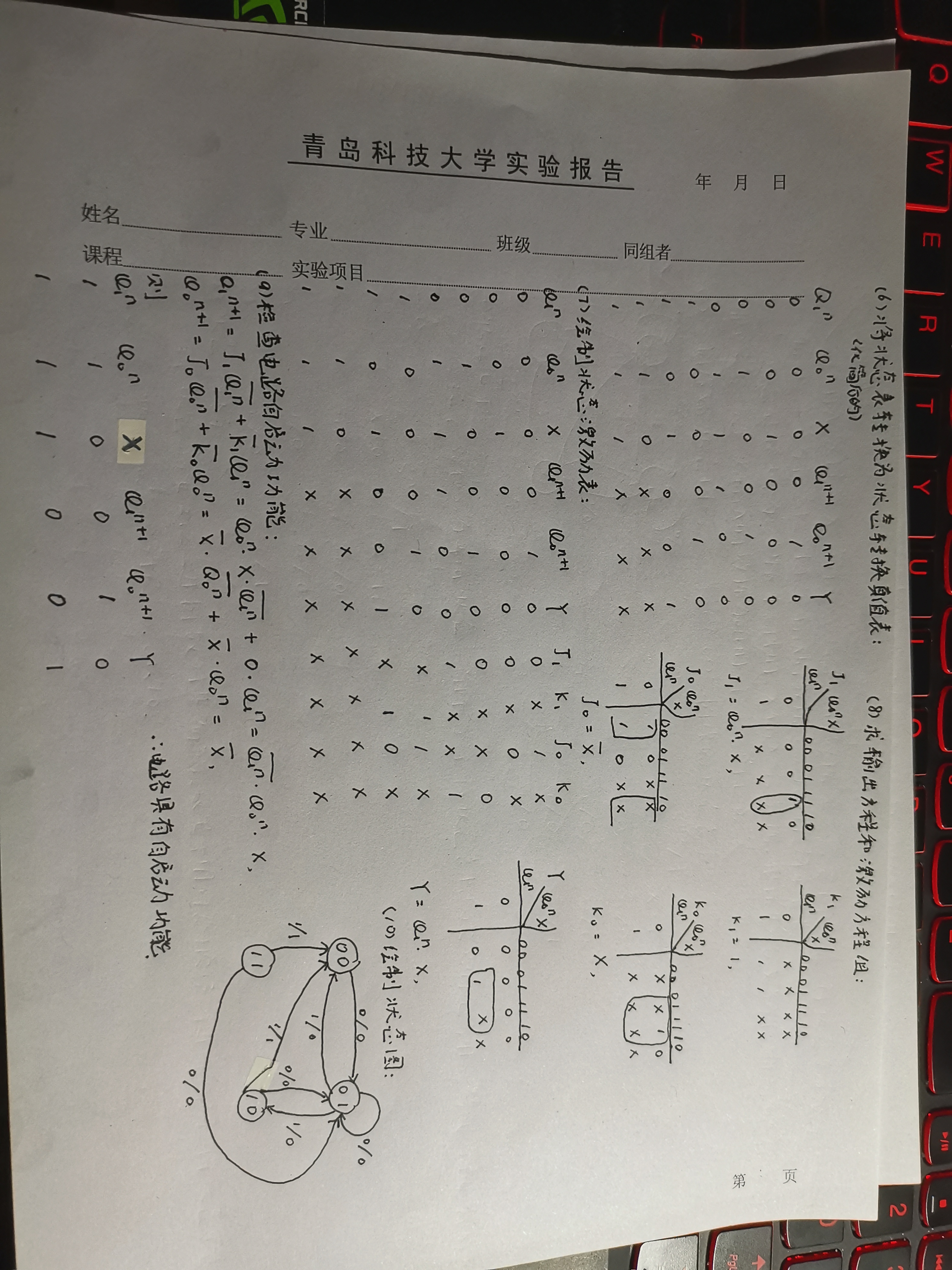

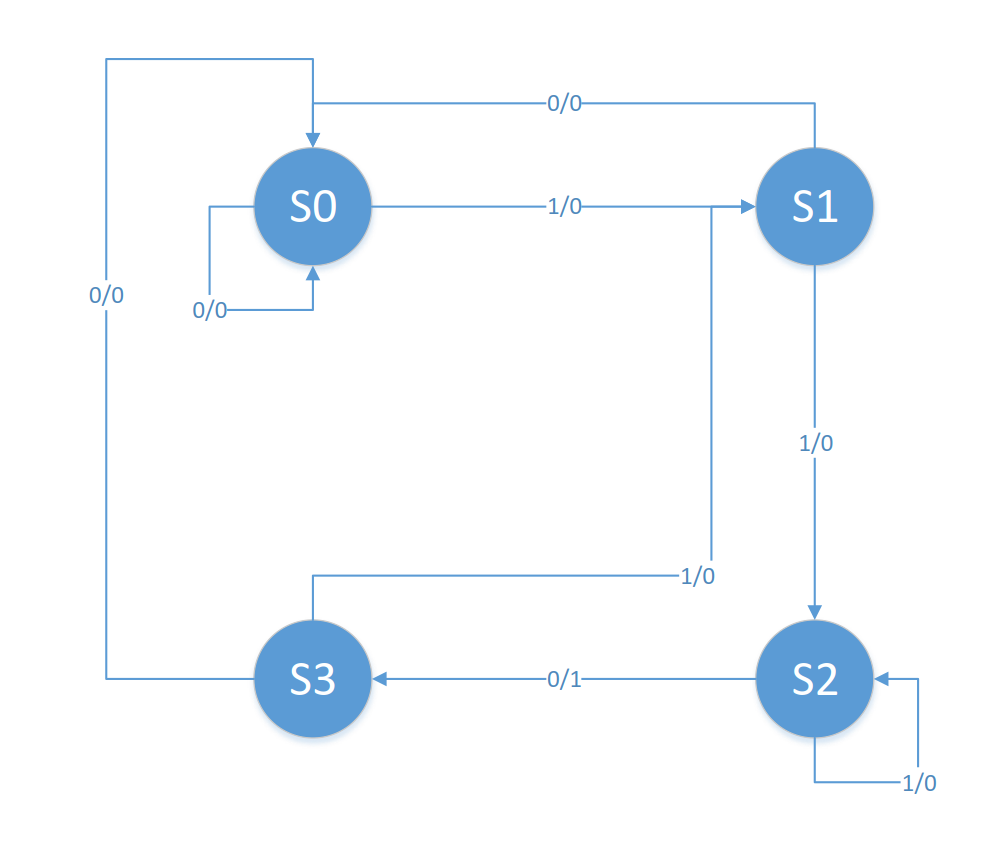

The finite state machine was introduced earlier. Next, we use FSM to design a 101 sequence detector.
The following is the Verilog code implementation of the 101 sequence detector:
module FSM(
input clk,
input rst_n,
input x, // input sequence
output reg z // test result
);
// FSM mainly includes current state CS, second state NS, and output logic OL;
parameter S0=2'b00,S1=2'b01,S2=2'b11,S3=2'b10; //Status coding, adopts Gray coding method, S0 is IDLE
reg [1:0] c_state,n_state;
/*------------------Conversion between the second state and the present state---------------*/
always @(posedge clk or negedge rst_n) begin
if(rst_n)
c_state <= S0;
else
c_state <= n_state;
end
/*-------Combination logic that converts the current state to the next state under input ------*/
always @(c_state or x) begin
case(c_state)
S0:begin
if(x)
n_state<=S1;
else
n_state<=S0;
end
S1:begin
if(x)
n_state<=S1;
else
n_state<=S2;
end
S2:begin
if(x)
n_state<=S3;
else
n_state<=S0;
end
S3:begin
if(x)
n_state<=S1;
else
n_state<=S2;
end
default:n_state<=S0;
endcase
end
/*--------------Combination logic from current state to output---------------*/
always @(c_state) begin
case(c_state) // This moment from S3 to S2;
S3: z=1'b1;
default:z=1'b0;
endcase
end
endmodule
