js mouse events clientX, clientY, offsetX, offsetY, layerX, layerY, pageX, pageY, screenX, screenY

tags: javascript

The categories of MouseEvent are as follows:

  1. mousedown mousedown
  2. mouseup mouseup
  3. click left click
  4. dblclick left click
  5. mousemove
  6. mouseover
  7. mouseout
  8. mouseenter
  9. mouseleave
  10. contextmenu right-click menu

note:

  • Execution sequence: mousedown —> mouseup —> click
  • Difference: mouseover and mouseout child elements will also trigger, you can trigger bubbling
  • Difference: mouseenter and mouseleave are triggered for the listening object, preventing bubbling

Prevent mouse default events

  • e.preventDefault()
  • e.returnValue=false;//Compatible with IE8 and below
  • return false;//IE compatible writing, only used as on event to prevent default event

Remove the right-click menu

document.body.addEventListener("contextmenu",clickHandler);
function clickHandler(e){
    e.preventDefault();//Block event default behavior
    console.log(e.type);
}

Prevent images from dragging by default

var img=document.querySelector("img");
img.addEventListener("mousedown",mouseHandler);
function mouseHandler(e){
    e.preventDefault();
}

Prevent text dragging and selection

document.body.addEventListener("mousedown",mouseHandler);
function mouseHandler(e){
    e.preventDefault();
}

Prevent form submission and reset

var bn=document.querySelector("[type=submit]");
bn.addEventListener("click",clickHandler);
function clickHandler(e){
    e.preventDefault();
}

//Or write to form
var form=document.querySelector("form");
form.addEventListener("submit",submitHandler);
function submitHandler(e){
    e.preventDefault();
    //e.returnValue=false;//Compatible with IE8 and below
}

MouseEvent object

Print out the contents of the MouseEvent object:

document.body.addEventListener("mousedown",clickHandler);
function clickHandler(e){
    console.log(e);
}

The print result is as follows (only part of the content is intercepted):
MouseEvent

  • altKey ctrlKey shiftKey metaKey Whether the key is clicked
  • button buttons which is used to determine which mouse button is operated
    The values ​​corresponding to the left button are 0, 1, 1
    The value corresponding to the middle key is 1, 4, 2
    The value corresponding to the right key is 2, 2, 3
  • timeStamp The time from when the page opens to when the event is triggered

The following is the description of coordinate values:

clientX and clientY and x, y

  • clientX and clientY are the same as x and y, they are the coordinates of the client area, which refers to the coordinates of the mouse, starting with the upper left corner of the browser display area, x, y are supported by the new browser

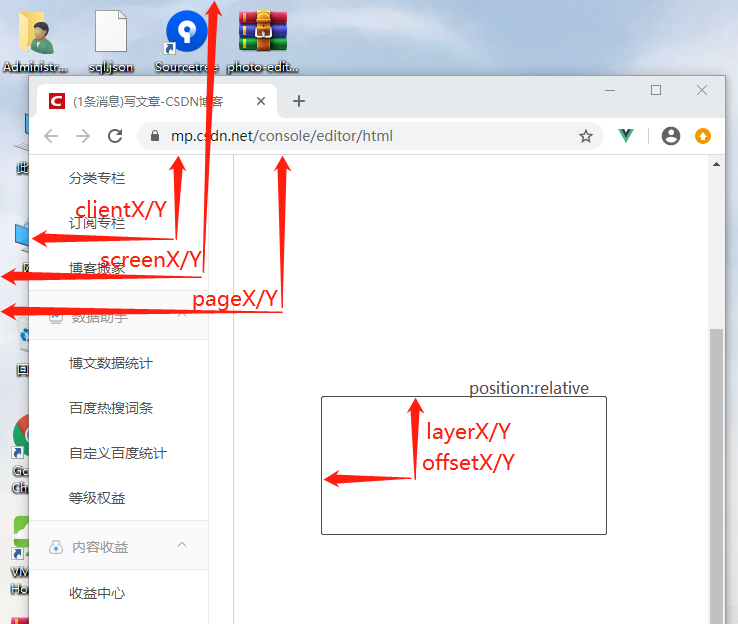

The results printed in the following screenshots are the position coordinates of the upper left vertex of the div2 element.
clientX,clientY

offsetX,offsetY

  • offsetX, offsetY aim at the coordinates of the upper left corner of the target element (e.target), the mouse click in the screenshot below has an error, does not affect the result.
    offsetX、offsetY

layerX,layerY

  • layerX, layerY go to the upper left corner of the parent element with positioning attributes (if it has positioning attributes, it is relative to itself), if there is none, it is relative to the upper left corner of the body

When the element and its parent have no positioning attributes, the upper left corner of the body is used as the origin:
layerX、layerY
When the parent of the element has positioning attributes, use the upper left corner of the parent as the origin:
layerX、layerY
When the element itself has positioning attributes, the upper left corner of the element is used as the origin:
layerX、layerY

pageX, pageY

  • pageX, pageY relative to the upper left corner of the page
    pageX、pageY

screenX screenY

  • screenX screenY relative to the upper left corner of the screen
    screenX、screenY

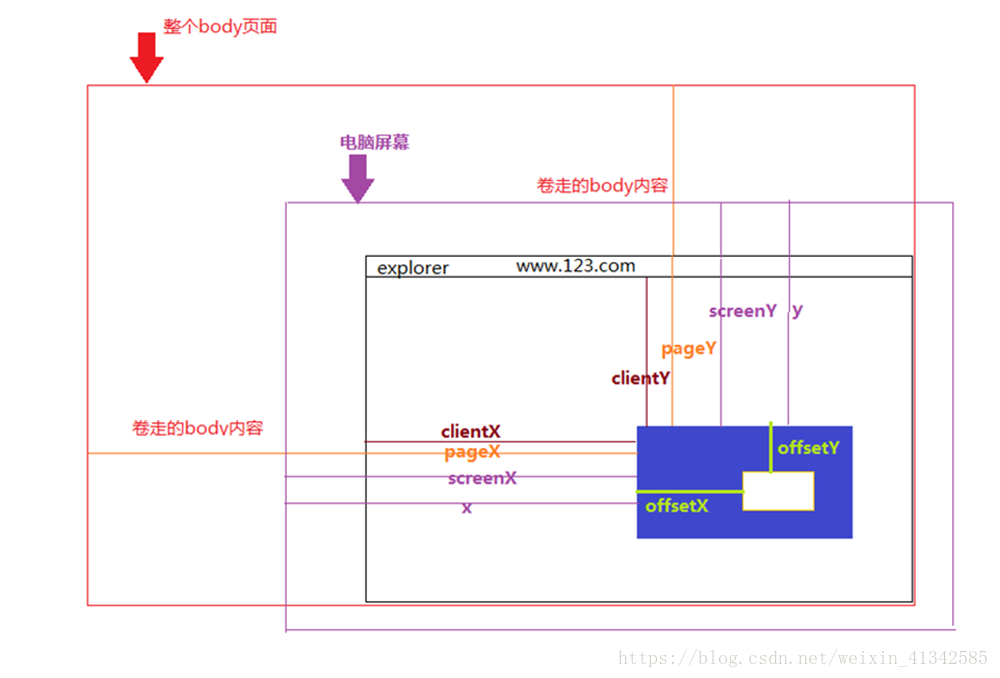

to sum up:

  • clientX and clientY are the same as x and y, starting with the upper left corner of the browser display area, referring to the coordinates of the mouse. x,y is new browser support
  • offsetX, offsetY, the coordinates of the upper left corner of the target element, starting from padding.
  • layerX, layerY, look up the upper left corner of the parent element with positioning attributes (if it has positioning attributes, it is relative to itself), if it is not, it is relative to the upper left corner of the body
  • pageX, pageY relative to the upper left corner of the page
  • screenX screenY relative to the upper left corner of the screen
