In project three, we completed the parsing of a package in the "hospital mirror stream.pcapng" file. The next thing we need to do is to write the parsed data into the file, so that the TS stream file can be restored, and then It's playing.

Here is more than the project three is involved in the operation of the file, C language file operation should not be difficult, just write it in.

In this code, I deleted a lot of places that are not used in this project, such as the output function, and because there is a little noise in the file (that is, the packet of the TS stream file), my judgment condition is only when The restored data is a TS stream file starting with 0x47 before writing the data to the file.

#include <stdio.h>
#include <stdlib.h>
#include <pcap.h>
#include <time.h>
#include <unistd.h>
#include <errno.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <netinet/if_ether.h>
#include <linux/ip.h>
#include <linux/tcp.h>
#include <linux/udp.h>
#include "PPPoE.h"

//Global variable file pointer fp
FILE *fp;

//Write TS stream data to file
void write_ts_file(int j,int len,const u_char *packet){

	while(j < len){
		if(fwrite(&packet[j],1,1,fp)!=1)
			printf("Write file error!\n");
		j++;
	}
}

//Callback
void print_info(u_char *user,const struct pcap_pkthdr *pkthdr,const u_char *packet){
	int j,*id;
	struct ether_header *eptr;
	struct iphdr *ipptr;
	struct tcphdr *tcpptr;
	struct udphdr *udpptr;
	struct PPPoEhdr *PPPoEptr;

	j = 0,id = (int *)user;

	//Get the Ethernet frame header
	eptr = (struct ether_header*)packet;
	j += sizeof(struct ether_header);

	if(ntohs(eptr->ether_type)==0x8864){
		//Get the PPPoE protocol header
		PPPoEptr = (struct PPPoEhdr *)(packet + sizeof(struct ether_header));
		j += sizeof(struct PPPoEhdr);

		j += 2;

		//Get IP packet header
		if(packet[j-2]==0x00 && packet[j-1]==0x21){
			ipptr = (struct iphdr *)(packet + sizeof(struct ether_header) + sizeof(struct PPPoEhdr) + 2);
			j += sizeof(struct iphdr);
			if(ipptr->protocol==17){
				//Get the udp packet header
				udpptr = (struct udphdr *)(packet + sizeof(struct ether_header) + sizeof(struct PPPoEhdr) + 2 + sizeof(struct iphdr));
				j += sizeof(struct udphdr);
				if(packet[j]==0x80)
					j += 12;//Remove 12 bytes of RDP

				//Write data to file
				write_ts_file(j,pkthdr->len,packet);
			}
		}
	}
}

//Main function
int main(){
	char errBuf[PCAP_ERRBUF_SIZE];
	pcap_t *head;
	int id;

	//Open offline file
	head = pcap_open_offline("Hospital mirror stream. pcapng",errBuf);
	if(head){
		printf("Open device success!\n");
	}else{
		printf("Open device failed. %s\n",errBuf);
		return 0;
	}

	//Wait for a packet to return
	struct pcap_pkthdr packet;
	const u_char *packetflag = pcap_next(head,&packet);
	if(packetflag){
		printf("Get a pcaket success.\n");
		if(fp = fopen("lab04.ts","a"))
			printf("Open file success\n");
		else
			printf("Open file failed\n");
		id = 0;
		pcap_loop(head,-1,print_info,(u_char *)&id);
	}else{
		printf("Get a pcaket failed. %s\n",errBuf);
		pcap_close(head);
		return 0;
	}

	//Turn off the device and return the resources
	fclose(fp);
	pcap_close(head);

	return 0;
}

Program running results:

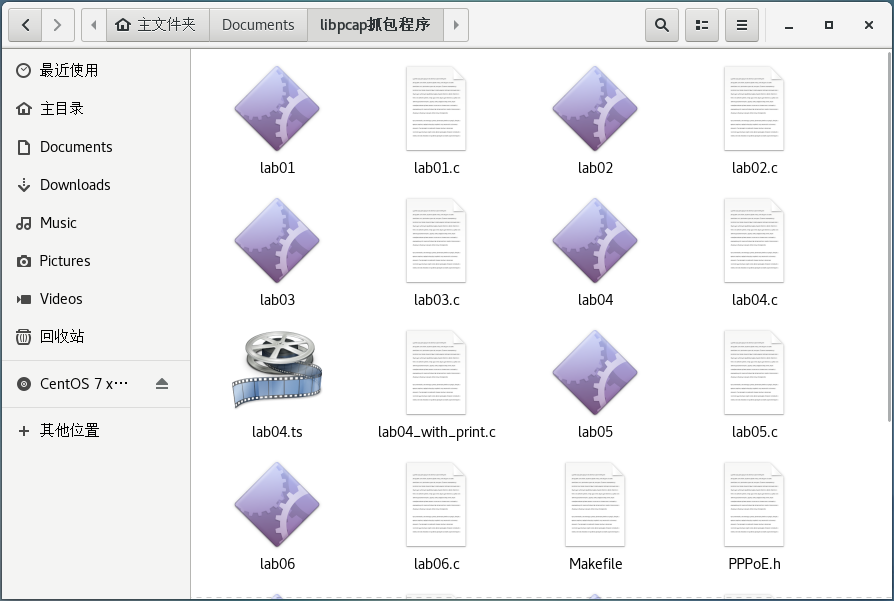

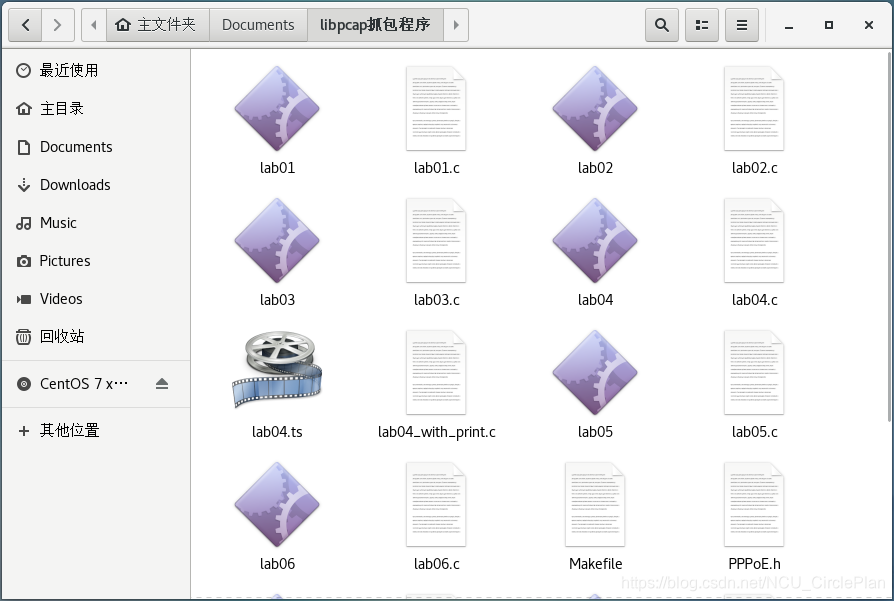

Find the "lab04.ts" file in the directory.

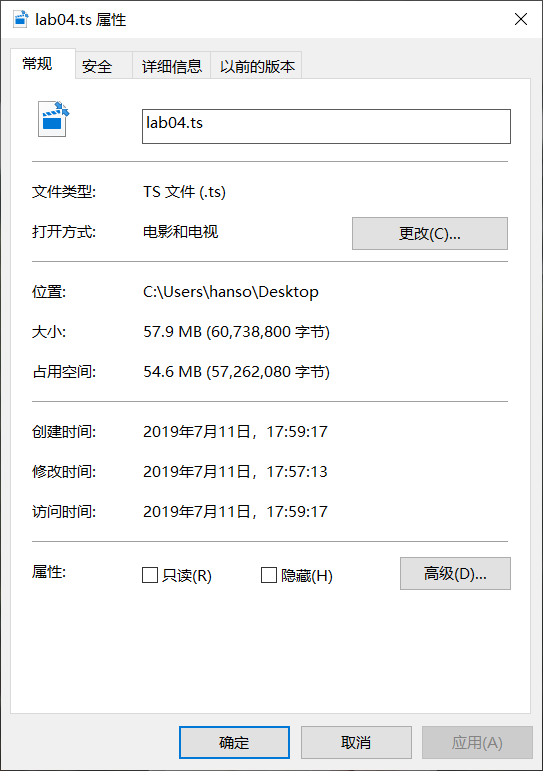

Drag it to the physical machine and check the properties:

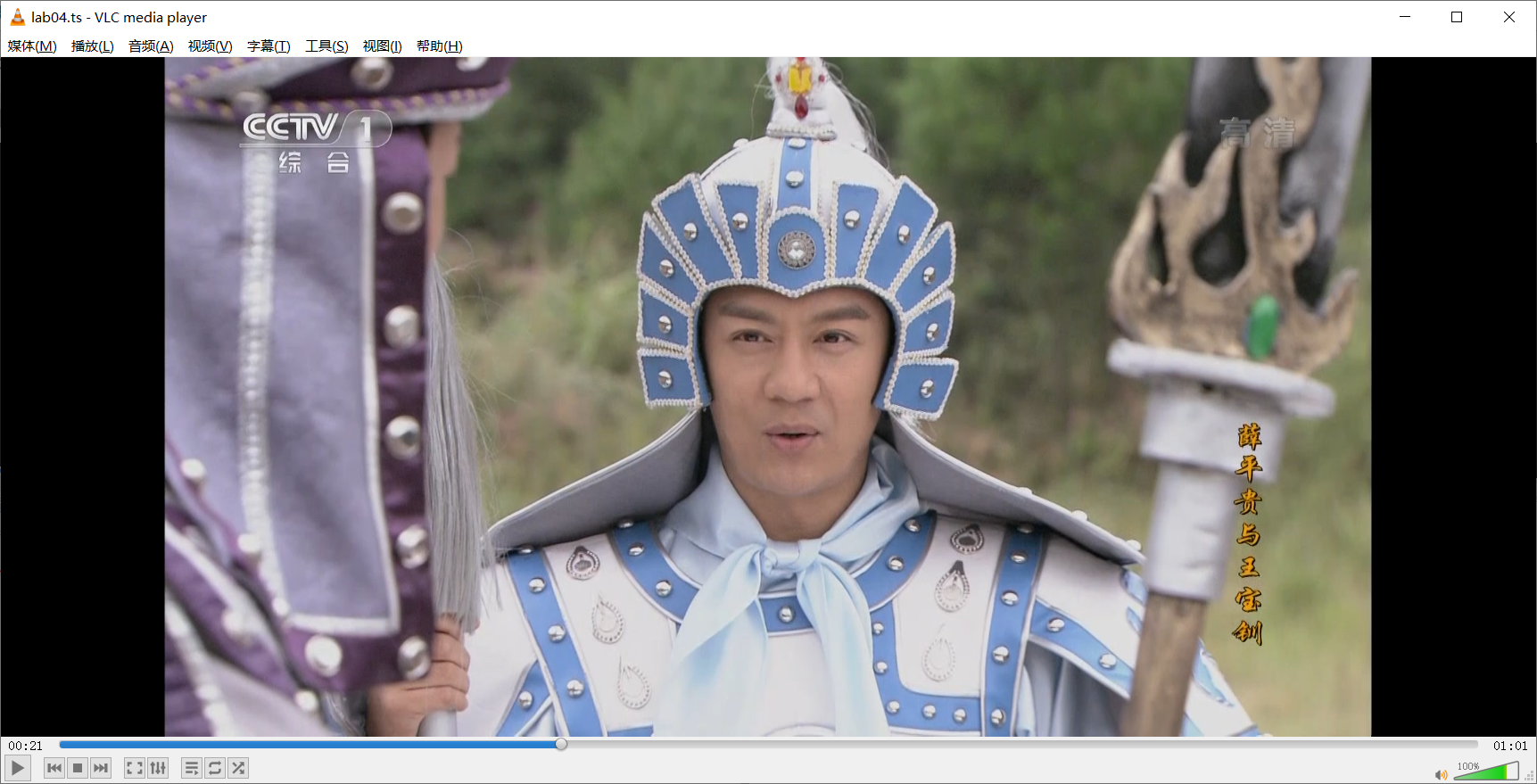

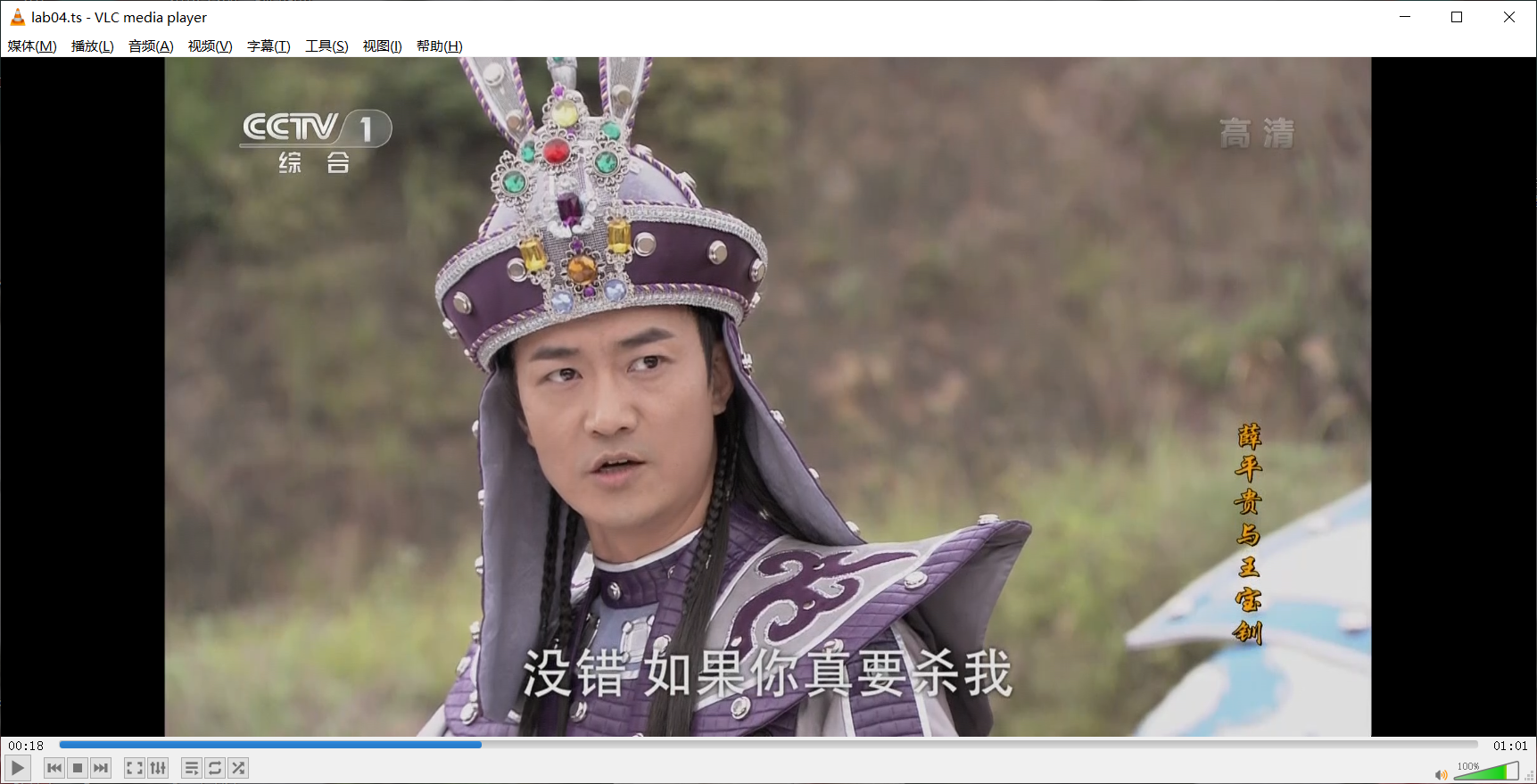

Then open it with VLC player and see the video.
(Here we present the sand sculpture love head) (manual dog head)


You can also output the PDU header information of each layer in the terminal when writing the file, which is the code combined with project three. You can download my source code and check lab04_with_print.c.

In this way, we completed the fourth project, extract the TS stream file and write it to the file for playback.
