DIY EBAZ4205 HDMI interface

tags: FPGA  DIY  EBAZ4205  ZYNQ  HDMI

I originally wanted to DIY a VGA port for display. The board was drawn, but I accidentally saw the black gold data. The HDMI inside does not use a chip. It is very good to directly drive the FPGA PL. This simplifies the number of pins. It is made in an EBAZ4205 slot.

  1. Schematic diagram, borrowing the black gold HDMI interface part, of course, there are level conversion and 5V output parts are not listed, you can find it by yourself if you are interested.
  2. Now that you have the schematic, you are looking for the differential pair in the EBAZ4205 slot. This place requires you to compare the schematic and pin description. The differential pair of each slot is not in a fixed position, so you can only follow a specific slot. PCB design.
  3. The code can completely refer to the black gold information, and it is enough to modify some parameters of the screen.
  4. In kind
  5. Download and debug

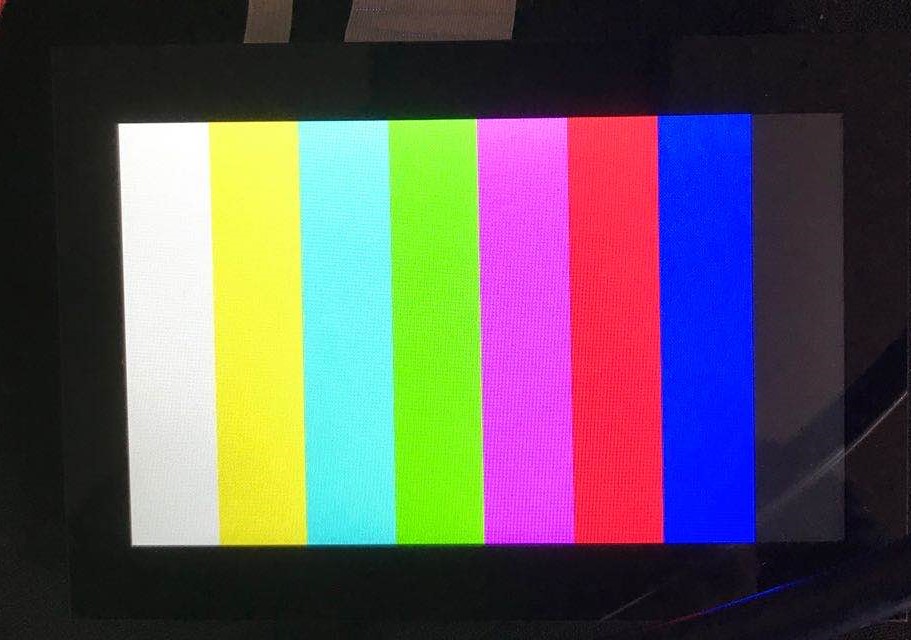

    Display color bars smoothly
