1. Background:

Because I didn’t pay much attention to Git before, after arriving in the new company, I found that I was not familiar with many operations of Git, and it was easy to be at a loss when encountering problems. After some learning, I integrated the process of uploading code into PyCharm. When uploading the code, there is no need to type those commands again, and the code can be uploaded in a very short time (within 1 minute), which greatly improves the efficiency, so I decided to summarize this process for the convenience of subsequent use.

2. Basic settings

First of all, point the settings of PyCharm to the git installed on this machine, open File - Settings

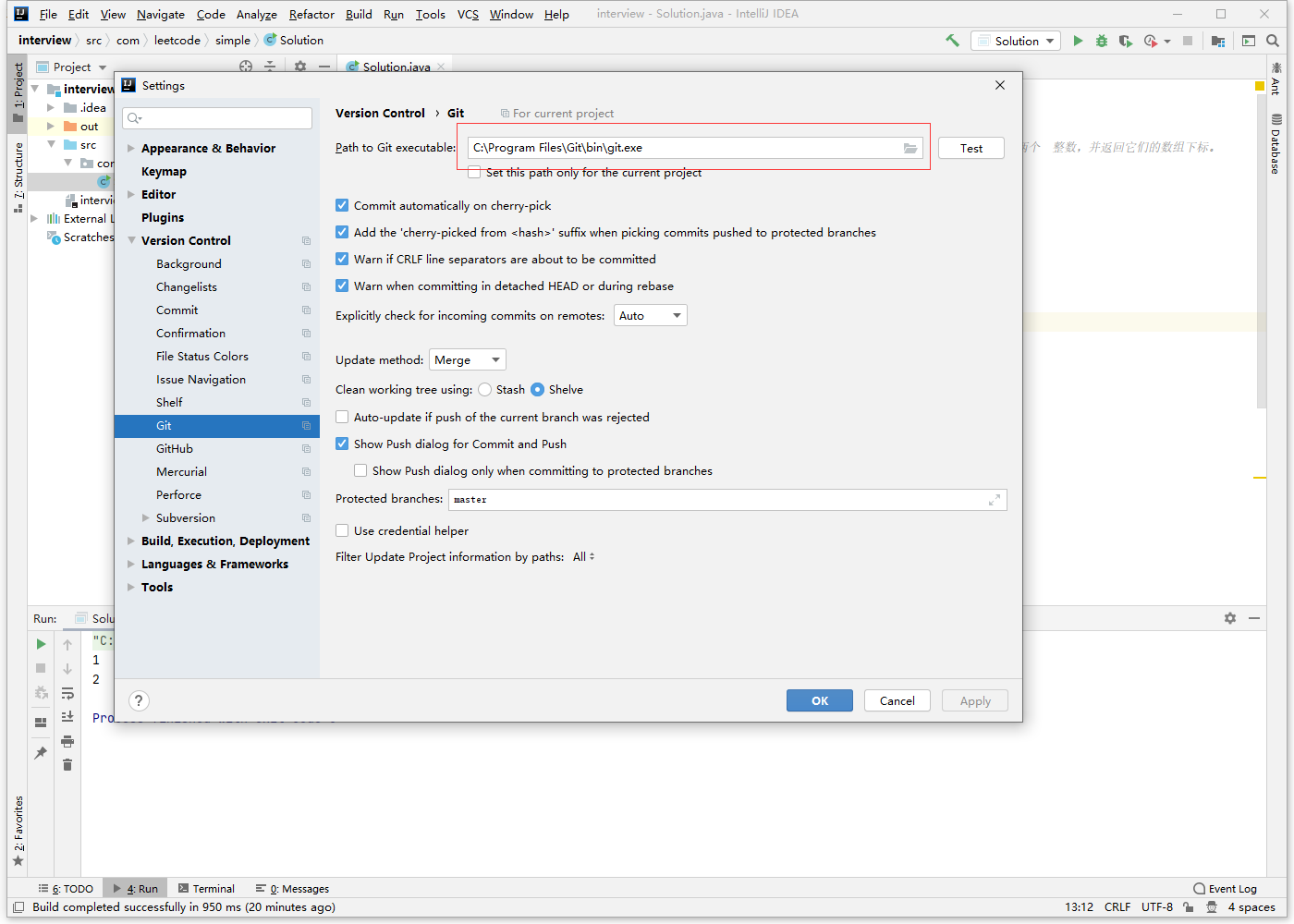

Then open the version control, select Git, note that here I chose the git path that comes with cmder, if you have installed git yourself, write your own path

3. Upload

Upload is divided into several situations

1. For the first upload, a new branch needs to be created
2. Upload code to an existing branch

Below I will use my gitee account to demonstrate the whole process, but the principle is the same, and it will also take effect on Gitlab.

3.1 For the first upload, a new branch needs to be created

3.1.1 Before uploading any code, please make three links (fetch, pull, rebase)

1. First switch to the master branch
   Open your project, click on the branch name in the lower right corner, select master, and then select Checkout

   Corresponding command:
   git checkout master

If the lower right corner is already master, there is no need to switch.

2. On the top menu bar, select Git - Fetch
   This step is only to download the code from the remote end, but it has not been updated to come in

   Corresponding command:
   git fetch

3. Git - Pull…
   This step pulls the code from the remote end. The default is to pull from the current corresponding branch. For example, the master pulls the origin/master by default.


The origin of this step is fixed and not optional, and the master is the corresponding remote branch, so don’t choose it wrong.

Corresponding command:
git pull

4. Git - Rebase…
   This step is to put your previous submissions after other people's submissions, which can prevent the confusion of the submission tree

   Select the commit based on the remote branch

3.1.2 Create your own branch

1. Under the master branch, select a new branch in the lower right corner (this branch will be created based on the master, if you open a new branch under other branches, it will be created based on this branch)

   Enter the branch name in the pop-up window, and choose to switch to the branch

You can see that the branch name in the lower right corner has changed, and the local branch has an additional br2

Corresponding command:
git checkout -b br2

2. If you want to delete this branch, you also need to switch to the master branch, then select the br2 branch, and select Delete

   Corresponding command:
   git branch -D br2
   This step will only delete your local branch.

3.1.3 Update code

3. If you plan to use this branch to upload code, then follow the steps below
   For demonstration, I made a modification under br2 and added a new line, which you can regard as your update


4. submit
   Reminder: If there are some other checks such as code specifications before submitting, please complete them before submitting.

   You can also use this button


   Corresponding command:
   git commit -m “XXX”

5. to push

Pay attention to the content in the red box, push to origin/br2 instead of origin/master, this point should be checked carefully

Corresponding command:
git push --set-upstream origin br2
Among them –set-upstream is to specify the upload (upstream) branch

6. At this point you may want to check on Git to see if the push is successful
   But generally there will be a prompt in the lower left corner of PyCharm, you can also click to see the operation log

   Of course, a new branch has also been created in git


My modifications have also been updated to the br2 branch.

3.1.4 Update Minor Modifications

7. At this point you suddenly remembered that you still have a txt file to upload, so you can do this

If the previous commit interface is still there, you can shrink it first

If you still don't see the project file, you can display it in the following way

8. Ok, now I add a txt file to the project to record some things
   If you have the following prompts during the process of adding files, just click add

9. Then I add the following to this file


10. Since there is no need to add comments again this time, I just submit it in the default way
    amend means that there is no need to keep the last submission record, and the latest one will be kept. Since you don't want others to know that you forgot to submit a txt, you choose this

    Corresponding command:
    git commit --amend --no-edit

11. This update can be done by force push

    Corresponding command:
    git push -f

At this point, the following warning will appear, this operation will overwrite the remote submission, which is exactly what we want, just choose to force push

3.1.5 Look at the remote

At this point, let's look at the remote branch again
As you can see, the changes folder was obviously pushed by me 1 minute ago, but what I saw was the push 30 minutes ago

Then look at the submission history, there is only one submission today

At this point, the push of the new branch is over!

3.2 Upload code to an existing branch

After the first version of your code was read by your boss, he pointed out more than 10 errors and ordered you to solve it immediately, so you stayed up all night and prepared to upload a new version of the code.

3.2.1 Before making any changes, please make three consecutive (fetch, pull, rebase)

Since this part is similar to the previous one, it will not be repeated

3.2.2 Pull your submission and put it behind someone else's submission

In order not to interfere with the submission tree, after you update the master, you need to extract your last submission and submit it again on someone else's master
The operation is as follows

First switch to your branch

Then choose Git - Rebase...

This rebase requires manual rebase on the basis of the master, so the -i parameter needs to be added,

At this point, your commit record will pop up. If you don't need to update, just rebase directly

There will be a hint of rebase success in the lower left corner

3.2.3 Push to remote

The purpose of this push is to push your rebase operation to the remote end, so that your subsequent commits will also be after this rebase, preventing some other commits from being interspersed in the middle

3.2.4 Update the code and push it to the remote end

At this point you can check the code again, if there is no problem, update to br2, then commit and push

force push

At this point, the following warning will appear, select Force push

At this point, the push is complete!
