Huawei ensp routing table notes

View the routing table command:display ip routing-table
Huawei wonderful routing table bit, initialization is not empty.
cisco is empty.

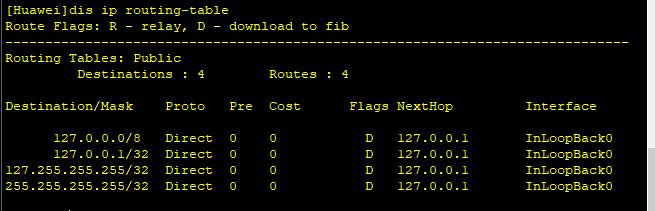

Huawei ensp simulator, a router starts routing table is not empty, there are four default entries in the road, are directly connected, as shown below:

Routing table shows the network segment ip address, ip address, broadcast address

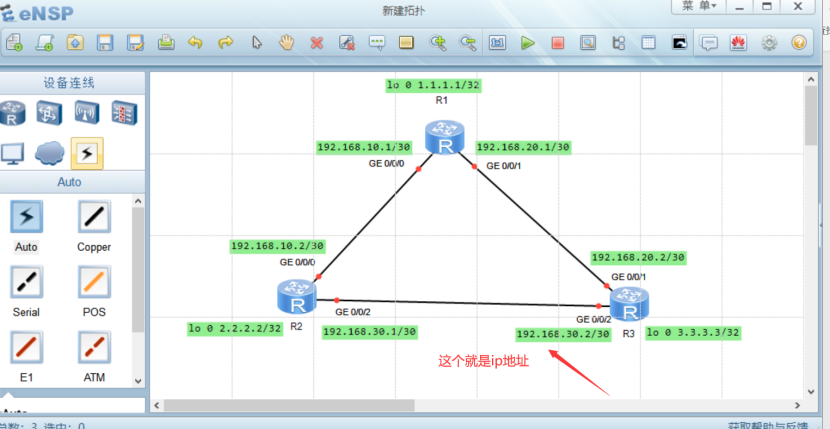

If there are other interface address, it is similar, but also the network segment address, and corresponding network broadcast address, as shown below:

Intelligent Recommendation

Huawei eNSP under static routing hop experiment

First, the purpose of the experiment: Implemented between the hosts communicate with each other, requests route: PC1 and PC2 -> PC3 and PC4: R2 ---> R1 ----> R3 PC1 and PC2 ->...

20.3.18 OSPF dynamic routing Huawei ensp

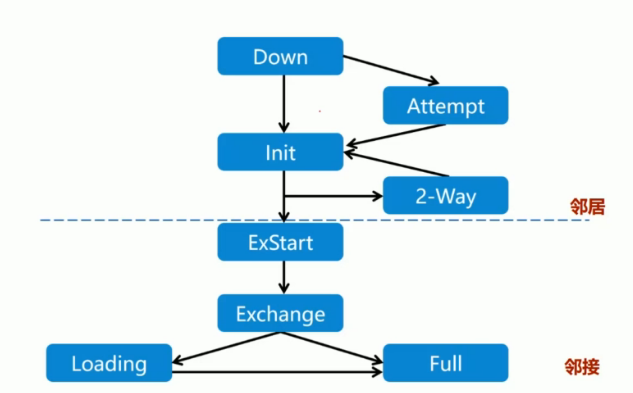

OSPF dynamic routing configuration, and pay attention to points Neighbor: put a neighbor device link state database (topology table): there is information about the devices with the area: boundary rou...

Huawei ensp small experiment realizes routing interworking

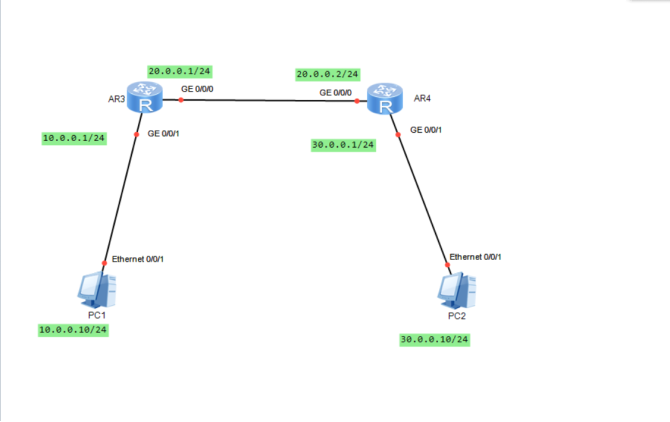

Huawei ensp small experiment realizes routing interworking The first step: open ensp, pull in 3 routers and connect them with wires, and then match the router with the address Step 2: Then start Step ...
