My subject is about deep learning. I need to run programs on the GPU. However, the concept of the title is a bit vague, so I think it is necessary to write an article as a note for later reference.

1. What is CUDA?

The full English name of CUDA is Compute Unified Device Architecture, which is a general parallel computing launched by NVIDIAArchitecture, TheArchitectureEnable the GPU to solve complex computing problems.

2. What is CUDNN?

CUDNN is used for deep neural networksGPU acceleration library. It emphasizes performance, ease of use and low memory overhead. It can be integrated into advanced machine learning frameworks, such as Google's Tensorflow, UC Berkeley's caffe framework, Facebook's PyTorch framework and so on.

• CUDNN is a deep learning GPU acceleration library based on CUDA. Only with it can deep learning calculations be completed on the GPU;
• The CUDA platform did not install the CUDNN library at the beginning. Developers only install the CUDNN library when they need deep learning GPU acceleration. The working speed is much faster than the CPU.

What is the relationship between CUDA and CUDNN? An explanation on Zhihu is quite easy to understand:

CUDA is regarded as a workbench with many tools such as hammers and screwdrivers. cuDNN is a deep learning GPU acceleration library based on CUDA. With it, deep learning calculations can be completed on the GPU. It is equivalent to a working tool, such as a wrench. But when the CUDA workbench was bought, no wrench was given. To run a deep neural network on CUDA, you need to install cuDNN, just like you need to buy a wrench if you want to screw a nut. Only in this way can the GPU perform deep neural network work, which is much faster than the CPU.

3. What is CUDA Driver?

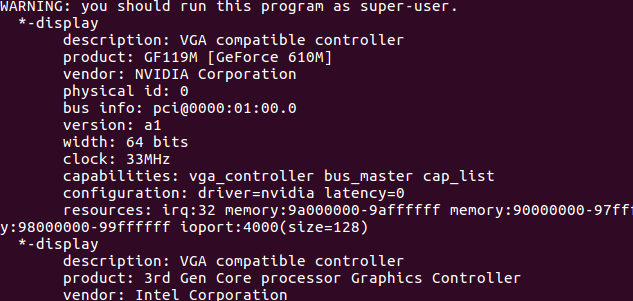

This is often saidGraphics driverFor example, the model of my computer's graphics card is: GTX 1660 SUPER, and the version of the graphics card driver: 441.08.

Each version of the CUDA toolkit corresponds to a minimum version of the CUDA Driver, which means that if the version of the CUDA Driver you install is lower than the official recommendation, it is likely to fail to run normally. CUDA Driver is backward compatible, which means that applications compiled according to a specific version of CUDA will continue to work on subsequent releases of Driver. Usually for convenience, CUDA Driver will be installed by default when installing CUDA Toolkit. In the development stage, you can choose to install the Driver by default, but for commercial situations like Tesla GPU, it is recommended to install the latest version of the Driver on the official website.

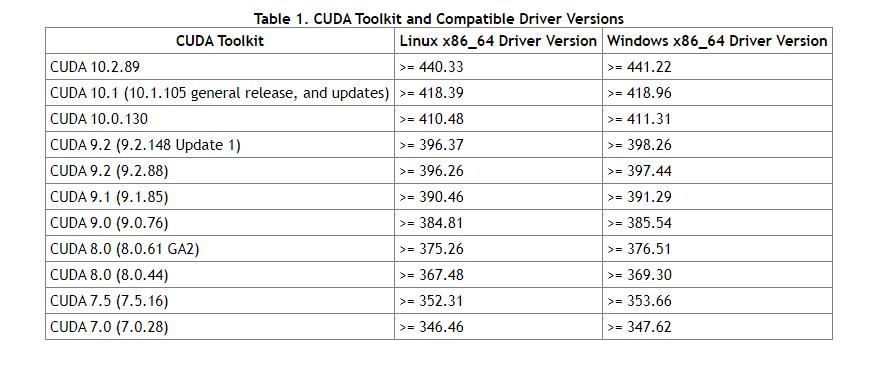

As summarized in a blog, the correspondence between CUDA Toolkit and CUDA Driver versions is as follows:

4. What is CUDA Toolkit?

CUDA Toolkit is a complete one officially provided by NvidiaTool installation package, Which provides options for installing Nvidia drivers, development kits related to developing CUDA programs, etc.

Use the CUDA Toolkit provided by Nvidia's official website to install the tools needed to develop CUDA programs, including CUDA program compilers, IDEs, debuggers, etc., various library files corresponding to CUDA programs and their header files. But for deep learning frameworks such as Pytorch, it only needs to use the CUDA dynamic link library to support the running of the program in most cases that require the use of GPU (Pytorch itself and CUDA-related parts are compiled in advance), just Like a common executable program, there is no need to recompile the process, only the dynamic link library it depends on can run normally. Therefore, when Anaconda installs Pytorch and other frameworks that will use CUDA, it will automatically install cudatoolkit for users, which mainly contains dynamic link libraries that applications rely on when using CUDA-related functions. After installing cudatoolkit, as long as there is a Nvidia driver compatible with the current cudatoolkit on the system, the compiled CUDA-related programs can be run directly without installing the complete Nvidia official CUDA Toolkit.

5. What is NCVV?

nvcc is CUDAtranslater, Can be obtained from the /bin directory of the CUDA Toolkit, similar to gcc is the compiler of the c language. Since the program is programmed into an executable binary file by a compiler, and the cuda program has two kinds of codes, one is the host code running on the cpu and the other is the device code running on the gpu, so the nvcc compiler needs Ensure that the two parts of the code can be compiled into a binary file and executed on different machines.
