Labelme labeled image segmentation (semantic segmentation) samples

1. Download: pip install labelme

2. Save the image to be marked into the images directory, and cd to the parent directory of the images directory

3. Create a new labels.txt file, ansi code, and enter the category

__ignore__
_background_
aeroplane
bicycle
bird
boat
bottle
bus
car
cat
chair
cow
diningtable
dog
horse
motorbike
person
potted plant
sheep
sofa
train
tv/monitor

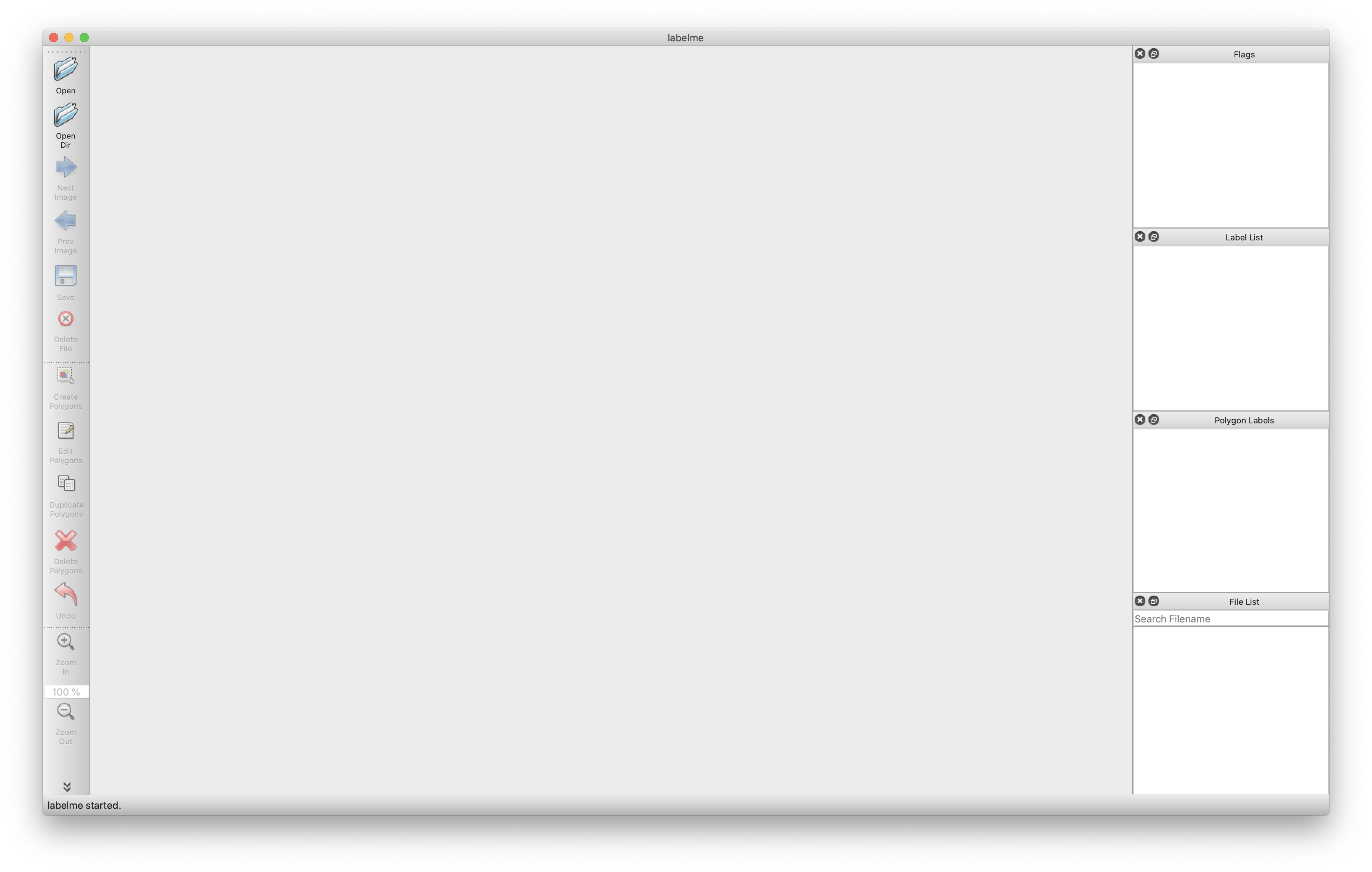

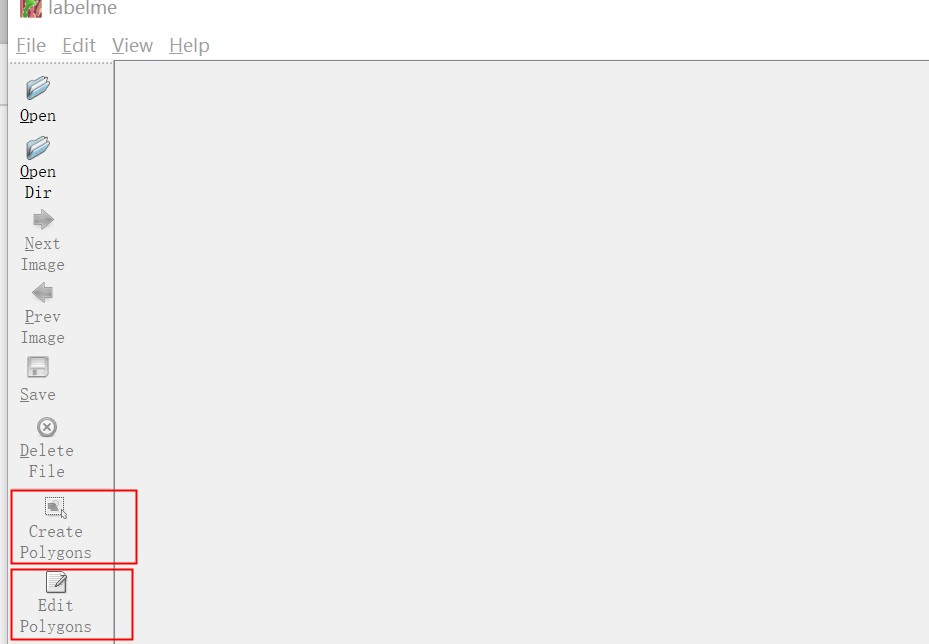

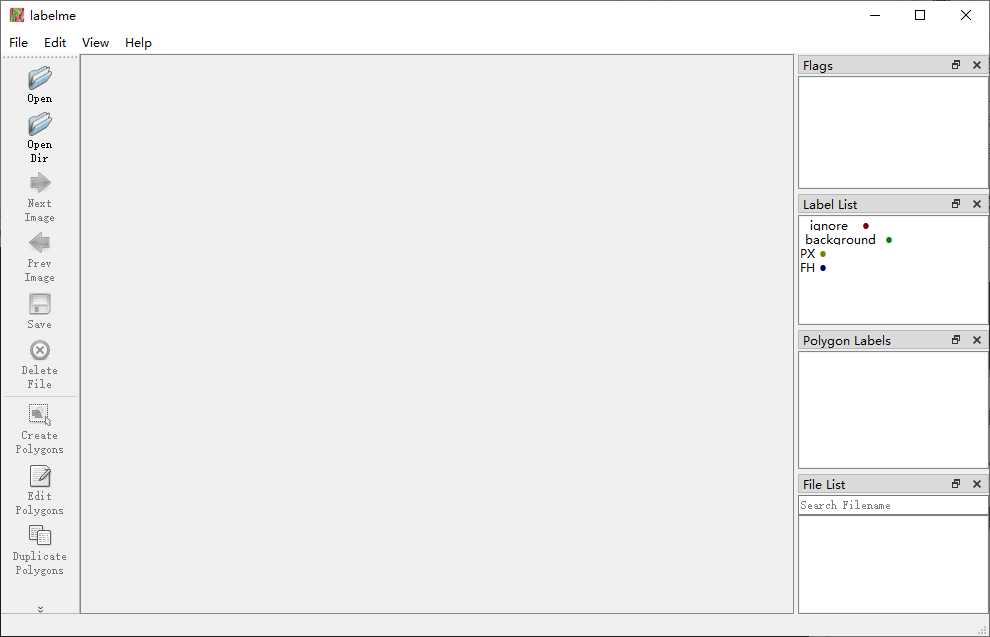

4. Start labelme from the command line

labelme images --labels labels.txt --nodata

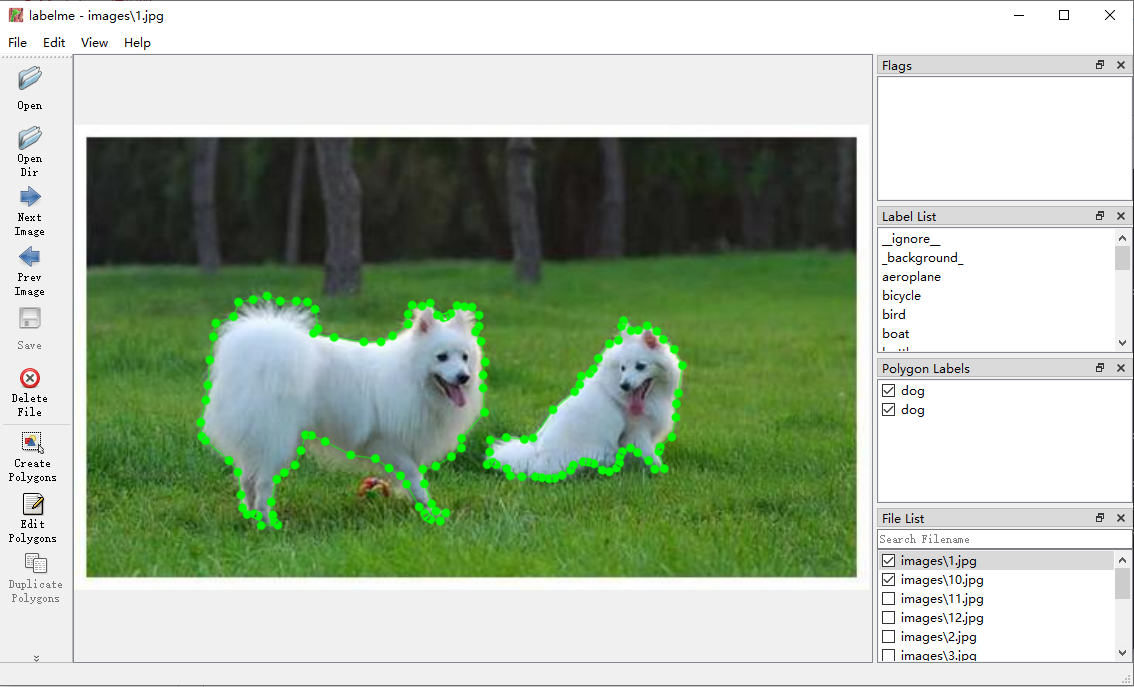

After marking all pictures, exit labelme

5. Download the batch conversion py code

enterhttps://github.com/wkentaro/labelme/tree/master/examples/semantic_segmentationPage, downloadlabelme2voc.py

6. Conversion

python.exe ./labelme2voc.py images data_dataset_voc --labels ./labels.txt

The effect after conversion is as follows:
