Convert latex formula to word formula

tags: sci

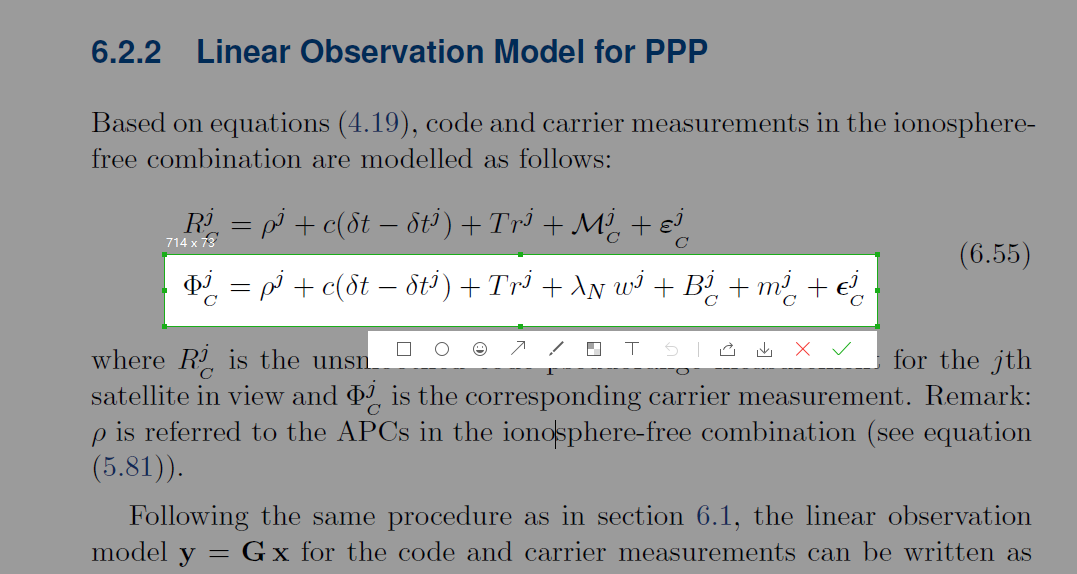

It’s really miserable. I helped the students to modify the paper, and found that all the formulas were converted to pictures due to incompatible versions. The pictures of the formulas need to be converted to word formulas:

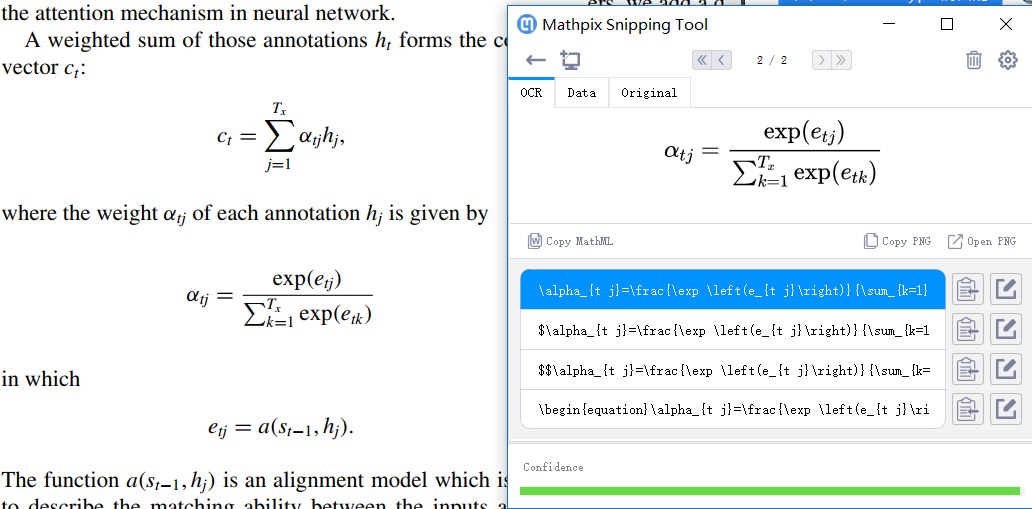

Use firstmathpixConvert the picture to latex.
mathpixSoftware download address:https://mathpix.com/
mathpixThe use isctrl+alt+m。
Then convert latex to word formula.
This can be done in two ways:

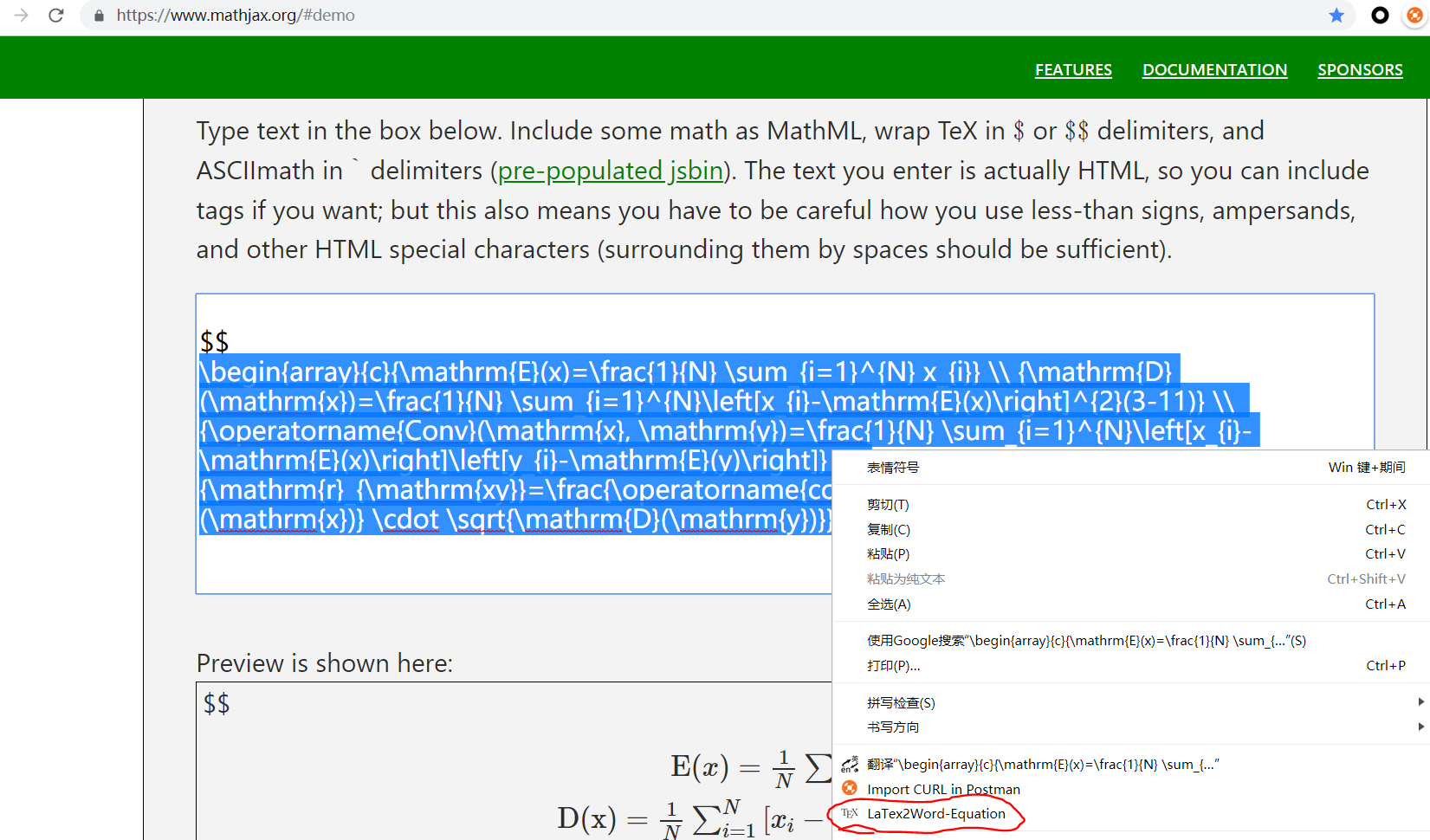

AdoptLaTex2Word-Equation。
You can copy the latex formula code tohttps://www.mathjax.org/#demo, then turn toWord formula:
Use a browser to convert latex to mathML code, then copy it to the word document, and paste "only keep text". .
requires a local file example.html:

<!DOCTYPE html>

<html>

<head>

<script type="text/javascript"

  src="http://cdn.mathjax.org/mathjax/latest/MathJax.js?config=TeX-AMS-MML_HTMLorMML">

</script>

<title>tex texample</title>

</head>

<body>

$$

\mathbf{C}_{i, j}=\left\{\begin{array}{ll}{\left(\mathbf{T}_{i, j}+\mathbf{T}_{M, N}+\mathbf{Q}_{i, j}\right) \bmod F,} & {\text { if } i=1, j=1} \\ {\left(\mathbf{T}_{i, j}+\mathbf{C}_{M, j-1}+\mathbf{Q}_{i, j}\right) \bmod F,} & {\text { if } i=1, j \neq 1} \\ {\left(\mathbf{T}_{i, j}+\mathbf{C}_{i-1, j}+\mathbf{Q}_{i, j}\right) \bmod F,} & {\text { if } i \neq 1}\end{array}\right.

$$

</body>

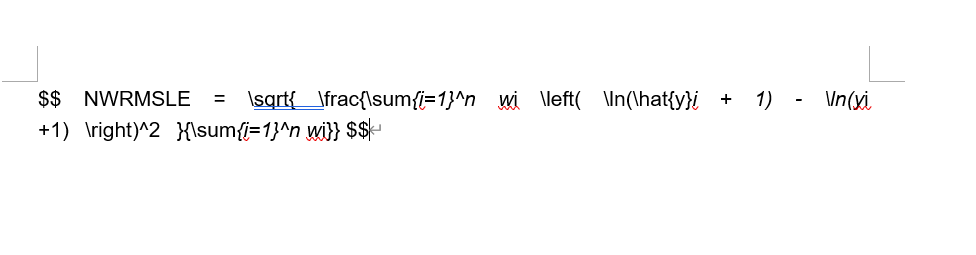

Paste the latex code that needs to be converted to$$In.

Open the file with a browser:

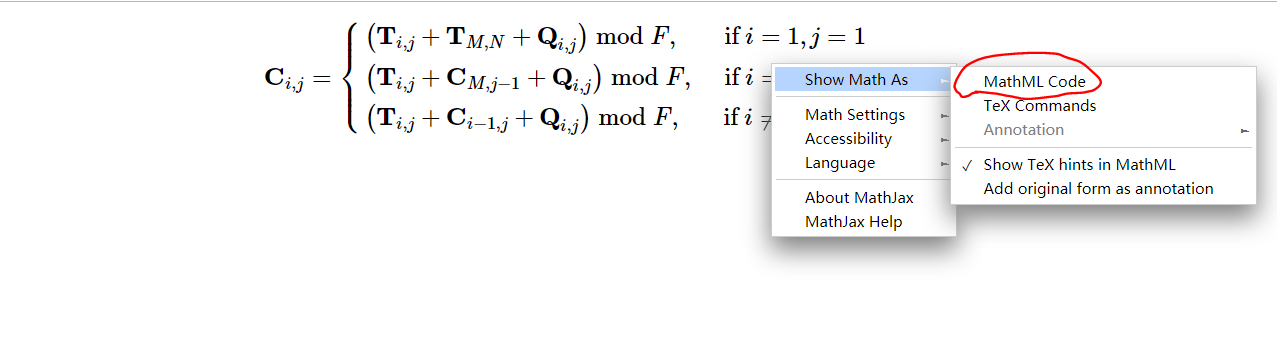

Copy the mathML code and paste "only keep text" into the word document.

reference:
