1. Mark-sweep algorithm (Mark-Sweep)

• The algorithm is divided into two stages: marking and clearing:

  • First mark all the objects that need to be recycled,
  • Then recycle all the objects that need to be recycled.

• Disadvantages:

  • Efficiency issues, the two processes of marking and cleaning are not efficient. The efficiency is not high, and all objects need to be scanned. The larger the heap, the slower the GC. (The speed of the GC is proportional to the objects in the heap)
  • There is a space problem. After mark cleaning, a large number of discontinuous memory fragments will be generated. Too much space fragmentation may cause insufficient continuous memory to be found in subsequent use and trigger another garbage collection action in advance.
    There is a problem of memory fragmentation. The more GCs, the more severe the fragmentation.

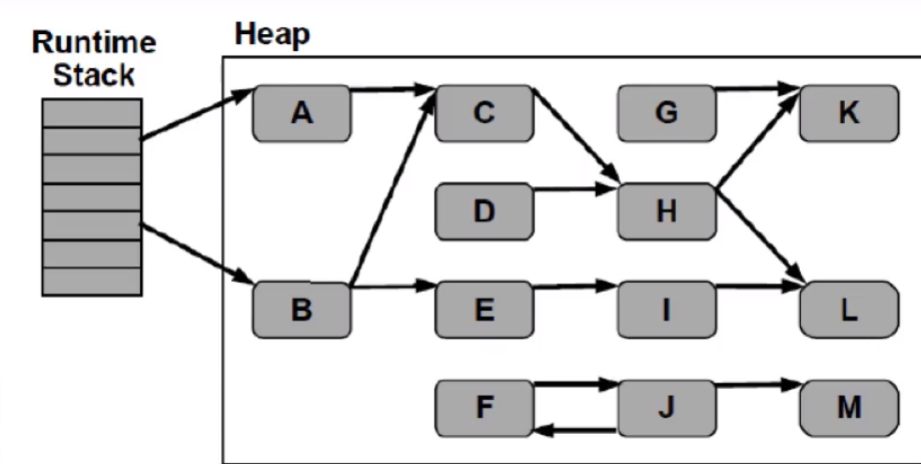

Runtime Stack runtime virtual machine stack-using root search algorithm

Stack as root

Through the root search algorithm, it is calculated that D, G, F, J, M have no references, so they are recycled

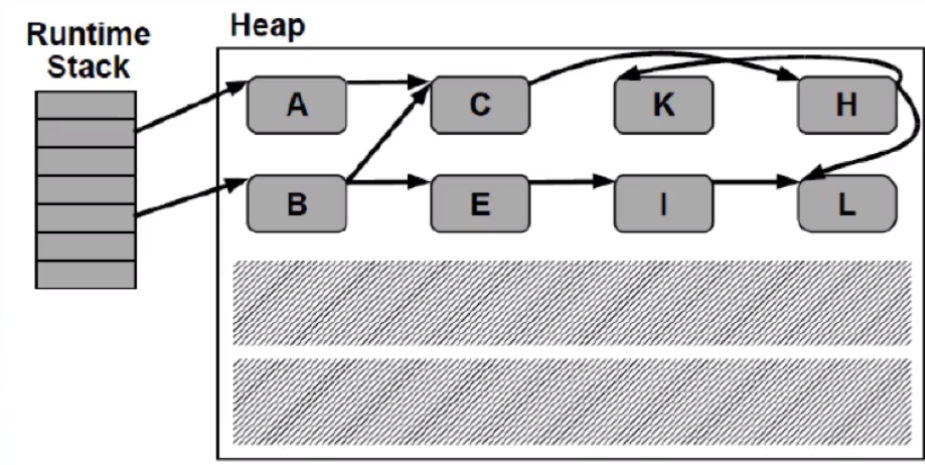

2. Mark-Compact (Mark-Compact) algorithm

The marking process is still the same, but the next step is not to directly clean up, but to move all living objects to one end, and then directly clean up the memory beyond the boundary of this end.

• Advantages: no memory fragmentation
• Disadvantages: It takes more time to compact than Mark-Sweep

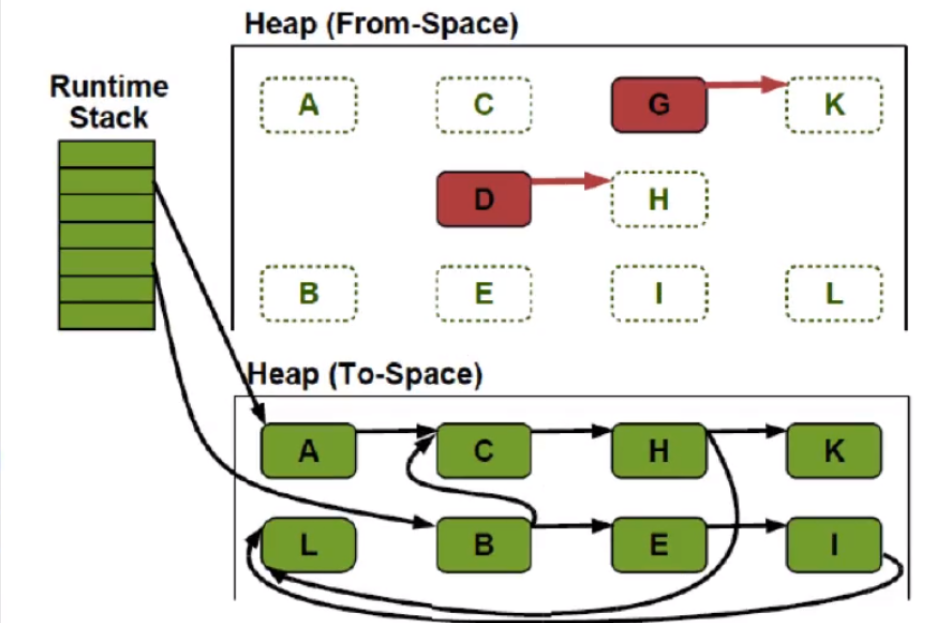

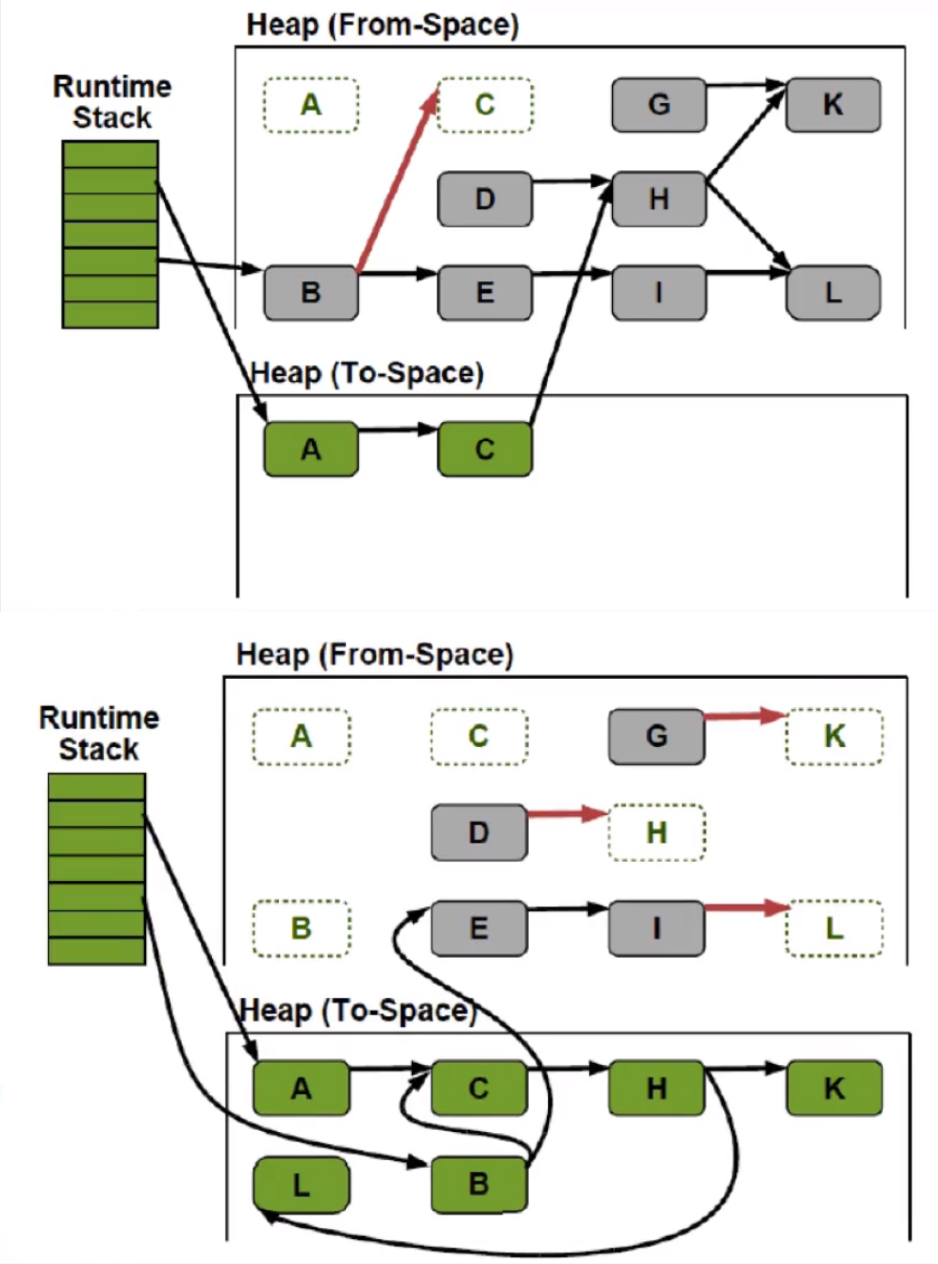

3. Copying algorithm (Copying)

Divide the available memory into two blocks, and only use one of them each time. When half of the memory is used up, only the surviving objects are copied to another block, and then the original entire memory space is cleared at once.

In this way, each time the memory is recycled for the entire half-area, memory allocation does not need to consider the complicated situation such as memory fragmentation, as long as the top pointer of the heap is moved, the memory is allocated in order, which is simple and efficient.

• Disadvantages:
  • The cost of this algorithm is to reduce the memory to half of the original, which is expensive.
  • When the survival rate of objects is high, the efficiency of the replication collection algorithm decreases.

Today's commercial virtual machines use this replication algorithm to recycle the new generation (newly-created objects are in the new generation).

• Only need to scan live objects, more efficient
• No debris
• Need to waste extra memory as a copy area
• The replication algorithm is very suitable for objects with a relatively short life cycle, because
  Every time GC can recover most of the objects, the cost of copying is more
  small
• According to IBM's special research, 98% of Java objects will only survive 1
  GC cycles, suitable for these objects using replication algorithms. and
  Do not use 1:1 to divide the work area and copy area
• The default size ratio of Oracle Hotspot virtual machine eden and survivor is 8:1:1, which means that only 10% of the memory is "wasted" each time. (The used eden+survivor space is called To Survivor, and the free 10% is called From Survivor)
• 1. Divide the memory into a larger eden space and 2 fewer survivor spaces,
  2. Every time I use eden and one of the survivors
  3. When recycling, copy the surviving objects of eden and survivor to another survivor space at one time
  4. Then clean up eden and used survivor

If you don’t want to waste 50% of the space, you need to allocate additional space to guarantee that all objects in the half-area memory are 100% alive, so you can’t directly choose this algorithm in the old generation.

4. Generational Collecting algorithm
