Thread model

1, traditional IO service model

Blocked IO mode Get input data, each link requires a separate thread to complete data transmission and processing

When it is large, create a large number of threads, occupying system resources; if the thread is created, if there is no data reading, it will be blocked.



2, Reactor mode

reactor

Two shortcomings for traditional IO models, solutions:

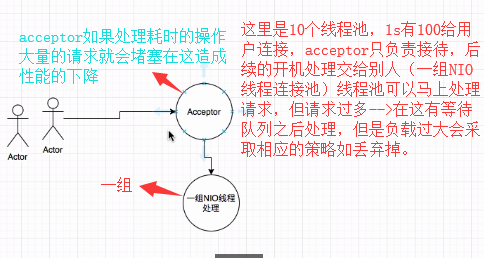

a, Based on IO Multiplexing Model: Multiple connections share a blocking object. The application only needs to wait on one blocking object, no need to block all objects

b, based on thread pool reuse thread resources: no longer create threads for each connection, assign the connection completed service processing task to thread pool processing

IO multiplexed combined with thread pool is the basic idea of ​​Reactor model, its core composition:

A, Reactor: Running in a separate thread, responsible for monitoring and distributing events, such as ServiceHandler (EventDispatch) as above

B, Handlers: Specific IO Event

Three modes:

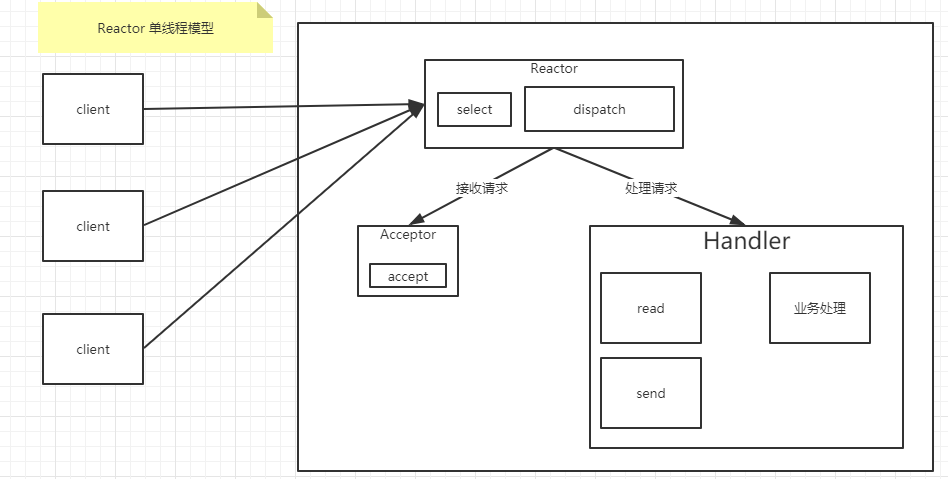

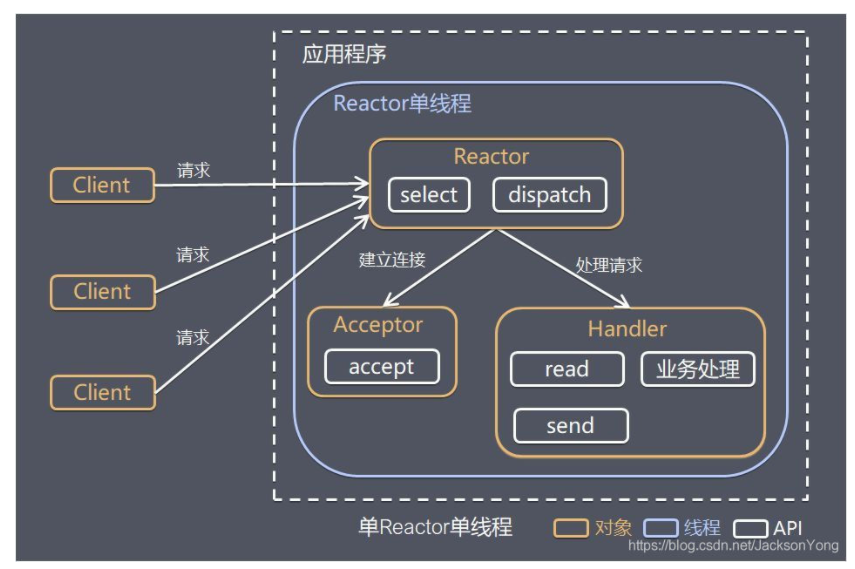

1, single Reactor single thread



Reactor / handler runs in a thread.

Advantages: no thread competition

Disadvantages: I can't stop high-concurrent, reliability, termination outside the thread or enter the dead cycle

Application: The number of customers is limited; business processing is very fast

2, single Reactor multi-thread



For single-threaded concurrency, derived a single Reactor multi-thread model.

1. Single Reactor is responsible for listening, establishing a connection, reading and writing IO

2, business logic thread pool is responsible for handling specific IO reading and writing and business logic

Advantages: Take advantage of the performance of computer multi-core, resistant to relatively high concurrency

Disadvantages: Single Reactor, in an ultra-high concurrent scene, it will become a bottleneck. Because Reactors are responsible for listening, connecting, reading and writing IO, this block is a single-threaded series.

3, the master from Reactor multi-thread



In order to deal with ultra-high concurrent, we continue to optimize and split Reactor on the basis of Reactor single-threaded operation:

1, the main Reactor is responsible for listening and connection, these two steps are very fast

2, from the Reactor, read and write IO data

3, business logic thread pool is responsible for handling business logic

to sum up

Single Reactor single thread: small restaurant, front desk, chef, waiter is a person, from ordering, cooking, dinner table is serial

Single Reactor multi-thread: big restaurant, front desk, chef is a person, the waiter is a group of people, the speed is fast, some

Lord from Reactor multi-thread: five-star hotel: a person in the front desk, a group of chefs, the waiter is a group of people, the speed of the meal

advantage:

1, fast response, do not have to block all the threads, but shares a blocked object

2, the extension performance can be extended from the number of reactors to make full use of CPU resources

3, good reachenability, Reactor model itself is independent of specific event processing logic, with high reuse.

Netty model

Netty's thread model is based on the master's multi-threaded mode and has made some extent on the basis:

1, BossGroup thread pool maintenance master Selector, only pay attention to ACCECPT

2, after receiving the Accept event, get the corresponding SocketChannel, encapsulate into the NiosocketChannel registration to the Worker thread cycle.

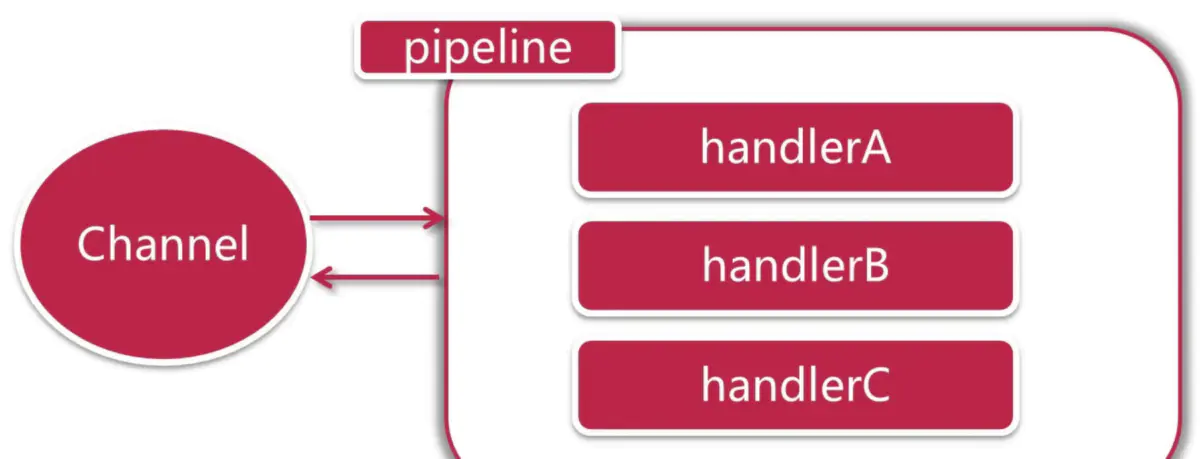

3. After the Worker thread listens to the time you are interested, it will be handled by Handler.



Netty's thread model is from Reactor in the thread pool, which is an improvement relative to Reactor.



Excommissum



1, Netty abstraction Two thread pools: BossGroup is responsible for listening and establishing a connection; workergroup is responsible for the reading and writing of network IO

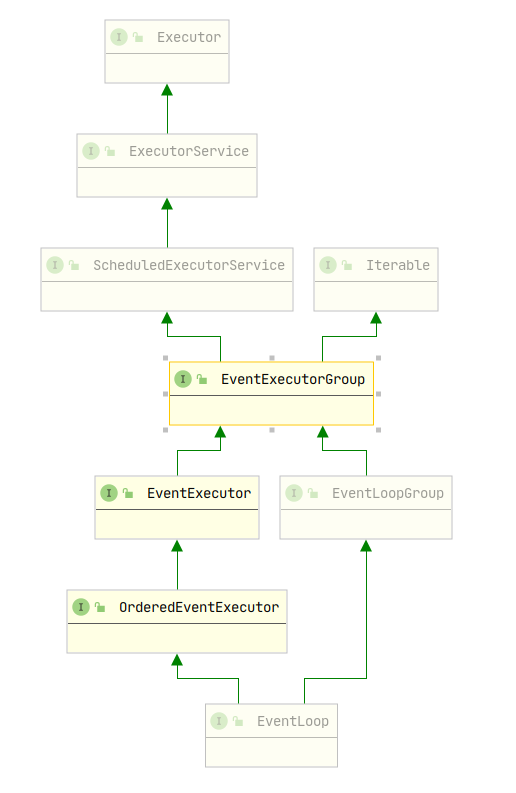

2, bossgroup and workergroup types are NiOEventLoopGroup, equivalent to an event cycle group, which contains multiple event loops, each event loop is NiOEventLoop

3, nioeventloop Represents a Selector, user listening to the socket network communication bound to ride

4, each Boos NioEventLoop loop execution 3 step:

a, polling an Accept event

b, establish a connection, generate NiosocketChannel, and register to workergroup

c, handle the task in the task queue, ie RunAllTasks

5, each worker nioeventloop loop execution 3 step:

a, polling reading and writing time

b, process the IO time, processed on the corresponding NiosocketChannel

c, handling the task of the task queue, ie RunAllTasks
