table of Contents

1. What is a queue?

2. Common operations of the queue

3. Encapsulation queue structure

4. The use of queues

5. Application of the queue structure — drum-drum transmission algorithm

6. Application of queue structure-priority queue

1. What is a queue?

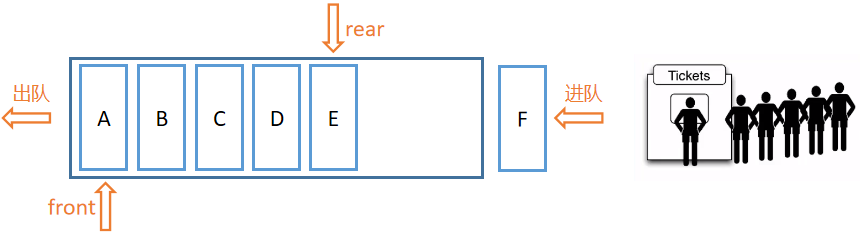

Queue (Queue), it is a restricted linear table, first in first out (FIFO First In First Out), the limitation is that it only allows the delete operation in the front of the table (front), and after the table Insert the terminal (rear). FIFO (First In First Out) identifies the elements of the advanced team. It is the first to leave the team. It is similar to the ticket gate of the movie theater. The first arrival will take the ticket first. Inserting a new element into a queue is also called queuing and enqueuing. It puts the new element at the end of the queue and makes it a new tail element; deleting an element from a queue is also called making a team. The element is deleted to make its adjacent element the new leader element. The schematic diagram is as follows:


2. Common operations of the queue

3. Encapsulation queue structure

Implement the stack structure based on the array, and add some queue methods to the prototype of the encapsulated Queue () class.

function Queue () {// package queue class
    var items = [];

         // Method of queue operation
         // 1. Add the element to the queue
    Queue.prototype.enqueue = function(element){
        this.items.push(element);
    }
         // 2. Remove the front-end element from the queue
    Queue.prototype.dequeue = function () {
        return this.items.shift();
    }
         // 3. View the elements at the front of the queue
    Queue.prototype.front = function () {
        return this.items[0];
    }
         // 4. Check if the queue is empty
    Queue.prototype.isEmpty = function () {
        return this.items.length == 0;
    }
         // 5. View the number of elements in the queue
    Queue.prototype.size = function () {
        return this.items.length;
    }
         // 6. View the number of elements in the queue
    Queue.prototype.toString = function(){
        var resultString = '';
        for(var i in this.items){
            resultString += this.items[i] + '-'
        }
        return resultString;
    }
}

4. The use of queues

Based on the queue just encapsulated, some basic operations of the queue are performed.

// Create queue object
var queue = new Queue();

 // Add elements to the queue
queue.enqueue("abc");
queue.enqueue("bcd");
queue.enqueue("cde");

 // Look at the front element of the queue
alert(queue.front());      //abc

 // Check if the queue is empty and the number of elements
alert(queue.isEmpty());    //false
alert(queue.size());       //3

 // Remove elements from the queue
alert(queue.dequeue());    //abc
alert(queue.dequeue());    //bcd
alert(queue.dequeue());    //cde

5. Application of the queue structure — drum-drum transmission algorithm

Game rules: Several friends form a circle, start counting, the person who counts to a certain number is automatically eliminated, and then continue with the same rule from the next person, the last person will win, please ask the last remaining Where is the original person?

(1) Main principle: Create a queue, put everyone in the queue, and then dequeue each element in the queue through a loop. If this element is not the num-th number, then enqueue it again and repeat the loop until there is one left in the queue When an element is output, it is the person who ultimately wins.

(2) Code implementation：

// The function to realize drumming and passing flowers
function passGame(nameList, num) {
         // 1. Create a queue and put all the people in the queue
    var queue = new Queue();

         // 2. Through the for loop, put the people in the nameList in the queue
    for (var i=0; i <nameList.length; i++) {
        queue.enqueue(nameList[i]);
    }

         // 3. Find the last person left
    while (queue.size() > 1) {
                 // Remove the people in the former num-1 from the front of the queue and put them on the back of the queue
        for (var i=0; i <num-1; i++) {
            queue.enqueue(queue.dequeue());
        }

                 // Remove the num person from the queue
        queue.dequeue();
    }

         // 4. Get the remaining one
    alert(queue.size());    //1
    var endName = queue.dequeue();
         alert ("The person who finally stays:" + endName);

         // 4. Get the person's position in the queue
    return nameList.indexOf(endName);
}
 // Validation results
var names = ['AAA','BBB','CCC','DDD','EEE'];
 var index = passGame (names, 7); // People who count to 8 are eliminated
 alert ("Final position:" + index);

6. Application of queue structure-priority queue

(1) Characteristics of priority queue: An ordinary queue inserts an element, the data will be placed in the back end, and the current data will not be processed until all the previous elements have been processed. However, the priority queue will consider the priority of the data when inserting an element. Before inserting, compare with the priority of other data. After the comparison is completed, you can get the correct position of the element in the queue.

Is it not easy to understand? There are examples of priority queues in life, such as seniors and pregnant women (or women with children) who have higher priority than other passengers when they ride in the car, and first-class and business class passengers Higher than economy class passengers.

(2) Code implementation：

// Package priority queue
function PriorityQueue(){
         // Recreate a class inside PriorityQueue, which can be understood as an inner class
    function QueueElement(element,priority){
        this.element = element;
        this.priority = priority;
    }
         // Package properties
    this.items = [];

         // 1. Compare the limits of the elements and put them into the corresponding position
    PriorityQueue.prototype.enqueue = function(element,priority){
                 // 1. Create QueueElement object
        var queueElement = new QueueElement(element,priority);

                 // 2. Determine whether the queue is empty
        if(this.items.length == 0){
            this.items.push(queueElement)
        }else{
            var added = false;
            for (var i=0;i<this.items.length;i++) {
                if(queueElement.priority < this.items[i].priority){
                    this.items.splice(i,0,queueElement)
                    added = true;
                    break;
                }
            }
            if(!added){
                this.items.push(queueElement)
            }
        }
    }
         // 2. Remove the front-end element from the queue
    PriorityQueue.prototype.dequeue = function () {
        return this.items.shift();
    }
         // 3. View the elements at the front of the queue
    PriorityQueue.prototype.front = function () {
        return this.items[0];
    }
         // 4. Check if the queue is empty
    PriorityQueue.prototype.isEmpty = function () {
        return this.items.length == 0;
    }
         // 5. View the number of elements in the queue
    PriorityQueue.prototype.size = function () {
        return this.items.length;
    }
         // 6. View the elements in the queue
    PriorityQueue.prototype.toString = function(){
        var resultString = '';
        for(var i in this.items){
            resultString += this.items[i].element + '-' + this.items[i].priority + '-'
        }
        return resultString;
    }
}

(3) Test code：

// Test code
var pq = new PriorityQueue();
pq.enqueue('abc','111');
pq.enqueue('bcd','115');
pq.enqueue('cde','110');
alert(pq);        //cde-110-abc-111-bcd-115-
