Two ways to send http requests in java: HTTPClient and CloseableHttpClient and understanding of some annotations of swagger interface

There are three ways to send http requests in java. In addition to the native connection method HttpURLConnection, there are two other ways: HTTPClient and CloseableHttpClient
The following briefly introduces the methods of using HTTPClient and CloseableHTTPClient for Get and Post requests.
Use link for details

HttpClient
Using commons-httpclient.jar, maven depends on the following:

<!-- https://mvnrepository.com/artifact/commons-httpclient/commons-httpclient -->
    <dependency>
        <groupId>commons-httpclient</groupId>
        <artifactId>commons-httpclient</artifactId>
        <version>3.1</version>
    </dependency>

The simple code is as follows:

private static String doGet(String url) {
    String res = null;
    HttpClient client = new HttpClient();
    GetMethod getMethod = new GetMethod(url);
    int code = 0;
    try {
        code = client.executeMethod(getMethod);
        if (code == 200) {
            res = getMethod.getResponseBodyAsString();
        }
    } catch (IOException e) {
        e.printStackTrace();
    }
    return res;
}

private static String doPost(String url, Map<String, Object> paramMap) {
    String res = null;
    HttpClient client = new HttpClient();
    PostMethod postMethod = new PostMethod(url);
    postMethod.getParams().setContentCharset("UTF-8");
    Iterator<Map.Entry<String, Object>> iterator = paramMap.entrySet().iterator();
    while (iterator.hasNext()) {
        Map.Entry<String, Object> next = iterator.next();
        postMethod.addParameter(next.getKey(), next.getValue().toString());
    }
    try {
        int code = client.executeMethod(postMethod);
        if (code == 200) {
            res = postMethod.getResponseBodyAsString();
        }
    } catch (IOException e) {
        e.printStackTrace();
    }
    return res;
}

public static void main(String[] args) {
    //get
    System.out.println(doGet("http://localhost:8080/hello"));

    //post
    //Set the format of the incoming parameters: request parameters are in the form of map
    Map<String, Object> paramMap = new HashMap<>(2);
    paramMap.put("name", "Zhao Yun");
    paramMap.put("age", 21);
    System.out.println(doPost("http://localhost:8080/hello1", paramMap));
}

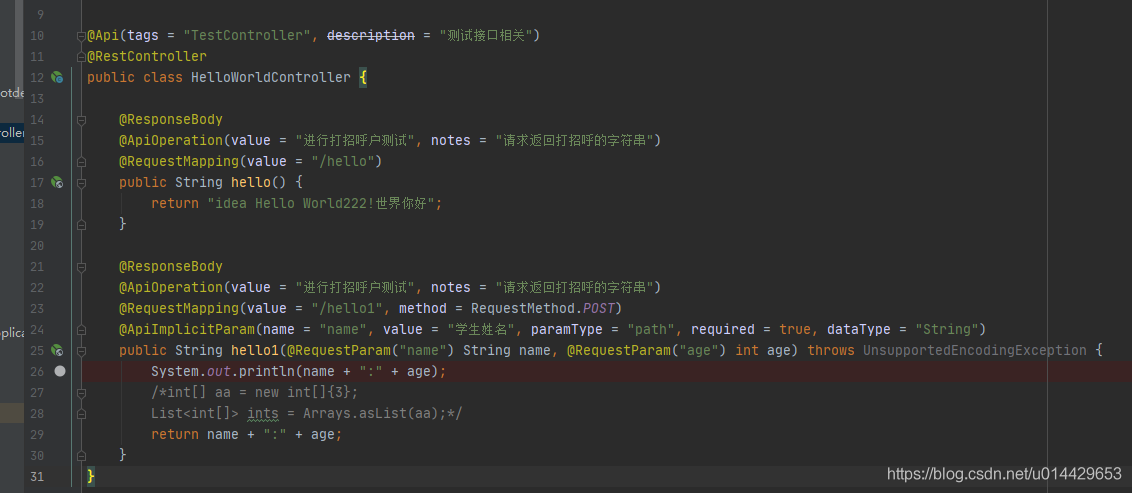

Called method:

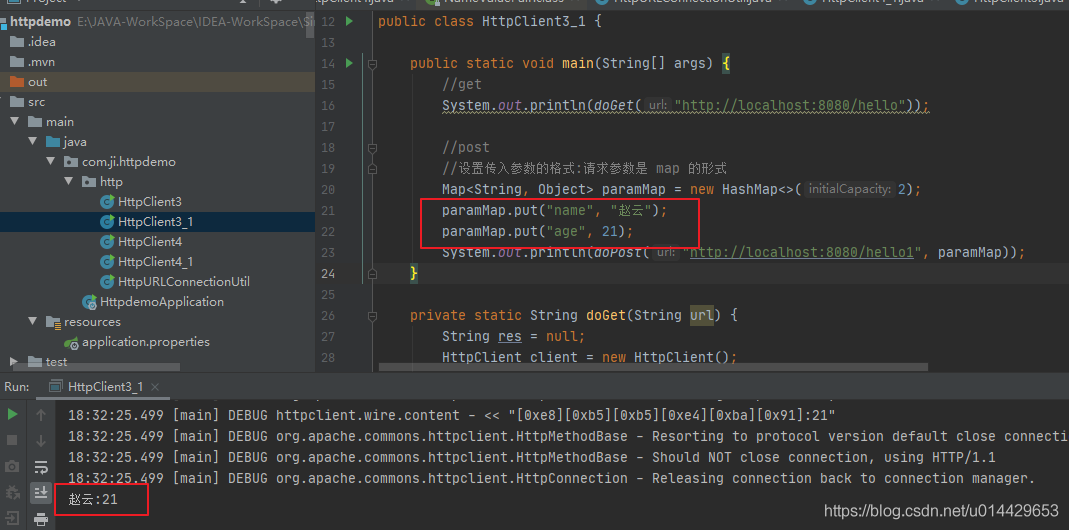

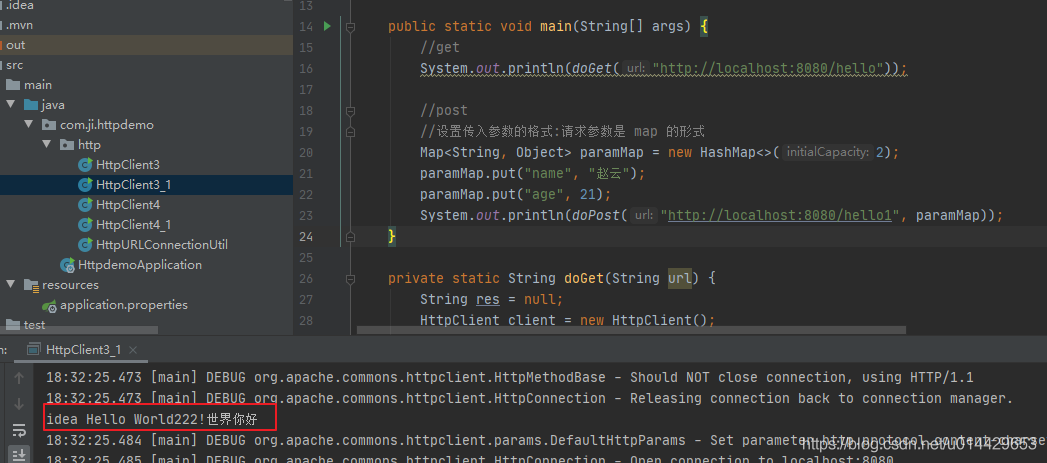

Test Results:


CloseableHttpClient
Using httpclient.jar, maven depends on the following:

<!-- https://mvnrepository.com/artifact/org.apache.httpcomponents/httpclient -->
<dependency>
    <groupId>org.apache.httpcomponents</groupId>
    <artifactId>httpclient</artifactId>
    <version>4.5.12</version>
</dependency>

The simple code is as follows:

/**
   * Send HttpGet request
 * @param url
 * @return
 */
public static String doGet(String url) {
    //1. Get an httpclient object
    CloseableHttpClient httpclient = HttpClients.createDefault();
    //2. Generate a get request
    HttpGet httpget = new HttpGet(url);
    CloseableHttpResponse response = null;
    try {
        //3. Execute the get request and return the result
        response = httpclient.execute(httpget);
    } catch (IOException e1) {
        e1.printStackTrace();
    }
    String result = null;
    try {
        //4. Processing the result, here the result is returned as a string
        HttpEntity entity = response.getEntity();
        if (entity != null) {
            result = EntityUtils.toString(entity);
        }
    } catch (ParseException | IOException e) {
        e.printStackTrace();
    } finally {
        try {
            response.close();
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
    return result;
}

/**
   * Send HttpPost request, the parameter is map
 * @param url
 * @param map
 * @return
 */
public static String doPost(String url, Map<String, Object> map) {
    CloseableHttpClient httpclient = HttpClients.createDefault();
    List<NameValuePair> formparams = new ArrayList<NameValuePair>();
    for (Map.Entry<String, Object> entry : map.entrySet()) {
        //Assign a value to the parameter
        formparams.add(new BasicNameValuePair(entry.getKey(), String.valueOf(entry.getValue())));
    }
    UrlEncodedFormEntity entity = new UrlEncodedFormEntity(formparams, Consts.UTF_8);
    HttpPost httppost = new HttpPost(url);
    httppost.setEntity(entity);
    CloseableHttpResponse response = null;
    try {
        response = httpclient.execute(httppost);
    } catch (IOException e) {
        e.printStackTrace();
    }
    HttpEntity entity1 = response.getEntity();
    String result = null;
    try {
        result = EntityUtils.toString(entity1);
    } catch (ParseException | IOException e) {
        e.printStackTrace();
    }
    return result;
}

public static void main(String[] args) {
    //get
    System.out.println(doGet("http://localhost:8080/hello"));

    //post
    //Set the format of the incoming parameters: request parameters are in the form of map
    Map<String, Object> paramMap = new HashMap<>(2);
    paramMap.put("name", "Zhang Fei");
    paramMap.put("age", 55);
    System.out.println(doPost("http://localhost:8080/hello1", paramMap));
}

Called method:

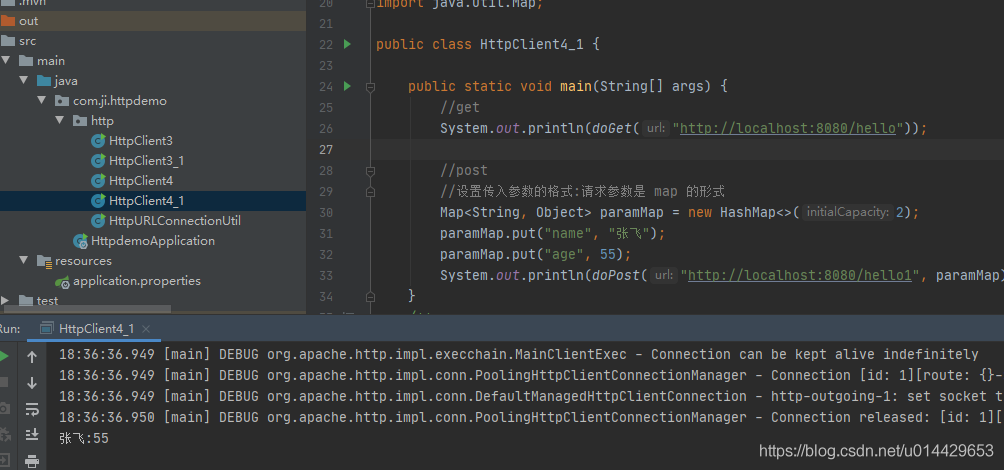

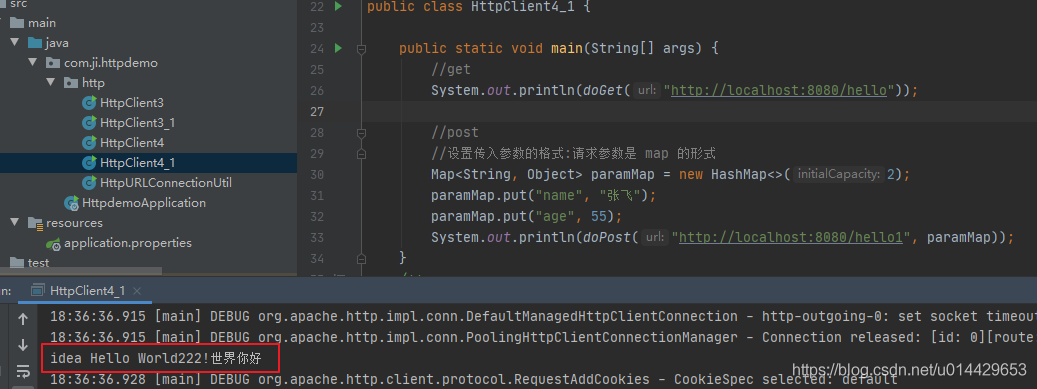

Test Results:


Swagger is currently the best open source project generated by Restful API documentation. Through the swagger-spring project, the seamless integration function of the springMVC framework is realized to facilitate the generation of restful style interface documents.

At the same time, swagger-ui can also test spring restful style interface functions

@Api: Used on the requested class to indicate the description of the class
tags = "Describe the function of this class, the annotation that can be seen on the UI interface"
value="This parameter is meaningless and can be seen on the UI interface, so no configuration is required"

@ApiOperation: Used on the requested method to explain the purpose and function of the method
value="Describe the purpose and function of the method"
notes="Method Notes"

@ApiImplicitParams: used in the request method, representing a set of parameter descriptions
@ApiImplicitParam: Used in the @ApiImplicitParams annotation to specify all aspects of a request parameter
name: parameter name
value: Chinese character description and explanation of the parameter
required: whether the parameter must be passed
paramType: where to put the parameter
· Header --> Get request parameters: @RequestHeader
· Query --> Get request parameters: @RequestParam
· Path (used for restful interface) -> get request parameters: @PathVariable
· Body (not commonly used)
· Form (not commonly used)
dataType: parameter type, default String, other values ​​dataType="Integer"
defaultValue: the default value of the parameter

@ApiResponses: used in the request method to represent a set of responses
@ApiResponse: Used in @ApiResponses, generally used to express an incorrect response message
code: number, such as 400
message: information, such as "request parameters are not filled in"
response: the class that threw the exception

@ApiModel: used on the response class to indicate a message that returns response data
(This is generally used when creating a post, using scenarios like @RequestBody,
When the request parameter cannot be described using @ApiImplicitParam annotation)
@ApiModelProperty: Used on properties to describe the properties of the response class
