Use VLC to convert MP4 to rtsp protocol video to successfully play detailed steps
tags: Live video front end VLC rtsp
VLC is a free and open source cross-platform multimedia player and framework, which can play most multimedia files, as well as DVD, audio CD, VCD and various streaming media protocols.
videolan.org official website download
The project requires rtsp protocol to play live video. The following will introduce the use of VLC player to convert ordinary video, mp4 into rtsp protocol address to play, the steps:
1. Server push:

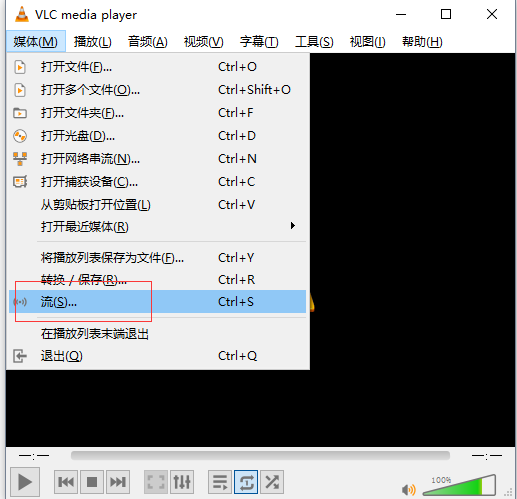

1. Open VLC-Media-Stream

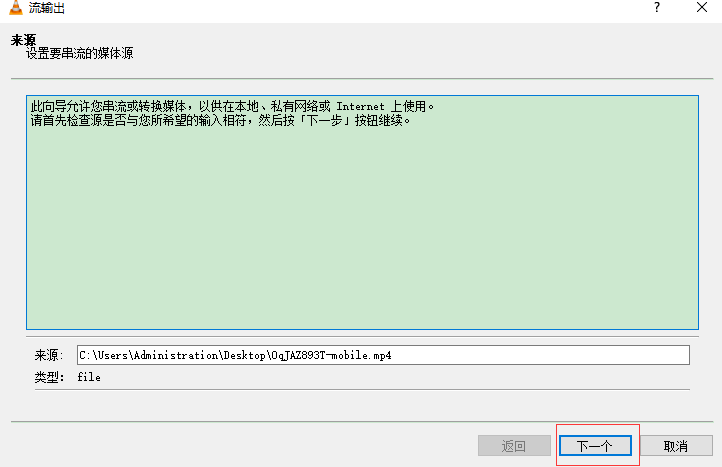

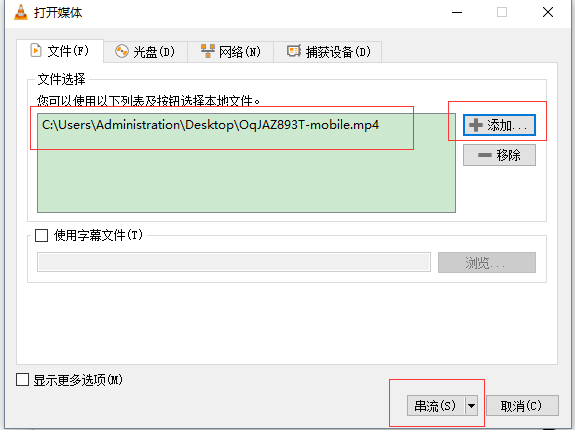

2. Click Add to select the file locally in the MP4 format I chose-click to stream
3. Click Next

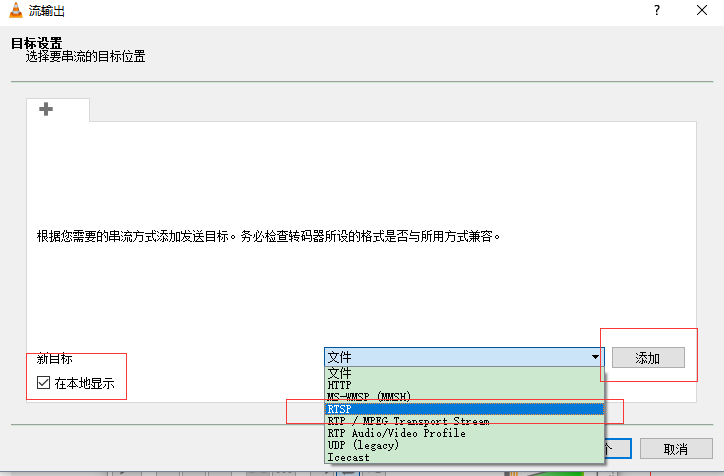

4. Check to display locally-select rtsp-add-next

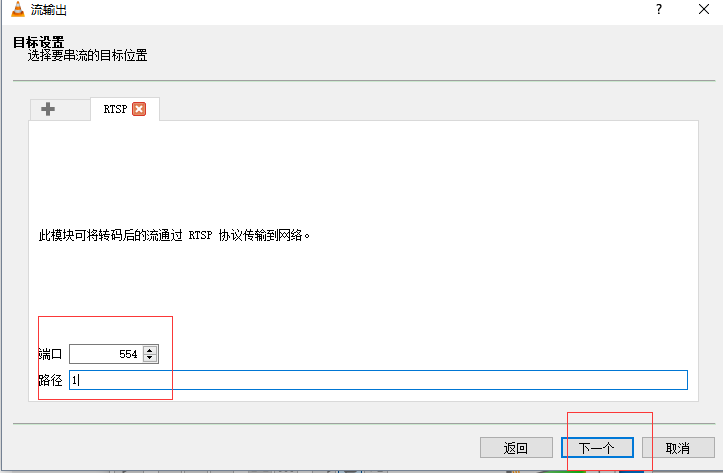

5. The default port is 8554. If you remove 8 for access, you don't need to enter the port number, just fill in the path, for example, fill in the path with 1, local ip + path. rtsp://192.168.0.34/1

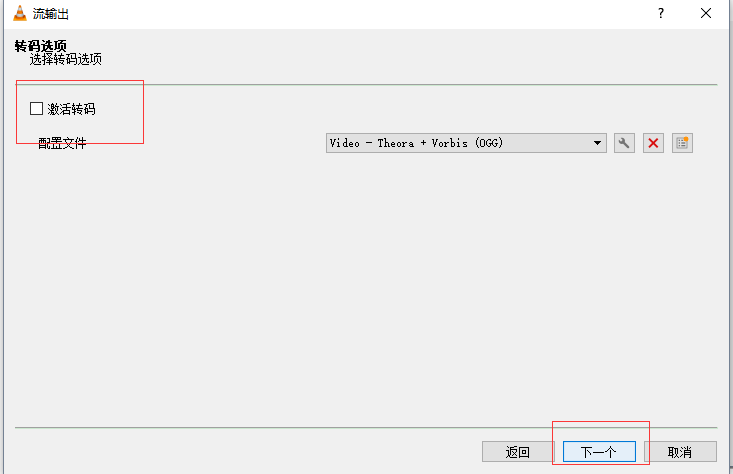

6. Check to activate transcoding-next

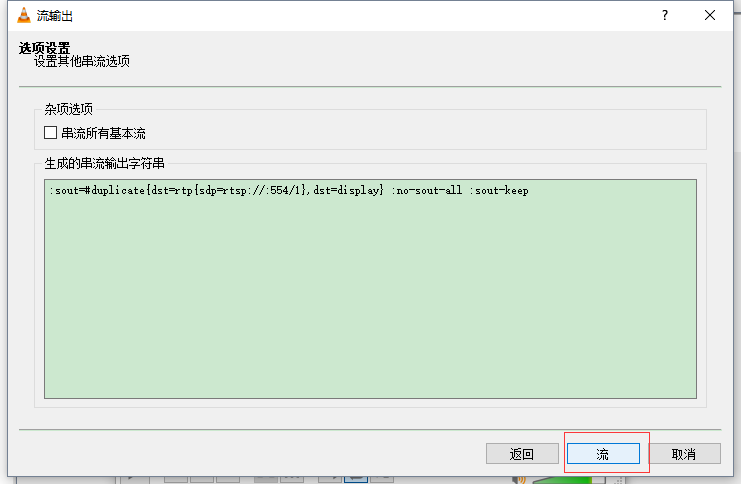

7. Click Stream

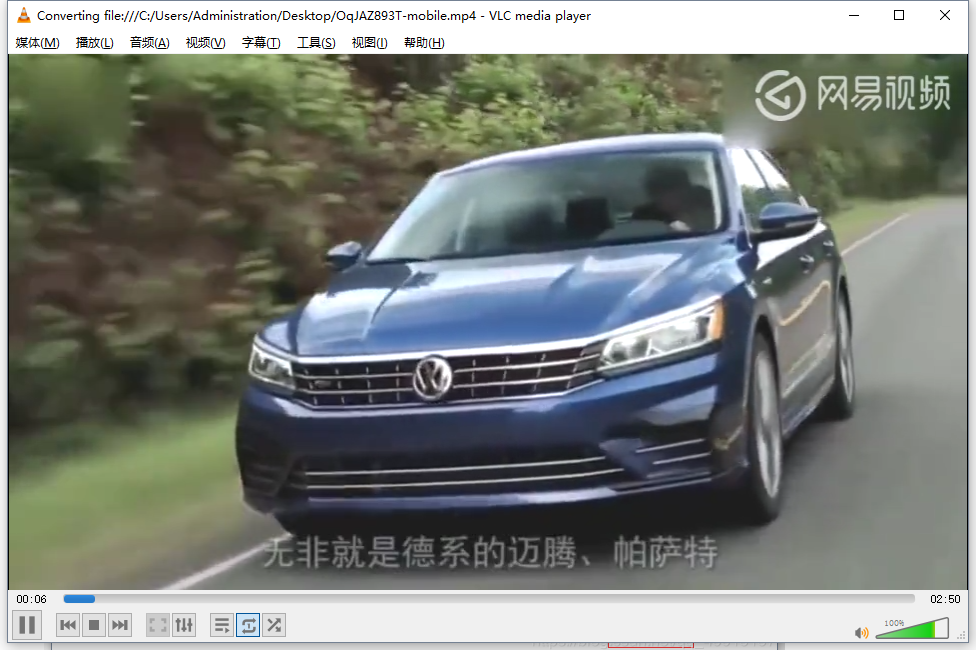

8. At this step, the streaming is complete and rtsp video can be played
Second, play stream

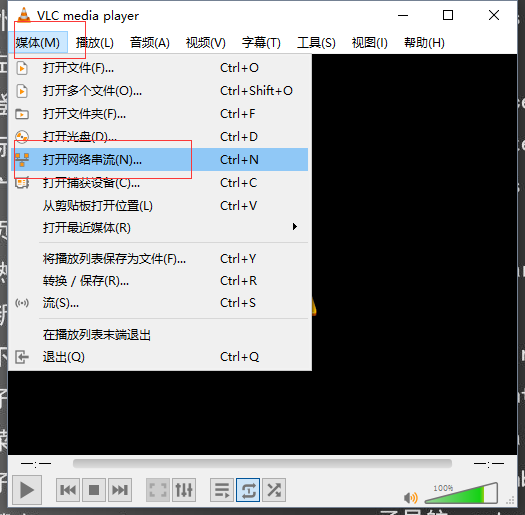

1. Open another vlc-media-open network streaming

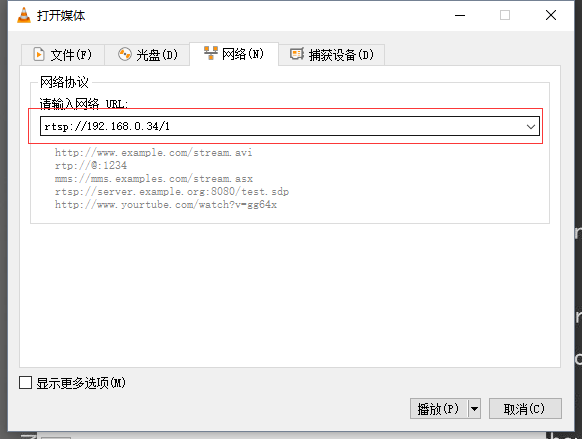

2. Enter rtsp://192.168.0.34/1

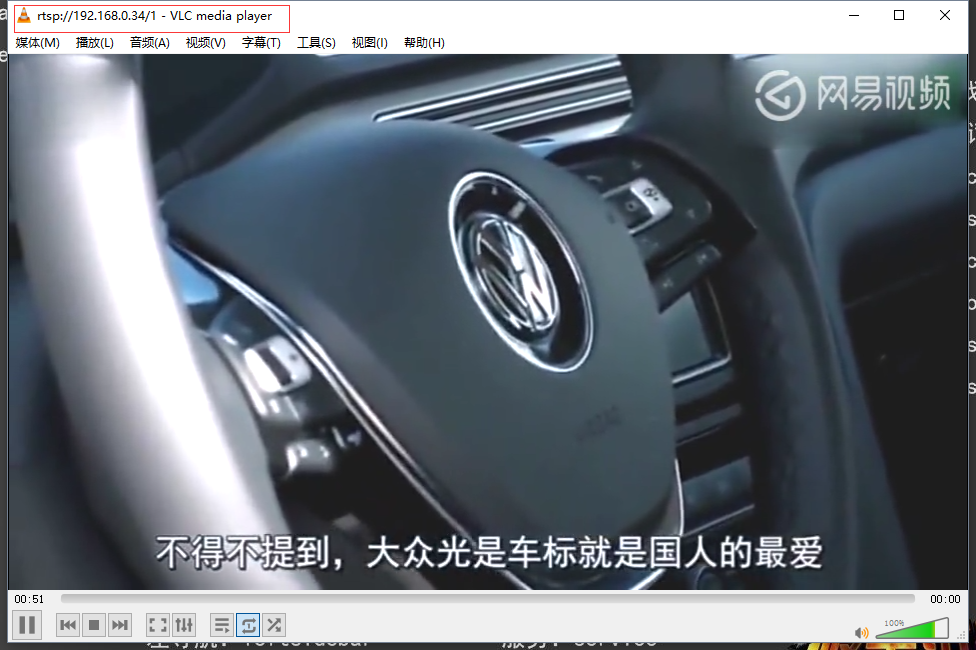

3. rtsp://192.168.0.34/1 Now you can see the video playing rtsp. This trsp address is valid and can be used as the test address in the project.
