Fiddler is Gesha:

“Fiddler is a proxy http protocol debugging tool that can record and inspect http all communication between your computer and the Internet, set breakpoints, view data for all of the "out of" Fiddler (meaningcookie, Html, js, css and other documents, which can allow you to tinker with the meaning of).”

This is the definition given Baidu Encyclopedia, from single explanation brackets inside -Fingercookie, Html, js, css and other documents, which can allow you to tinker with meaning--This is a vague feeling may be trouble in the front page bears the child. It is because of this that the goods can to the front players debugging tools.



A reverse proxy is a what:

“Reverse proxy (Reverse Proxy) mode refers to the proxy server to accept connection requests on the internet, and then forwards the request to the server on the internal network, and returns the result obtained from the server to the client on request internet connection, At this point the external proxy server on the performance of a reverse proxy server.”

Yes Baidu Encyclopedia pick is coming (I'm ashamed, but no way). In simple terms is to help reverse proxy server, the user resources on a browser page or other servers reverse proxy server receives a user request to the server requesting resources, resource then get feedback to the user, but the user does not know the reverse proxy this layer of existence, the feeling is the direct access to the server. In the reverse proxy server inside we can do a lot of settings to help reduce the burden on the server, shielded hazards. Standing angle of view reverse proxy server from the user's point of view with the proxy server actually almost feel it should.



How to use a reverse proxy debugging:

After the reverse-proxy, when we want to debug some of the online page, we open the browser and enter the address of the page view, this process is actually requested by the user process server, we open the fiddler, fiddler listens to our requests and data received data, said earlier Fiddler is a proxy http protocol debugging tool, so it can monitor all contact data.

Because it can monitor all data and can transfer data between each other, it wants to tamper with the content then it should be done. Like the messenger of a middle person, plus some content when the messenger trumped pass in the past, certainly I thought it was a party to listen to the other party coming. Fiddler also has such a feature, you can specify the local file server from coming to replace the file, but the browser does not know that it will follow the fiddler to its data to render the page, from this perspective fiddler actually implements a reverse agent's functionality, we can use this feature to debug what our line up.

Look at is how to achieve:

We take the blog Home Park try it, first you have to open the fiddler, and then refresh the blog in a browser inside the park home, back to fiddler can see the list on the left inside there are many requests records found aggsite.css this document, we are garden Home blog should replace the background color so finding css file, as shown below:



Is on this file, we right it, then save it seems only open as local file to download normal (I felt that my method does not find a way to download). Save the downloaded (I am lazy, directly into the desktop, you are free).

After saving, the right side of the window to see fiddler many tab, locate AutoResponder and activate it. Here you can see such a screen:



Well, the panel is empty, the left side of the list to just the css file onto the panel, you'll find more than two files. The following figure:



Then select the file that following the Rule Editor button below that, we just choose to save the desktop aggsite.css file, and then save. Of course, remember to check Enable rules above, or does not work.

Select Enable rules



Well, then we went to the local editor css files, change the background color of the body is yellow, then back to the browser, refresh the blog Home Park.

Wow blanket rub, find blog Home Park actually really turn yellow background color, and amazing is not it. Well I fuss, or see the world less ah, here is the effect.



Yes, set fiddler as a reverse proxy to debug code that simple, there is nothing difficult. easy ~, then the next page to see how to debug the mobile phone side of it.



The debugging the mobile terminal:

Probably the idea is through your machine is set to the phone proxy server, so the agent realized by fiddler fiddler listening to your phone's web page, the rest of the operation to achieve this step just above operating same. If so, then we can only accept fiddler at how to set up the phone as a proxy.

First, you need to ensure that the host and the phone in the same LAN, a good network connectivity ah (our different WiFi is not the same paragraph, I use my itcode WiFi connected with my host not one, let me depressed for a while, and later It can only be replaced by another in a group get their own WiFi).

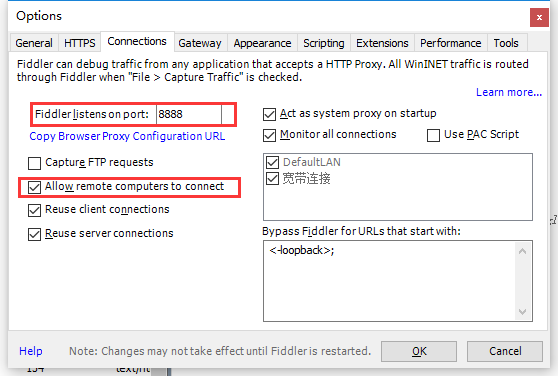

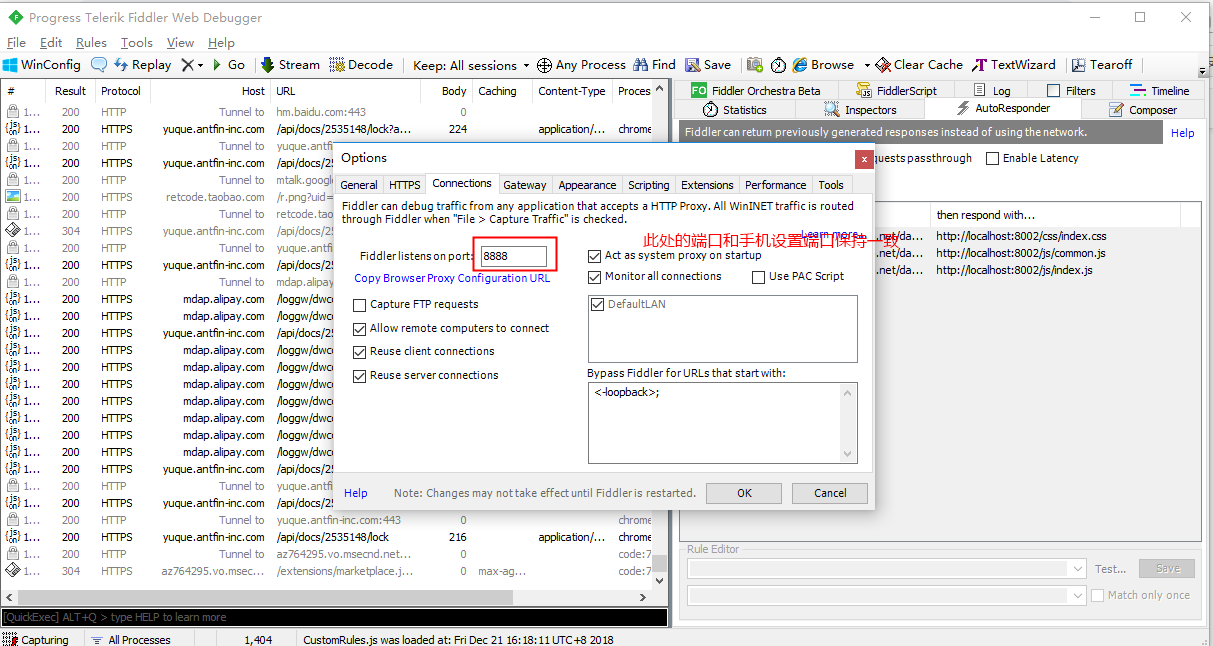

Then set about fiddler, intoolsLook insidefiddler options....Found in the panel that opens inside connections tab, after activation check Allow remote computers to connect that item, as shown below:



Means that, just as long as you can not even think, ah, come on, I dedicate my bandwidth to see if I was not very dedication. . . . ~ Well, again beside the point. . . .

After setting up the fiddler, see your machine ip address, and then set up wireless connections inside the agent on the phone.

Overheating feelings I use the phone, opening the inside there is a wireless advanced settings, proxy settings on the inside, Ye Hao other phone should look for.

Well, we set up, open the mobile browser, brushing a page, look at the list on the left fiddler's is not a lot of data, and if the page is accessed by the mobile phone side of Han Han, it is ok, the agency will set up a success.



Finally, on the reverse proxy with the above commissioning steps we are talking to debug this page ok.



Finished article.
