Model explanation

1. Netty abstract two sets of thread pools BossGroup and WorkerGroup, BossGroup is responsible for receiving client connections, and WorkerGroup is responsible for reading and writing of networks.
2. BossGroup and Workergroup types are nioeventloopgroup.
3. NioEventLoopGroup is equivalent to an event cycleThread groupThis group contains multiple event loop threads, each event loop thread is nioeventloop.
4. Each nioeventloop has a Selector for listening to the network communication registered on SocketChannel.
5. Steps per boss nioeventloop thread execution steps are 3 steps
   • Processing the Accept event, establish a connection with the Client, generate NiosocketChannel
   • Register NiosocketChannel to Selector on a WORKER NIOEVENTLOOP
   • Handling the task of the task queue, ie RunAllTasks
6. Steps per worker nioeventloop thread Perform step
   • Polling registered all Niosocketchannel on your own Selector's Read, Write events
   • Processing I / O events, ie Read, Write events, in correspondence NiosocketChannel processing services
   • RunAllTasks handles tasks for task queue TaskQueue, some time-consuming business processing can generally be processed in TaskQueue, which does not affect the flow of data in pipeline
7. When each Worker NioEventLoop processes the NiosocketChannel service, you will use the PIPELINE, and the PIPELINE maintains a lot of Handler processors to process data in Channel.

Module component

Bootstrap、ServerBootstrap

Bootstrap means booting, a Netty application is usually starting by a bootstrap, the main function is to configure the entire Netty program, in series, the BootStrap class in Netty is the boot boot class of the client program, ServerBootstrap is the service-enable boot class

Future、ChannelFuture

All IO operations in Netty are asynchronous and cannot beware of whether the message is properly processed.
But you can wait for a while to perform or directly register a monitored, the specific time is through Future and ChannelFutures, which can be registered with a monitor, and the listener will automatically trigger the registration monitoring event when the operation is performed.

Channel

Netty network communication components can be used to perform network I / O operations. Channel provides users:

• The status of the channel current network connection (is open? Is it connected, etc.)
• Configuration parameters for network connections (receiving buffer size)
• Provide asynchronous network I / O operation (establishment of connection, reading, binding port), asynchronous call means that any I / O call will return immediately, and does not guarantee the I / O operation of the autumn in the end of the call. .
• Call now returns a CHANNELFUTURE instance, by registering the listener to CHANELFUTURE, you can operate successfully, fail, or cancel the callback notification call.
• Support the associated I / O operation and the corresponding procedure. Different protocols, different blocked types of links have different CHANNEL types and corresponding.

Here are some common Channel types:

NiosocketChannel, asynchronous client TCP Socket connection.
NioserversocketChannel, asynchronous server-side TCP Socket connection.
NiodatagramChannel, asynchronous UDP connection.
NiosctPChannel, asynchronous client SCTP connection.
NiosCTPServerChannel, asynchronous SCTP server-side connection.
These channels covers UDP and TCP network IOs and file IO.

Selector

Netty is based on the Selector object to implement I / O multi-channel reuse, and you can listen to multiple connected Channel events through Selector. When you register with the Channel in a Selector, the mechanism within Selector can automatically query if these registered Channel has a ready I / O event (eg readable, writable, network connection completion, etc.), so The program can easily manage multiple Channel using a thread.

NioEventLoop

A thread and task queue is maintained in NiOEventLoop, support asynchronous submission execution tasks, and the thread is started to call the NiOEventLoop RUN method, perform I / O tasks and non-I / O tasks:
I / O mission, Ready events in SelectionKey, such as Accept, Connect, Read, Write, etc., triggered by ProcessSelectedKeys method
Non-I / O tasks, add to tasks in TaskQueue, such as register0, bind0 and other tasks, triggered by RunalLTasks method

NioEventLoopGroup

NiOEventLoopGroup, mainly manages EventLoop lifecycle, which can be understood as a thread pool, which maintains a set of threads, each thread (nioeventloop) responsible for handling multiple Channel, and a Channel only corresponds to a thread.

ChannelHandler

ChannelHandler is an interface, processing I / O events, or blocking I / O operations, forwarding it to the next handler in its CHANNELPIPELINE.
ChannelHandler itself does not provide many ways, because this interface has many methods need to be realized, and can inherit its subclasses during the trial

ChannelInBoundHandler is used to process an inbound I / O event.
ChannelOutBoundHandler is used to process outbound I / O operations.

Or use the following adapter classes

ChannelInBoundHandleRadapter is used to process an inbound I / O event.
ChannelOutBoundHandleRadapter is used to process outbound I / O operations.

ChannelHandlerContext

Save all Context information related to Channel while managing the ChannelHandler object.

ChannelPipeline

Save ChannelHandler's List for handling or intercepting the incoming events of Channel and outbound operations.
ChannelPipeline implements a high-grade intercept filter mode that allows users to fully control the processing method of the event, and how the ChannelHandler in Channel interacts with each other.

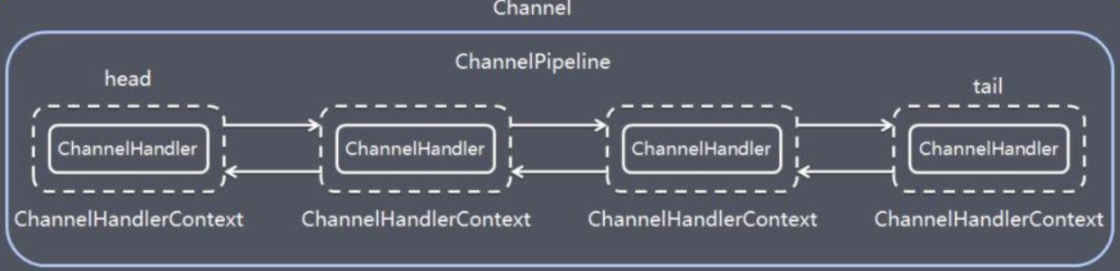

Each Channel in Netty has only one channelpipeline corresponding, and their compositional relationships are as follows

A Channel contains a CHANNELPIPELINE, while ChannelPipeline has maintained a two-way linked list consisting of ChannelHandlerContext, and a ChannelHandler is associated with each ChannelHandlerContext.

Read events (inbound events) and WRITE events (outbound events) In a two-way linked list, inbound events are passed from the list of HEADs to the last inbound handler, and outbound events will pass from the list TAIL to The one-stop Handler, two types of Handler interfere with each other.

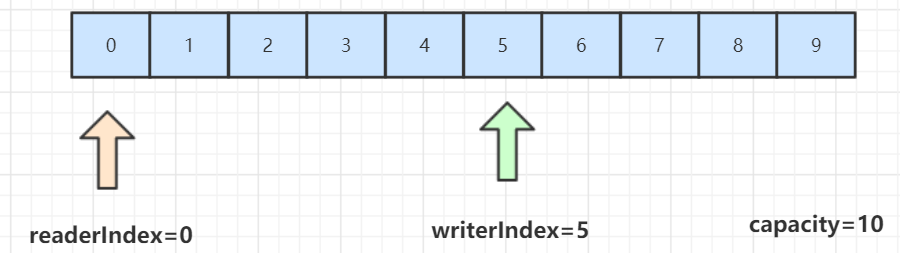

ByteBuf

From the structure, Bytebuf is constructed from a string byte array. Each byte in the array is used to store information.

Bytebuf provides two indexes, one for reading data, one for writing data. By moving in the byte array, these two indexes are positioned to locate the location where read or write information.

When read from bytebuf, its ReaderIndex will increase based on the number of bytes read.

Similarly, when writing Bytebuf, its WriterIndex will also increase according to the number of bytes written.

It should be noted that the limit is that readerIndex just reads the WriterIndex written.

When ReaderIndex exceeds WriterIndex, Netty will throw indexOutofboundsexception.

Sample code:

import io.netty.buffer.ByteBuf;
import io.netty.buffer.Unpooled;
import io.netty.util.CharsetUtil;

public class NettyByteBuf {
    public static void main(String[] args) {
        // Create a BYTEBUF object, the inside of the object contains a byte array byte [10]
        // divide Buffer into three areas via ReaderIndex and WriterIndex and Capacity
        // The area that has been read: [0, ReaderIndex)
        // Readable area: [ReaderIndex, WriterIndex)
        // Well-writable area: [WriterIndex, Capacity)
        ByteBuf byteBuf = Unpooled.buffer(10);
        System.out.println("byteBuf=" + byteBuf);

        for (int i = 0; i < 8; i++) {
            byteBuf.writeByte(i);
        }
        System.out.println("byteBuf=" + byteBuf);

        for (int i = 0; i < 5; i++) {
            System.out.println(byteBuf.getByte(i));
        }
        System.out.println("byteBuf=" + byteBuf);

        for (int i = 0; i < 5; i++) {
            System.out.println(byteBuf.readByte());
        }
        System.out.println("byteBuf=" + byteBuf);


        // Create bytebuf with UNPOOLED Tool Class
        ByteBuf byteBuf2 = Unpooled.copiedBuffer("hello,xiaobai2021!", CharsetUtil.UTF_8);
        // use related methods
        if (byteBuf2.hasArray()) {
            byte[] content = byteBuf2.array();
            // convert content into string
            System.out.println(new String(content, CharsetUtil.UTF_8));
            System.out.println("byteBuf2=" + byteBuf2);

            System.out.println(byteBuf2.getByte(0)); / / Get the ASCII code of the character H of the array 0, H = 104

            int len = byteBuf2.readableBytes(); // Readable bytes 12
            System.out.println("len=" + len);

            // Use for to remove each byte
            for (int i = 0; i < len; i++) {
                System.out.println((char) byteBuf2.getByte(i));
            }

            // Range Read
            System.out.println(byteBuf2.getCharSequence(0, 6, CharsetUtil.UTF_8));
            System.out.println(byteBuf2.getCharSequence(6, 6, CharsetUtil.UTF_8));
        }
    }
}
