Call up matlab homepage during Carsim/Simulink co-simulation

tags: Carsim/Simulink matlab Experience sharing

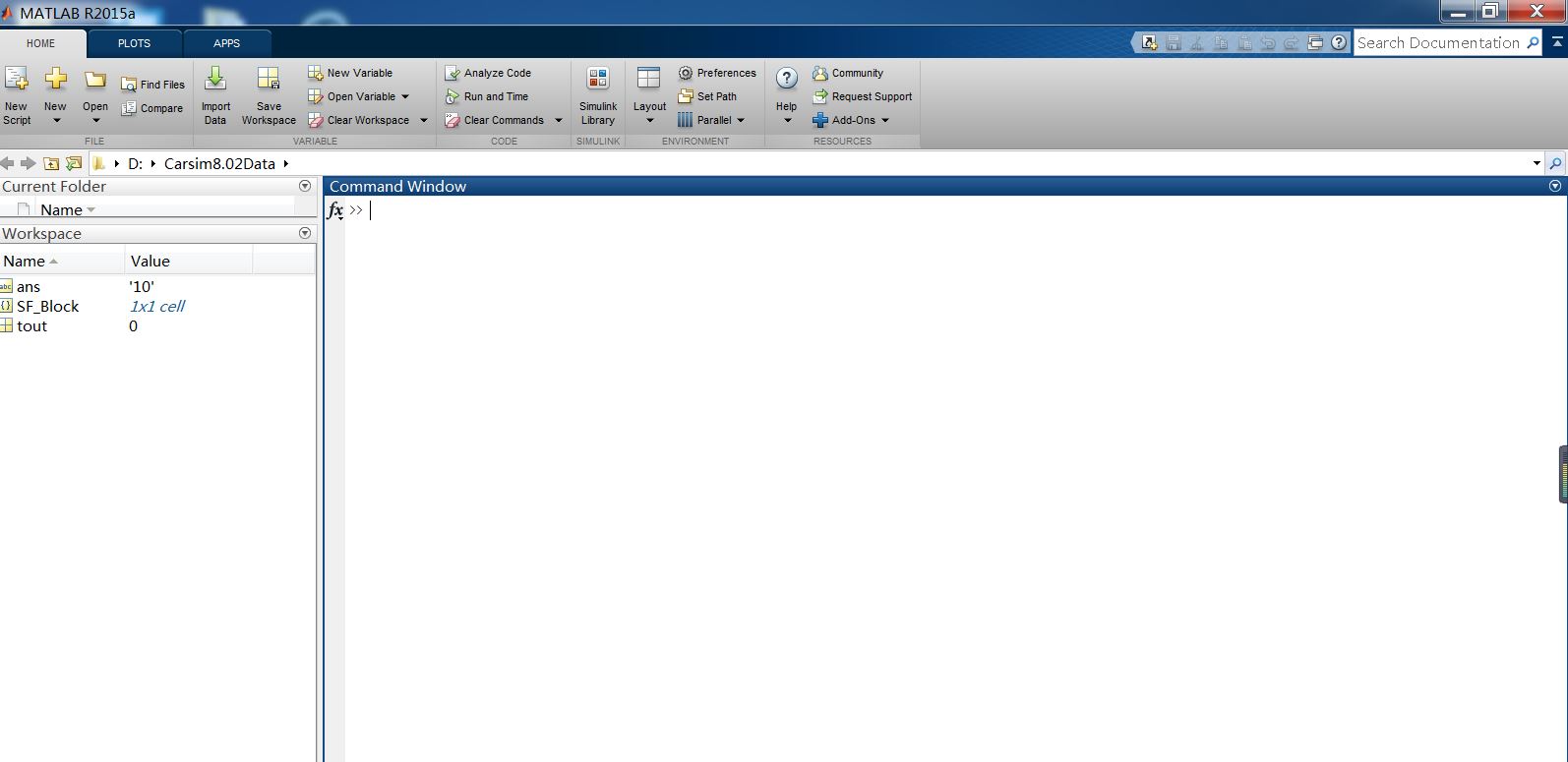

When Carsim and simulink are co-simulating, after clicking send to simulink, only the MATLAB command window appears, as shown in the figure below.

But it is more convenient for us to process some data on the main page of MATLAB in many cases. At this time, we can enter in the command window

desktop

Press Enter to open the MATLAB homepage, as shown in the figure below.
