In the article the use of PyCharm operation Github: New warehouse, update, roll back the code, we have learned how to use PyCharm to operate Github, which includes some common operations Github: New warehouse, updates, and roll back the code. In this article, we will introduce another part of the common operations Git: the new branches, switching, merge, delete, these operations we will be implemented by PyCharm, use Github as a demonstration of Git.
We assume that the reader already set up Git and Github account in PyCharm while some basic understanding of the Git branch operation. We have a test project Github_From_PyCharm on the author's Github, for example, visit the project's web site is: https: //github.com/percent4/Github_From_PyCharm, the project is now only a default master branch.
We clone the project locally.

New branch

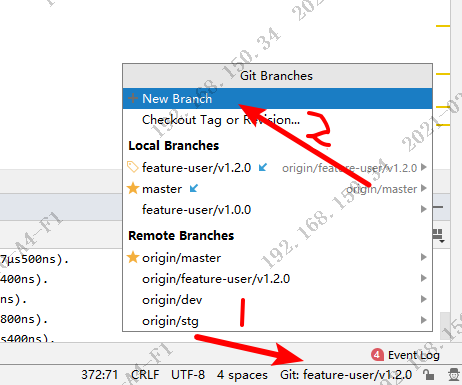

PyCharm clone to open with local Github_From_PyCharm items, click on the lower of the following Event log Git: master branch information can be found to the project, as shown below:

can be found, the item on the local, remote Github only one default master branch. Click "+ New Branch" to create a new branch, we named "test" branch, create good will find the bottom right after "Git: master" is displayed as "Git: test", explained the project in the local branch has switching to test branch, we create a test.txt, the content of which is "This is a test branch in 2019-12-21."
article according to the item using the operation PyCharm Github: warehouse create, update, step rollback submitted to the code on Github, the interface successfully submitted after Github follows:

to view the test branch, we can see a new a test.txt file, which reads as follows:

This shows that we have successfully created a new branch: test, and submitted successfully.

Switch

Branch switch PyCharm in very simple, we click again on the bottom right corner Event Log under "Git test", shown below:

can be seen, now renamed item has two branches on the local, Github: master and test, while now the test branch. If we want to switch to the master branch, you need to click on the right side of the text master branch "origin / master", and then select the "Checkout" can, at this time the lower right should be displayed as "Git: master", explained the project has switched to the master branch a.

Branches merge

If we need to test the combined branch to master branch is merged into the master branch test modify the contents of the branch. The first item is switched to the master branch, right -> Git -> Repository -> Merge Changes, as shown below:

In the dialog box shells, branches merged to select local branch test, and write Commit Message, as shown below:

Click "Merge" button, the project has been successful merger. If we want to master branch after the merger be submitted to the Github, this time we need to pay attention, right click the selection Git, select "Add" and then push to Github, note, choose "Add", rather than "Commmit Directory" otherwise PyCharm will prompt "no changes detected". This time we'll see what the master branch on Github, shots are as follows:

you can see, remote branches have been merged successfully, we successfully modify the content test branches merged into the master branch.

Deleted branches

Branch delete operation is very simple, and very similar to the switching operation of the branch, we click on the bottom right corner of "Git master", click on the test local branch to be deleted, then select "Delete" can be.

The share is over, thank you for reading ~
