nginx + rtmp build streaming server

First, install the nginx server

1. Path description:

　　 Path: /usr/local/src

2. Download nginx-rtmp-module (my directory here is under /usr/local/src/)

       cd /usr/local/src

The official github address of nginx-rtmp-module: https://github.com/arut/nginx-rtmp-module

        git clone https://github.com/arut/nginx-rtmp-module.git

(If there is no git to install, yum install git)



3. Nginx version and installation

Download nginx-1.8.0.tar.gz to decompress and install

　　Wget http://nginx.org/download/nginx-1.8.0.tar.gz (If you cannot download it, please find it yourself)

tar -zxvf nginx-1.8.0.tar.gz (decompress)

cd nginx-1.8.0 (enter the directory)

        ./configure --prefix=/usr/local/src/nginx  --add-module=../nginx-rtmp-module  --with-http_ssl_module

        make && make install



(If it is found that nginx lacks pcre, then proceed.

Error message:

       ./configure: error: the HTTP rewrite module requires the PCRE library.………………………………

Install pcre-devel and openssl-devel to solve the problem

       yum -y install pcre-devel openssl openssl-devel

       Here I downloaded and installed pcre-8.12.tar.gz and openssl-1.0.1c.tar.gz without the above error.

       ）



Nginx verification:

　　

Nginx verification passed!



4. Modify the nginx configuration file

　　rtmp {
　　　　server {
　　　　listen 1935; #listening port
　　　　chunk_size 4000;
　　　　application cctvf {#rtmpPush stream request path (remember that the wrong path will not push upstream)
　　　　　　　　live on; #Turn on real time
　　　　　　　　hls on; # hls
　　　　　　　　hls_path /usr/local/src/nginx/html/cctvf; #rtmpPush stream request path, file storage path
　　　　　　　　hls_fragment 5s; #Each TS file contains 5 seconds of video content
　　　　　　}
　　　　}
　　}



At this point, part of the configuration of nginx and nginx-rtmp-module is completed.

2. OBS download and installation

1. OBS version and installation

OBS version: 21.0.1

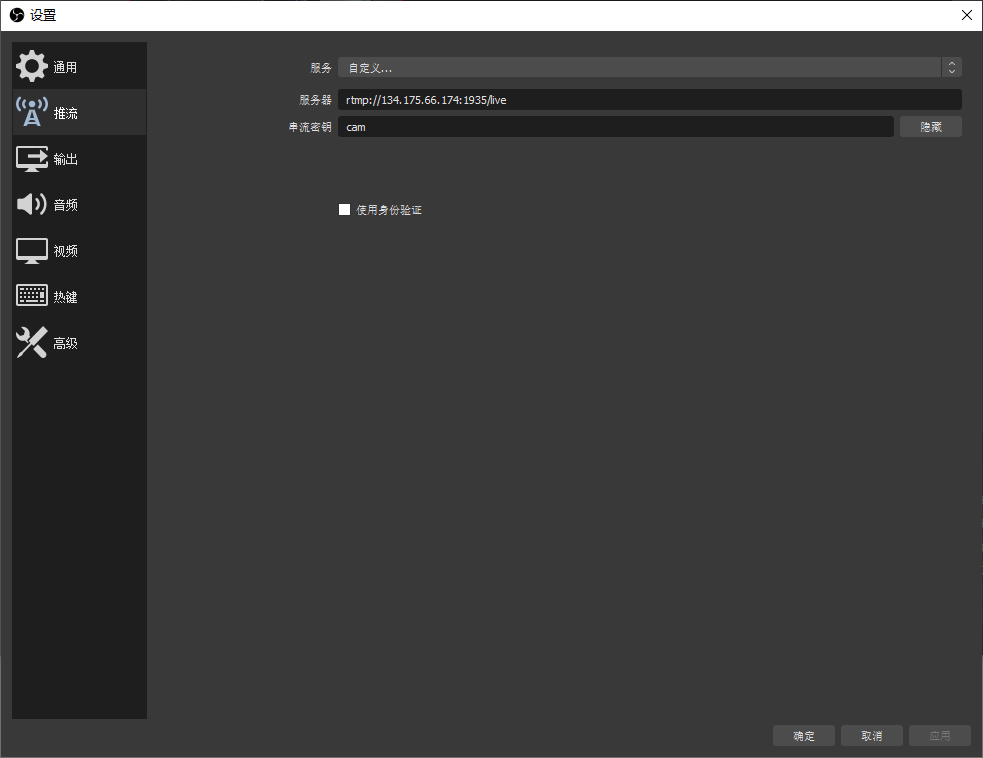

2. OBS configuration





3. Push-pull flow test

1. OBS push streaming



Verification:

　　

Video stream files already exist. . . . . .

2. http streaming streaming (played with VLC)

Stream address: http://192.168.189.134:85/cctvf/zm.m3u8



Http stream can be pulled. . . . . .

3. RTMP pull stream

3.1 Network Player Verification

(Network Pull Player Address: http://www.cutv.com/demo/live_test.swf)

RTMP pull stream address: rtmp://192.168.189.134:1935/cctvf/zm



After the verification is passed, it can already be pulled to the stream. . . . . . .

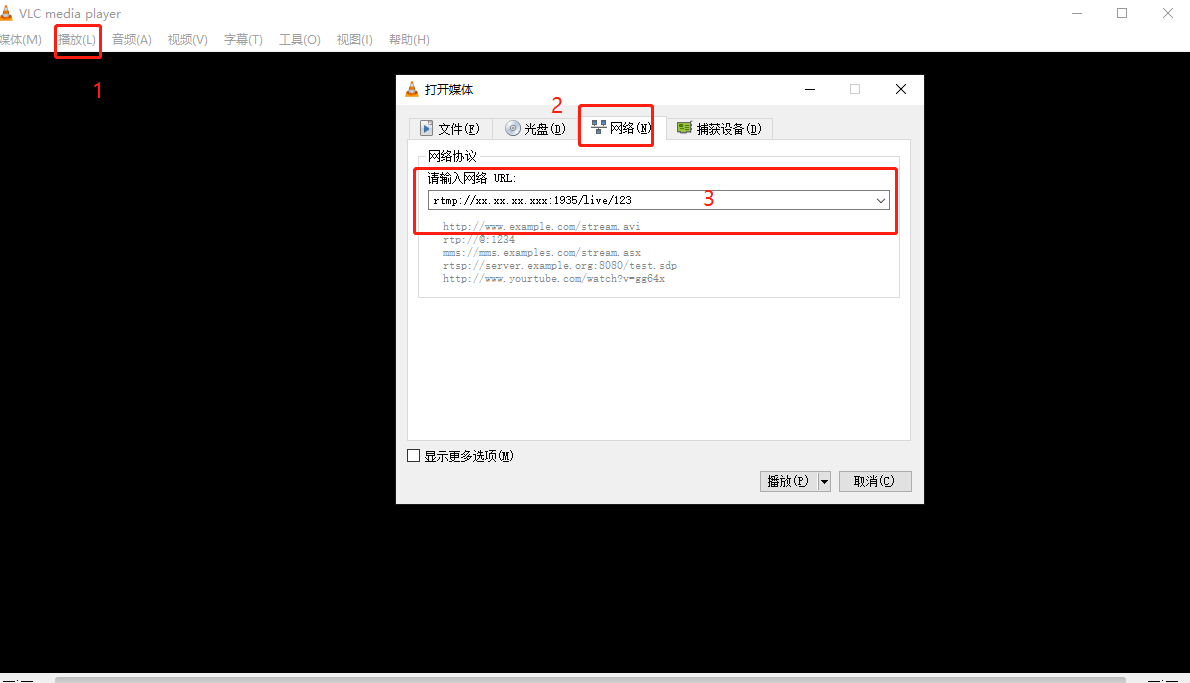

3.2 VCL verification



The verification is passed. . . . .
