I. Experimental requirements

WriteYUVConvert toRGBprogram of. Convert the given experimental data toRGBfile. And originalRGBThe file is compared, if there is an error, what is the analysis error comes from. to sum up RGB with YUV Conversion formula and programming implementation of color space conversion and writes an experimental report.

2. Experimental Principle

1. RGBConvert to YUV formula:

Y=0.299R+0.587G+0.114B

U=-0.1684R-0.3316G-0.1140B

V=0.5R-0.4187G-0.0813B

1. YUVConvert to RGB formula:

R=Y+1.4075（V-128）

G=Y-0.3455（U-128）-0.7169（V-128）

B=Y+1.779（U-128）

*Since the UV component is set to +128 when calculating the UV component, it is limited to [0,255], so it is necessary to minus the UV 128 when the conversion of YUV is performed to the RGB.



Experiment process

1. ​​​​​​​Main program construction:

​​​​​​​1）Overall process: First, create Height * Width * 5/4 unsigned char space (YUV value is [0,255], so use unsigned character storage, due to the sampling format 4: 2: 0, so Y Y Occupy HEIGHT * WIDTH, UV occupies the area of ​​Height * Width / 4, pays attention to whether height and width are even as an even number and whether space is successfully opened. If it does not satisfy the above two points, exit the program and return 1. Read the original .yuv file, the parameter value inputs the self-built function YUV2RGB to perform YUV conversion to the RGB, and the resulting RGB data reads in the Down_Out.RGB file.

2）Ideological map:

3Key code and analysis:

filename_yuv=argv[1];

filename_rgb=argv[2];

height=atoi(argv[3]);

width=atoi(argv[4]);

The original .rgb file name and image width are read from the original .rgb file name, and image wide.

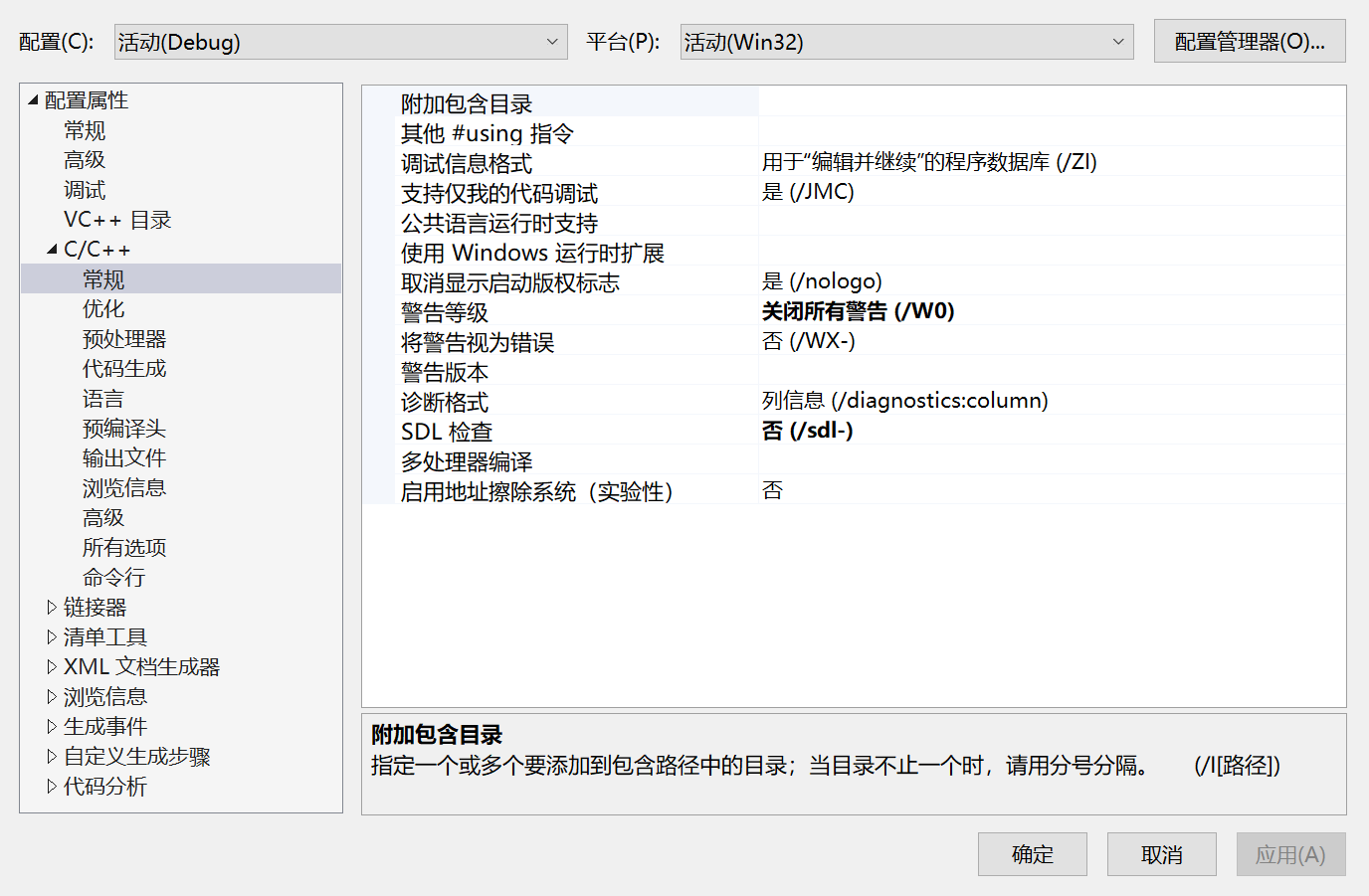

Set mode:

4) Full code:



int main(int argc, char** argv)
{
	int height,width;
	char *filename_yuv,*filename_rgb;
	filename_yuv=argv[1];
	filename_rgb=argv[2];
	height=atoi(argv[3]);
	width=atoi(argv[4]);
	unsigned char *YUV_buffer=NULL,*Y_buffer,*U_buffer,*V_buffer;
	unsigned char *RGB_buffer=NULL;
	unsigned char *YUV_buffer_del,*RGB_buffer_del;
	YUV_buffer=new unsigned char[height*width*3/2];
	YUV_buffer_del=YUV_buffer;
	if((width%2==1)||(height%2==1))
	{
		printf("please input the right height and width/n");
	}
	if(YUV_buffer==NULL)
	{
		printf("can not new unsignde char/n");
		exit(1);
	}
	FILE *fp_yuv=NULL,*fp_rgb=NULL;
	fp_yuv=fopen(filename_yuv,"rb");
	fp_rgb=fopen(filename_rgb,"wb");
	if((fp_yuv==NULL)||(fp_rgb==NULL))
	{
		printf("can not open the file/n");
		exit(1);
	}
	fread(YUV_buffer,sizeof(unsigned char),height*width*3/2,fp_yuv);
	Y_buffer=YUV_buffer;
	U_buffer=YUV_buffer+height*width;
	V_buffer=YUV_buffer+(height*width*5)/4;
	RGB_buffer=new unsigned char[height*width*3];
	RGB_buffer_del=RGB_buffer;
	if(RGB_buffer==NULL)
	{
		printf("can not new unsigned char/n");
		exit(1);
	}
	YUV2RGB(height,width,Y_buffer,U_buffer,V_buffer,RGB_buffer);
	fwrite(RGB_buffer,sizeof(unsigned char),height*width*3,fp_rgb);
	fclose(fp_yuv);
	fclose(fp_rgb);
	delete[] YUV_buffer_del;
	delete[] RGB_buffer_del;
	return 0;
}

2. Self-editing function YUV2RGB:

1) Process: First separate the UV of Height * Width / 4 size into the HEIGHT * WIDTH size space, which is convenient to follow-up, and then calculate its RGB value according to YUV of each pixel.

2) Key code and analysis:

& 1. Extension UV to Height * Width Size:

            *pu_up1=*U__buffer;
			*(pu_up1+1)=*U__buffer;
			*pu_up2=*U__buffer;
			*(pu_up2+1)=*U__buffer;
			pu_up1+=2;
			pu_up2+=2;

			*pv_up1=*V__buffer;
			*(pv_up1+1)=*V__buffer;
			*pv_up2=*V__buffer;
			*(pv_up2+1)=*V__buffer;
			pv_up1+=2;
			pv_up2+=2;

Each time you operate four adjacent pixels, where PU_UP1 points to the position of the first row of the first row in four pixels, PU_UP2 points to the position of the second row. After each operation, PU_UP1 and PU_UP2 need to be moved two times respectively. The operation of V is the same.

&2.

if(i!=(height/2))
		{
			pu_up1+=width;
			pu_up2+=width;
			pv_up1+=width;
			pv_up2+=width;
		}

In addition to the rest of the last field, the rest of the last field will be moved to the next row, in addition to the position of the last field, PU_UP2, PV_UP1, PV_UP2.

&3.

if((y[*Y__buffer]+v14075[*v_buffer])<0)
			*r_buffer=(unsigned char)0;
		else
			if((y[*Y__buffer]+v14075[*v_buffer])>255)
				*r_buffer=(unsigned char)255;
			else *r_buffer=(unsigned char)(y[*Y__buffer]+v14075[*v_buffer]);

Judging the RGB value of each pixel, if it is less than zero, then take 255 more than 255, prevent the unsigned char value overflow

&4.

    float v14075[256],u03455[256],v07169[256],u1779[256],y[256];
	for(int i=0;i<256;i++) v14075[i]=(i-128)*1.4075;
	for(int i=0;i<256;i++) u03455[i]=(i-128)*0.3455;
	for(int i=0;i<256;i++) v07169[i]=(i-128)*0.7169;
	for(int i=0;i<256;i++) u1779[i]=(i-128)*1.779;
	for(int i=0;i<256;i++) y[i]=i;

With spatial exchange efficiency, the introduction of the 1.4075 * (V-128) equation at V-Take [0,255] all values ​​when V-Take [0,255], and only according to V value according to V, no need to calculate.

3) Full code:

#include<stdio.h>
#include<stdlib.h>
//static float v14075[256],u03455[256],v07169[256],u1779[256];
//void YUVTable()
//{
//	 for(int i=0;i<256;i++) v14075[i]=i*1.4075;
//	 for(int i=0;i<256;i++) u03455[i]=i*0.3455;
//	 for(int i=0;i<256;i++) v07169[i]=i*0.7169;
//	 for(int i=0;i<256;i++) u1779[i]=i*1.779;
//}

int YUV2RGB(int height,int width,unsigned char *Y__buffer,unsigned char *U__buffer,unsigned char *V__buffer,unsigned char *RGB__buffer)
{
	float v14075[256],u03455[256],v07169[256],u1779[256],y[256];
	for(int i=0;i<256;i++) v14075[i]=(i-128)*1.4075;
	for(int i=0;i<256;i++) u03455[i]=(i-128)*0.3455;
	for(int i=0;i<256;i++) v07169[i]=(i-128)*0.7169;
	for(int i=0;i<256;i++) u1779[i]=(i-128)*1.779;
	for(int i=0;i<256;i++) y[i]=i;
	unsigned char *u_buffer,*v_buffer;
	unsigned char *pu_up1,*pu_up2,*pv_up1,*pv_up2;
	unsigned char *b_buffer,*g_buffer,*r_buffer;
	unsigned char *u_buffer_del,*v_buffer_del;
	u_buffer=new unsigned char[height*width];
	v_buffer=new unsigned char[height*width];
	u_buffer_del=u_buffer;
	v_buffer_del=v_buffer;
	pu_up1=u_buffer;
	pu_up2=u_buffer+width;
	pv_up1=v_buffer;
	pv_up2=v_buffer+width;
	for(int i=0;i<(height/2);i++)
	{
		for(int j=0;j<(width/2);j++)
		{
			*pu_up1=*U__buffer;
			*(pu_up1+1)=*U__buffer;
			*pu_up2=*U__buffer;
			*(pu_up2+1)=*U__buffer;
			pu_up1+=2;
			pu_up2+=2;

			*pv_up1=*V__buffer;
			*(pv_up1+1)=*V__buffer;
			*pv_up2=*V__buffer;
			*(pv_up2+1)=*V__buffer;
			pv_up1+=2;
			pv_up2+=2;

			U__buffer++;
			V__buffer++;

		}
		if(i!=(height/2))
		{
			pu_up1+=width;
			pu_up2+=width;
			pv_up1+=width;
			pv_up2+=width;
		}
	}
	b_buffer=RGB__buffer;
	g_buffer=RGB__buffer+1;
	r_buffer=RGB__buffer+2;
	For (int i = 0; i <(height * width); i ++) // calculate RGB
	{
		/**r_buffer=(unsigned char)(y[*Y__buffer]+v14075[*v_buffer]);
		*g_buffer=(unsigned char)(y[*Y__buffer]-u03455[*u_buffer]-v07169[*v_buffer]);
		*b_buffer=(unsigned char)(y[*Y__buffer]+u1779[*u_buffer]);*/
		if((y[*Y__buffer]+v14075[*v_buffer])<0)
			*r_buffer=(unsigned char)0;
		else
			if((y[*Y__buffer]+v14075[*v_buffer])>255)
				*r_buffer=(unsigned char)255;
			else *r_buffer=(unsigned char)(y[*Y__buffer]+v14075[*v_buffer]);

		if((y[*Y__buffer]-u03455[*u_buffer]-v07169[*v_buffer])<0)
			*g_buffer=(unsigned char)0;
		else
			if((y[*Y__buffer]-u03455[*u_buffer]-v07169[*v_buffer])>255)
				*g_buffer=(unsigned char)255;
			else *g_buffer=(unsigned char)(y[*Y__buffer]-u03455[*u_buffer]-v07169[*v_buffer]);

		if((y[*Y__buffer]+u1779[*u_buffer])<0)
			*b_buffer=(unsigned char)0;
		else
			if((y[*Y__buffer]+u1779[*u_buffer])>255)
				*b_buffer=(unsigned char)255;
			else *b_buffer=(unsigned char)(y[*Y__buffer]+u1779[*u_buffer]);
		b_buffer+=3;
		g_buffer+=3;
		r_buffer+=3;
		Y__buffer++;
		u_buffer++;
		v_buffer++;
	}
	delete[] u_buffer_del;
	delete[] v_buffer_del;
	return 0;
}

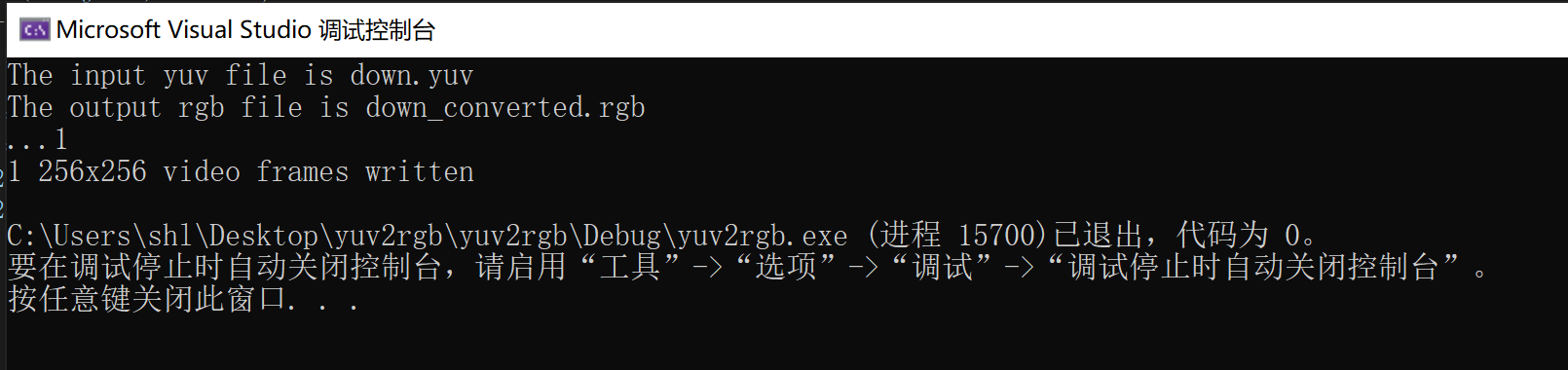

Four. Operation results
