In project (1), we successfully captured the data packet and extracted the basic information in the data packet. This time we will output the various protocols used by the data packet and output the meaning of each layer of protocol. (In fact, just write a Wireshark).

In order to output the meaning of the information of each layer, let's first understand the PDU header of each layer:

1. Ethernet frame header

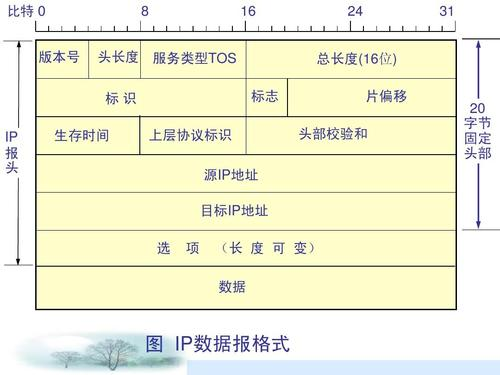

2. IP datagram header:

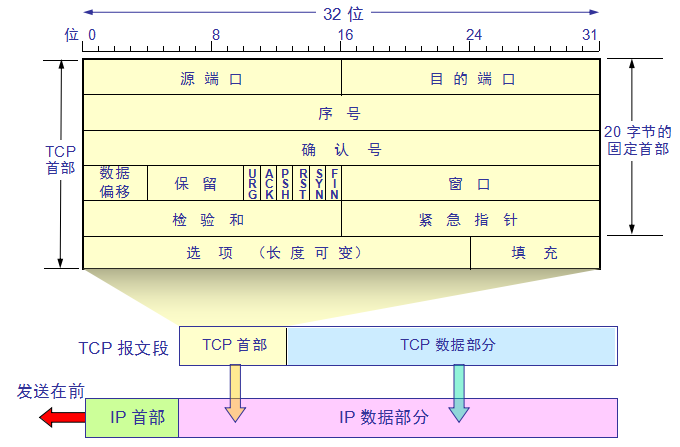

3. TCP datagram:

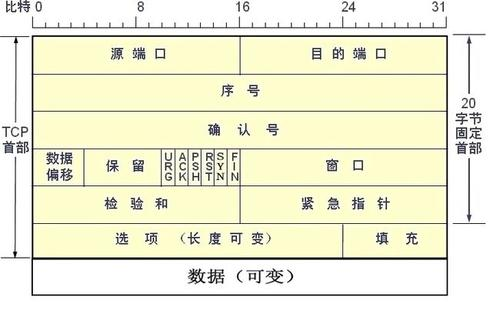

4. UDP datagram:


In my code, I quoted some Linux system library header files without rewriting the header files myself. The library files can go to the / usr / include / linux directory to find ip.h, tcp.h and udp. Useful header files such as h help everyone understand.

More detailed comments are given in the code. I hope to be helpful.

#include <stdio.h>
#include <stdlib.h>
#include <pcap.h>
#include <time.h>
#include <unistd.h>
#include <errno.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <netinet/if_ether.h>
#include <linux/ip.h>
#include <linux/tcp.h>
#include <linux/udp.h>

// Output Ethernet frame header information
void print_ether_header_info(struct ether_header *eptr){
	int i;
	u_char *ptr;

	printf("Enthernet II:\n");
	ptr = eptr->ether_dhost;// Destination MAC address
	i = ETHER_ADDR_LEN;
	printf("Destination MAC addres: ");
	do{
        	printf ("%s%02x", (i == ETHER_ADDR_LEN)?"":":", *ptr++);
    	}while(--i>0);
   	printf ("\n");

	ptr = eptr->ether_shost;// Source MAC address
    	i = ETHER_ADDR_LEN;
	printf("Sourse MAC address: ");
	do{
        	printf ("%s%02x", (i == ETHER_ADDR_LEN)?"":":", *ptr++);
    	}while(--i>0);
	printf("\n");

	printf("Enthernet type: %#04x ",ntohs(eptr->ether_type));// Load type
	if(ntohs(eptr->ether_type) == ETHERTYPE_IP)
		printf("(IPv4)\n");
	else if(ntohs(eptr->ether_type) == ETHERTYPE_ARP)
		printf("(ARP)\n");
	else if(ntohs(eptr->ether_type) == ETHERTYPE_REVARP)
		printf("(RARP)\n");
	else
		printf("(Other)\n");
}

// Output IP header information
void print_ip_header_info(struct iphdr *ipptr){
	struct in_addr addr;
	char *c;
	c = (char *)(ipptr);

	printf("\nInternet Portocol:\n");
	printf("Version: %d\n",ipptr->version);//version number
	printf("Header length: %d\n",ipptr->ihl);// Head length
	printf("Total length: %d\n",ntohs(ipptr->tot_len));// Total length
	printf("Identification: %#04x\n",ipptr->id);// Authentication
	c += 6;
	printf("Flags: 0x%02x%02x",(*c),(*(c + 1)));// Flag DF, MF
	if((*c)==0x40&&(*(c+1))==0x00)
		printf(" Don't fragment\n");
	else printf(" More fragment\n");
	printf("Time to live: %d\n",ipptr->ttl);//TTL
	printf("Protocol: ");// Transport layer protocol
	if(ipptr->protocol == 1)
		printf("ICMP(1)\n");
	else if(ipptr->protocol == 2)
		printf("IGMP(2)\n");
	else if(ipptr->protocol == 6)
		printf("TCP(6)\n");
	else if(ipptr->protocol == 17)
		printf("UDP(17)\n");
	else printf("Unknow(%d)\n",ipptr->protocol);
	printf("Header checksum: %#04x\n",ipptr->check);// Checksum
	addr.s_addr = ipptr->saddr;
	printf("Source IP address: %s\n",inet_ntoa(addr));// Source IP address
	addr.s_addr = ipptr->daddr;
	printf("Destination IP address: %s\n",inet_ntoa(addr));// Destination IP address
}

// Output TCP header information
void print_tcp_header_info(struct tcphdr *tcpptr){
	printf("\nTransmission Control Protocol(TCP):\n");
	printf("Source port: %d\n",ntohs(tcpptr->source));// Source port
	printf("Destination port: %d\n",ntohs(tcpptr->dest));// Destination port
	printf("Seq: %u\n",ntohs(tcpptr->seq));//Confirmation Number
	printf("Checksum: %#04x\n",tcpptr->check);// Checksum
}

// Output UDP header information
void print_udp_header_info(struct udphdr *udpptr){
	printf("\nUser Datagram Protocol(UDP):\n");
	printf("Source port: %d\n",ntohs(udpptr->source));// Source port
	printf("Destination port: %d\n",ntohs(udpptr->dest));// Destination port
	printf("Length: %d\n",ntohs(udpptr->len));//length
	printf("Checksum: %#04x\n",udpptr->check);// Checksum
}

// Output data information
void print_data_info(int j,const struct pcap_pkthdr *pkthdr,const u_char *packet){
	int i;
	printf("\nData:\n");
	for(i=0;j<pkthdr->len;i++,j++){
		printf(" %02x",packet[j]);
		if((i+1)%16==0)
			printf("\n");
	}
	printf("\n");
}

//Callback
void print_info(u_char *user,const struct pcap_pkthdr *pkthdr,const u_char *packet){
	int j,*id;
	struct ether_header *eptr;
	struct iphdr *ipptr;
	struct tcphdr *tcpptr;
	struct udphdr *udpptr;

	j = 0,id = (int *)user;
	printf("id: %d\n",++(*id));
	printf("Packet length: %d\n",pkthdr->len);// The length of the packet
	printf("Number of bytes: %d\n",pkthdr->caplen);// Number of packets
	printf("Reciverd time: %s\n",ctime((const time_t *)&pkthdr->ts.tv_sec));// Time when the package was received

	// Get the Ethernet frame header
	eptr = (struct ether_header*)packet;
	print_ether_header_info(eptr);
	j += 14;

	if(ntohs(eptr->ether_type) == ETHERTYPE_IP){
		// Get IP packet header
		ipptr = (struct iphdr *)(packet + sizeof(struct ether_header));
		print_ip_header_info(ipptr);
		j += ipptr->ihl;

		if(ipptr->protocol == 6){
			// Get tcp packet
			tcpptr = (struct tcphdr *)(packet + sizeof(struct ether_header) + sizeof(struct iphdr));
			print_tcp_header_info(tcpptr);
			j += 20;
		}else if(ipptr->protocol == 17){
			// Get udp packet
			udpptr = (struct udphdr *)(packet + sizeof(struct ether_header) + sizeof(struct iphdr));
			print_udp_header_info(udpptr);
			j += 20;
		}else
			printf("\nThis packet didn't use TCP/UDP protocol.\n");
	}else
		printf("\nThis packet didn't use IP protocol.\n");

	// Get data, if it is not IP, not UDP / TCP, then treat the header of other protocols as data
	print_data_info(j,pkthdr,packet);

	printf("\n\n");
}

int main(){
	char *device;
	char errBuf[PCAP_ERRBUF_SIZE];
	pcap_t *head;
	int id;

	device = "ens33";// Convert to ens33 network card
	// Open the device device, the maximum number of bytes is 65535, it is not in promiscuous mode, and it does not return if it does not capture the data packet, and the error message
	head = pcap_open_live(device,65535,0,0,errBuf);
	if(head){
		printf("Open device success!\n");
	}else{
		printf("Open device failed. %s\n",errBuf);
		return 0;
	}

	// Wait for a packet to return
	struct pcap_pkthdr packet;
	const u_char *packetflag = pcap_next(head,&packet);
	if(packetflag){
		printf("Get a pcaket success.\n");
		id = 0;
		pcap_loop(head,1,print_info,(u_char *)&id);
	}else{
		printf("Get a pcaket failed. %s\n",errBuf);
		pcap_close(head);
		return 0;
	}

	// Turn off the device and return the resources
	pcap_close(head);

	return 0;
}

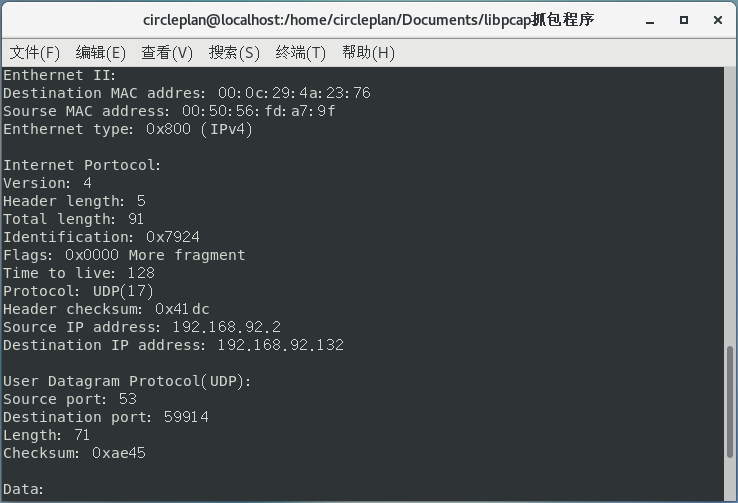

In this way, we parse the PDU header of each layer and output the meaning of the corresponding information in each header.
There is only one packet to try here, you can also set parameters to capture many packets to parse.
